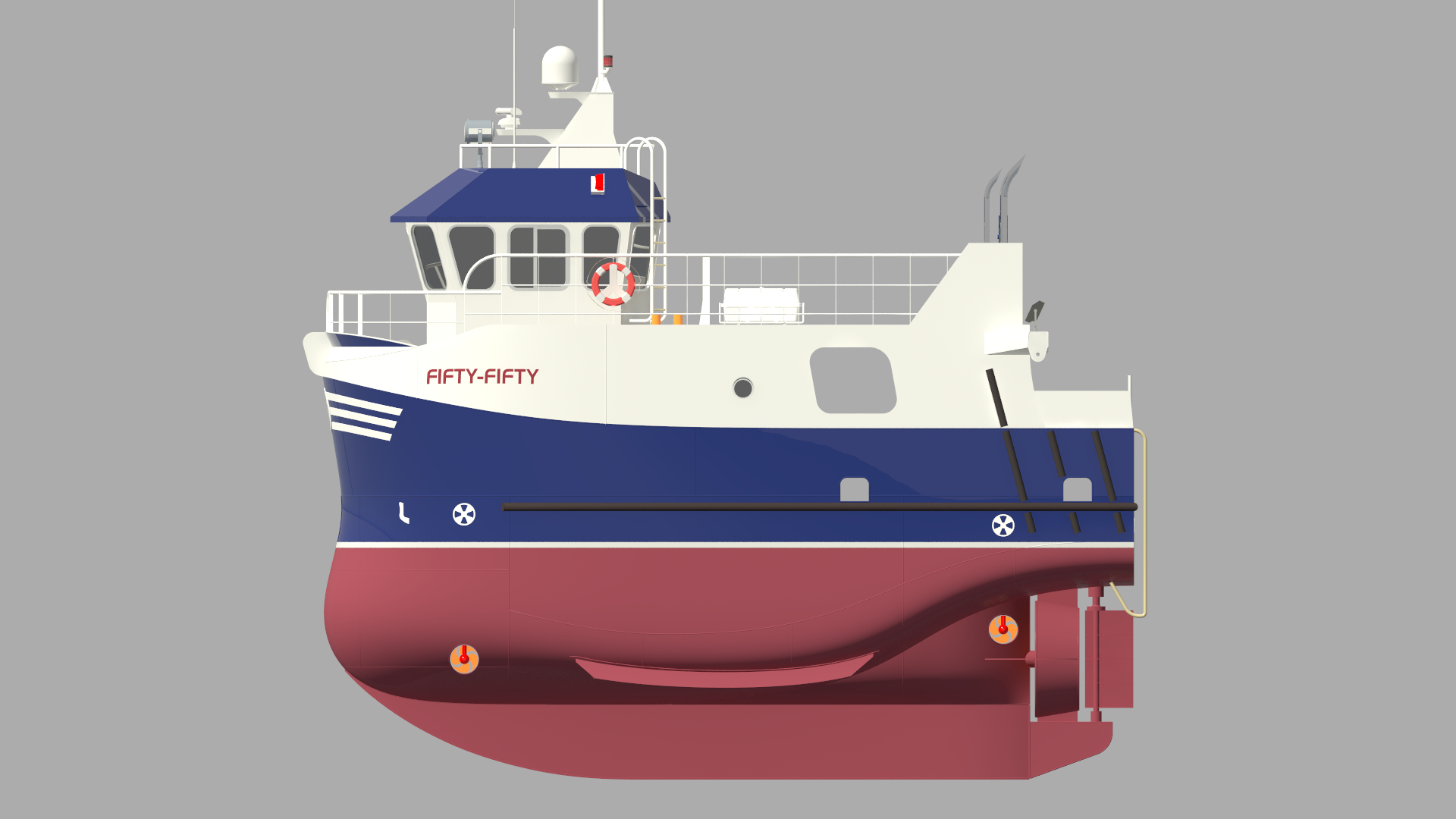

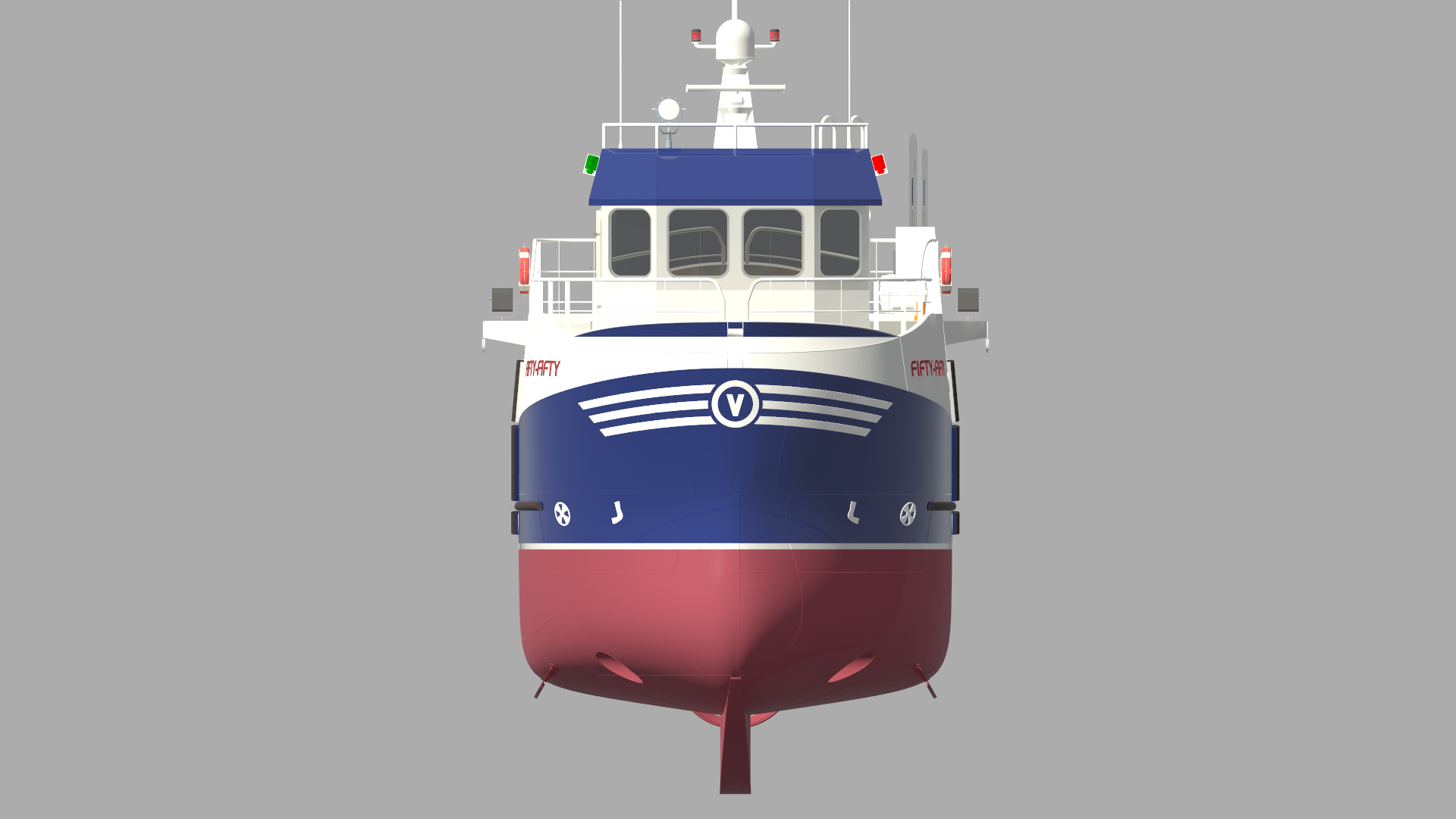

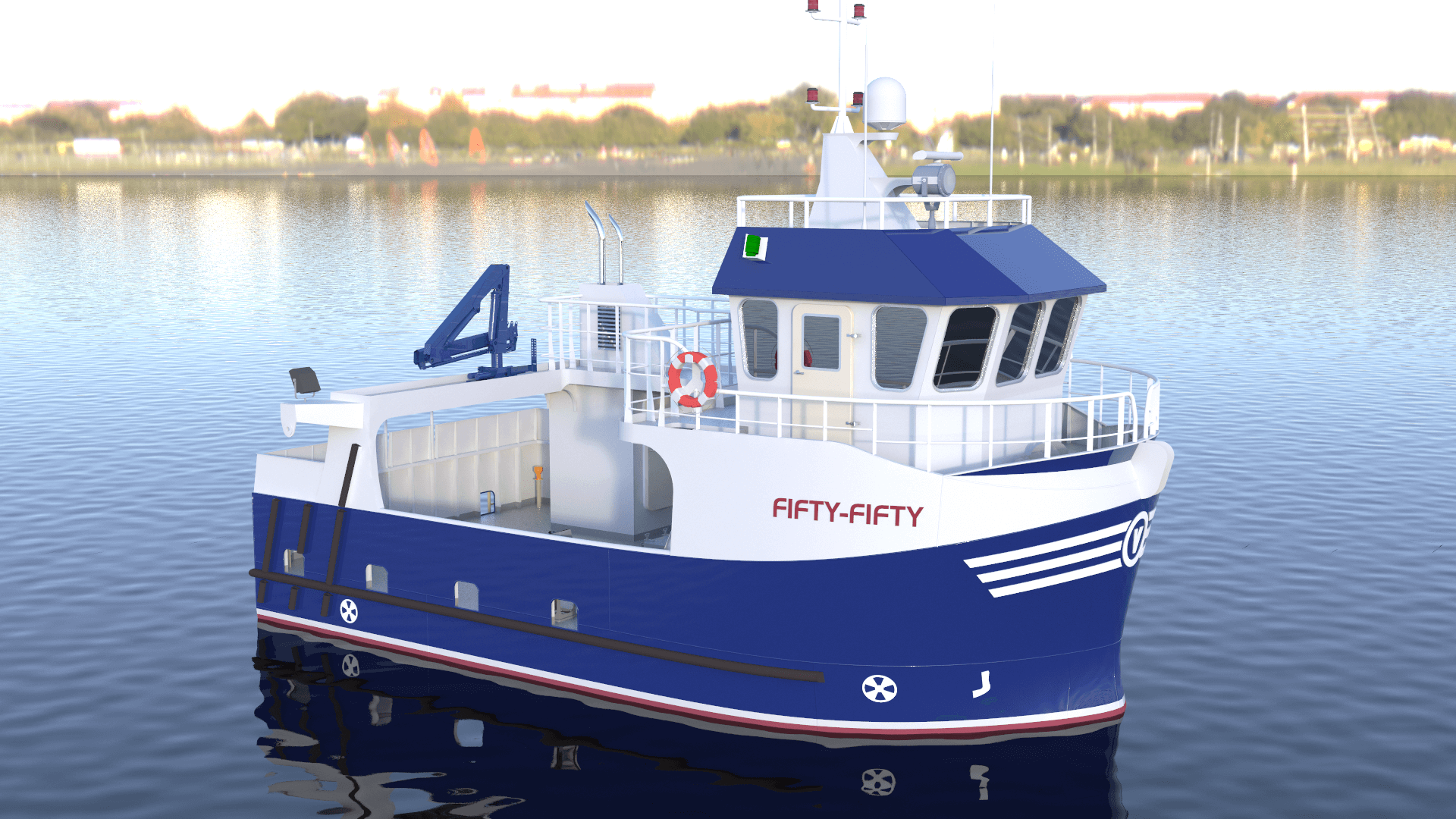

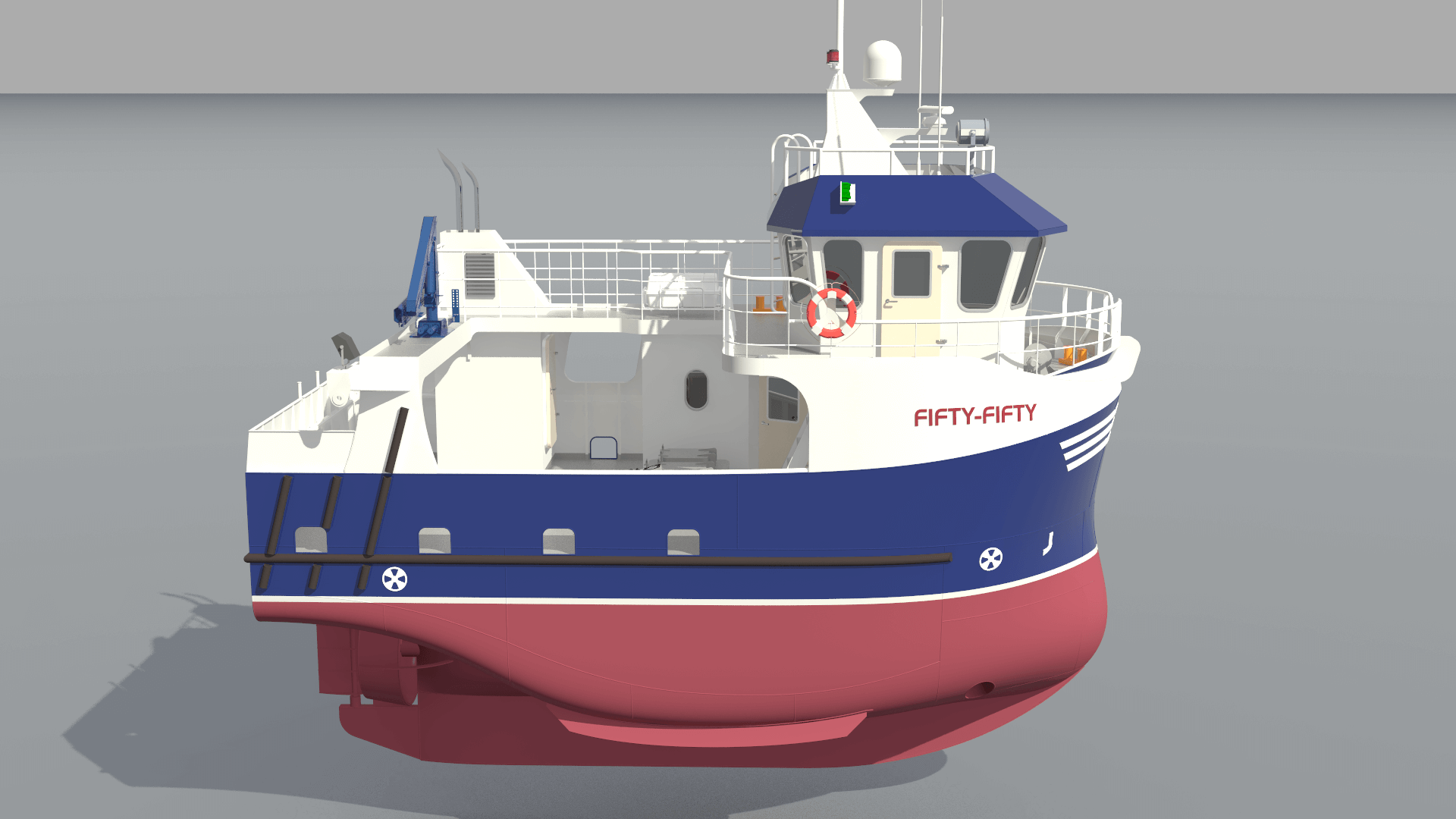

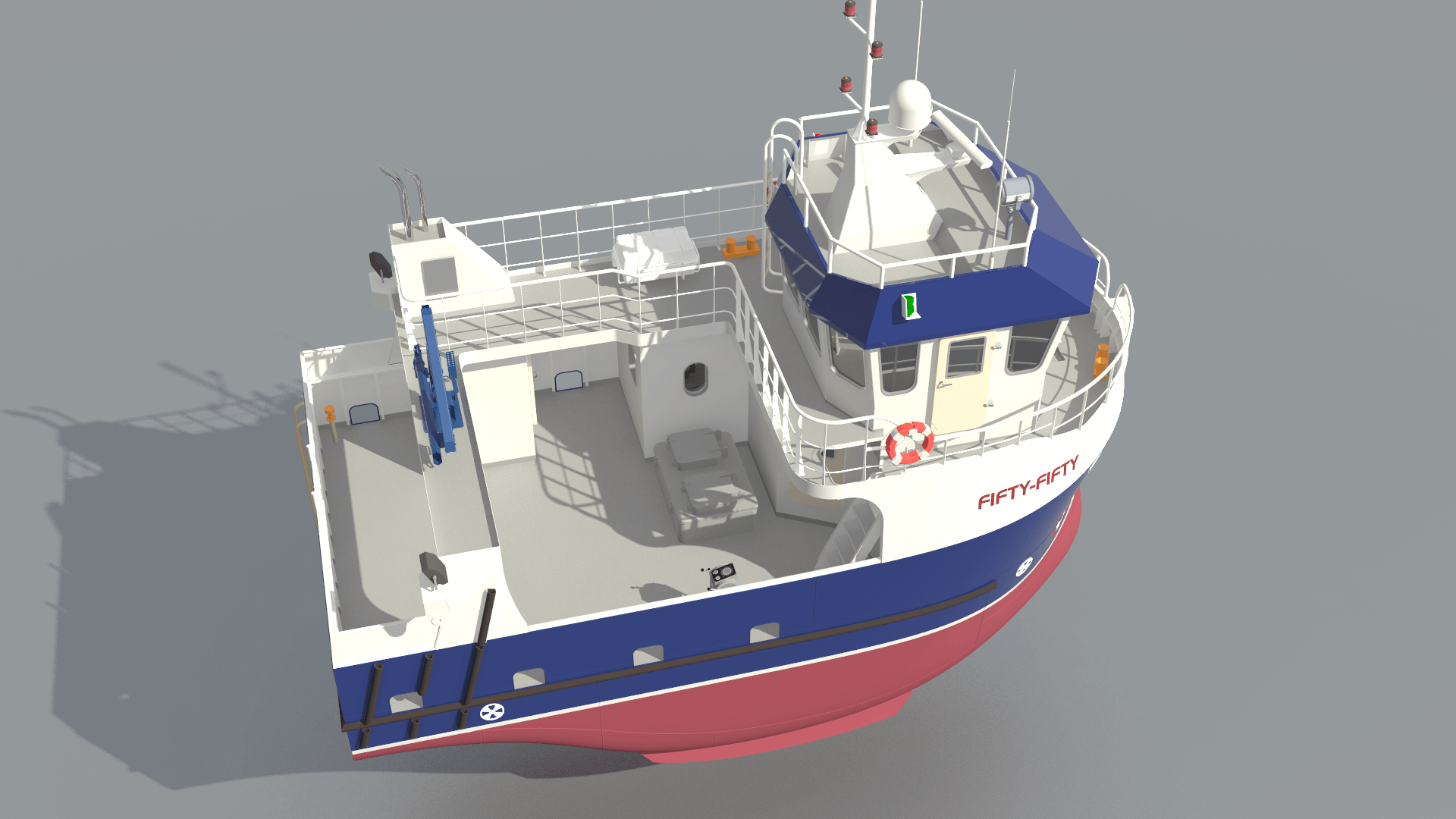

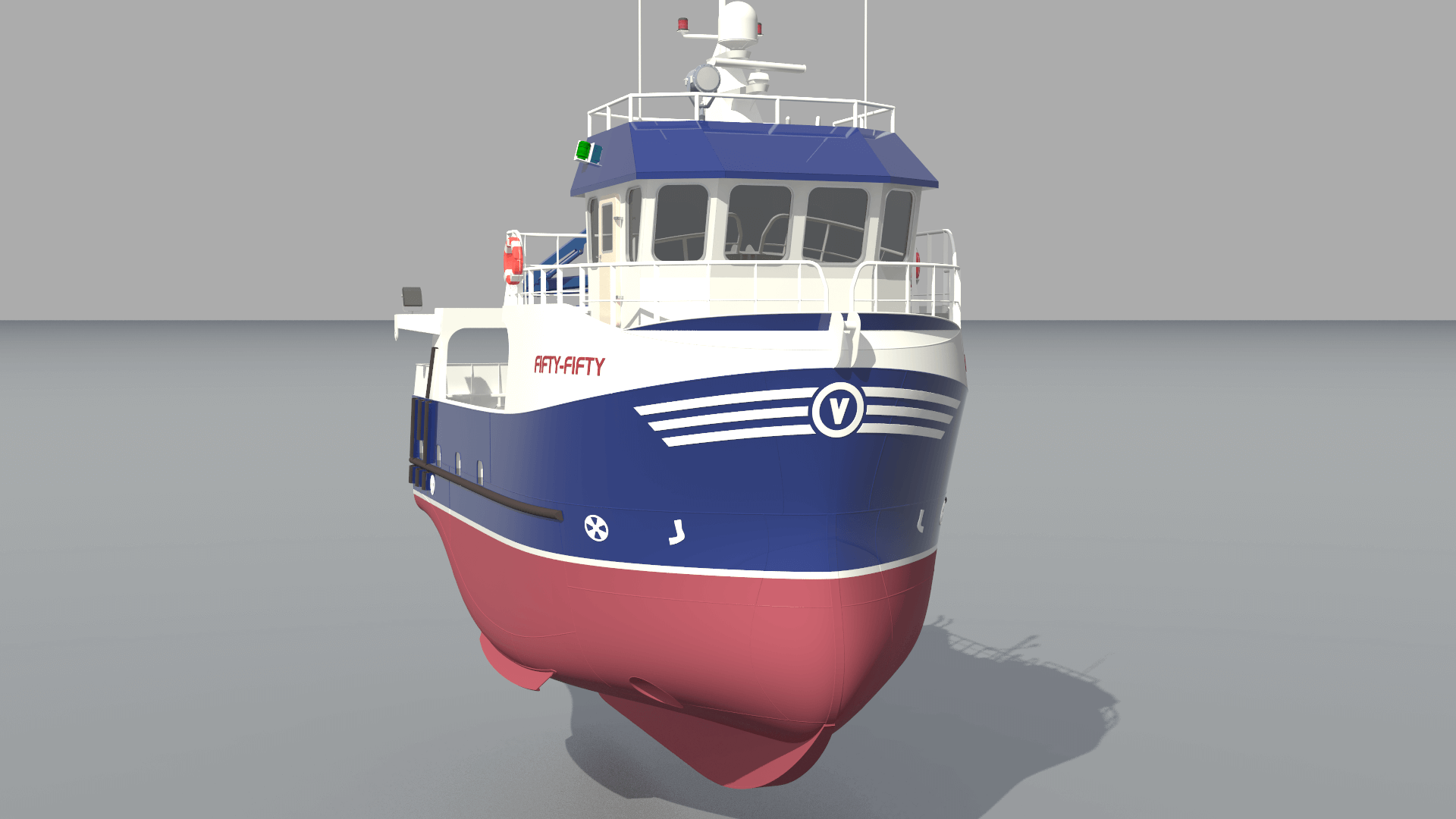

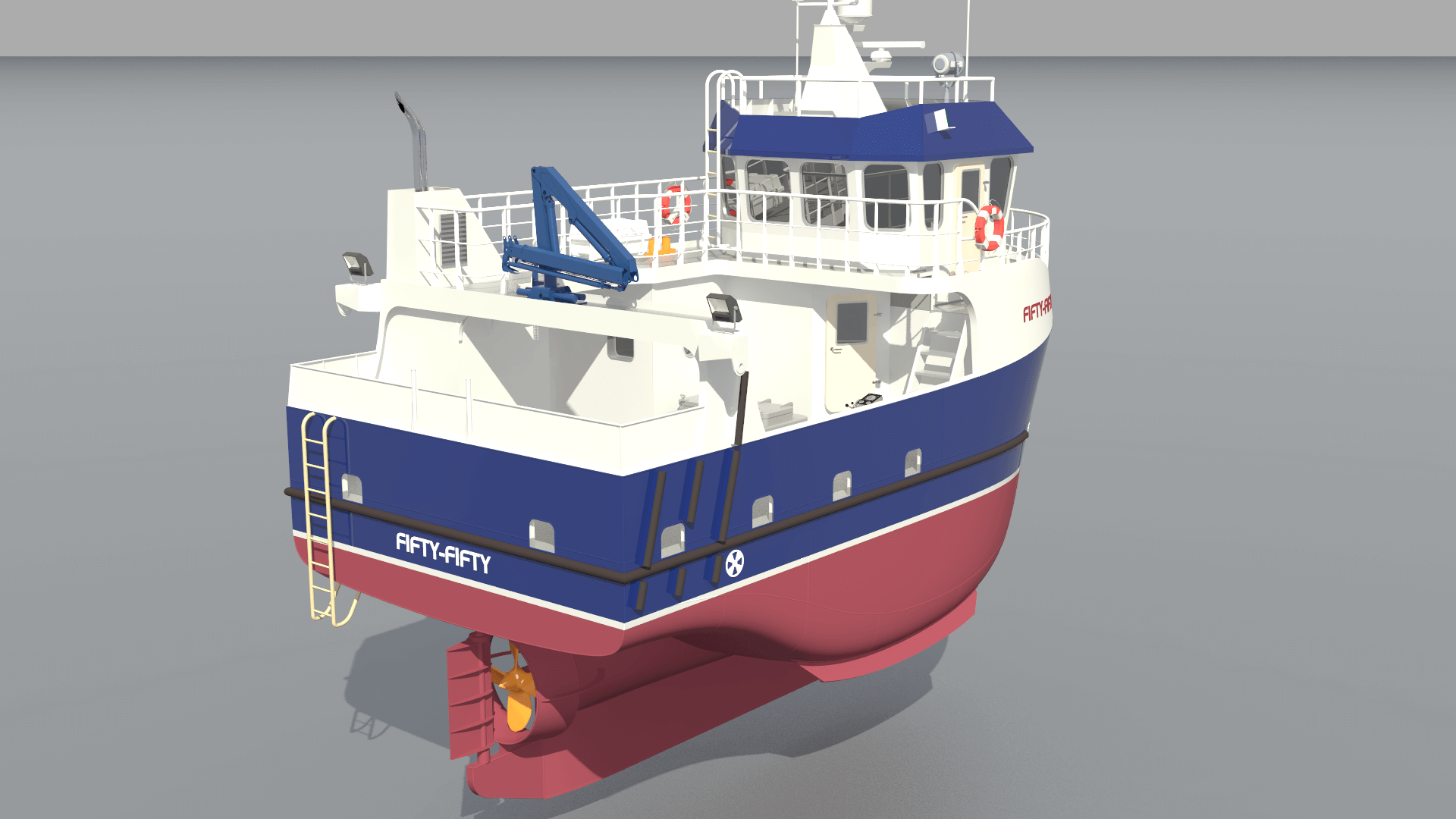

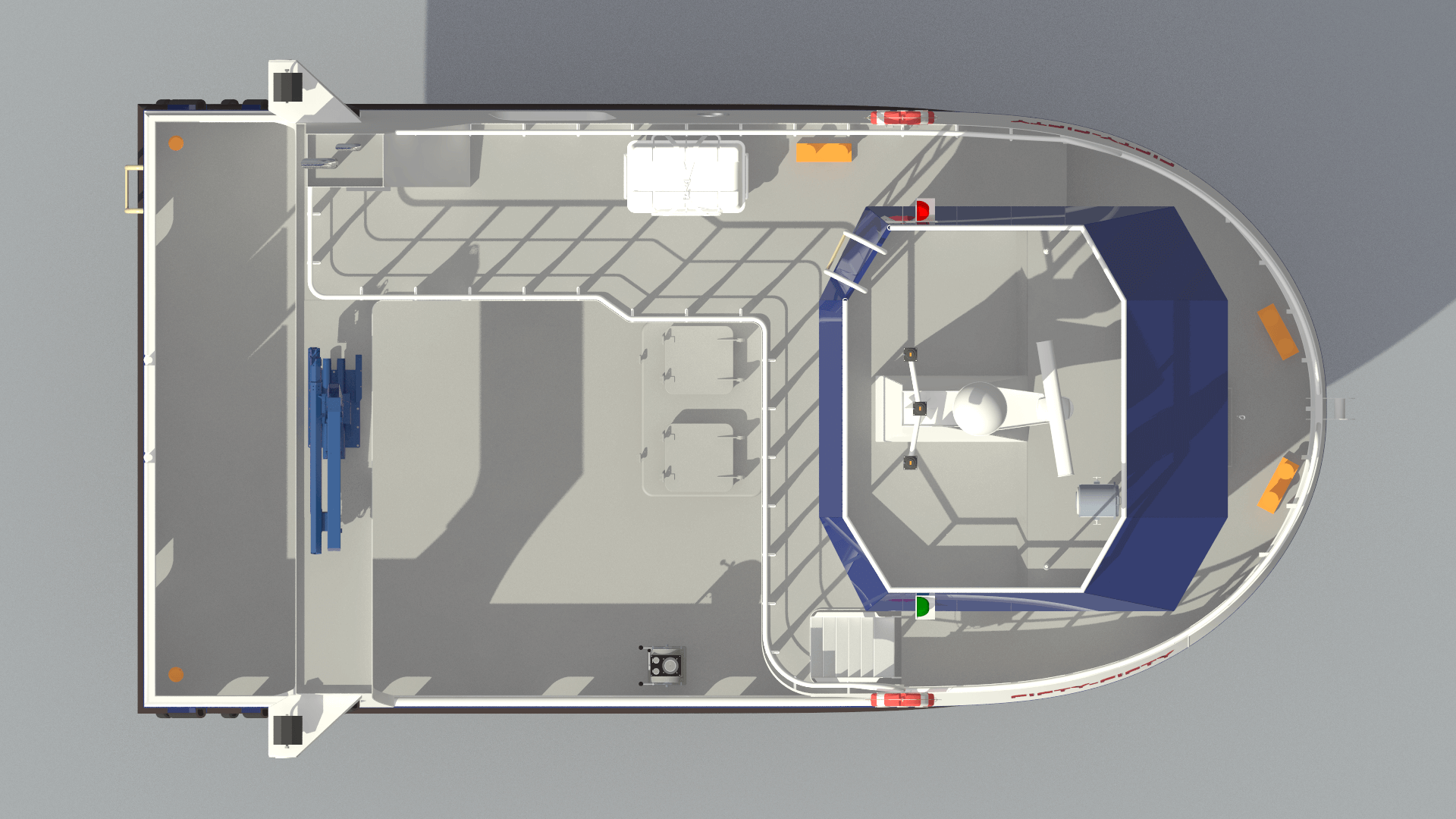

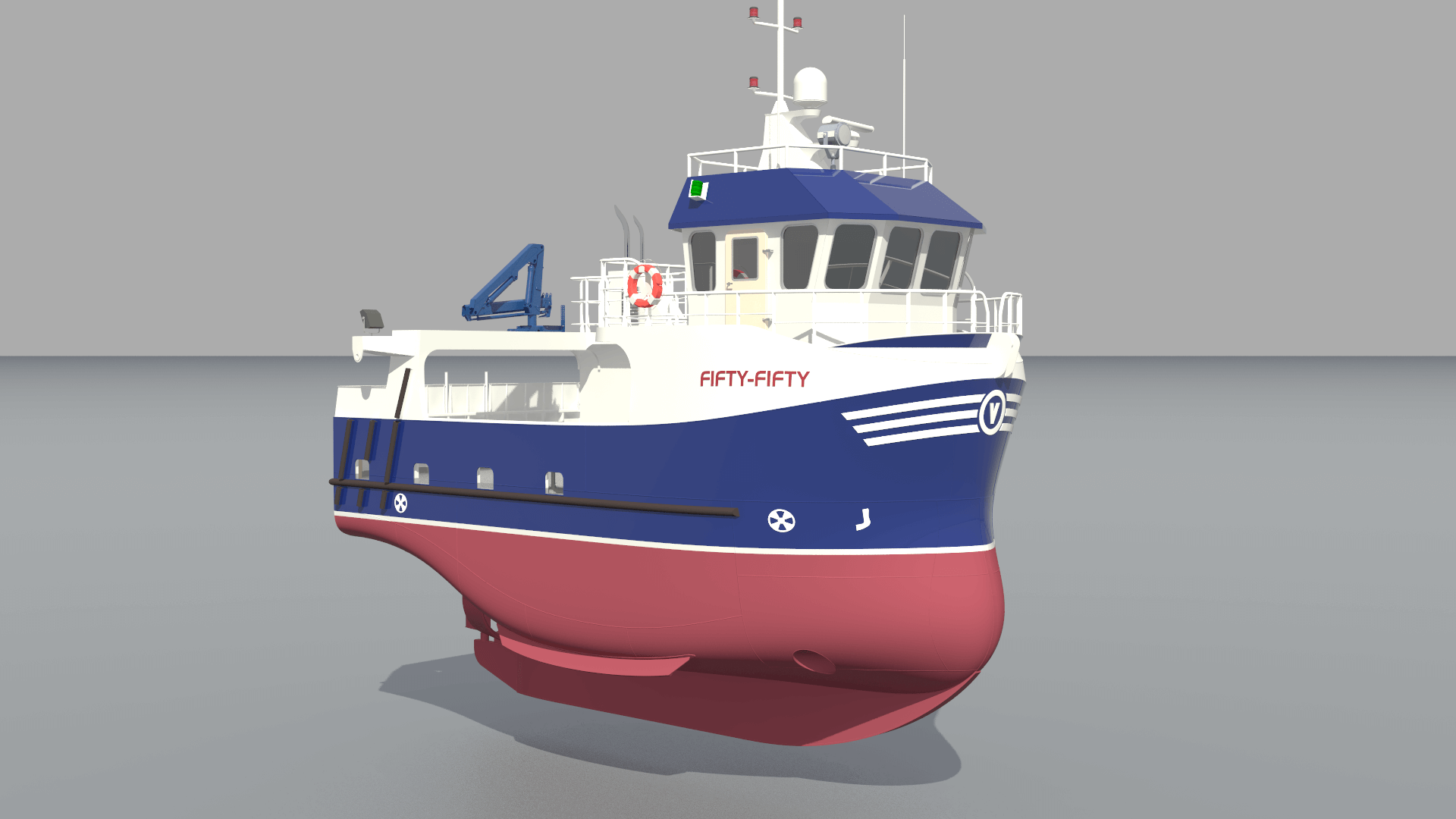

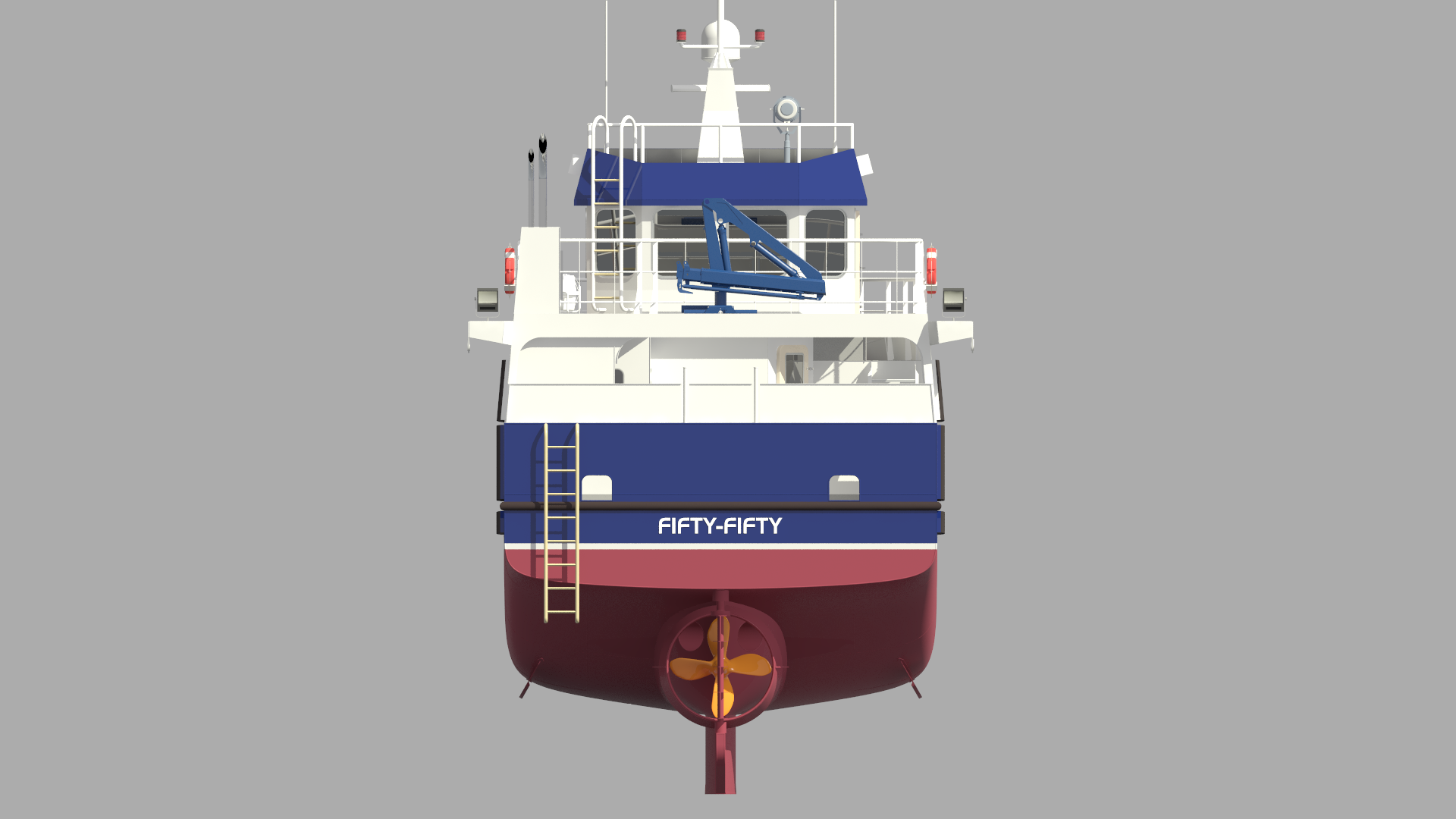

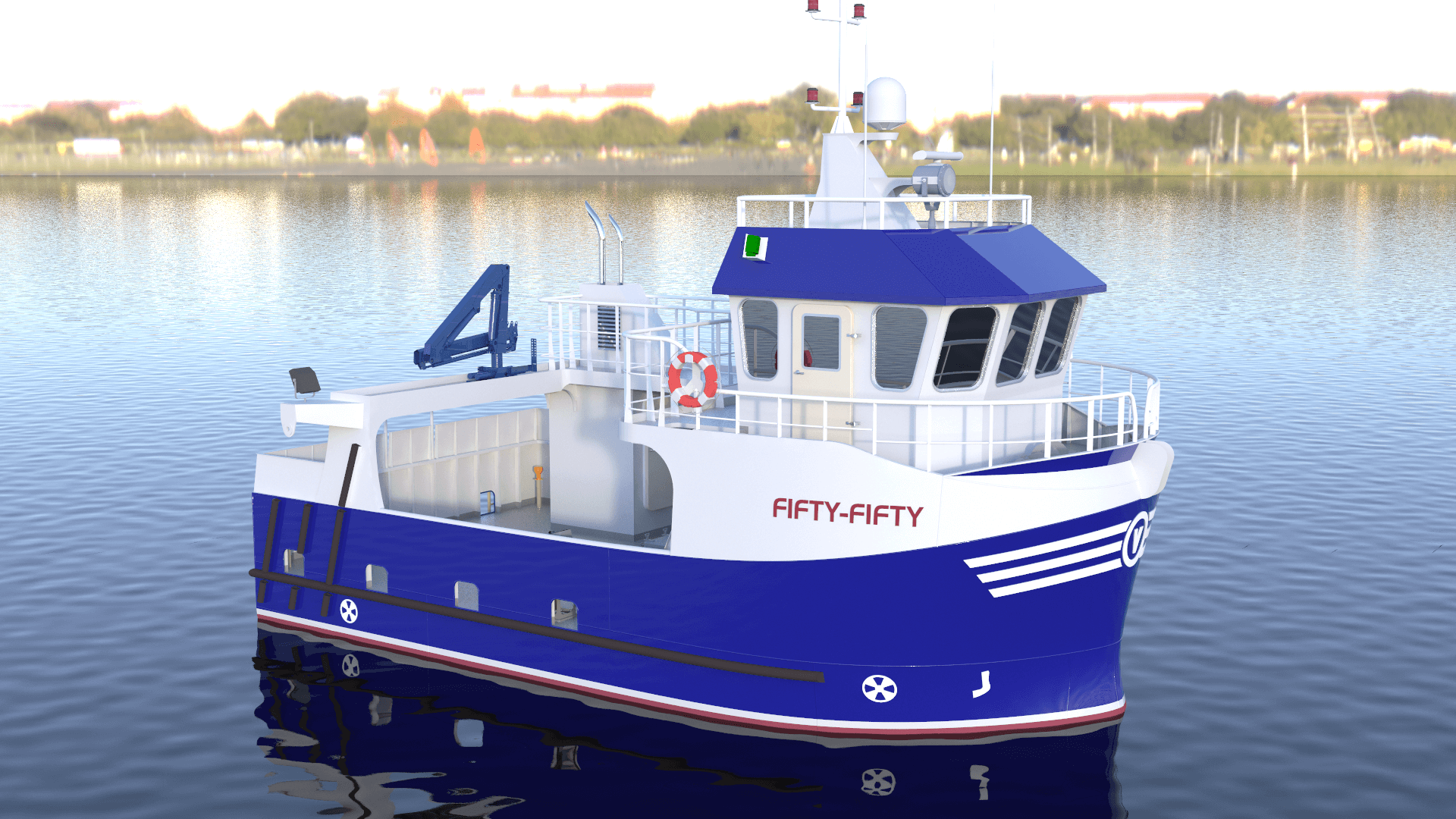

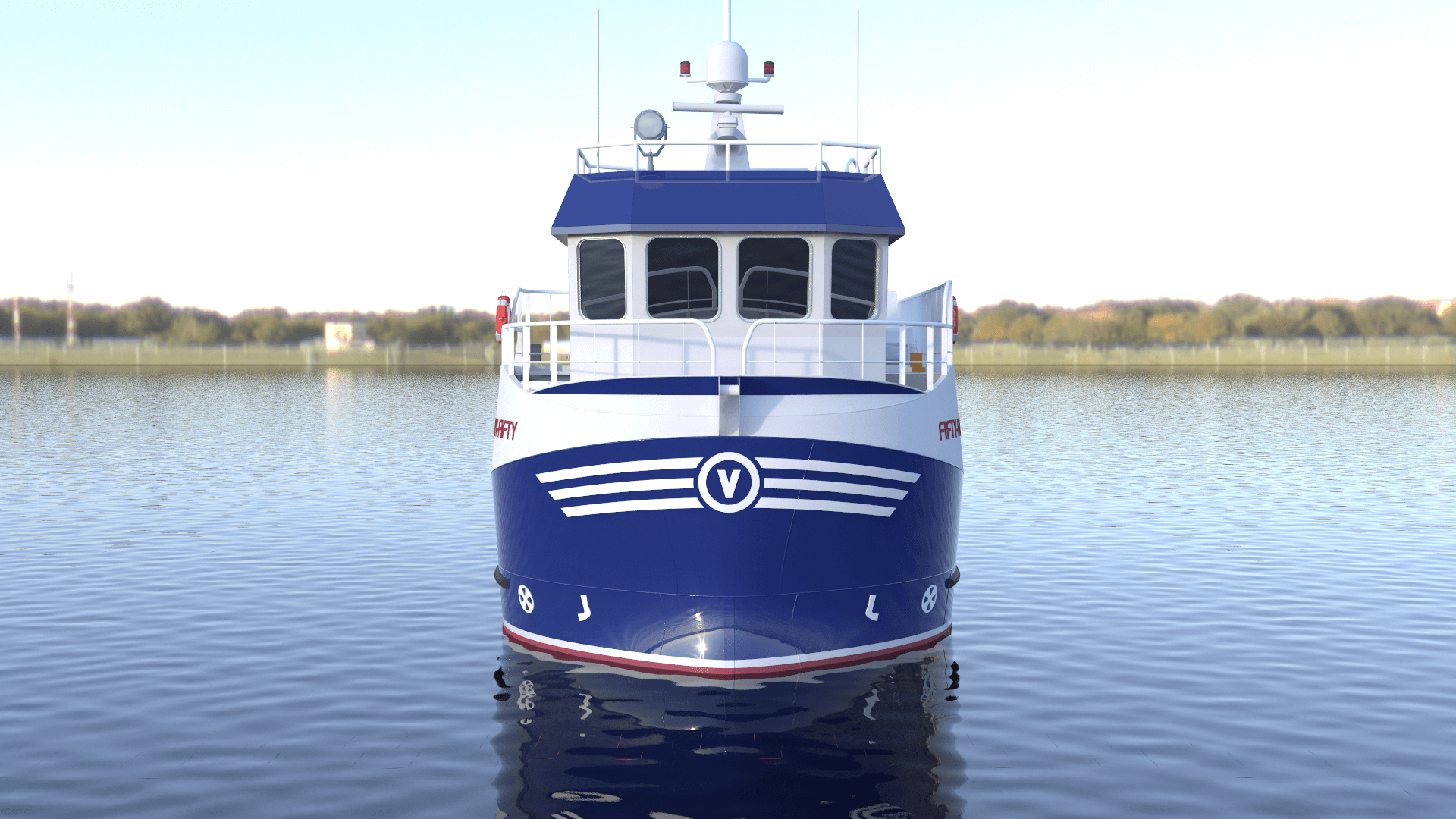

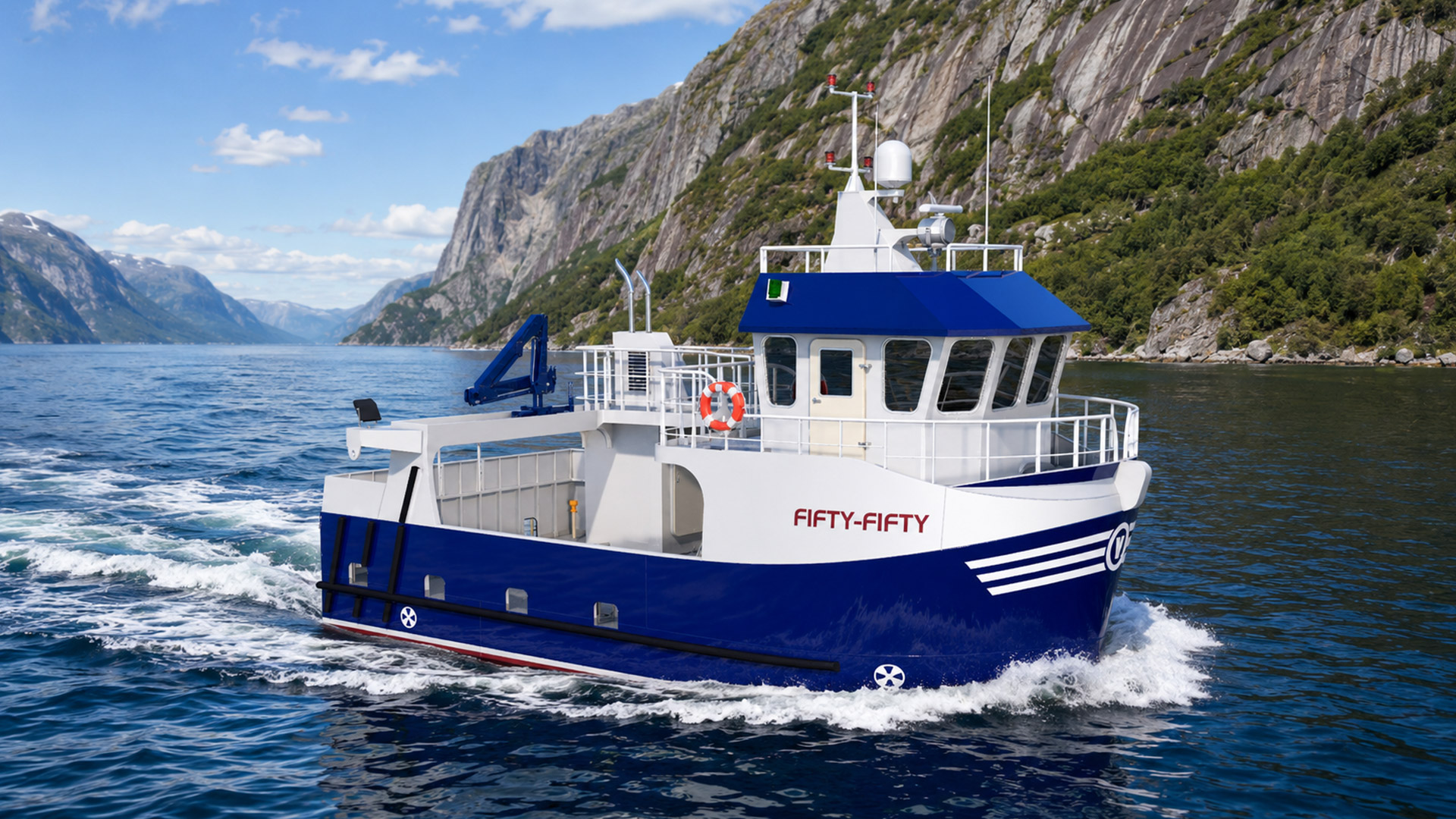

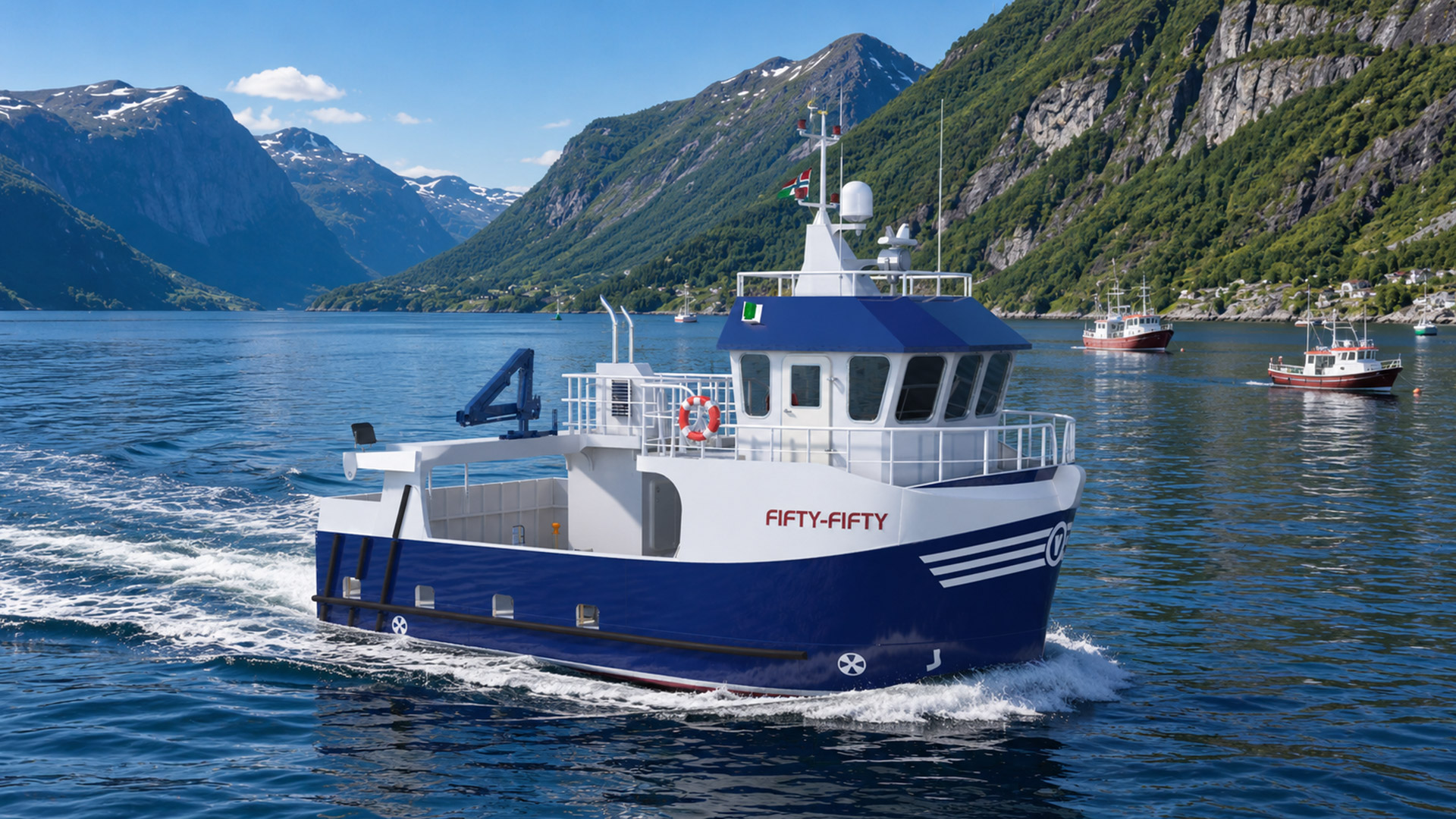

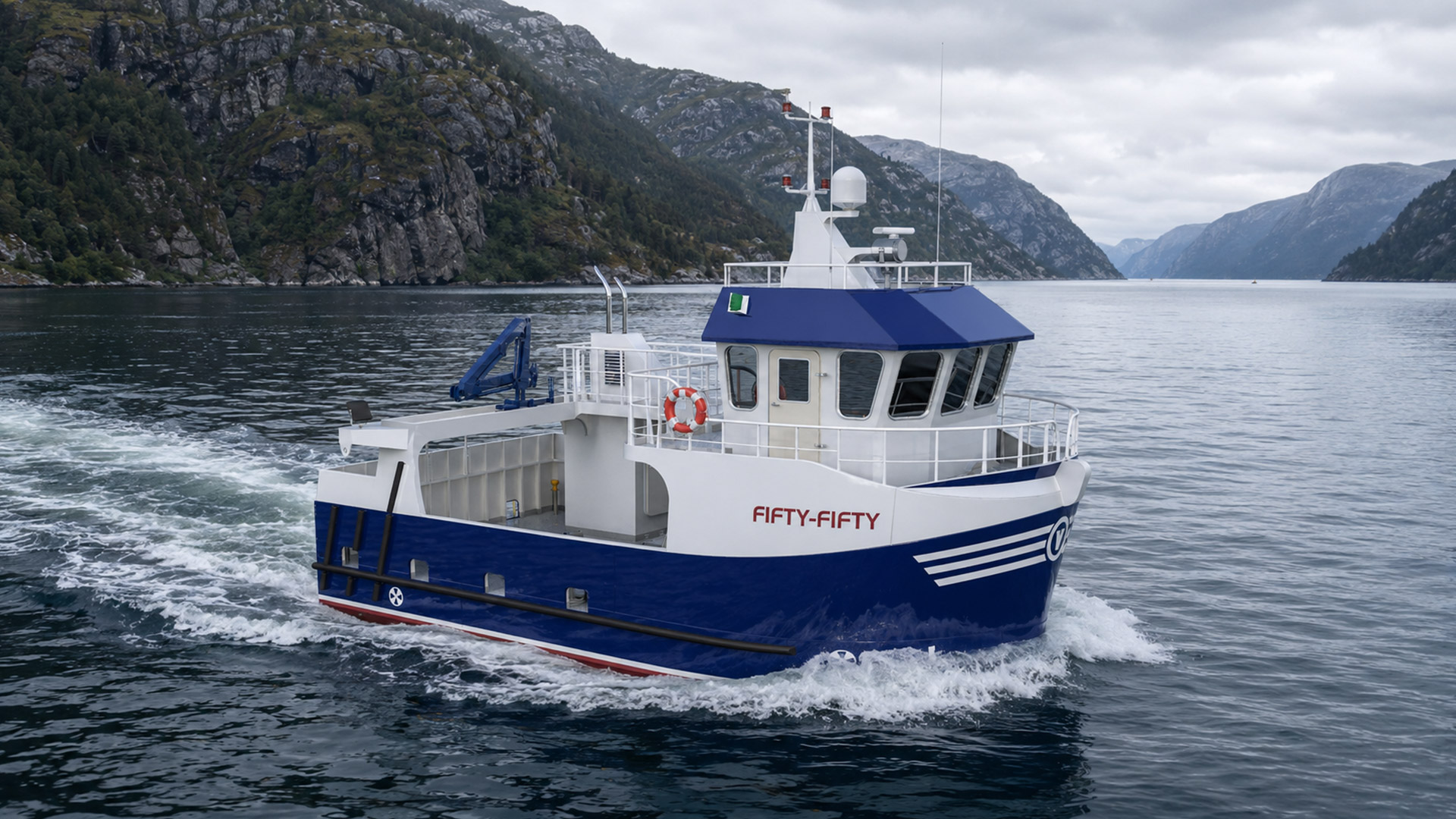

11M FISHING BOAT-V1
The boat is designed for the fishing boat market under 15m for the Nordic seas. The boat was designed for Akdeniz Shipyard. The ship was designed and equipped according to the Nordic Boat Standards" and "Norwegian Fishing Vessels Less Than 15 Meters".
RULE INFORMATION
SHIP TYPE : FISHING BOAT / TRAWLER
FISHING AREA : BANKFISKE 1 - 12 MONTH
NORDIC BOAT STANDARDS COMMERICAL BOATS LESS THAN 15M - 1990
REGULATIONS NORVEGIAN FISHING VESSELS LESS THAN 15M
MAIN PARTICULARS
| LOA (Length Over All) m | : | 10,900 |
| LWL (Length Water Line) m | : | 10,950 |
| LBP (Length Between Perpendiculars) m | : | 10,666 |
| B (Breadth Moulded) m | : | 5,500 |
| D (Depth Moulded) m | : | 2,700 |
| T (Max Draught) m | : | 2,350 |
| CB (Block Coefficient) | : | 0,473 |
| Crew Information | : | 3 Crew |
| Building Material Hull | : | A Grade Marine Steel |
| Building Material Wheel House | : | Marine Grade Aluminium |
| V Service Speed (knots) | : | 8 knots @ Full Load |
| Main Engine Power (HP) | : | 1 x 400 HP |
| Bow Thruster | : | 50 HP |
| Stern Thruster | : | 50 HP |
| Fish Holding Tanks (m3) | : | 29,82 |
| Displacement Tonnage @T max (ton) | : | 95,34 |
