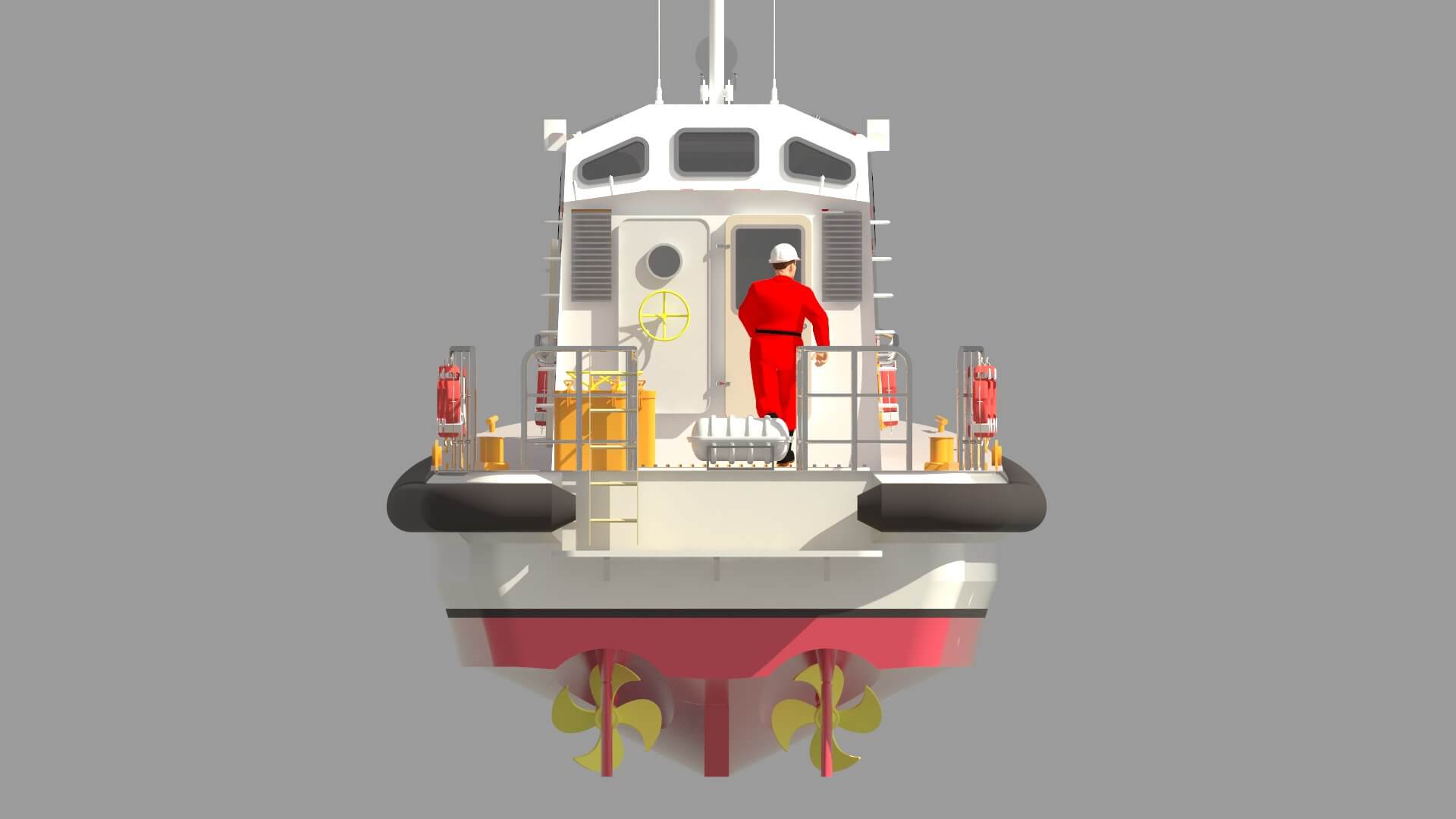

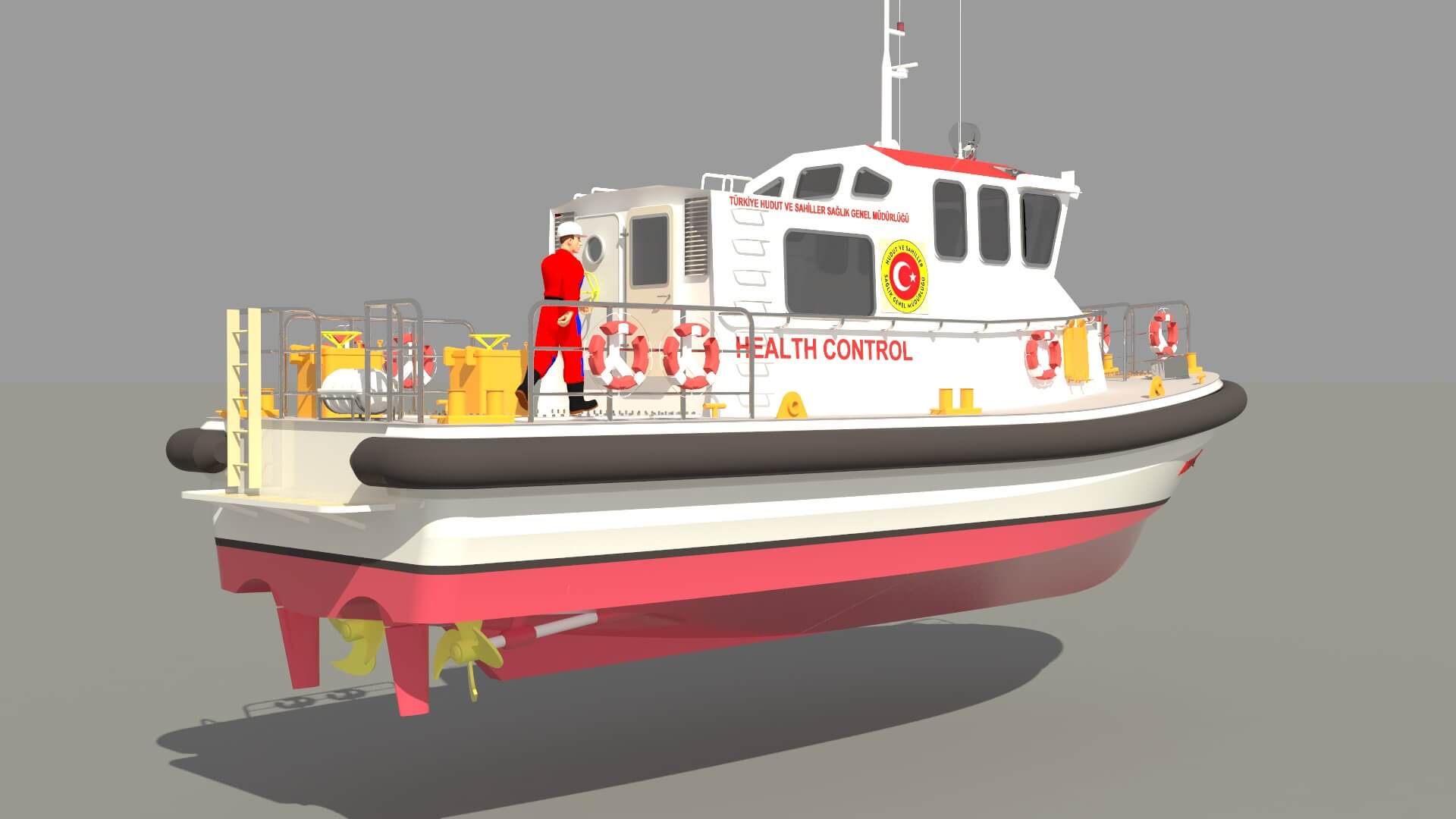

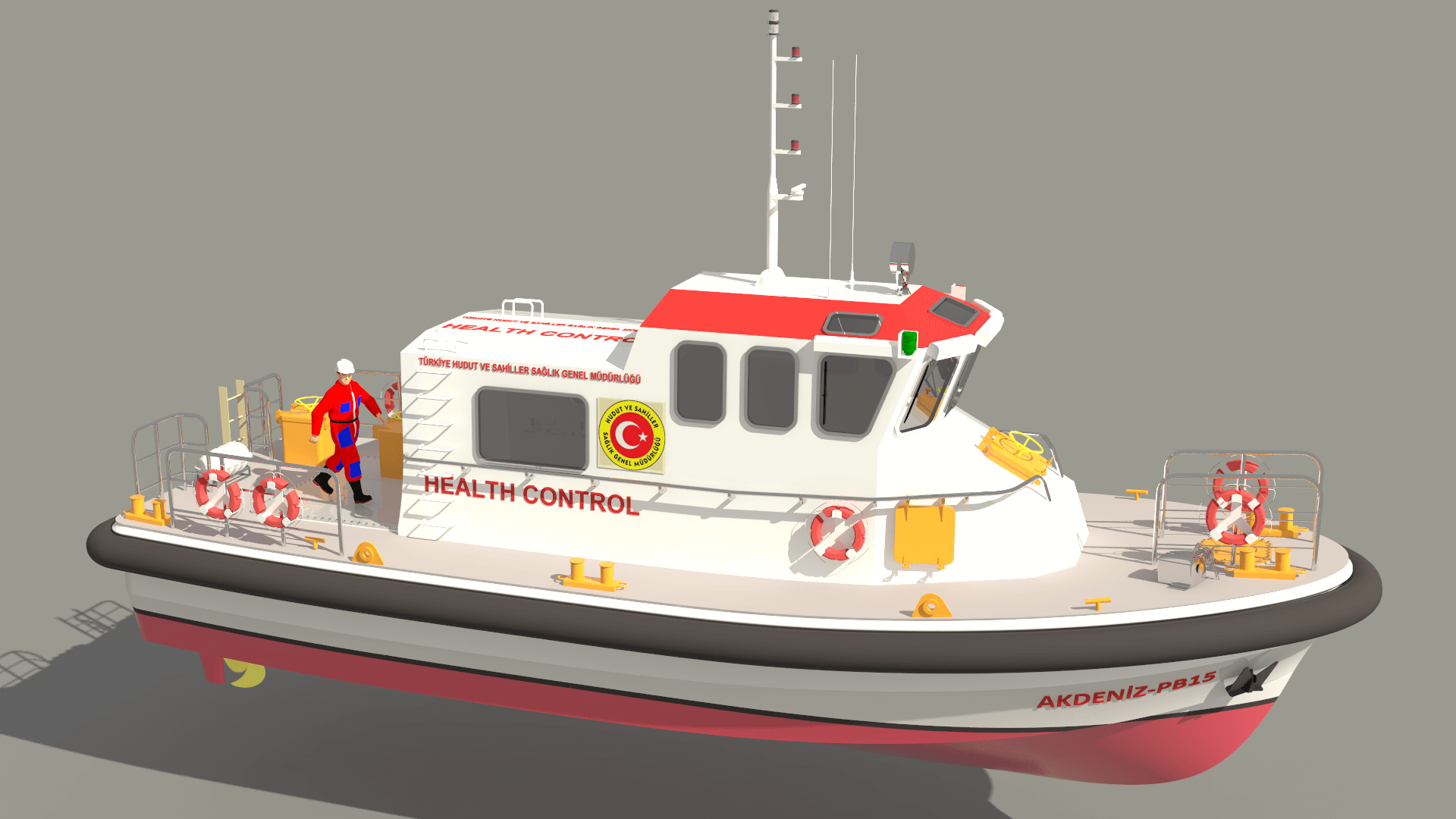

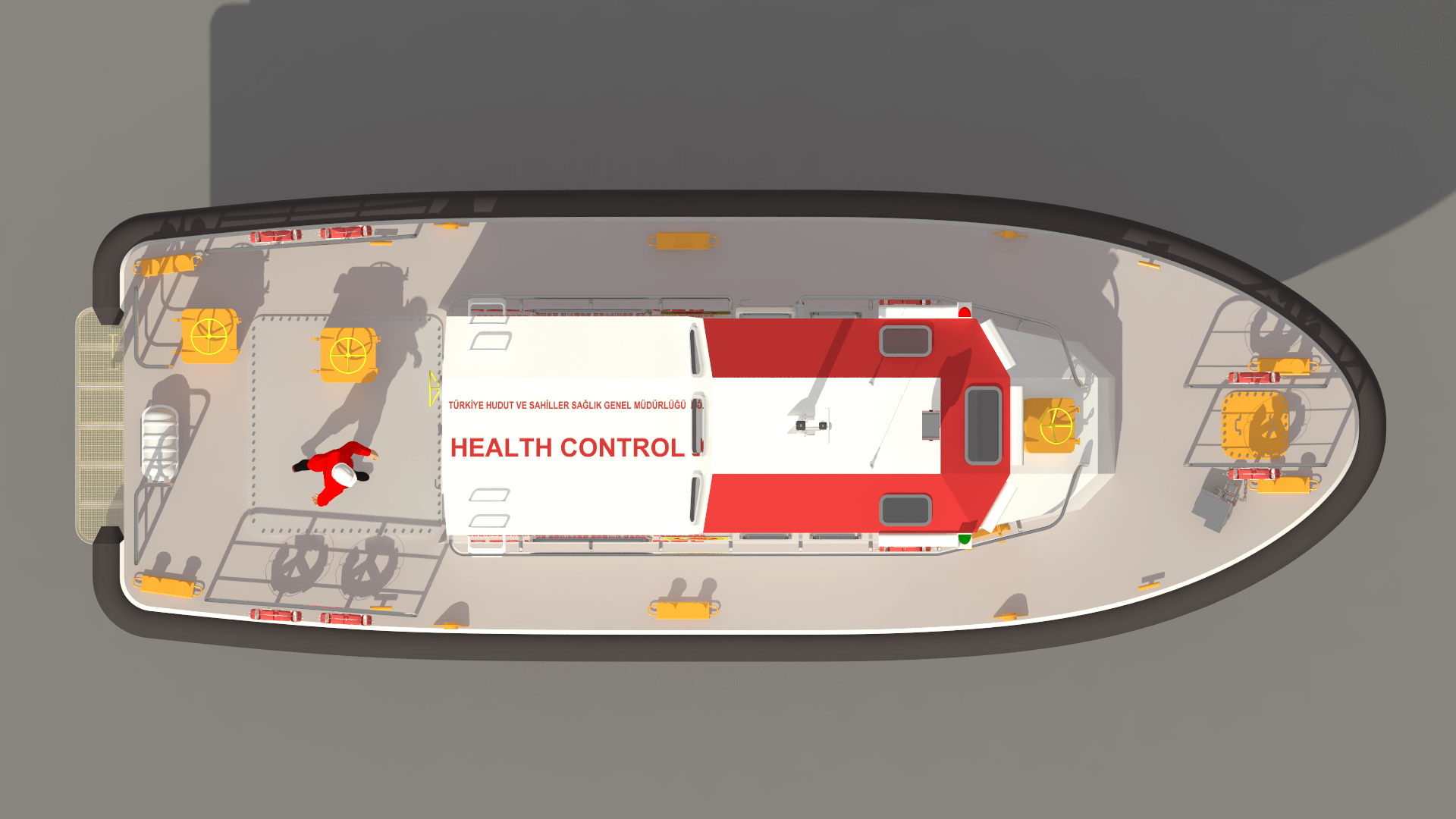

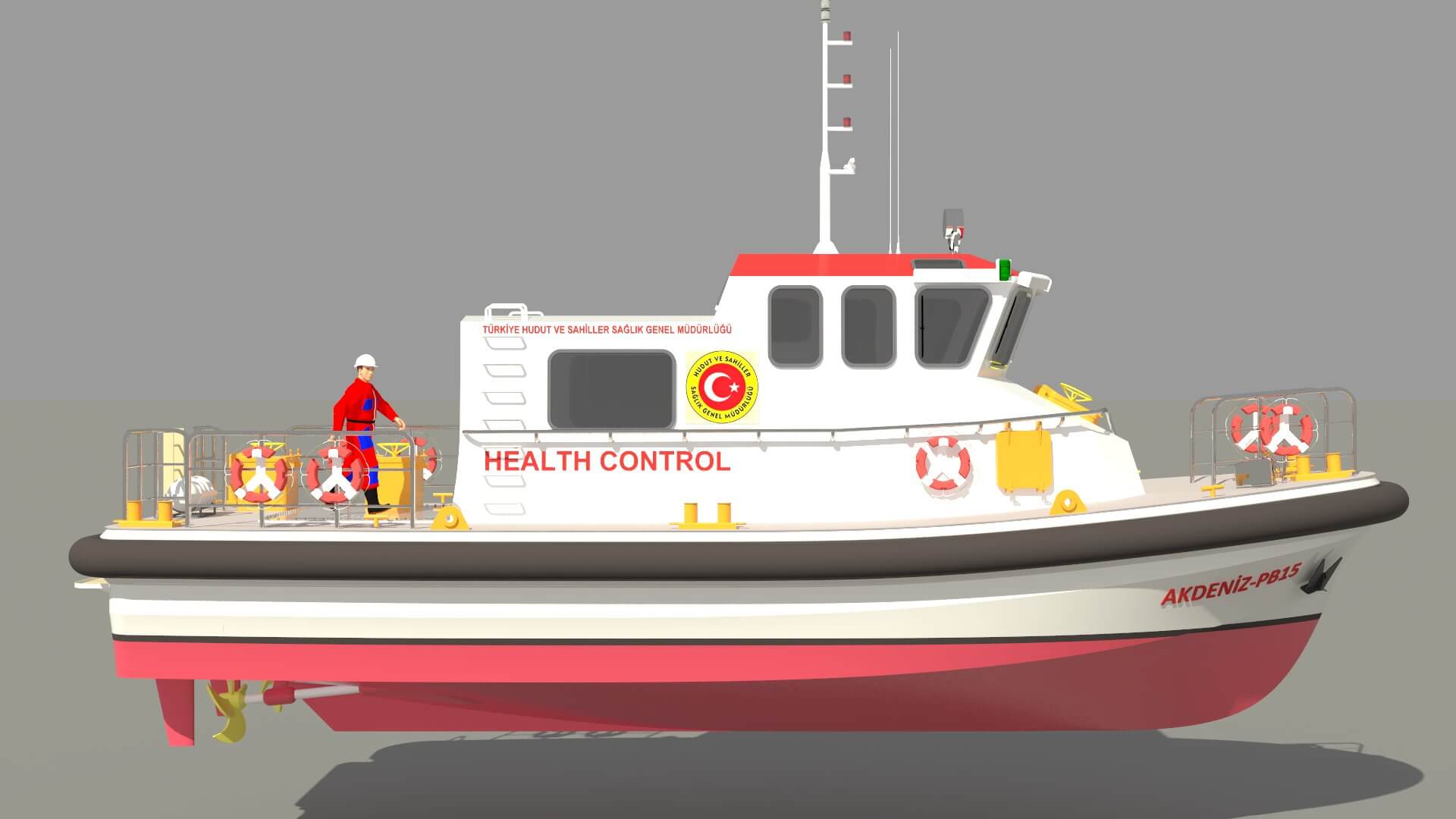

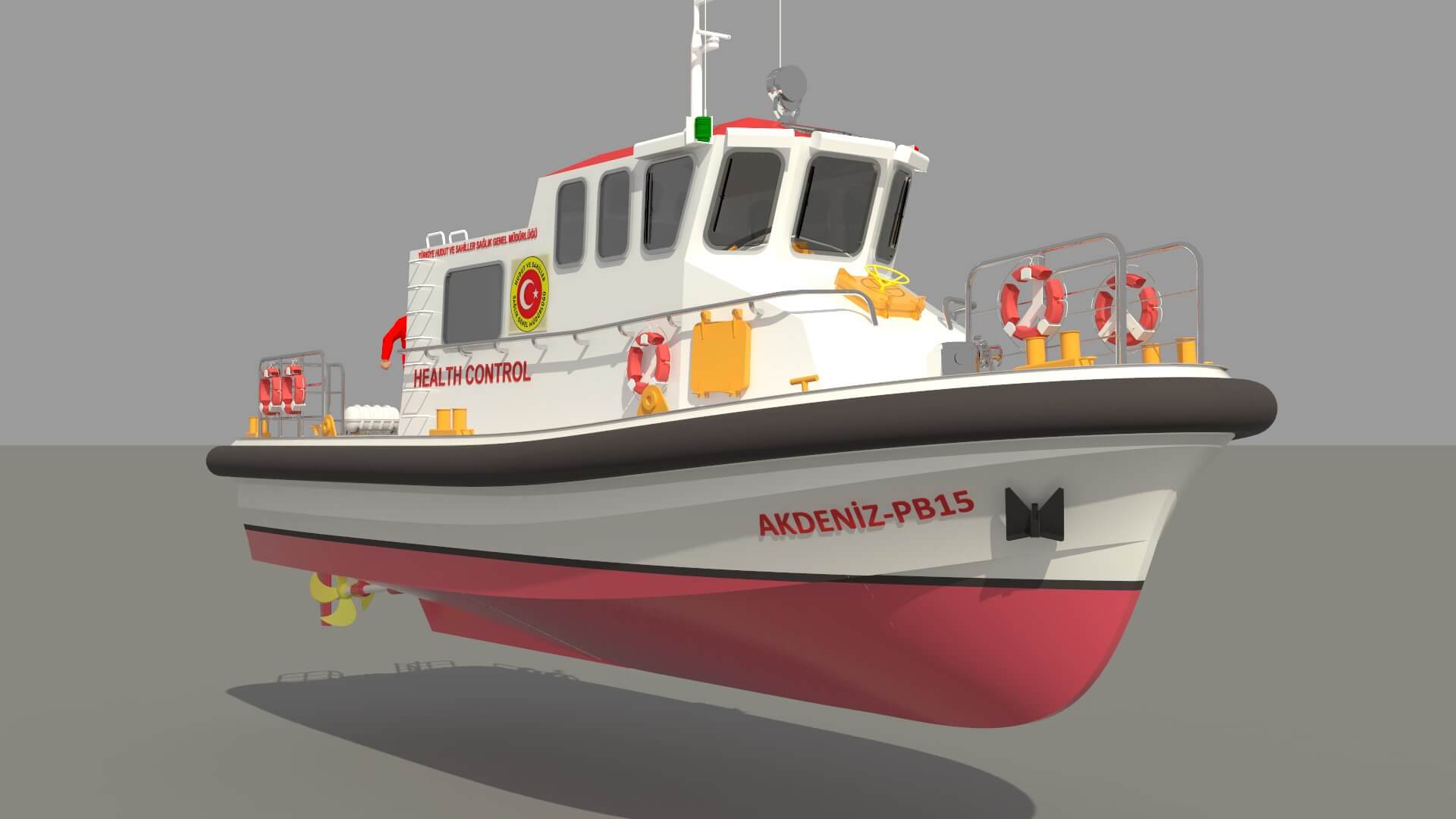

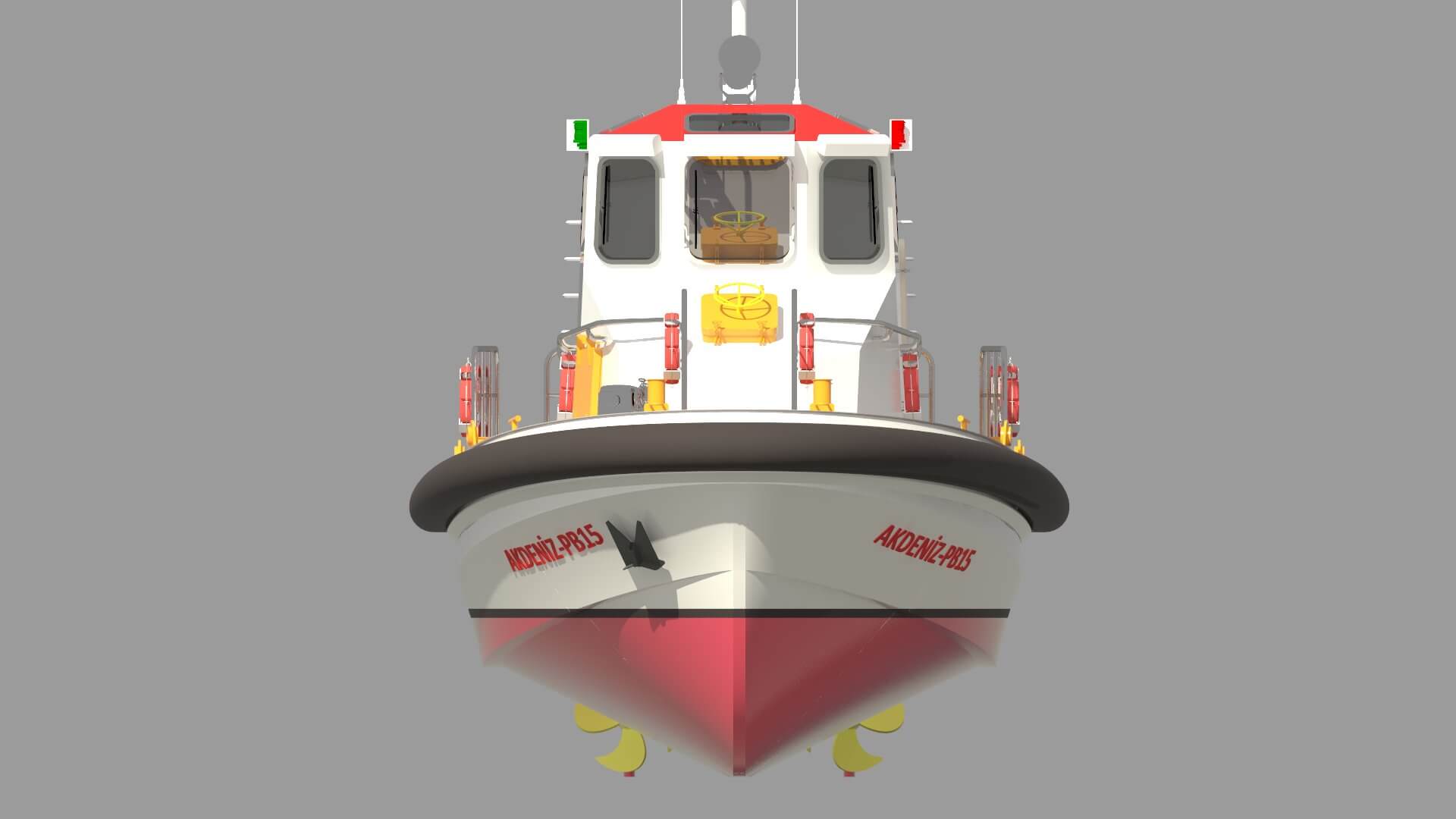

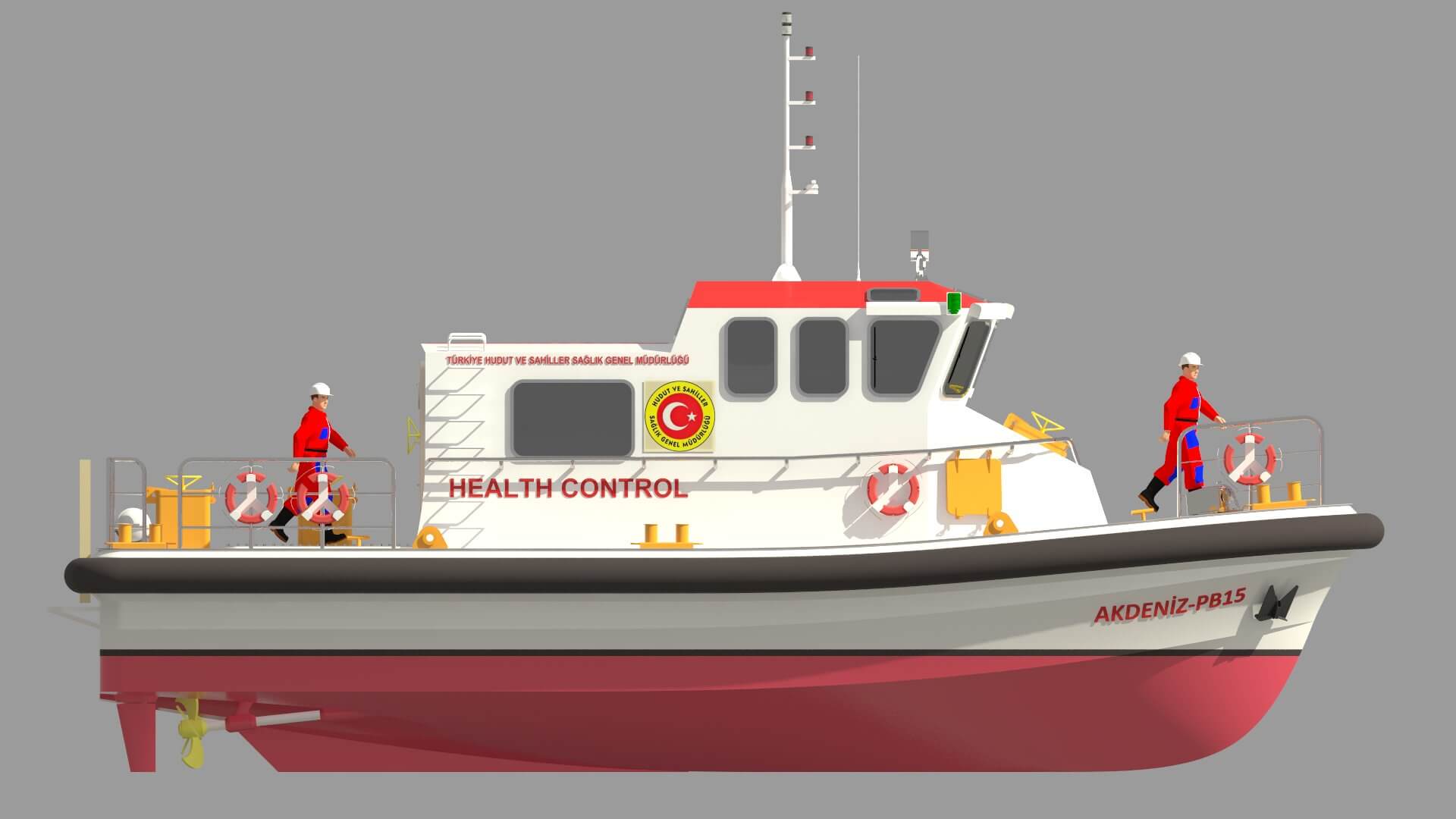

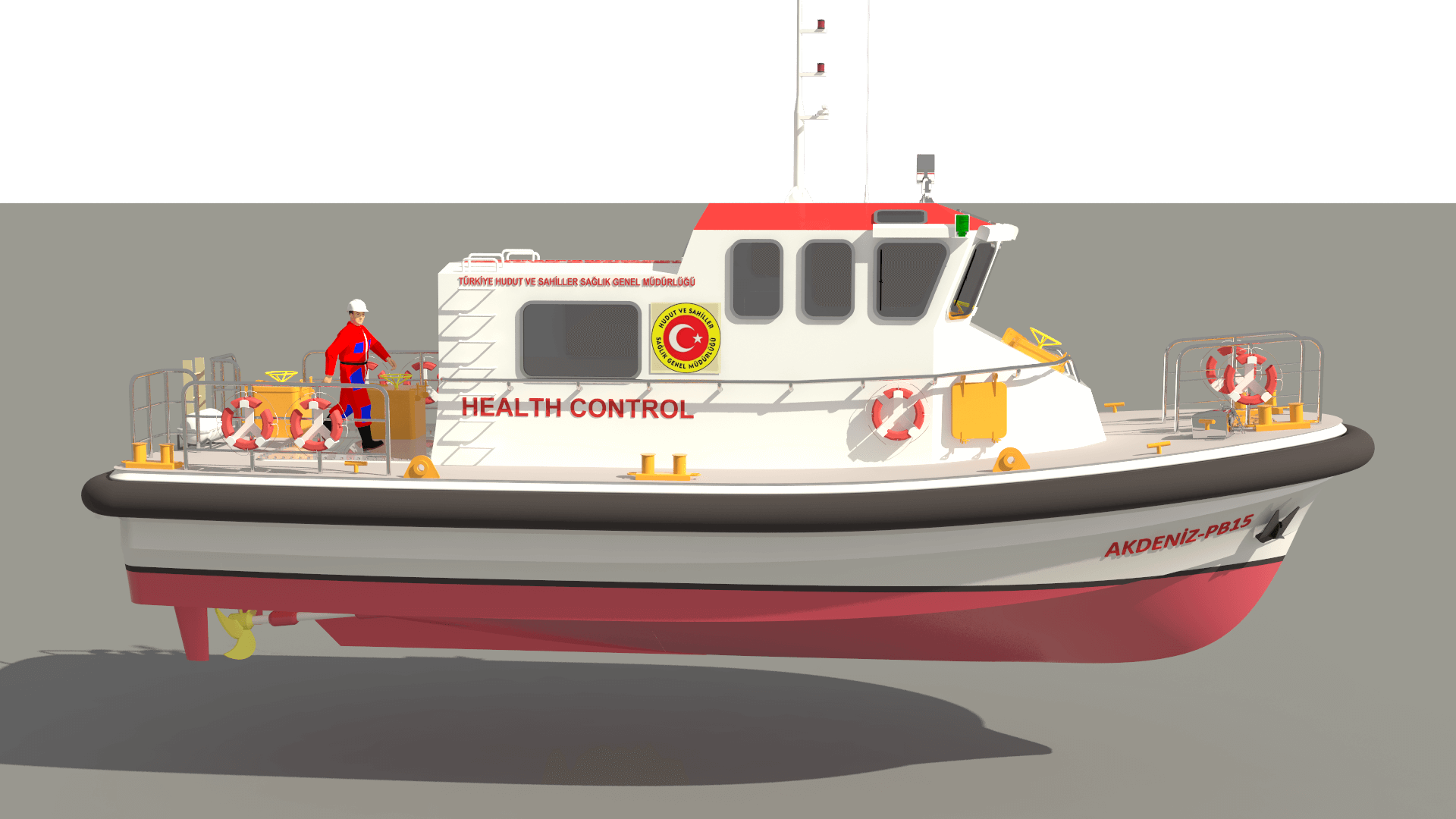

15 M PILOT BOAT
The boat is designed for the marine pilotage and ship crew health control facilities for Bosphorus and Dardanelles regions. V type planning hull is specially designed for cutting waves and high speed
CLASS INFORMATION
TL (TURK LOYDU)
+1A5 K50 TR DOMESTIC SERVICE
SERVICE BOAT HSDE (+) M AUT-10h
MAIN DIMENSIONS
| LOA MOULDED (Length Over All) m | : | 14,00 |
| LOA EXTREME (Length Over All) m | : | 14,99 |
| LWL (Length Water Line) m | : | 13,45 |
| LBP (Length Between Perpendiculars) m | : | 12,95 |
| B (Breadth Moulded) m | : | 4,60 |
| B (Breadth Extreme) m | : | 5,40 |
| D (Depth Moulded) m | : | 2,50 |
| T (Max Draught) m | : | 1,30 |
| T (Scantling Draught) m | : | 1,40 |
| Crew Information | : | 4 Crew |
| Building Material Hull | : | A Grade Marine Steel |
| Building Material Super Structure | : | Marine Grade Aluminium |
SPEED / POWER / PROPULSION / AUXILIARY MACHINERY
| V Service Speed (knots) | : | 18 knots at full load |
| Main Engine Power (HP) | : | 2 x 650 HP (Total1300 HP) |
| Reduction Gear Ratio | : | 2.45 / 1 |
| Propeller Information | : | 2 x 4 Blade / Diameter: 90 cm / Pitch: 76 cm |
