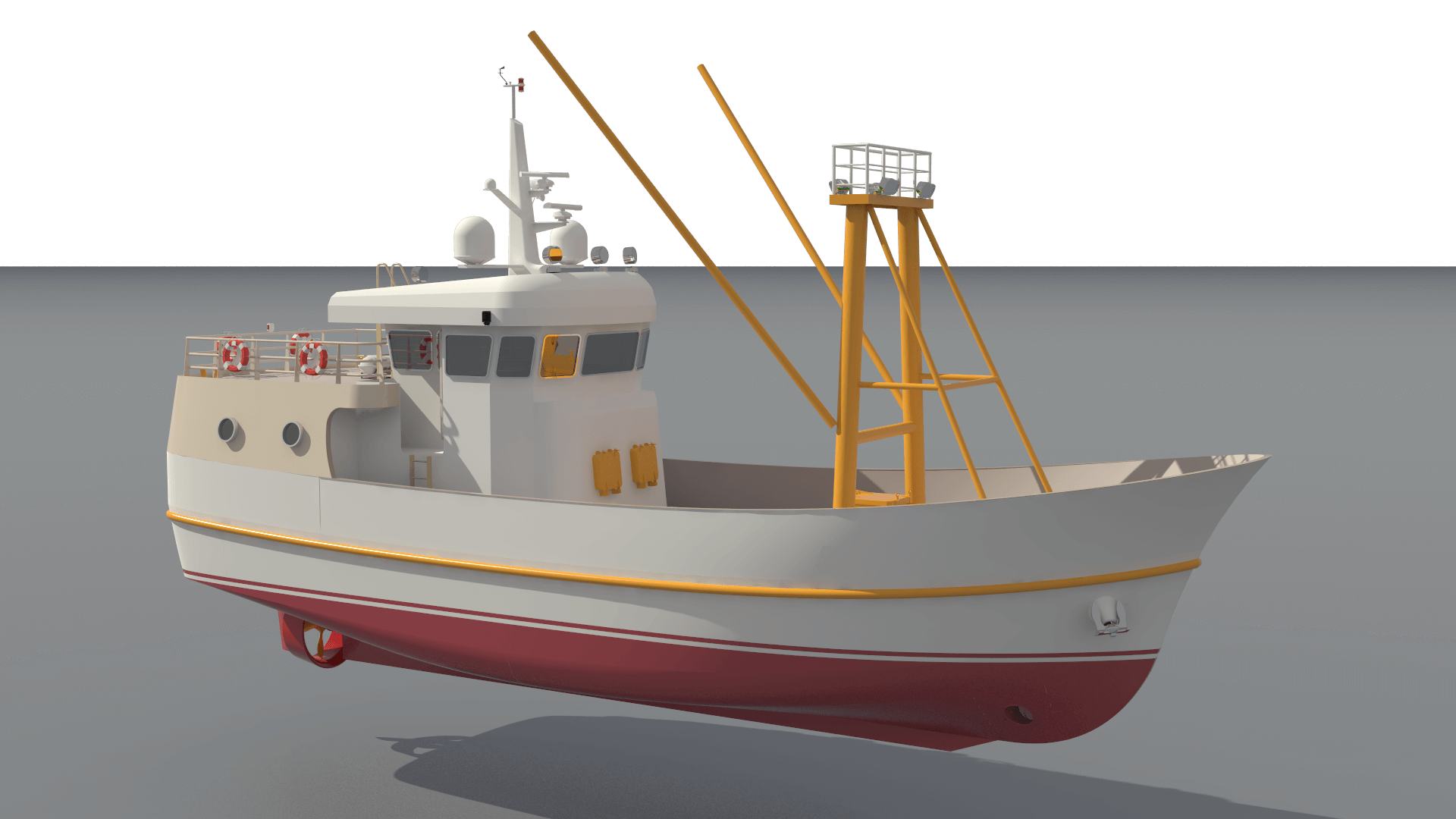

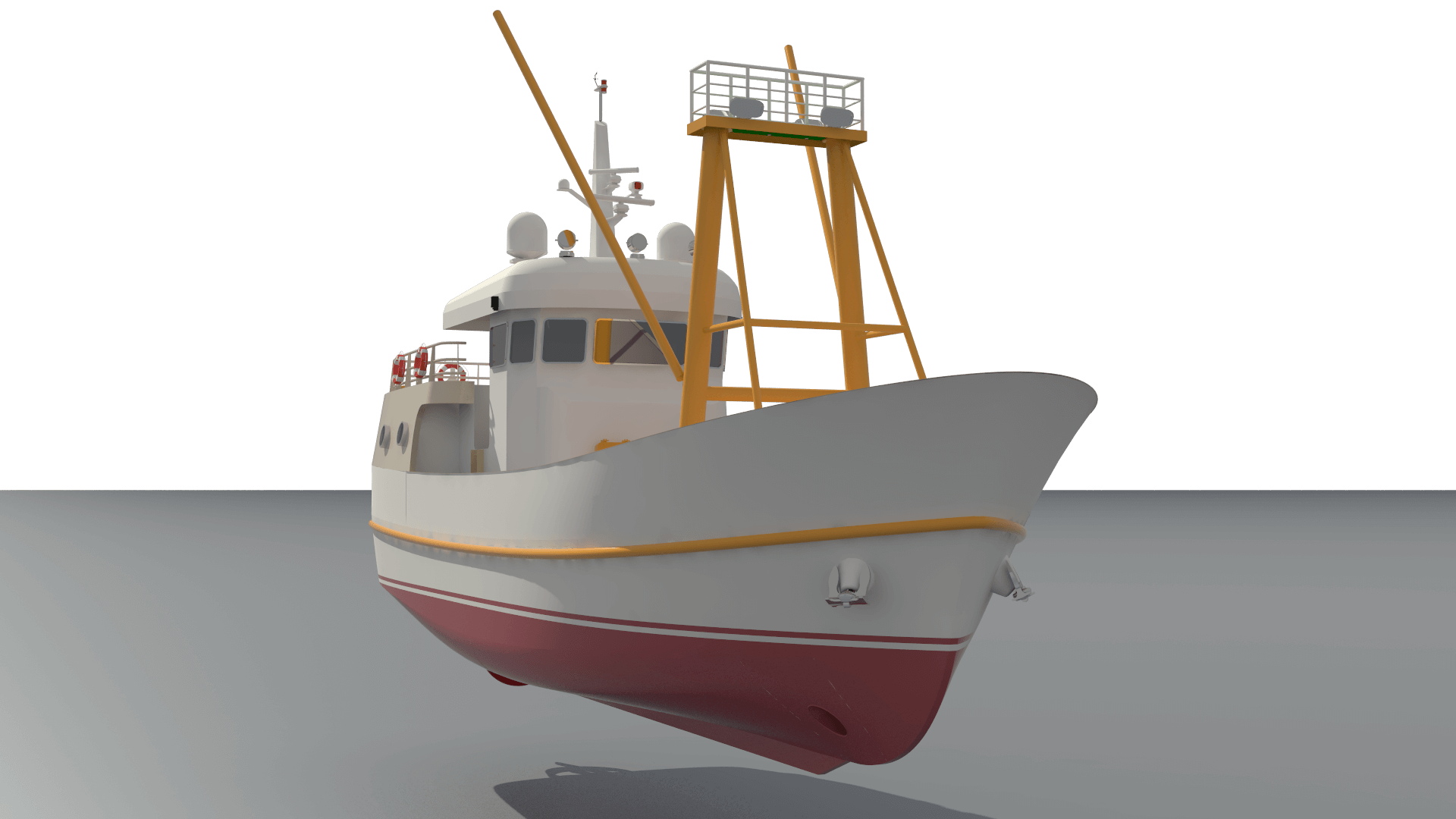

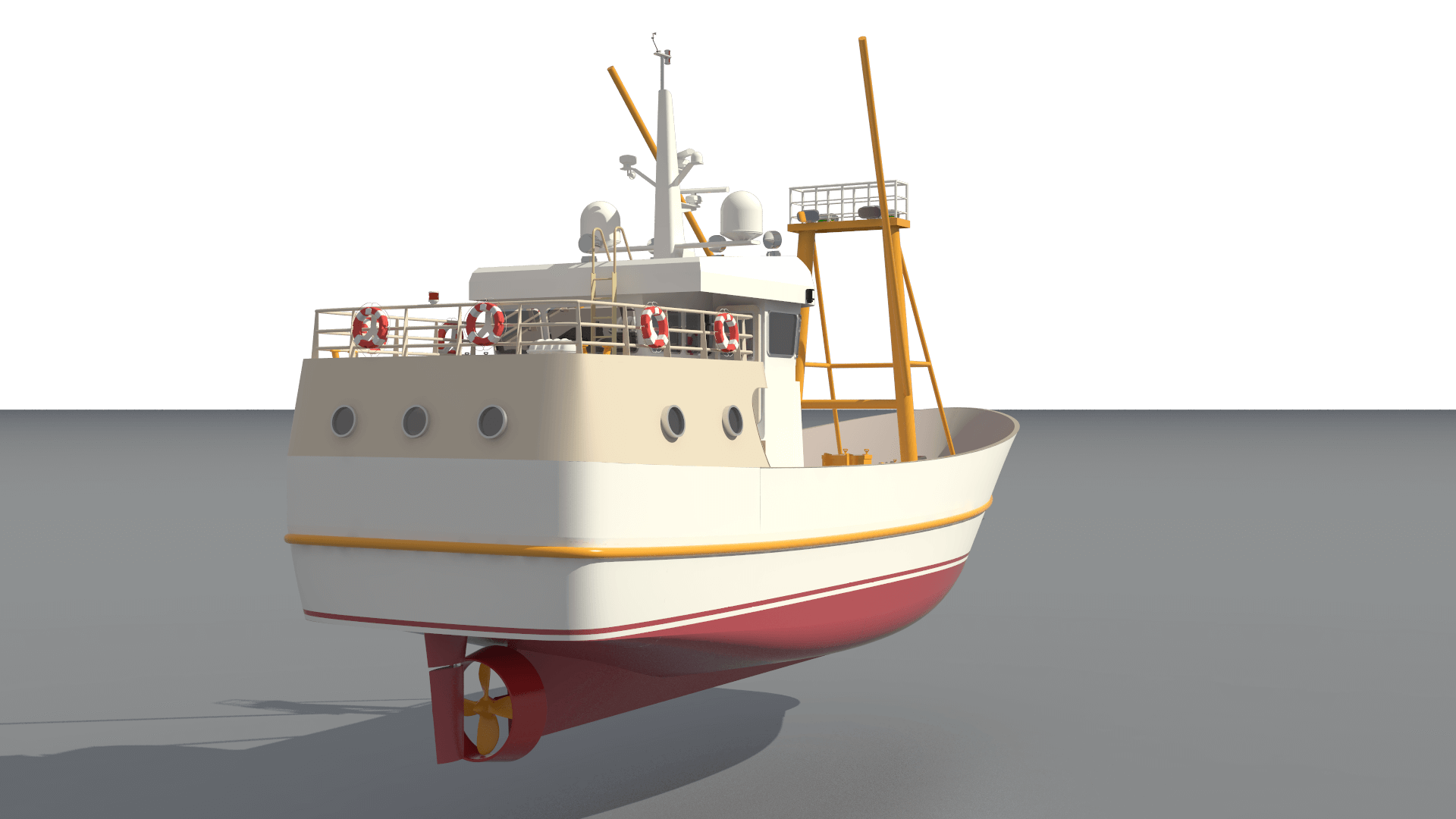

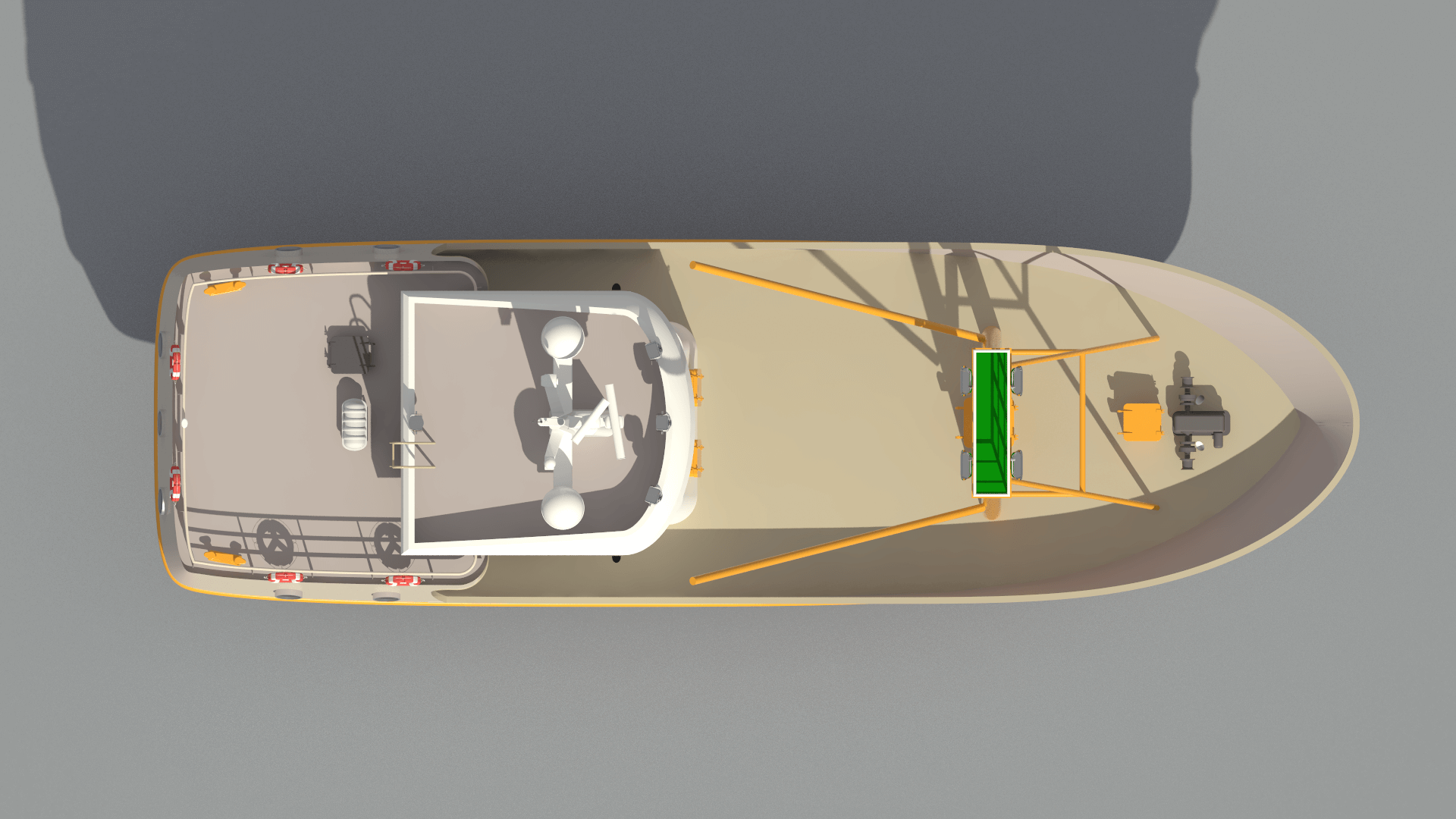

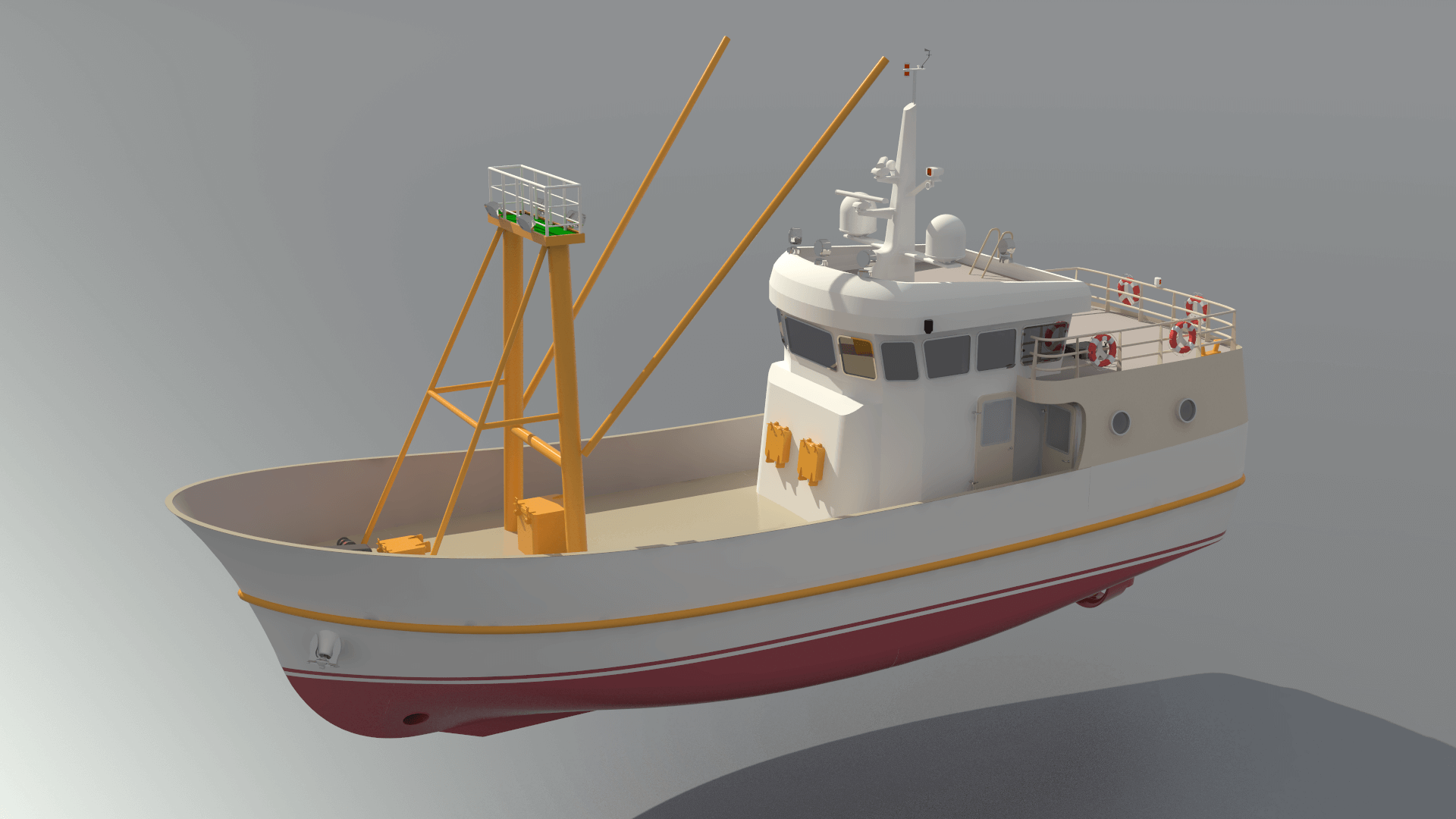

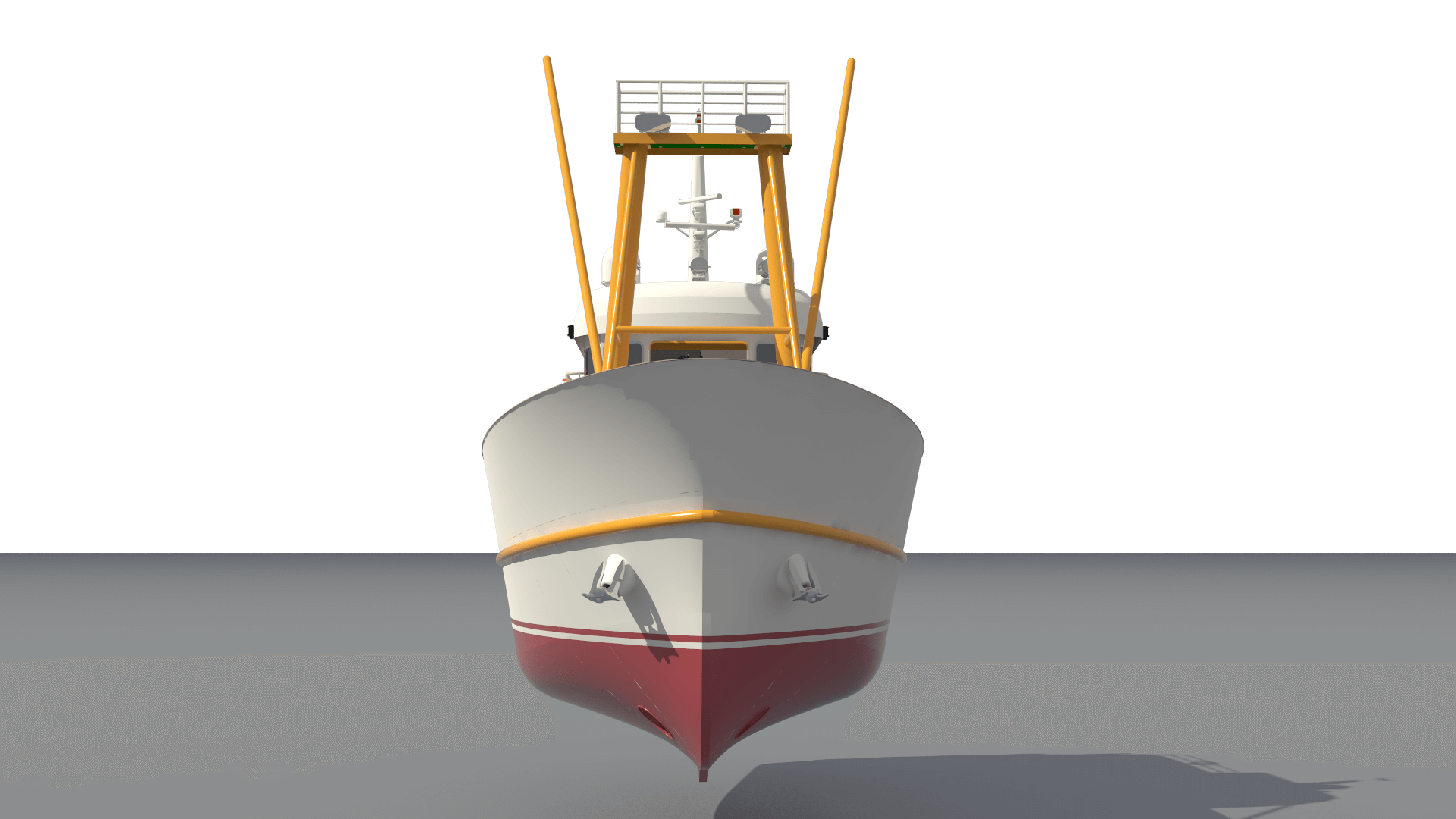

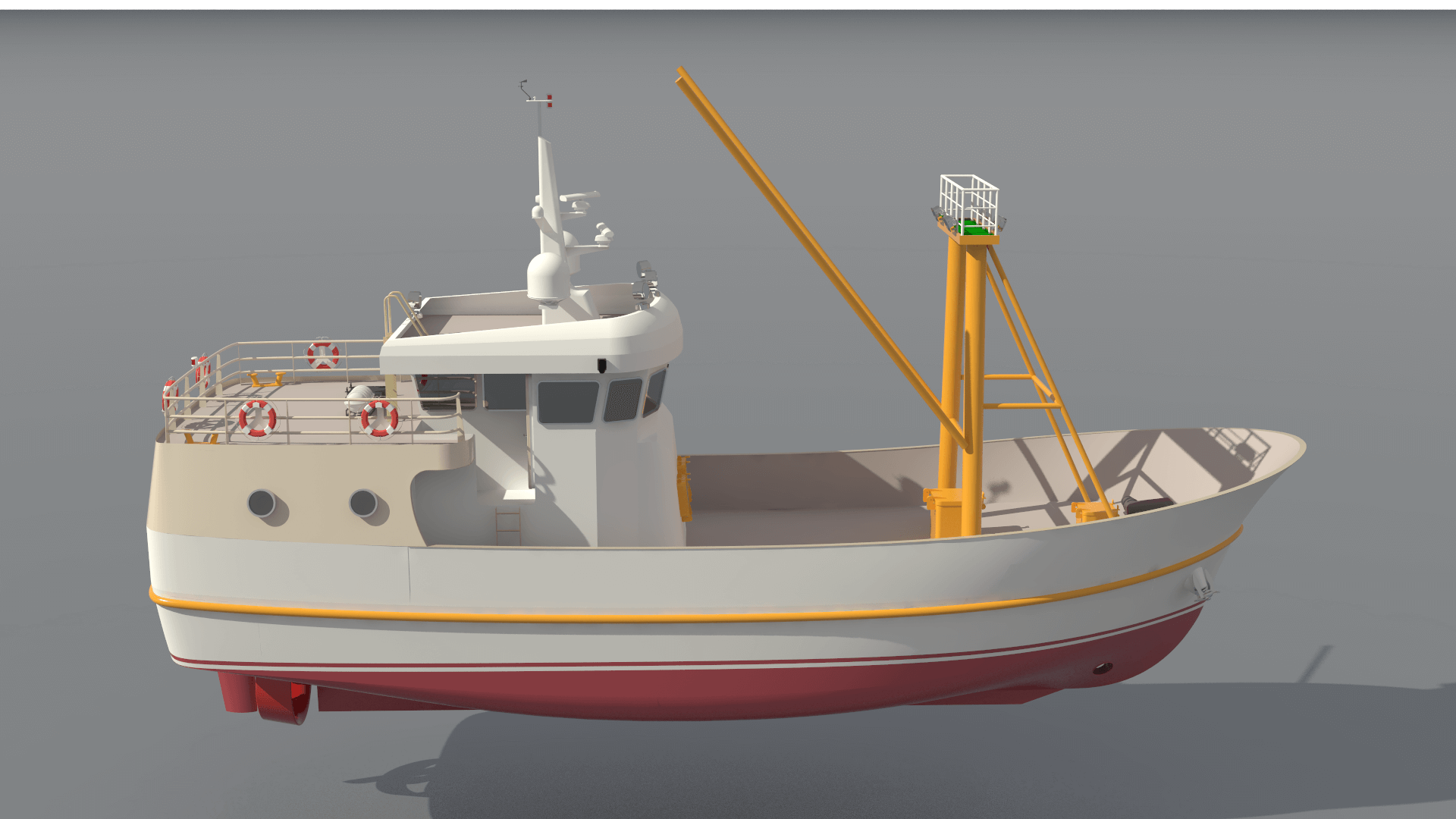

20M SHRIMP TRAWLER / TYPE:1
The vessel is designed for shrimp trawling activities at Nordic area.
CLASS INFORMATION
DANISH MARITIME AUTHORITY
NOTICE E
MAIN DIMENSIONS
| LOA (Length Over All) m | : | 20,00 |
| LWL (Length Water Line) m | : | 18,33 |
| LBP (Length Between Perpendiculars) m | : | 17,44 |
| B (Breadth Moulded) m | : | 6,00 |
| D (Depth Moulded) m | : | 2,60 |
| T (Max Draught) m | : | 1,60 |
| Crew Information | : | 4 Crew |
| Building Material | : | A Grade Marine Steel |
TANK CAPACITIES
| Diesel Oil Tanks (m3) | : | 10,00 |
| Fresh Water Tanks (m3) | : | 3,00 |
| Sewage Tank (m3) | : | 1,00 |
| Bilge Tank (m3) | : | 0,30 |
| Fish Hold Cold Room (m3) | : | 45 |
SPEED / POWER / PROPULSION / AUXILIARY MACHINERY
| V Service Speed (knots) | : | 10.5 knots @ full load condition |
| Main Engine Power (kW) | : | 1x220kW @1420rpm |
| Main Engine Power (HP) | : | 1x299HP @1420rpm |
| Reduction Gear Ratio | : | 5.95 / 1 |
| Propeller Information | : | 1x 4 Blade / Diameter: 140 cm |
| Electric Generator Power | : | 2 x 220V-380V / 60kVA |
| Bow Thruster | : | 1 x 45 HP |
