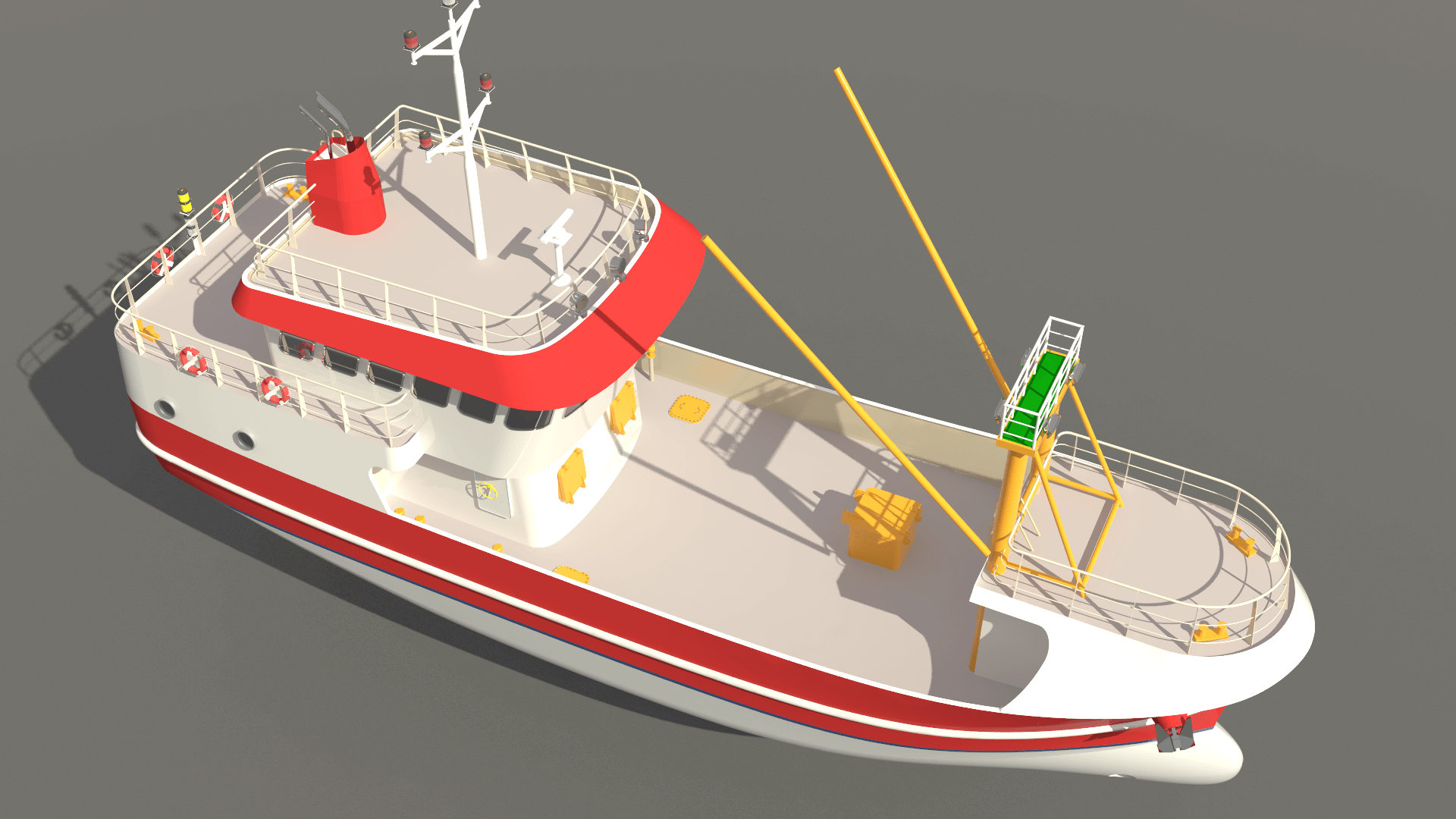

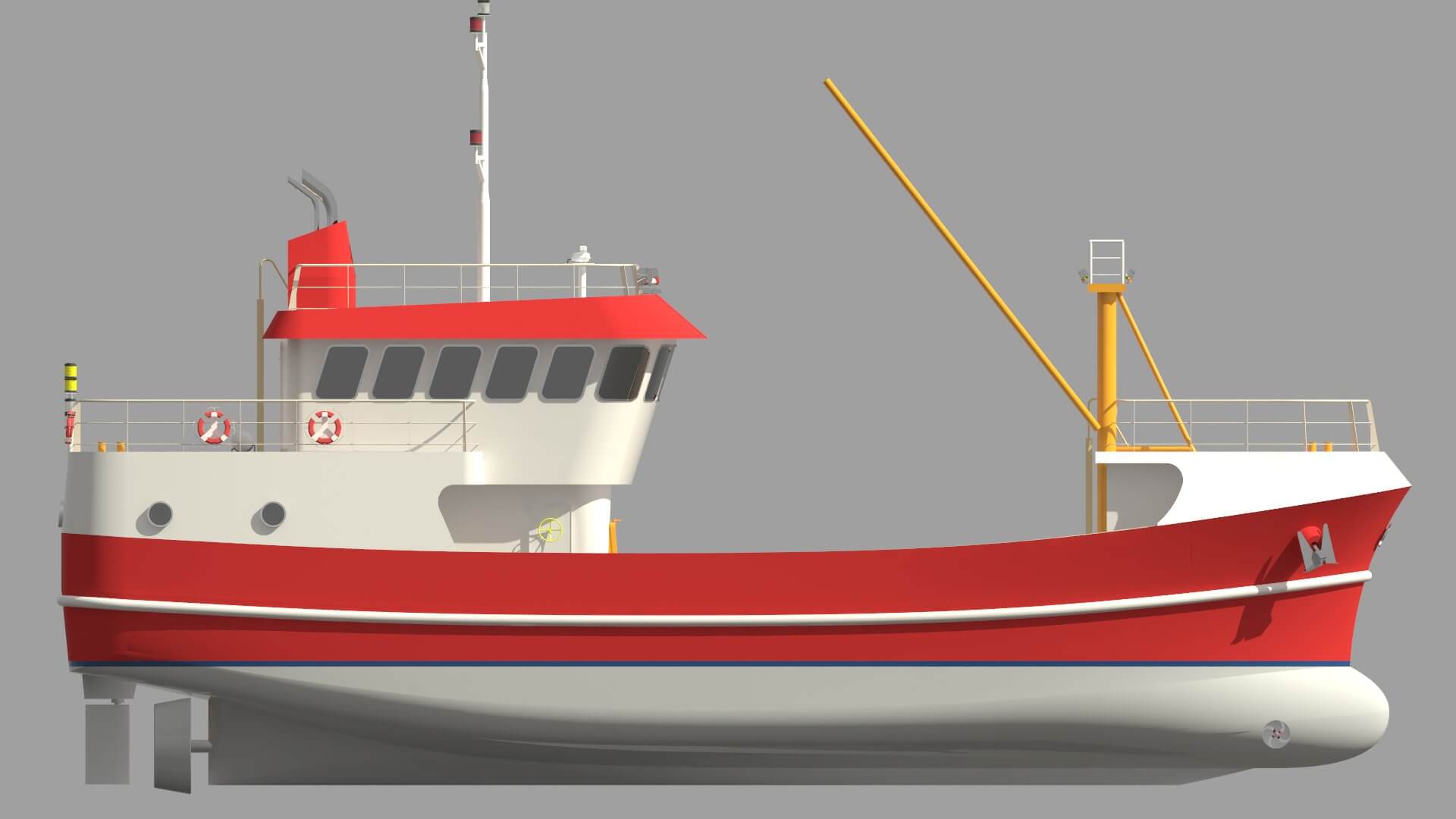

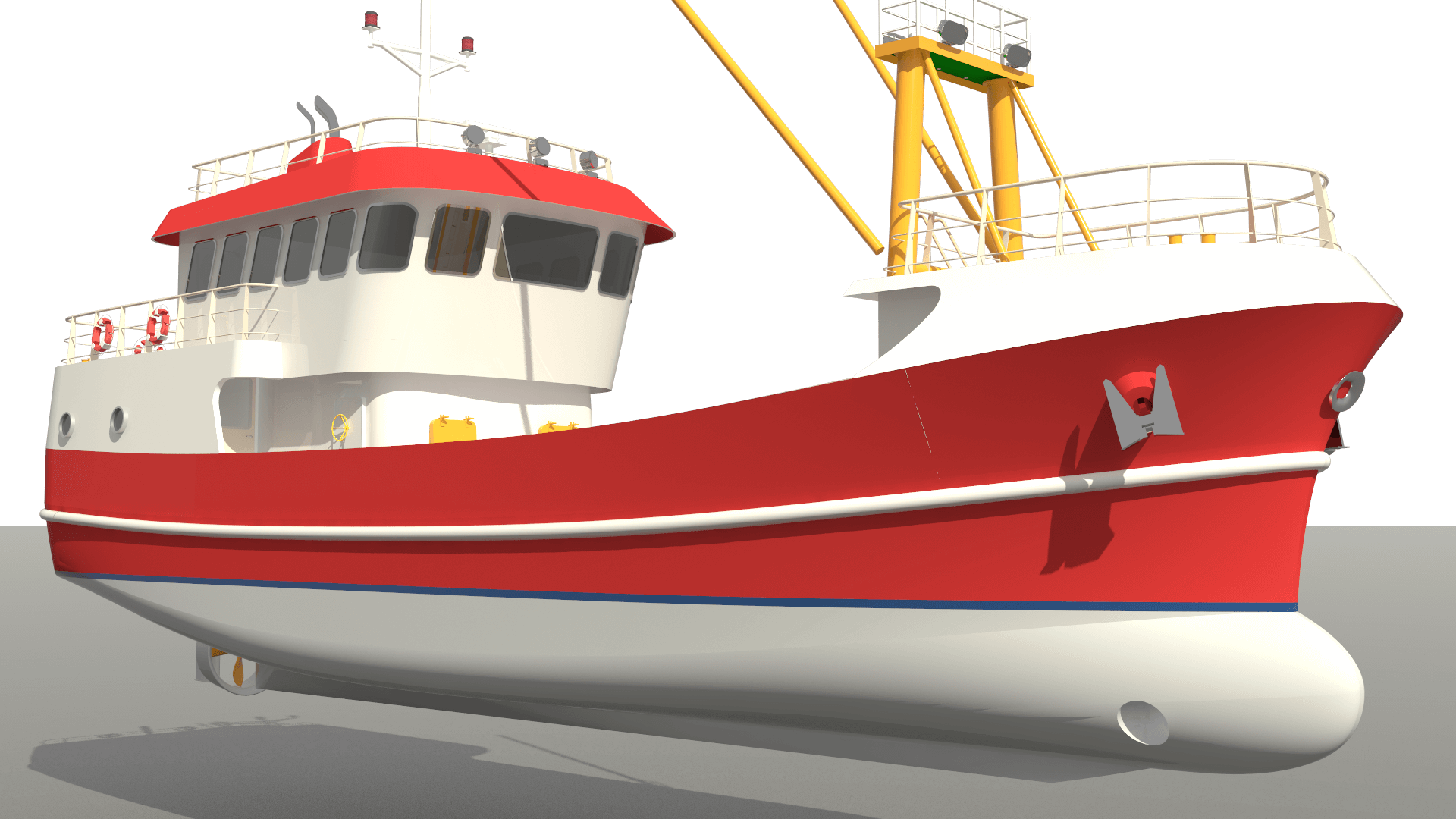

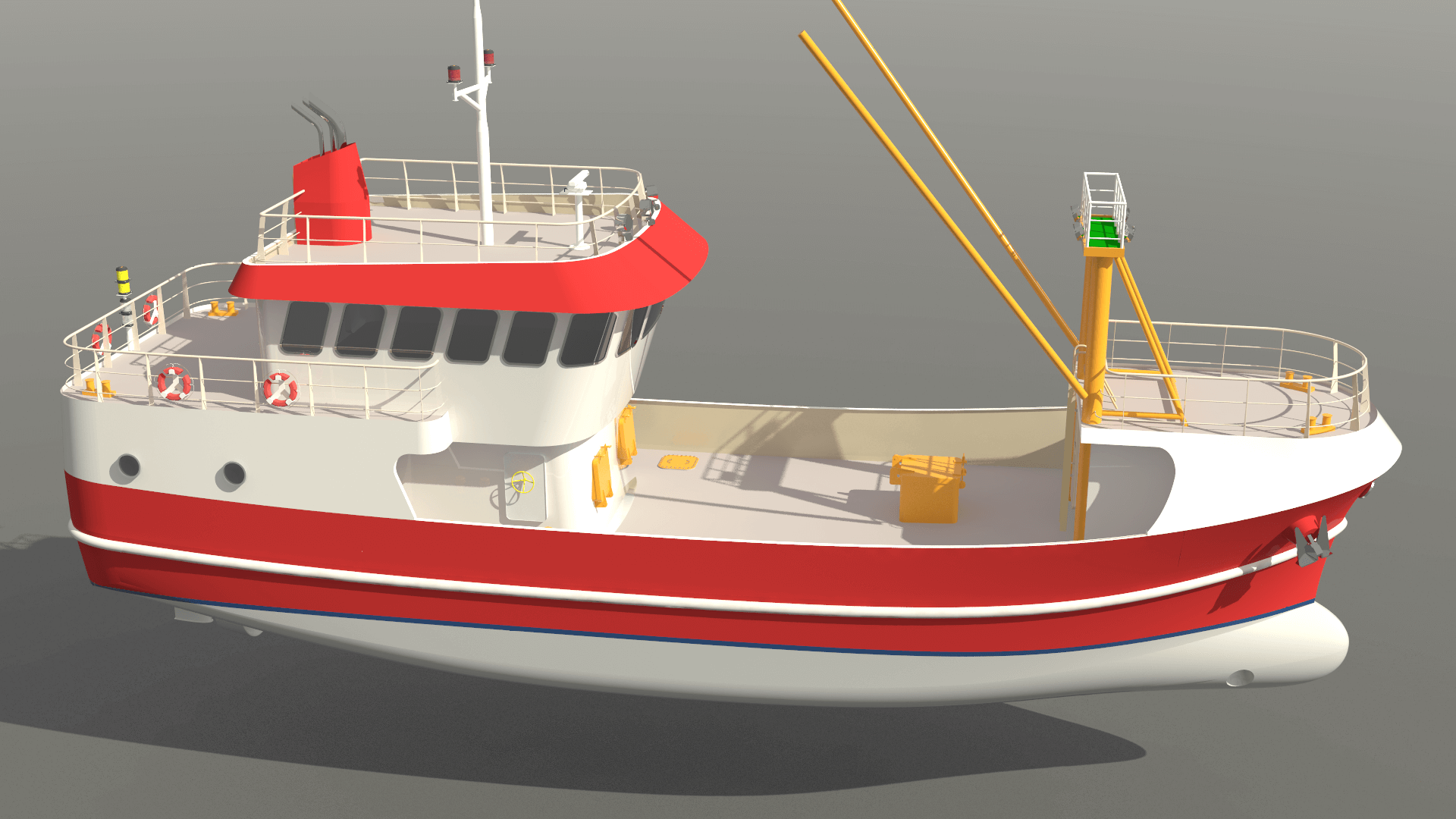

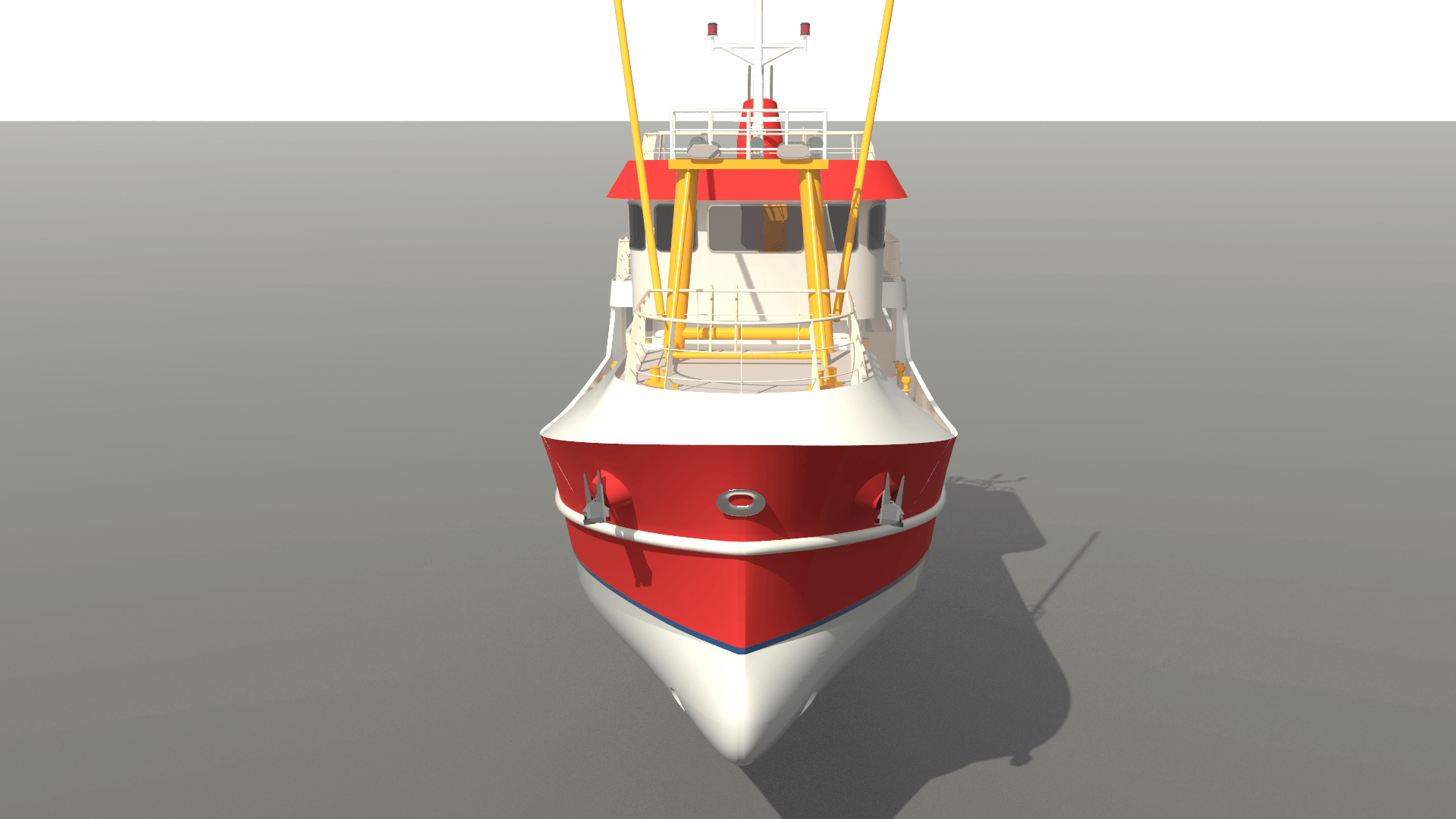

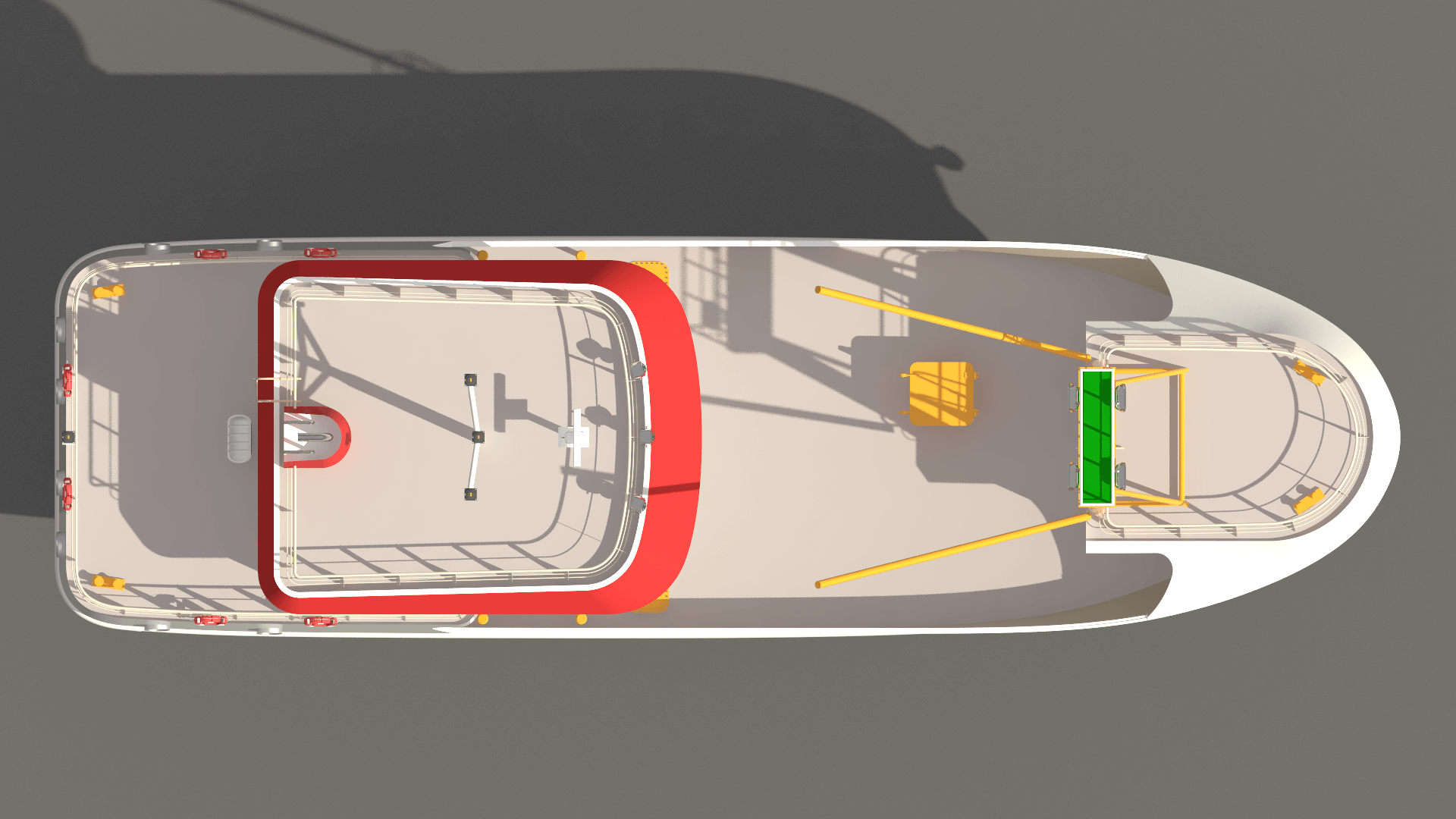

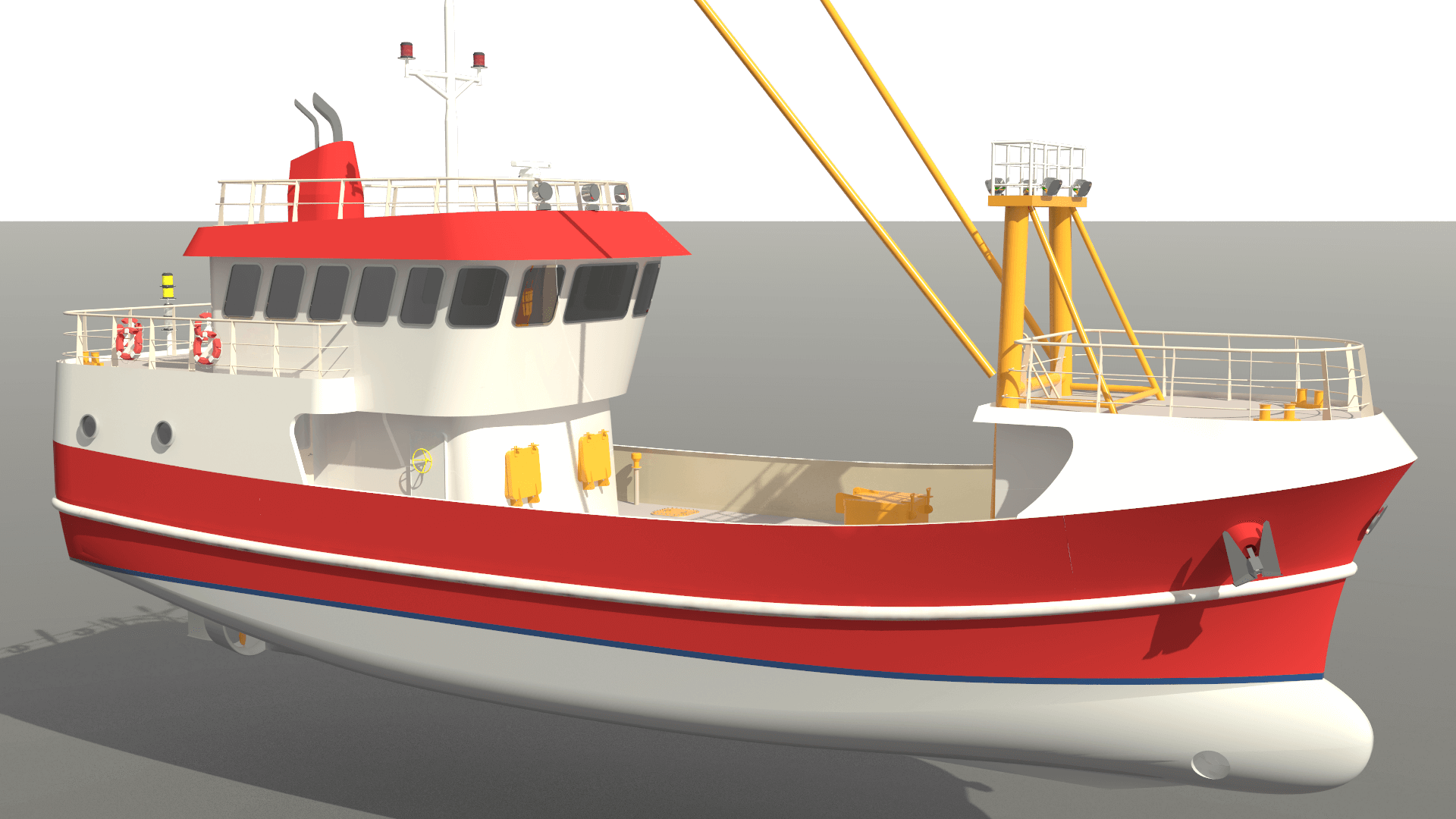

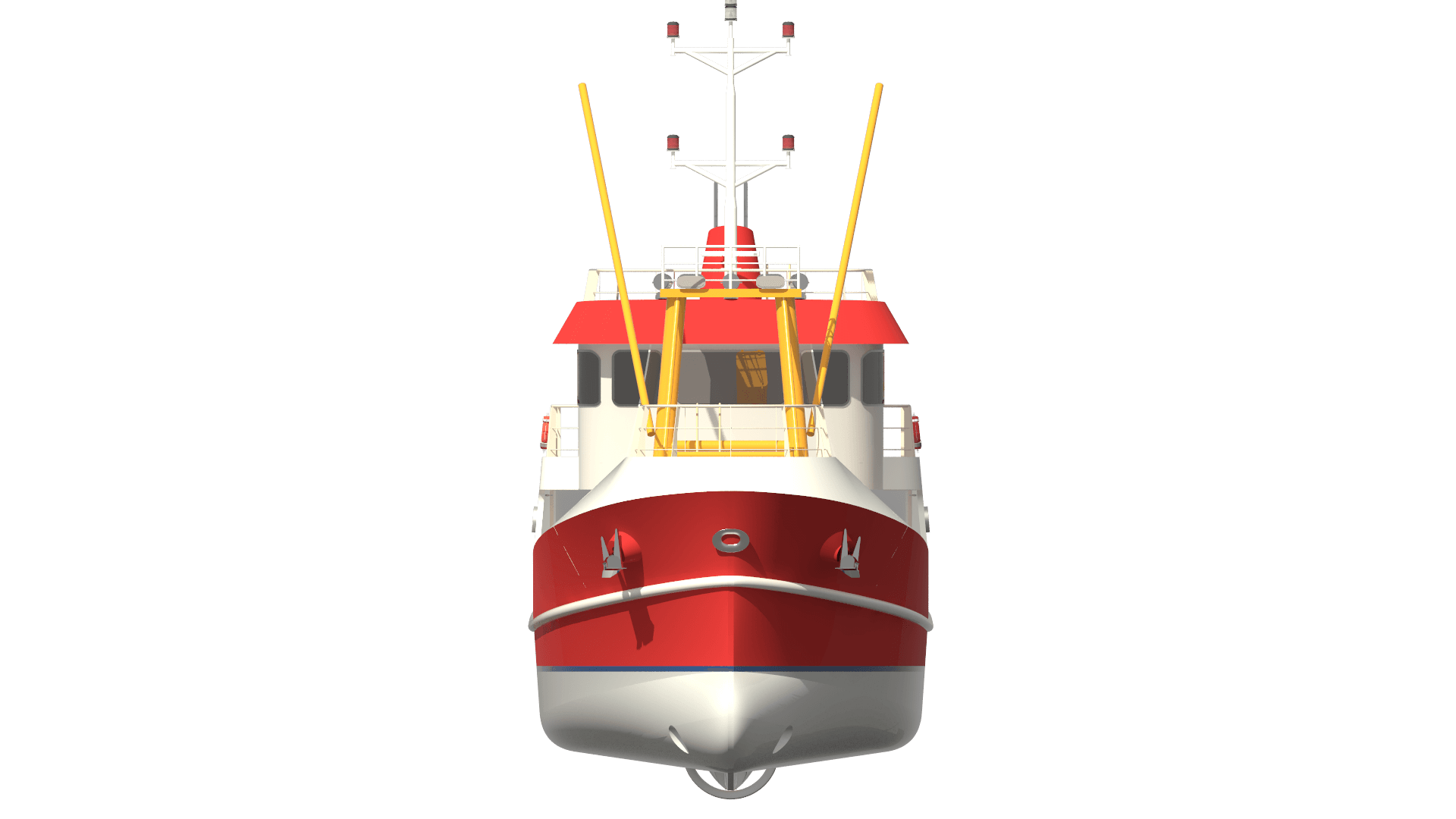

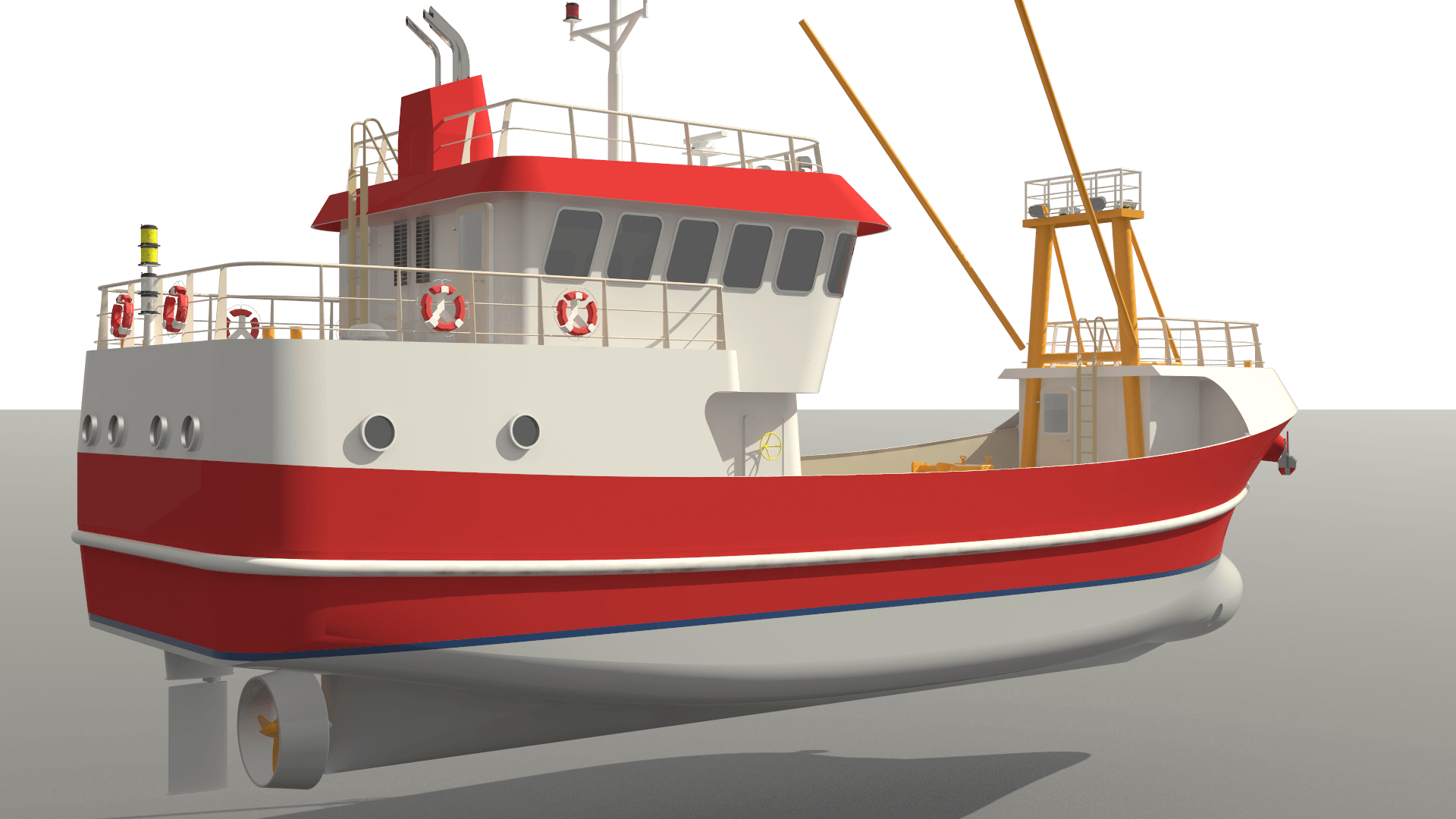

24M SHRIMP TRAWLER / TYPE:3
The vessel is designed for shrimp trawling activities at Nordic area.
CLASS INFORMATION
DANISH MARITIME AUTHORITY
NOTICE E
MAIN DIMENSIONS
| LOA (Length Over All) m | : | 23,90 |
| LWL (Length Water Line) m | : | 22,67 |
| LBP (Length Between Perpendiculars) m | : | 21,80 |
| B (Breadth Moulded) m | : | 7,00 |
| D (Depth Moulded) m | : | 2,70 |
| T (Max Draught) m | : | 1,80 |
| Crew Information | : | 4 Crew |
| Building Material | : | A Grade Marine Steel |
TANK CAPACITIES
| Diesel Oil Tanks (m3) | : | 16,00 |
| Fresh Water Tanks (m3) | : | 5,00 |
| Sewage Tank (m3) | : | 2,00 |
| Bilge Tank (m3) | : | 2,00 |
| Fish Hold Cold Room (m3) | : | 60 |
