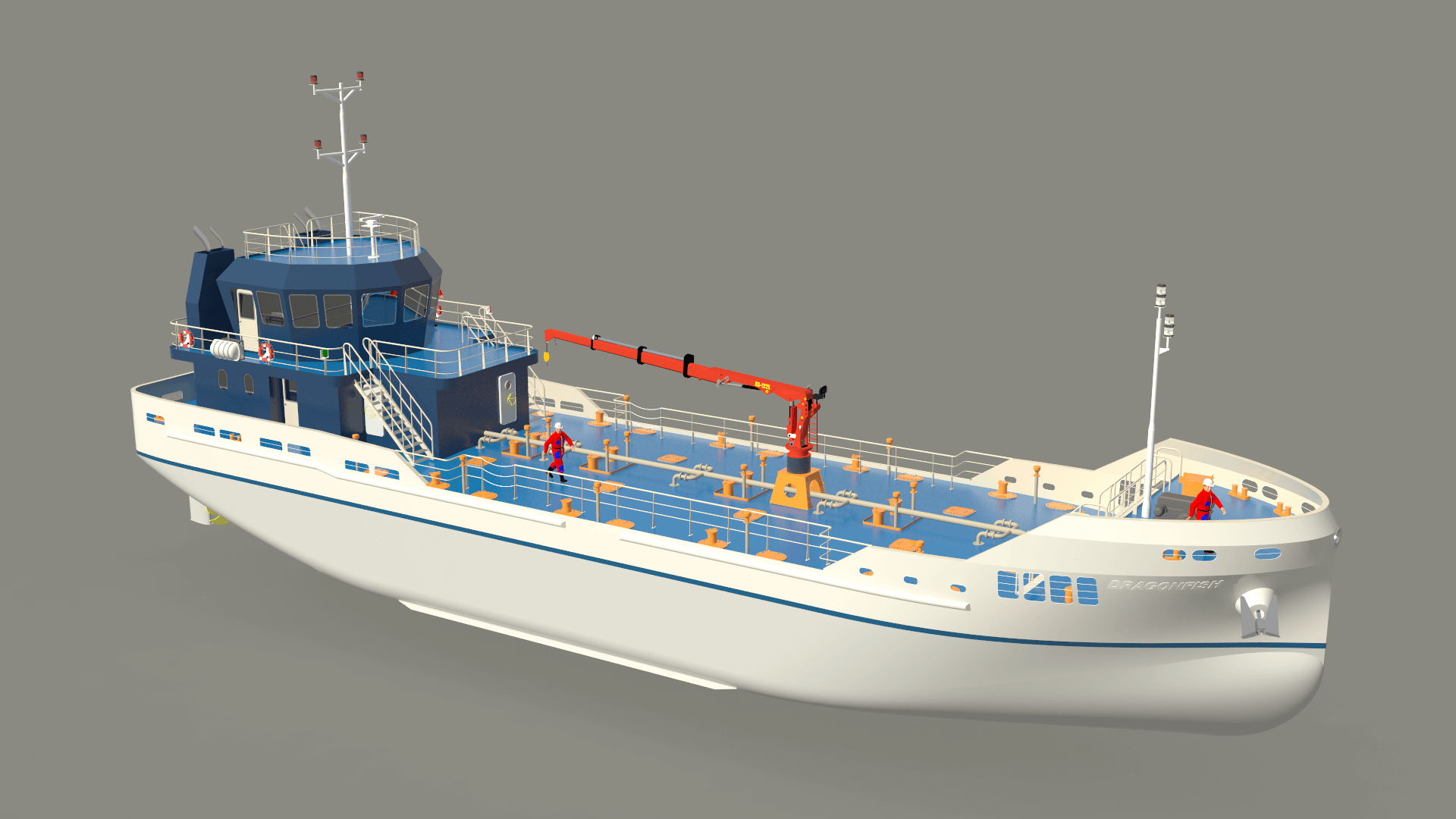

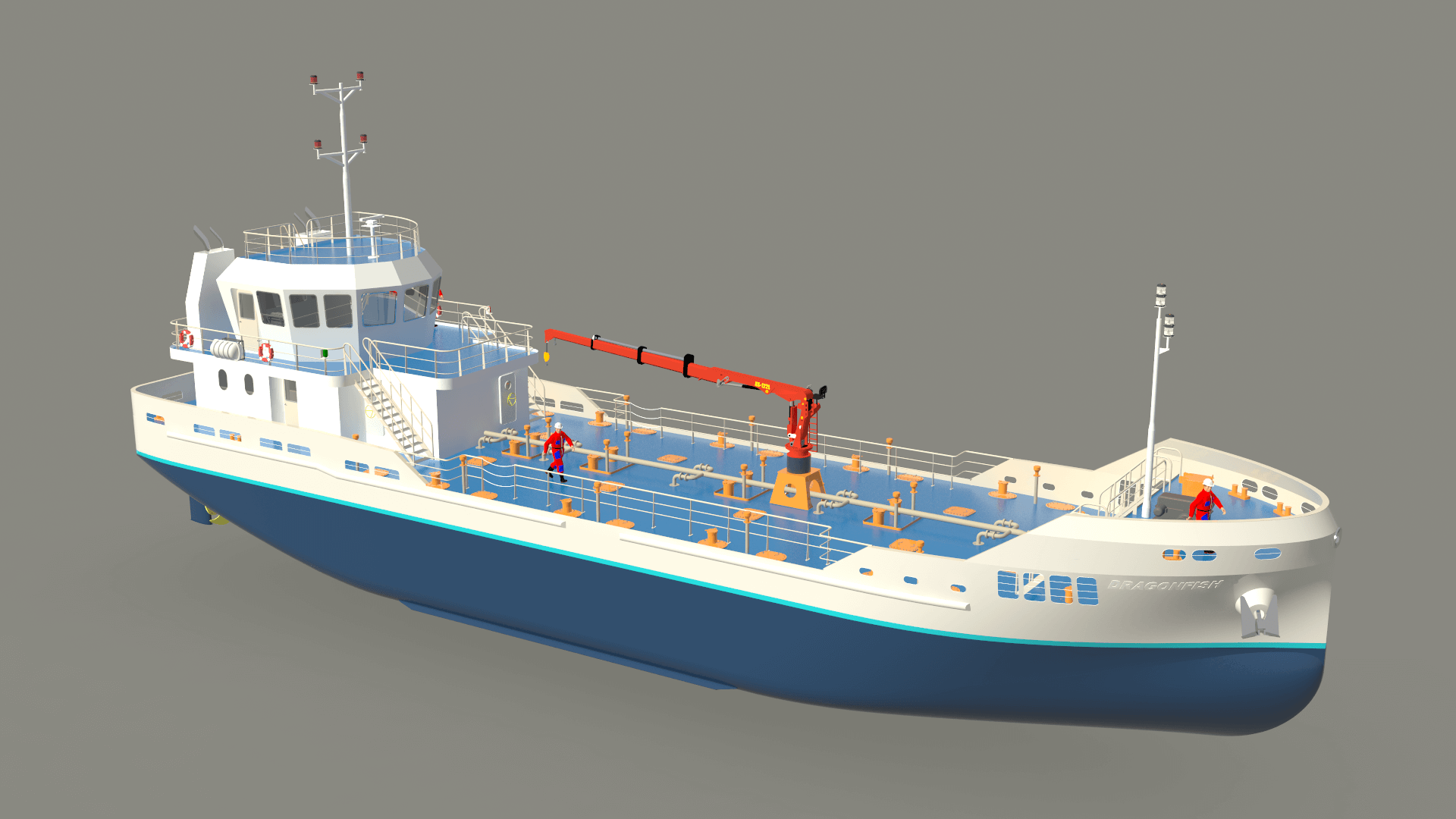

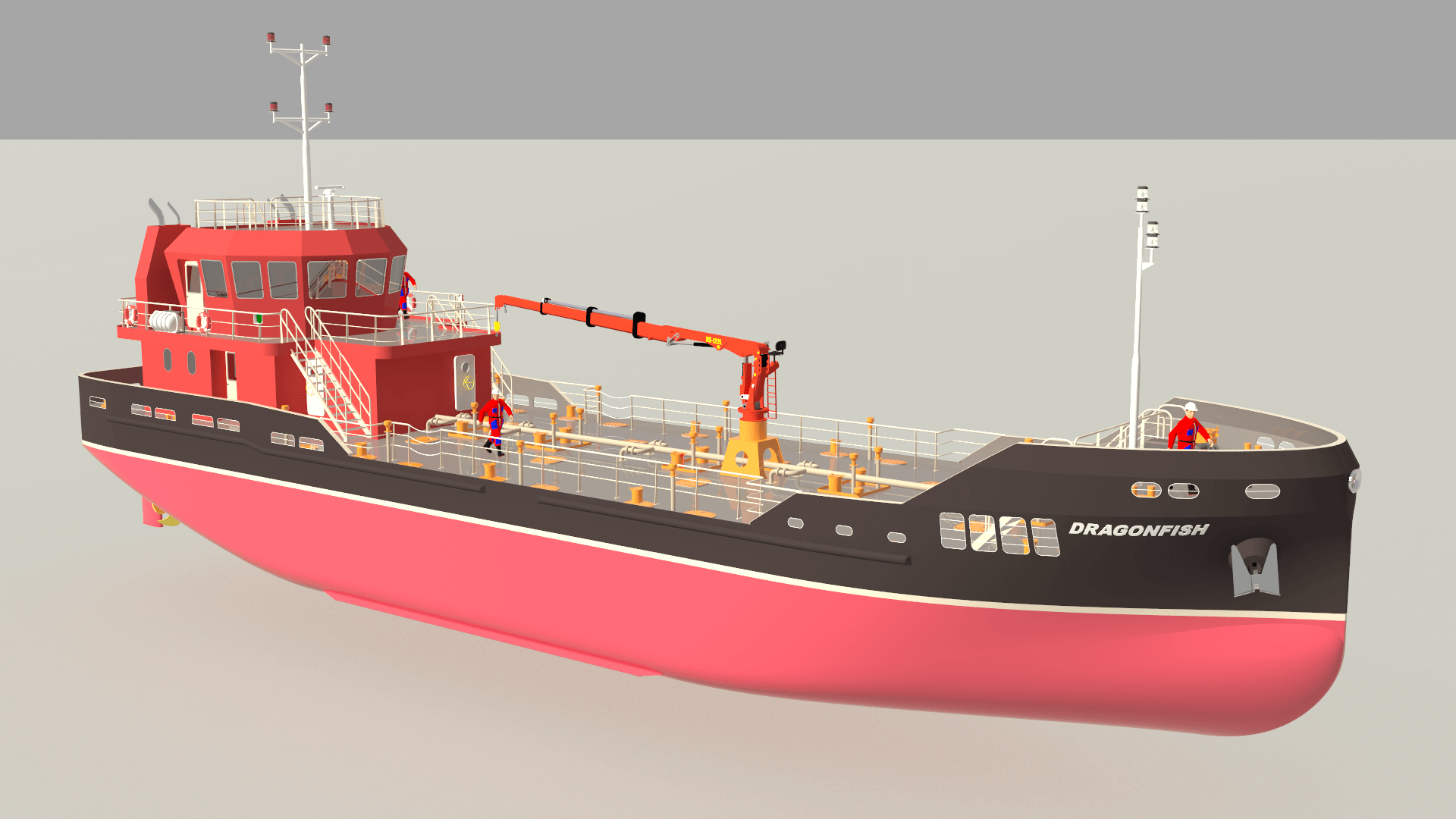

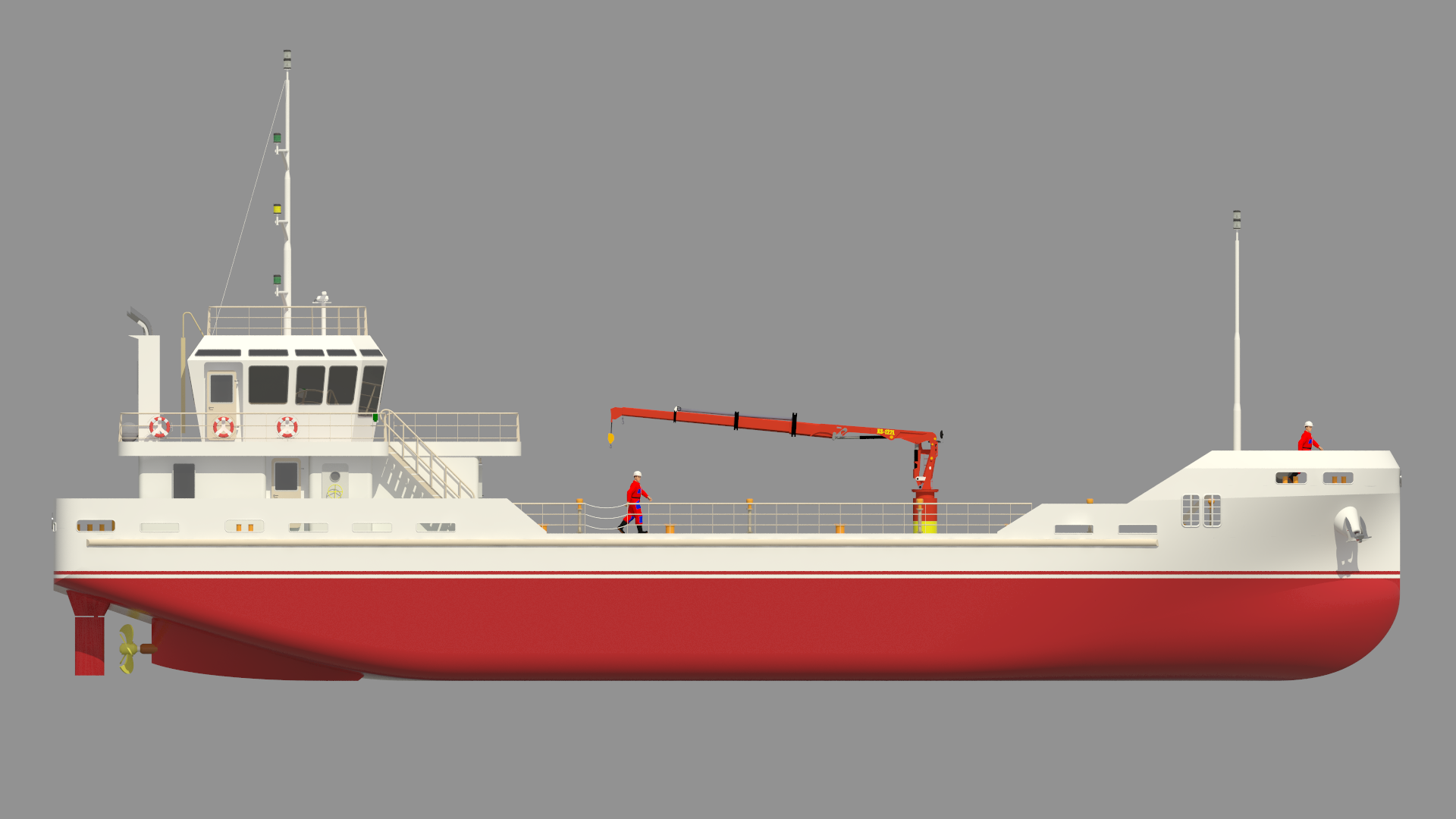

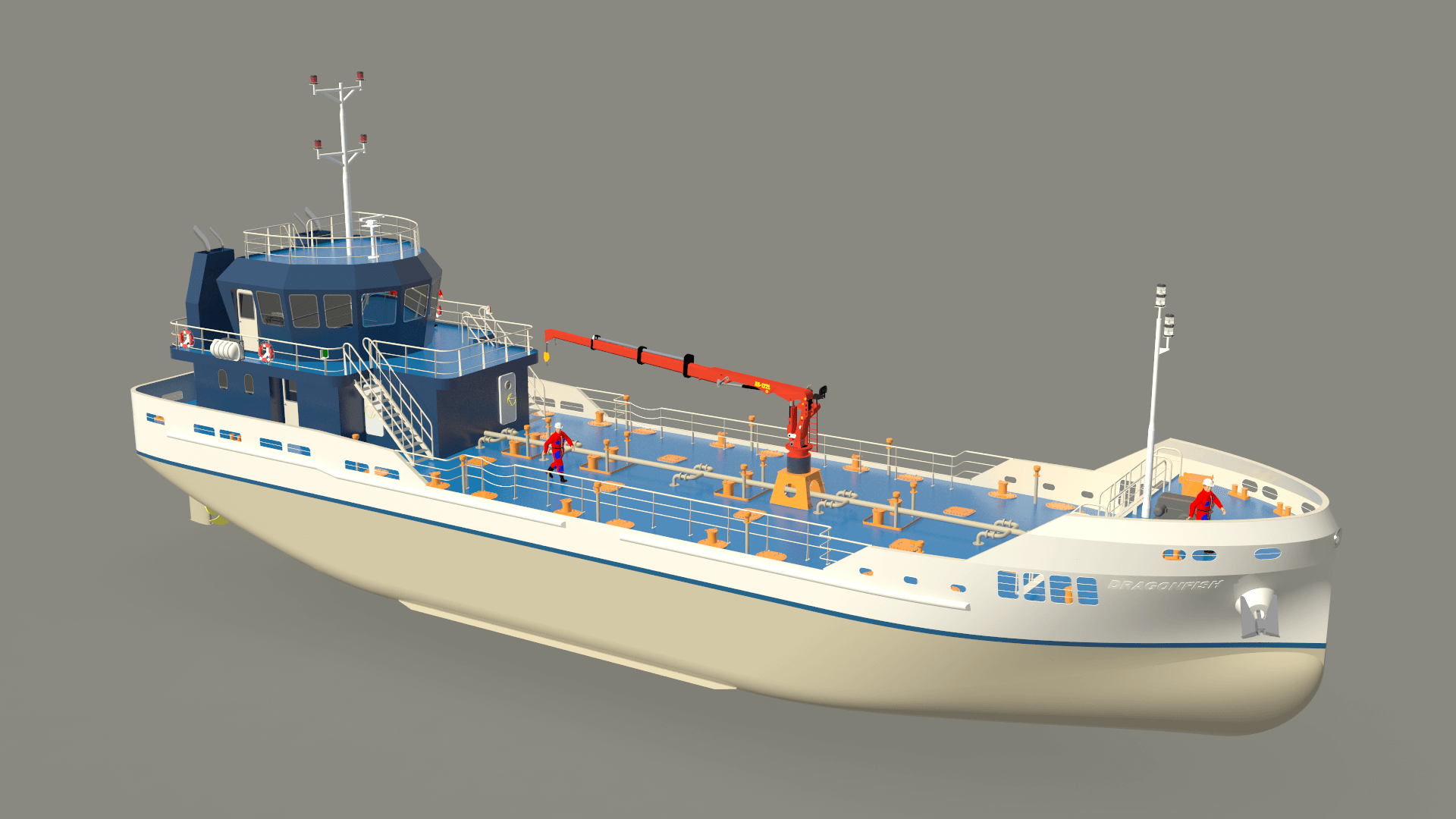

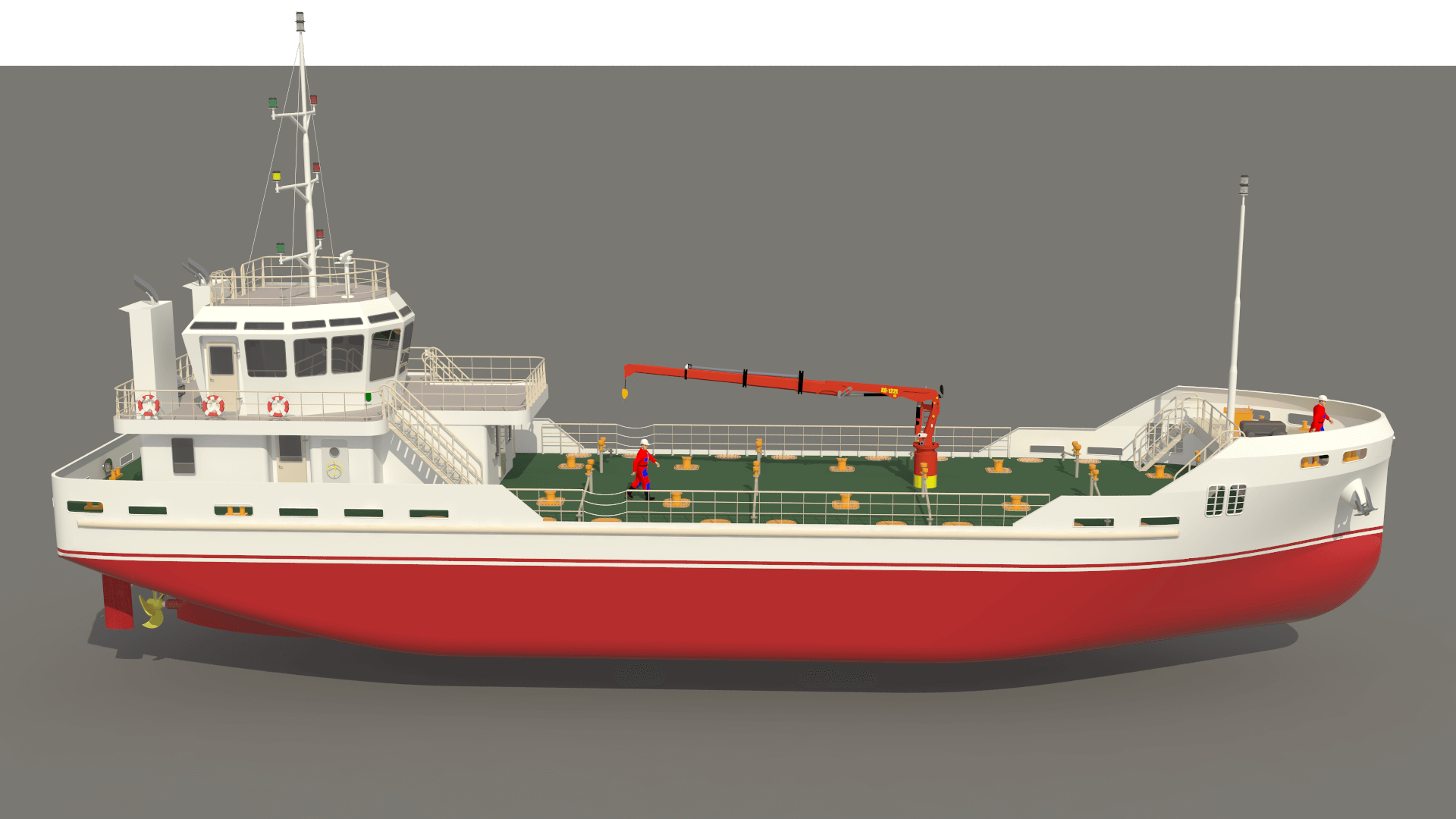

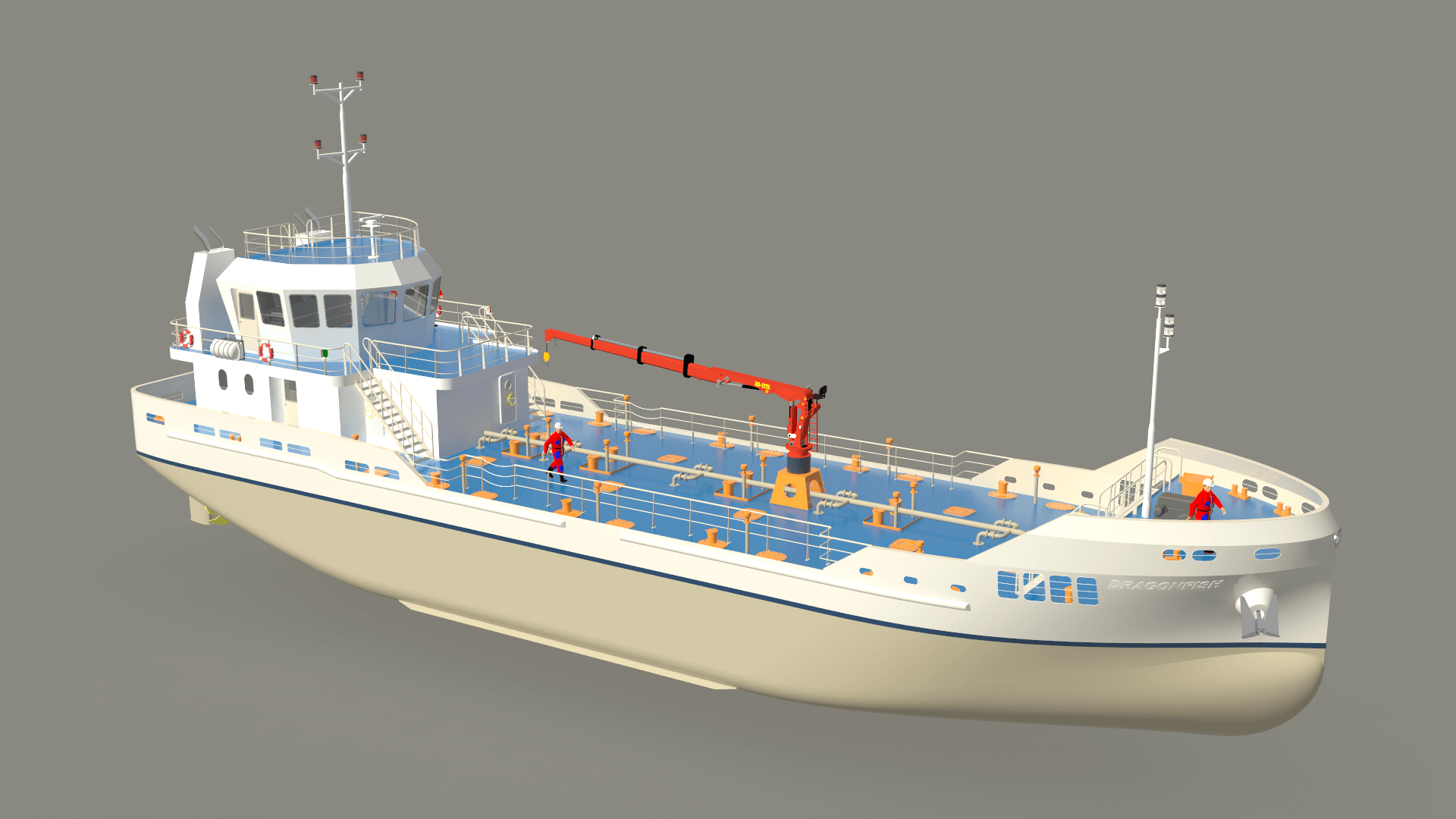

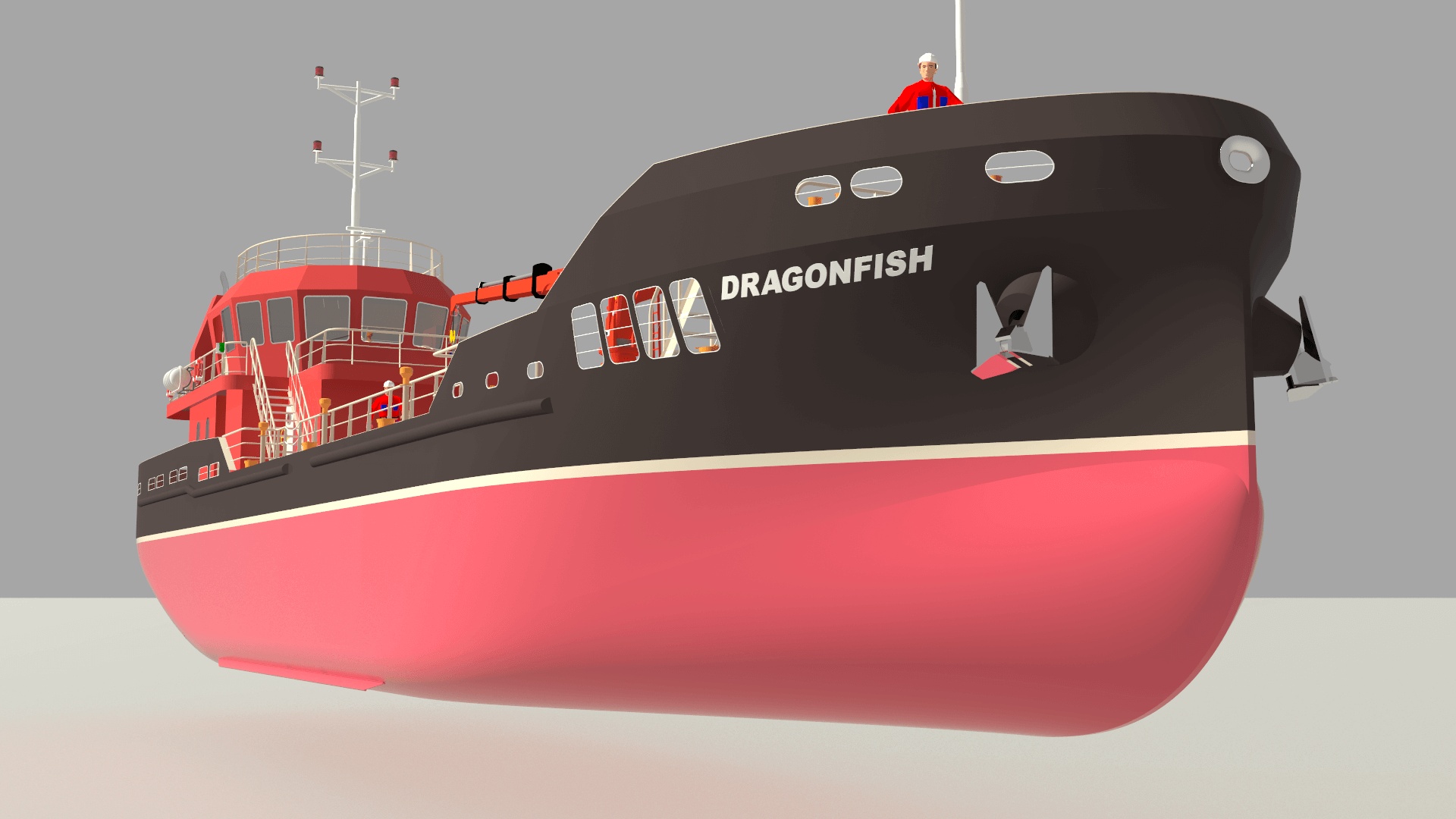

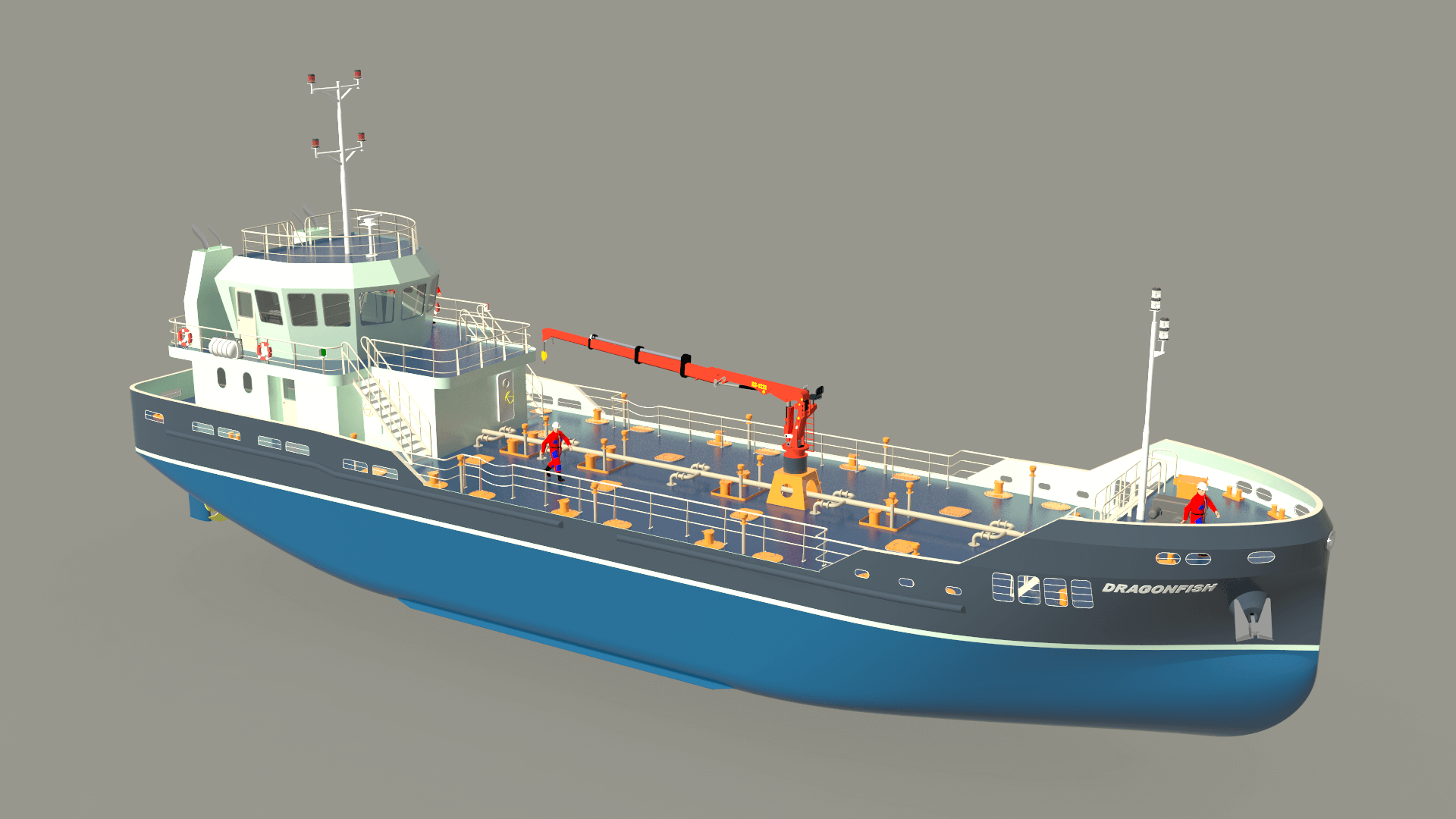

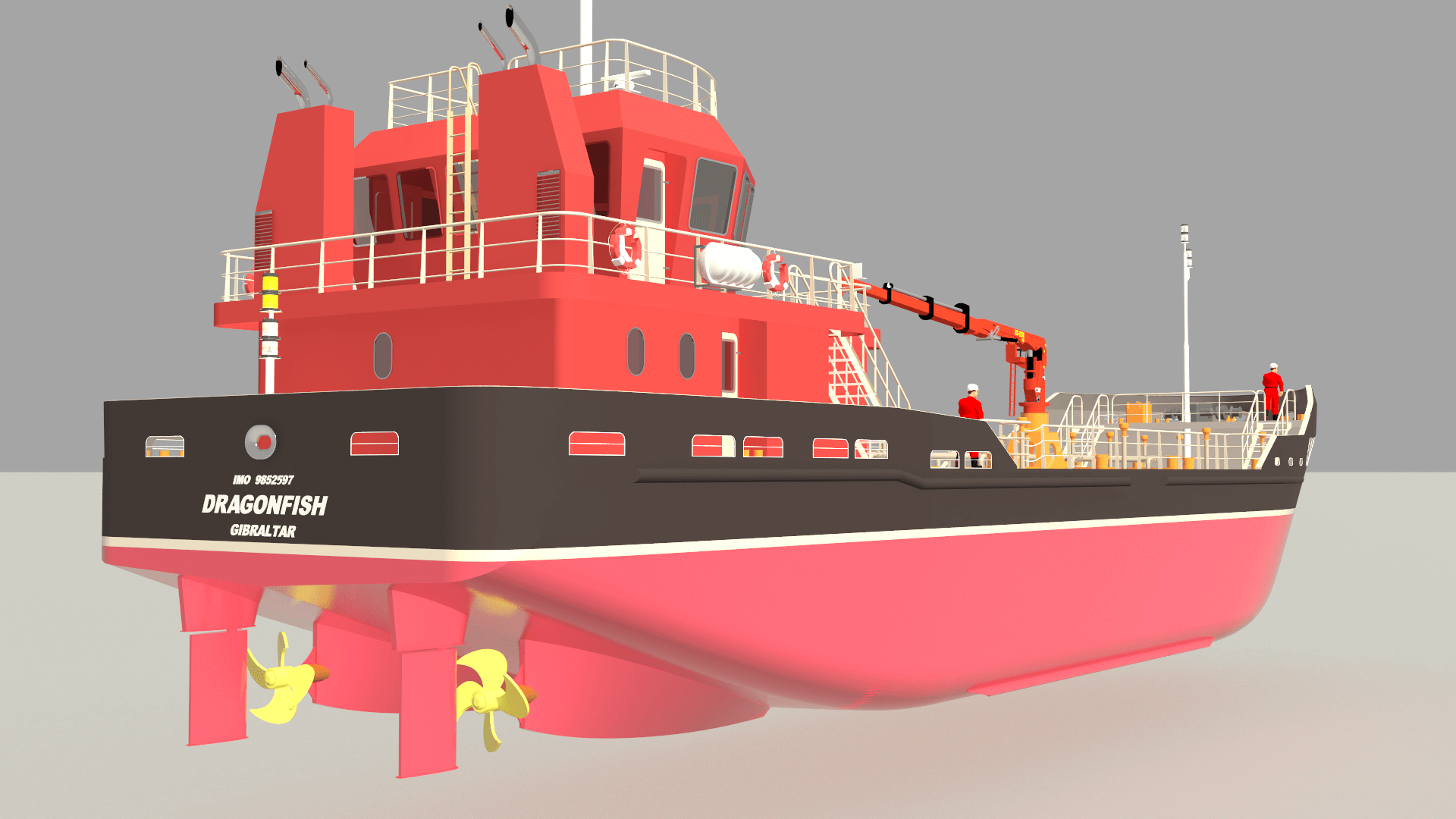

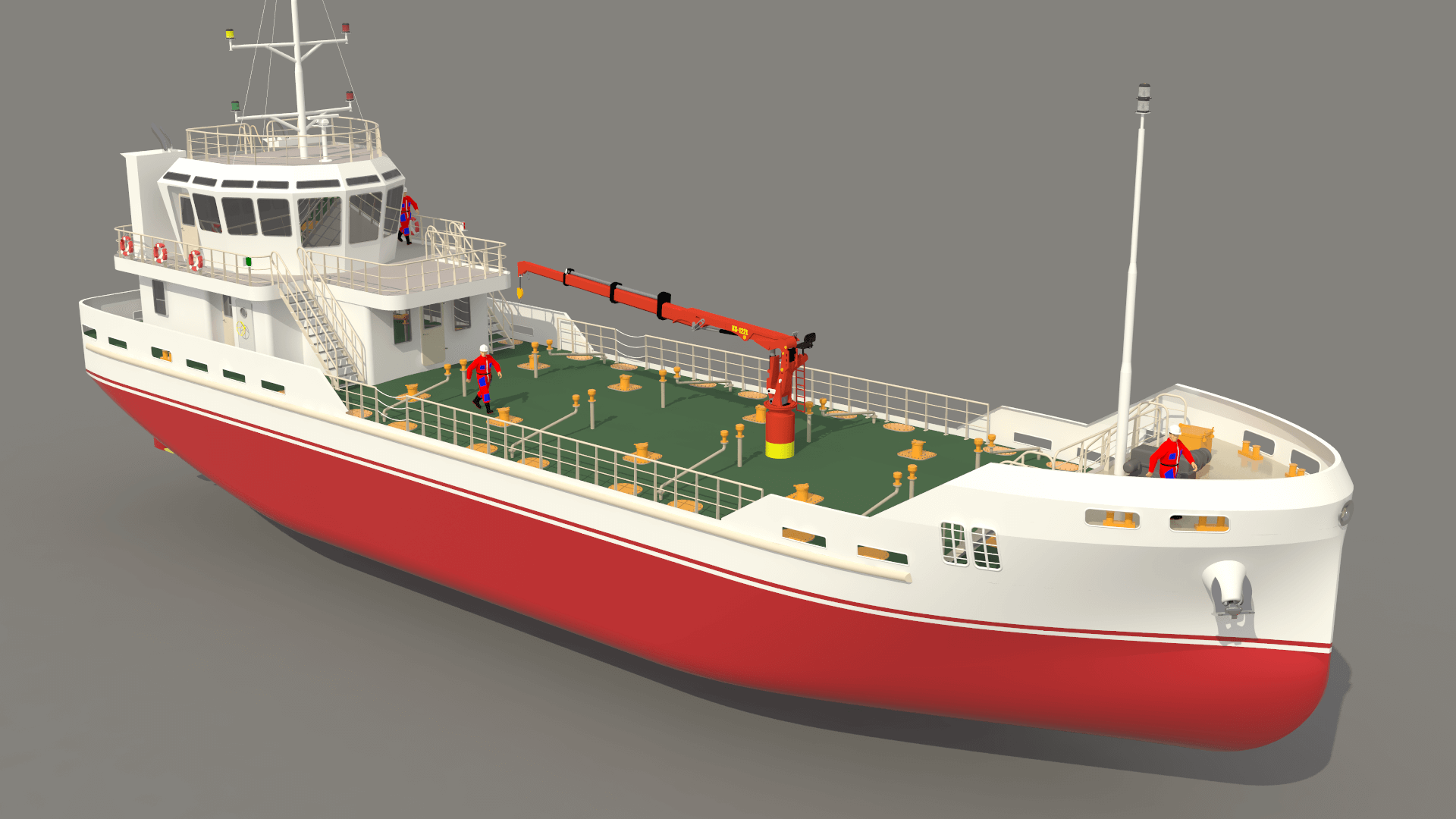

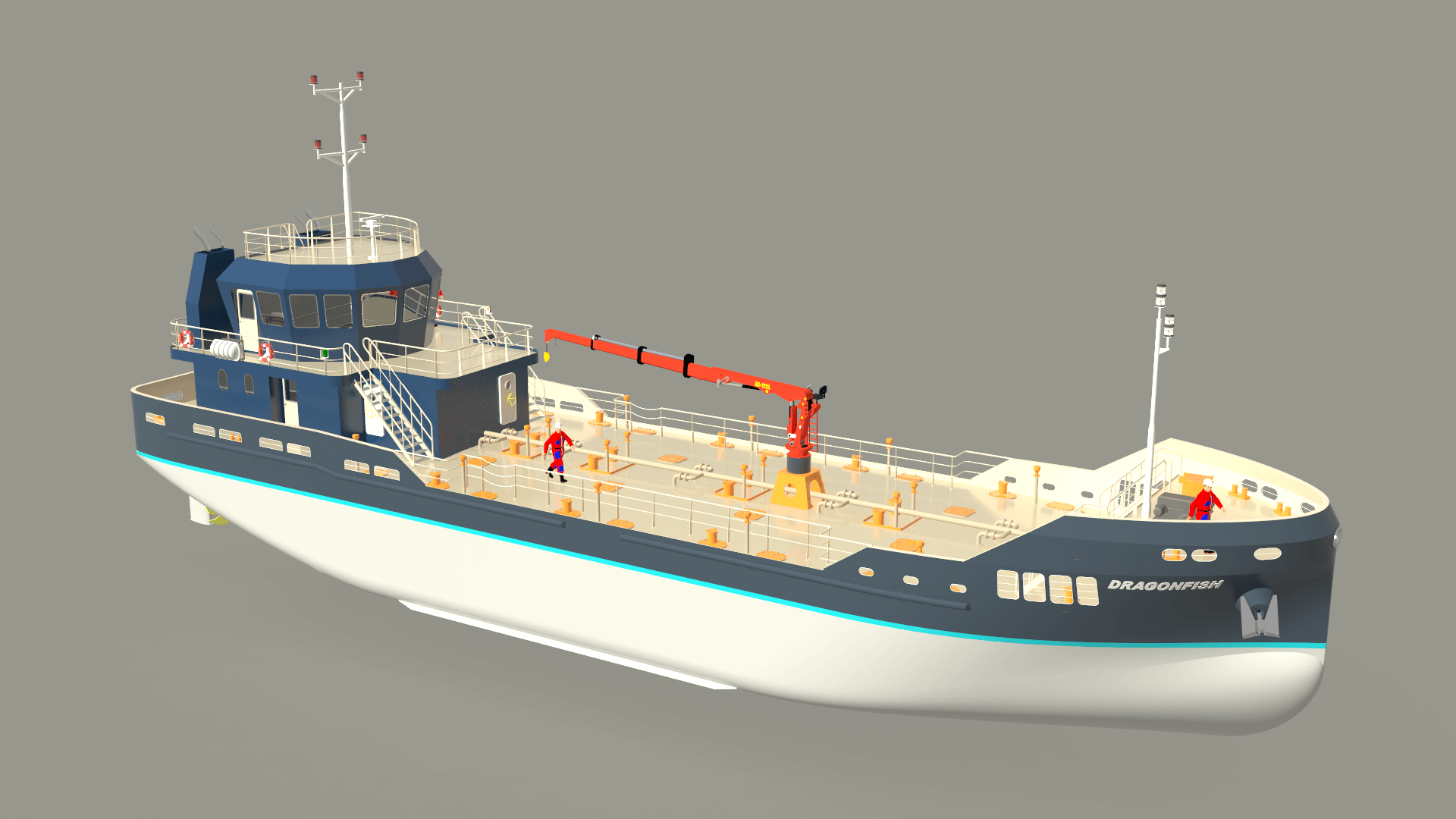

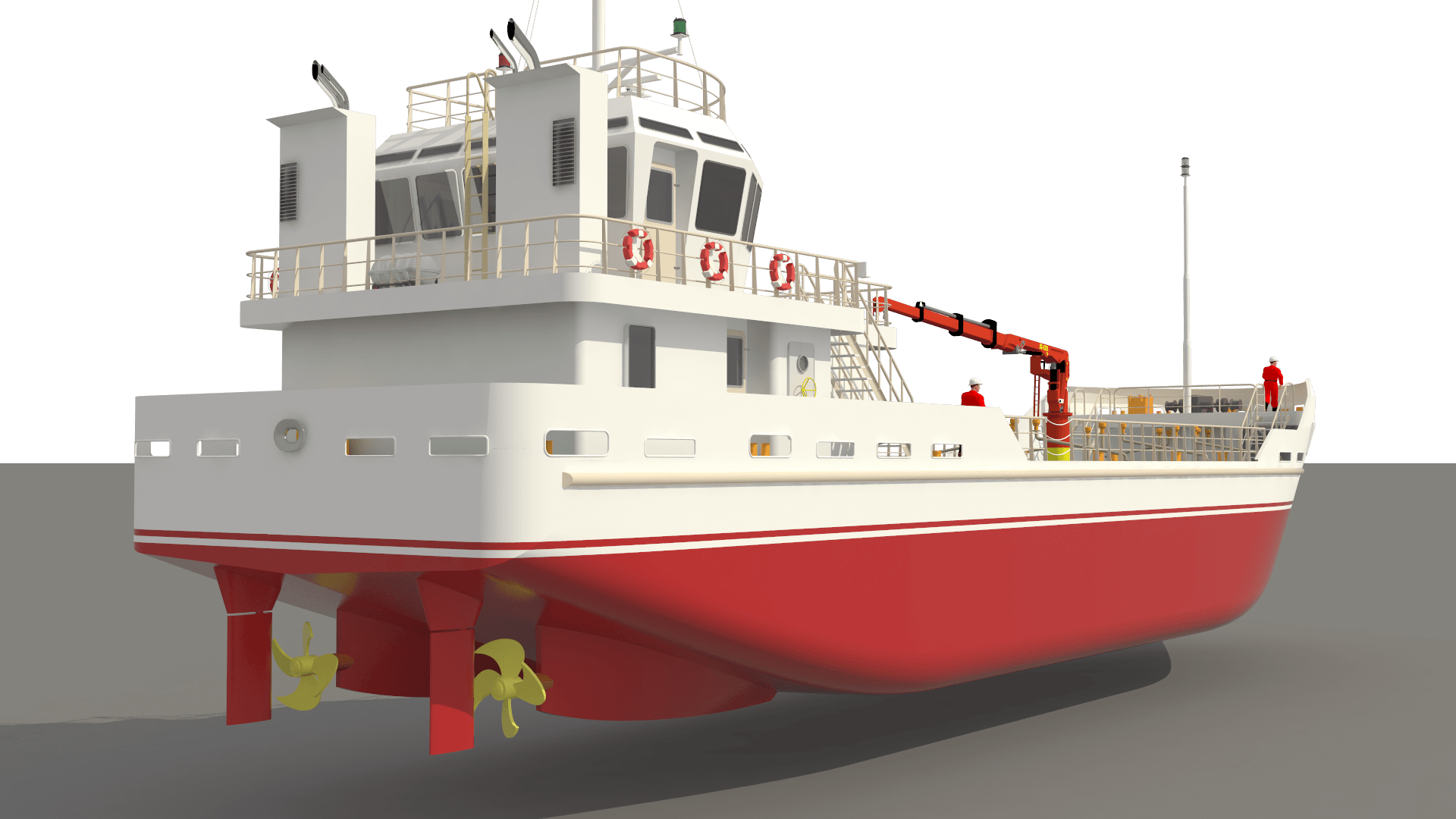

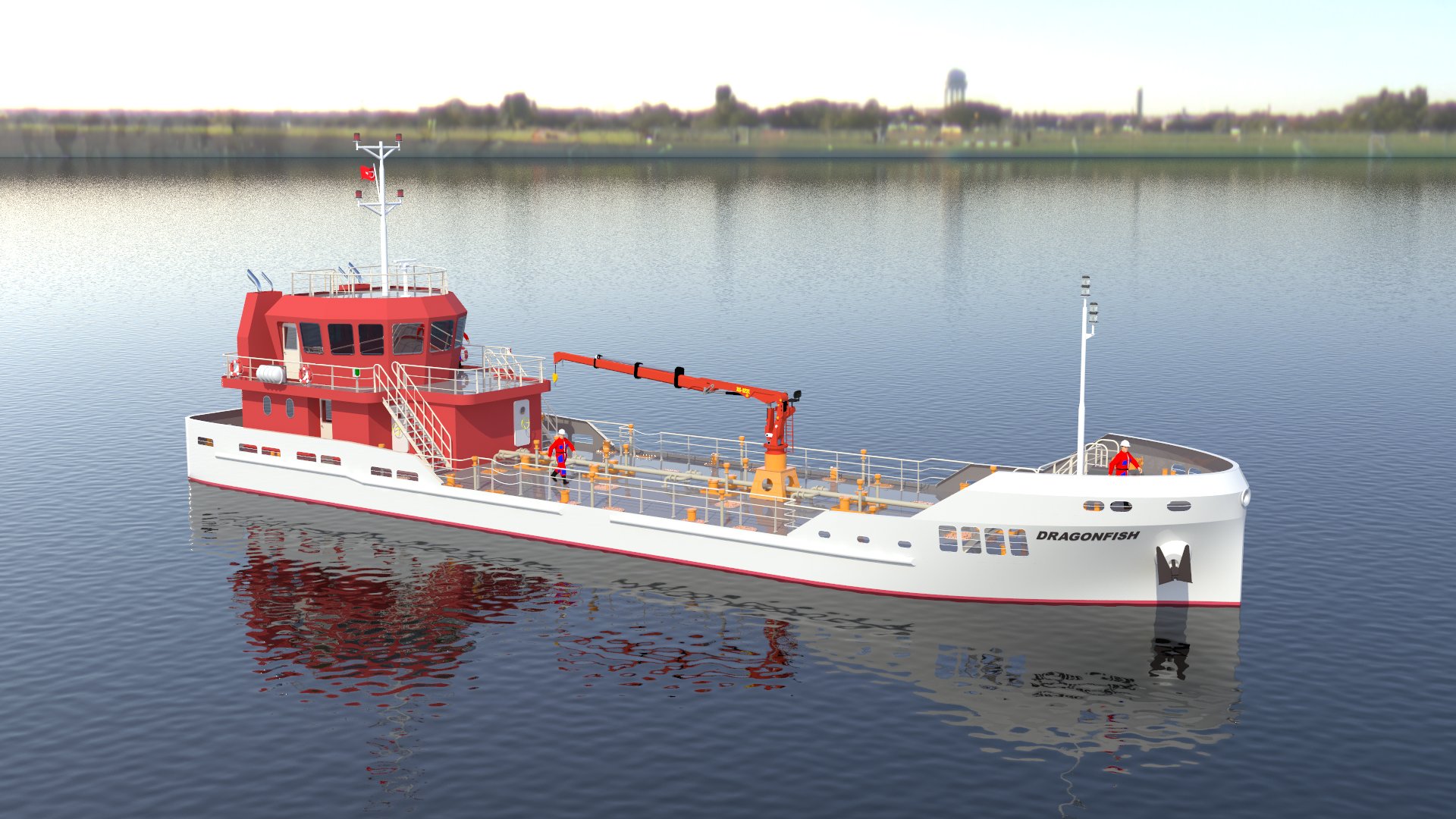

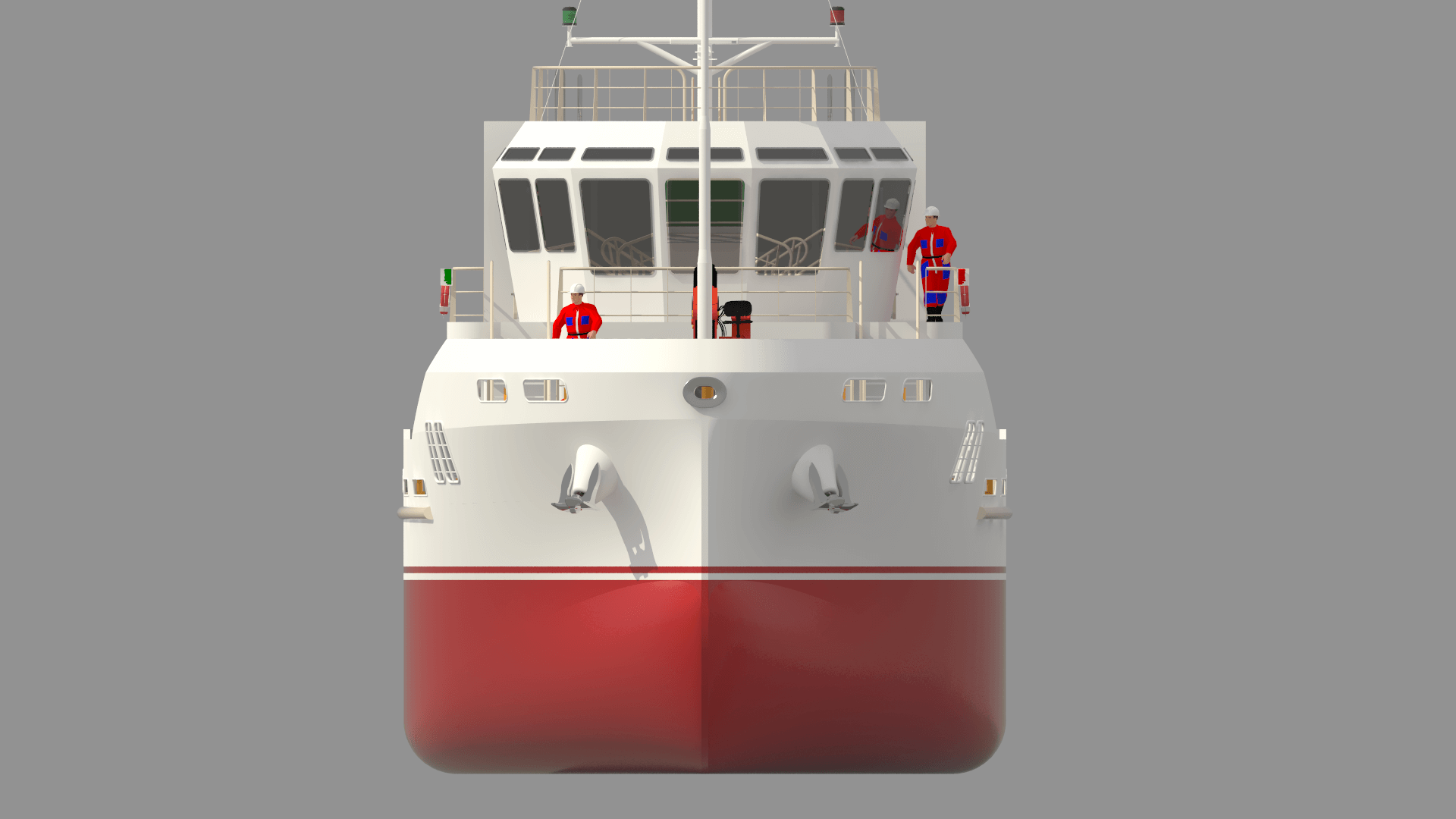

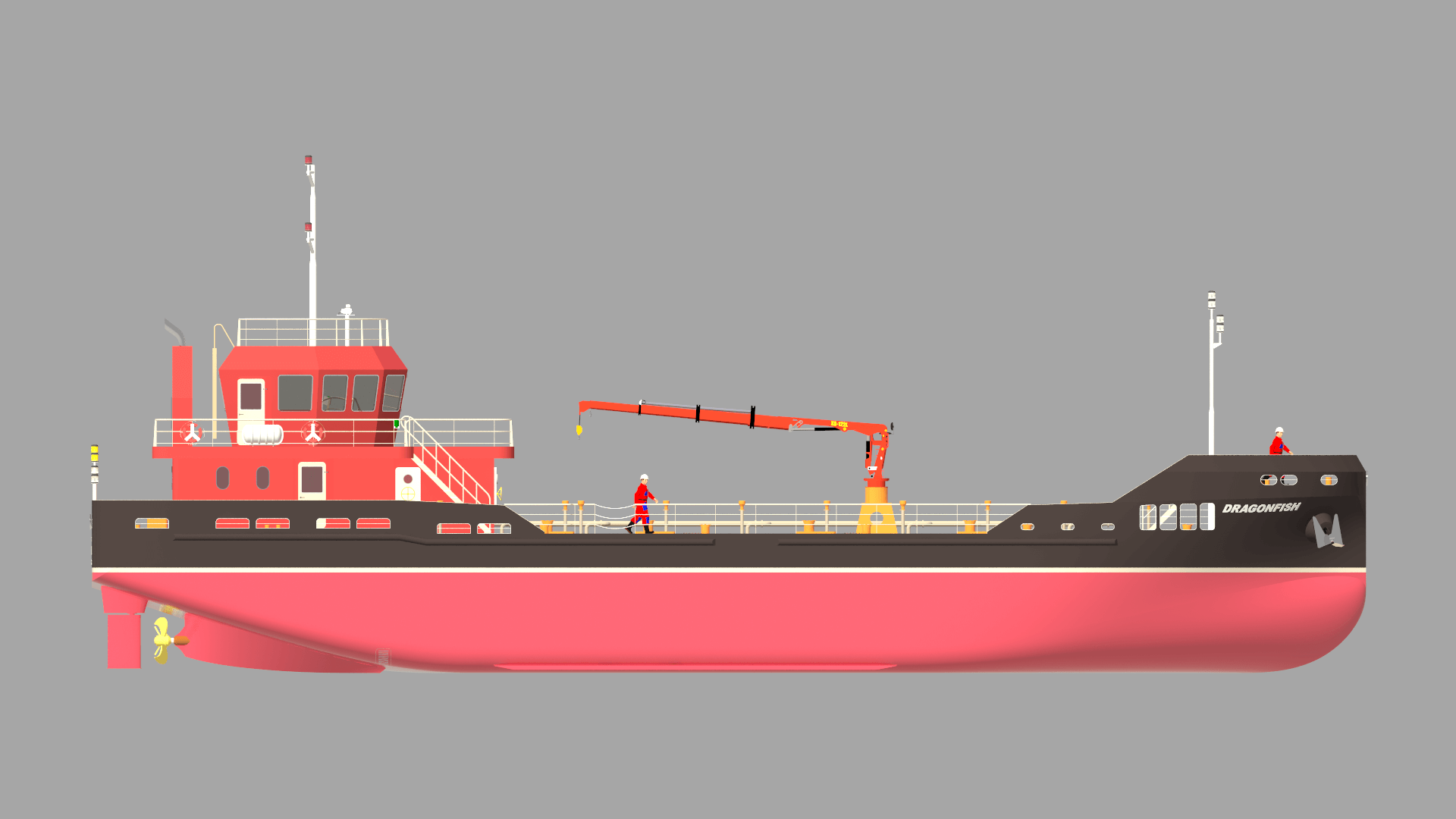

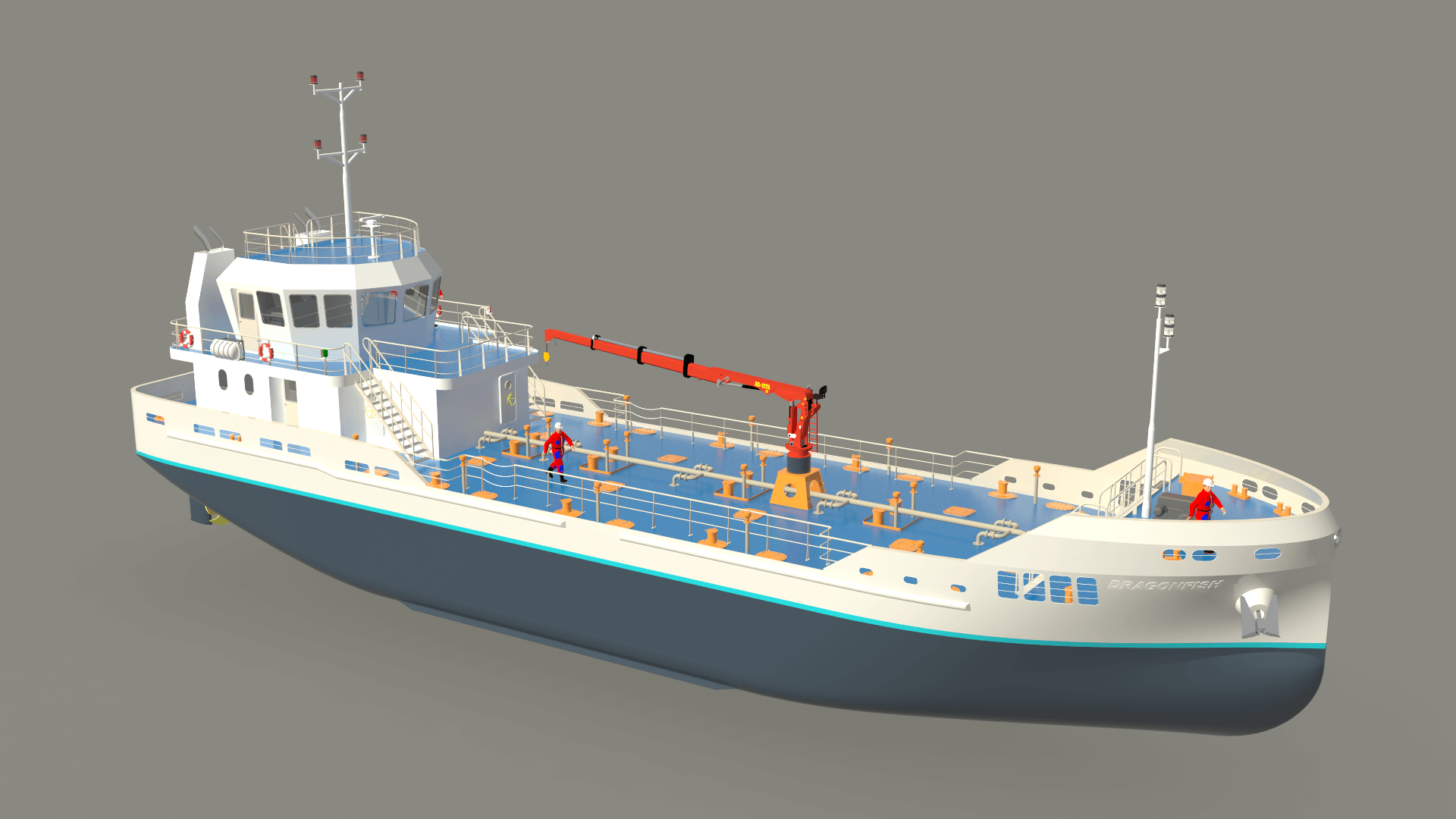

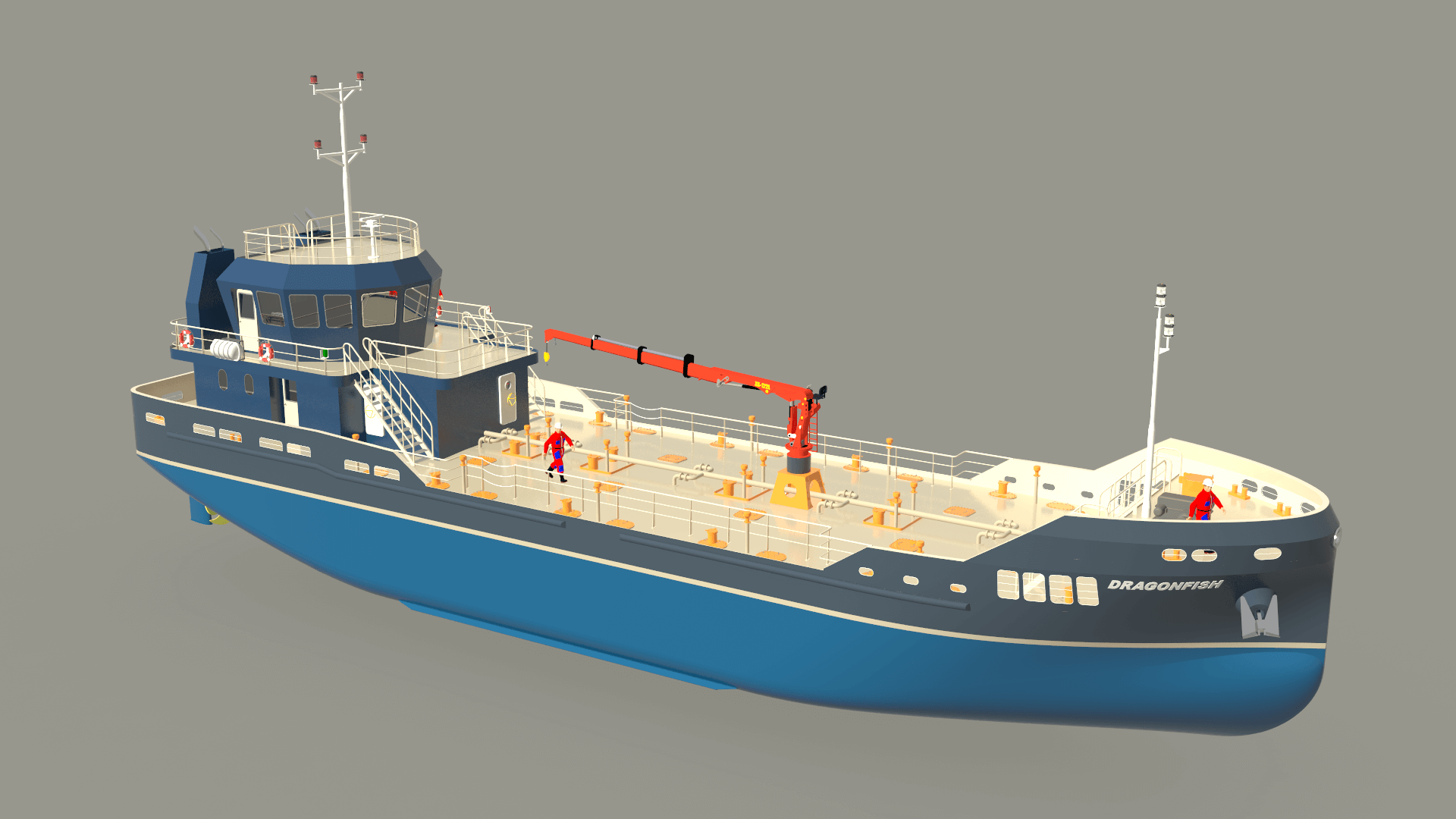

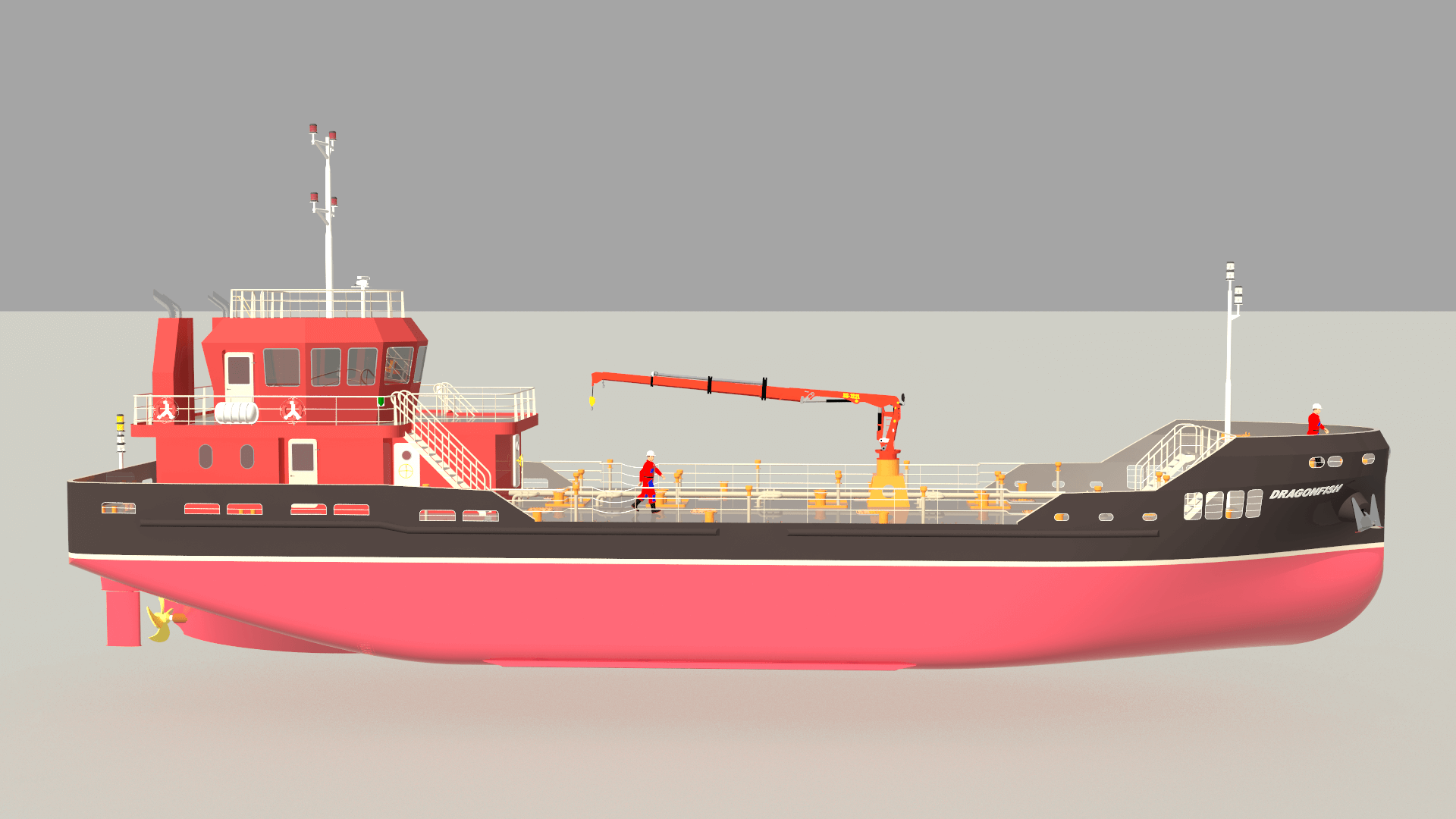

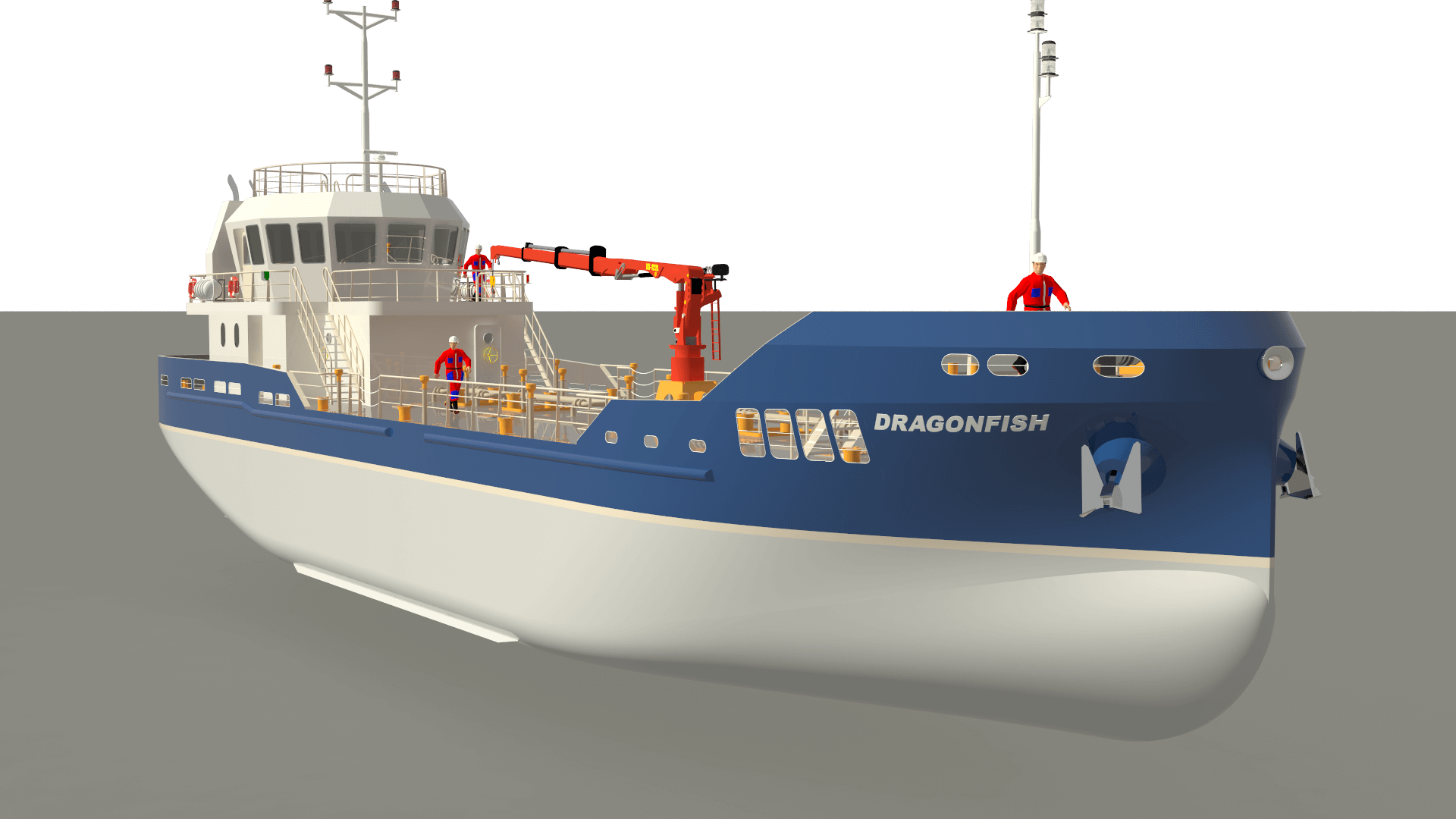

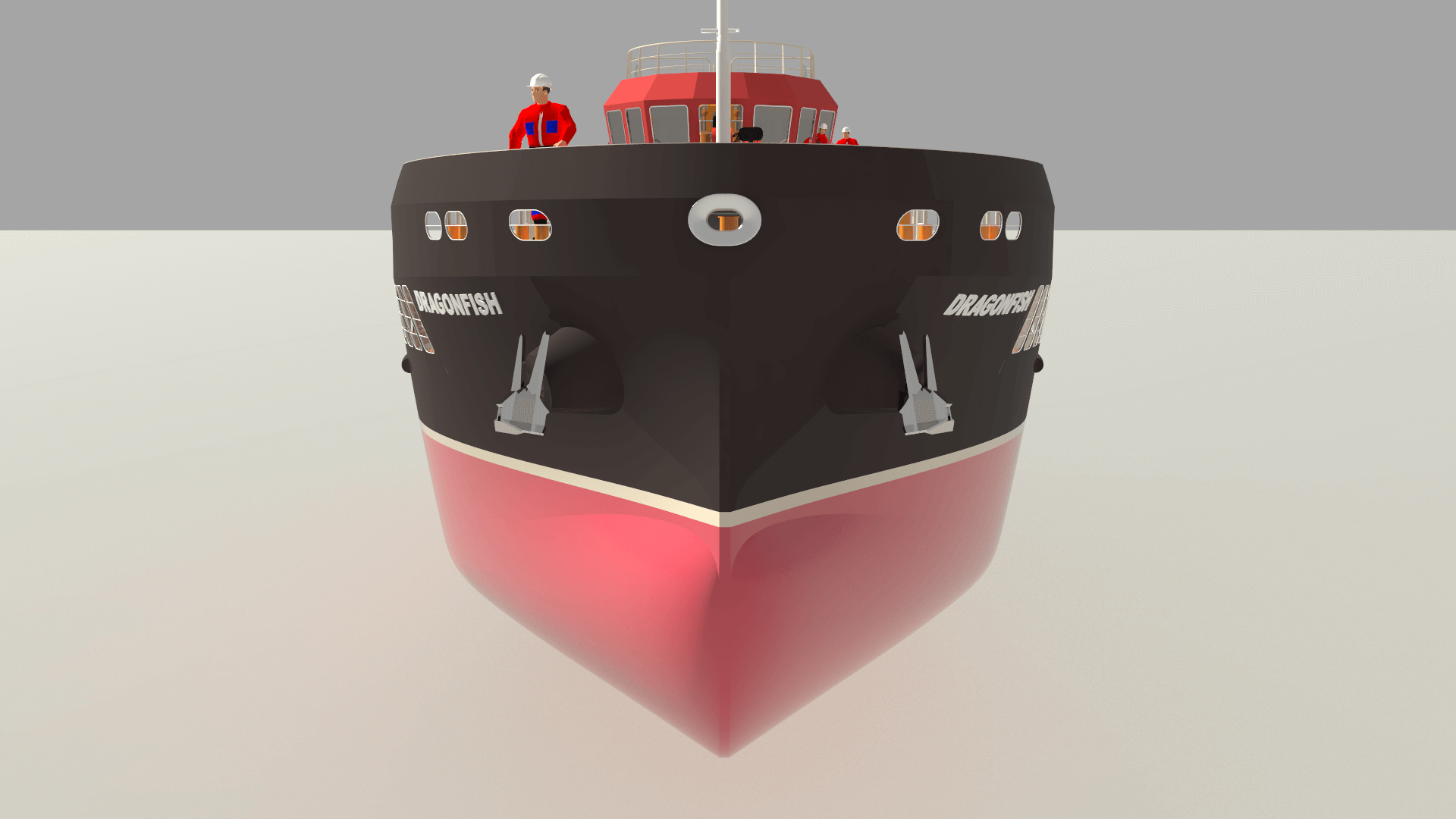

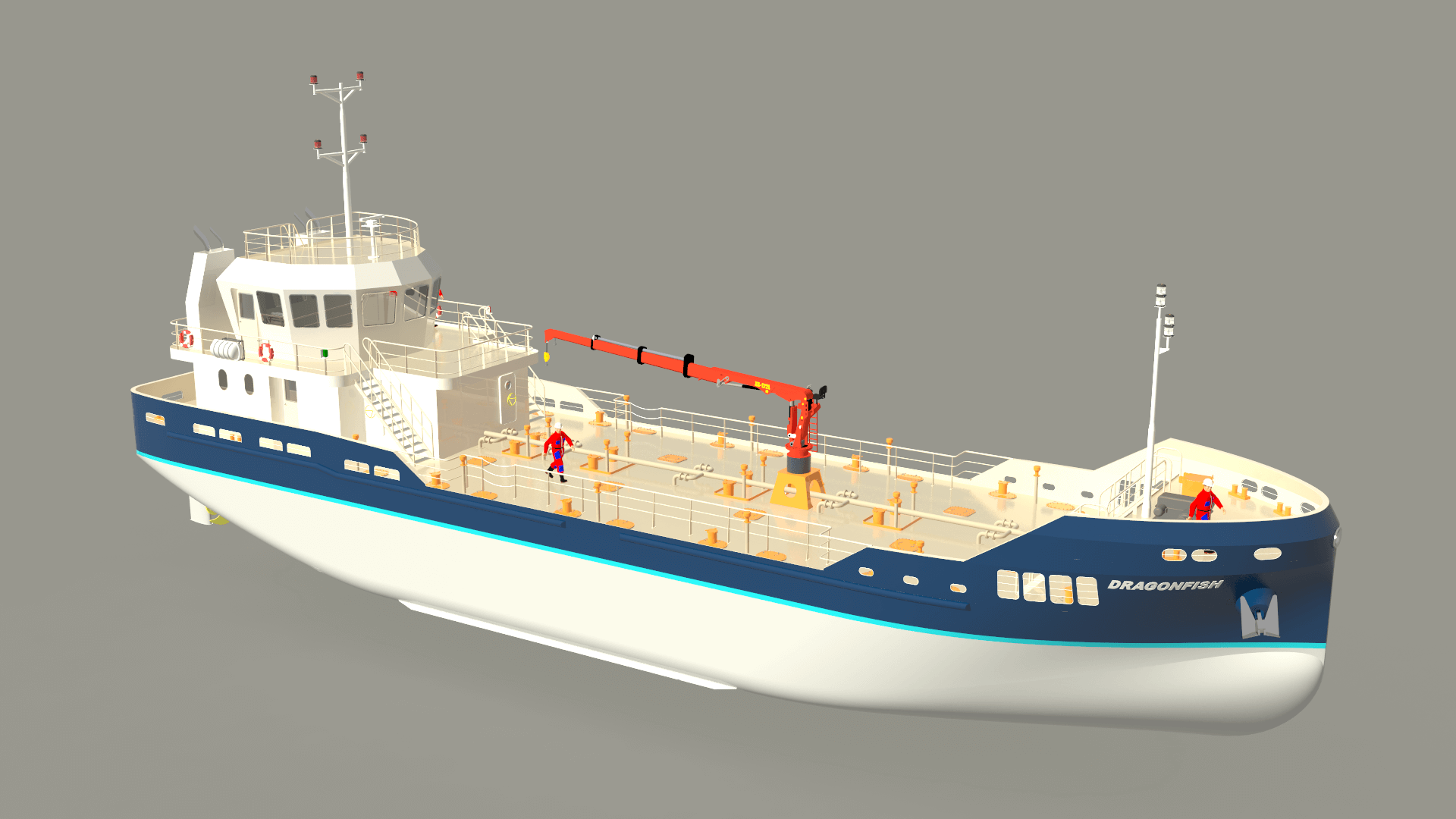

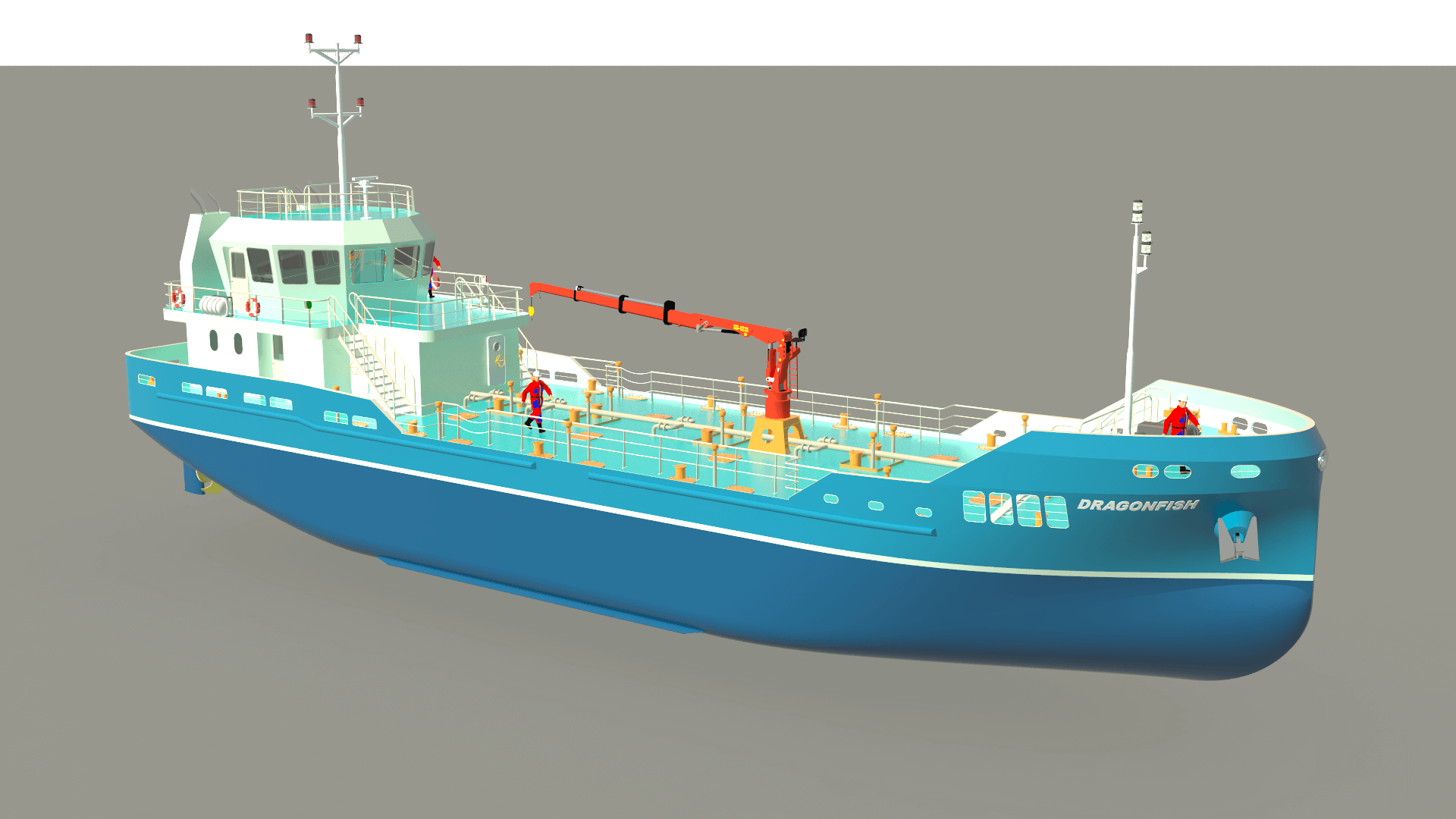

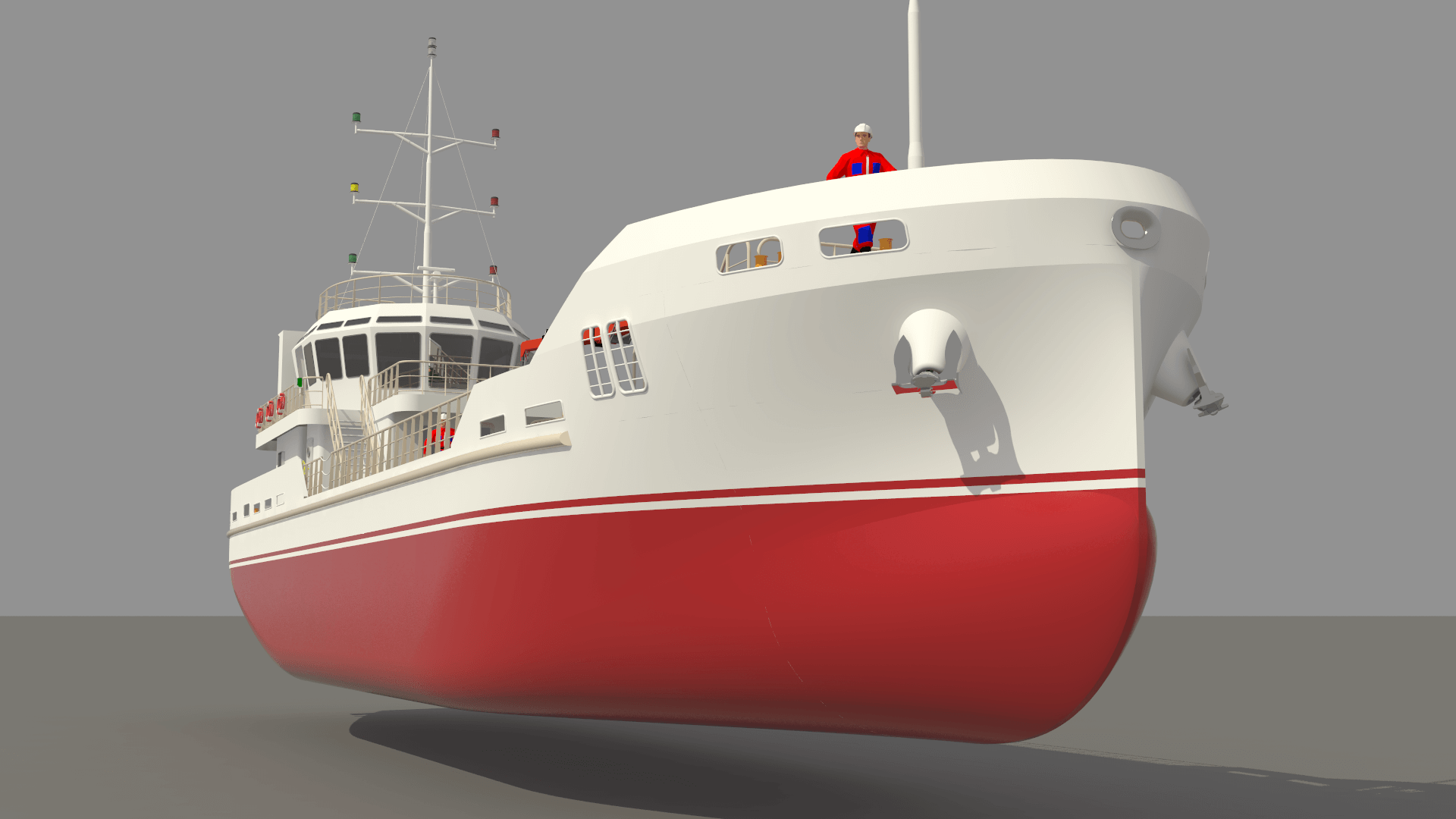

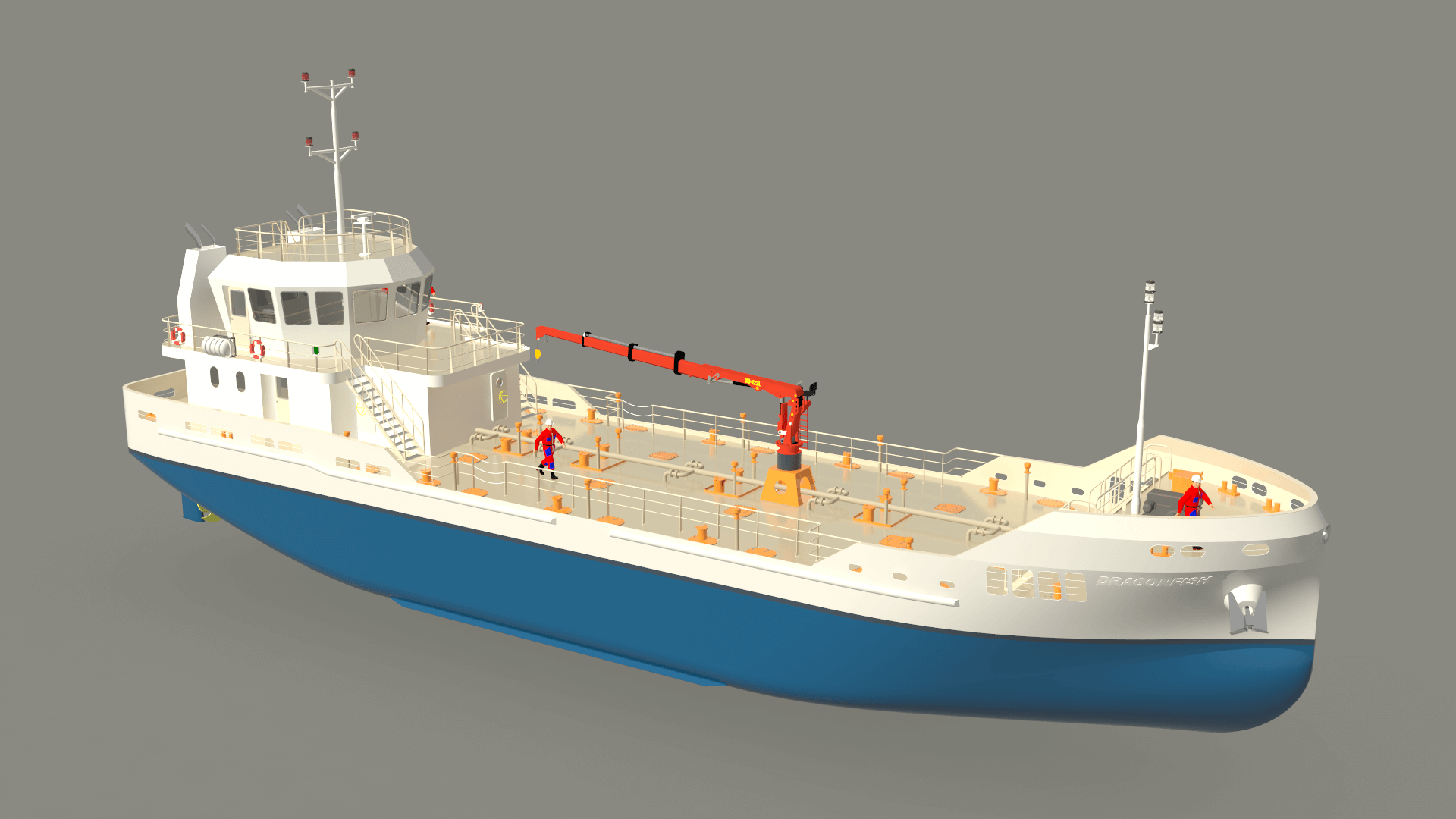

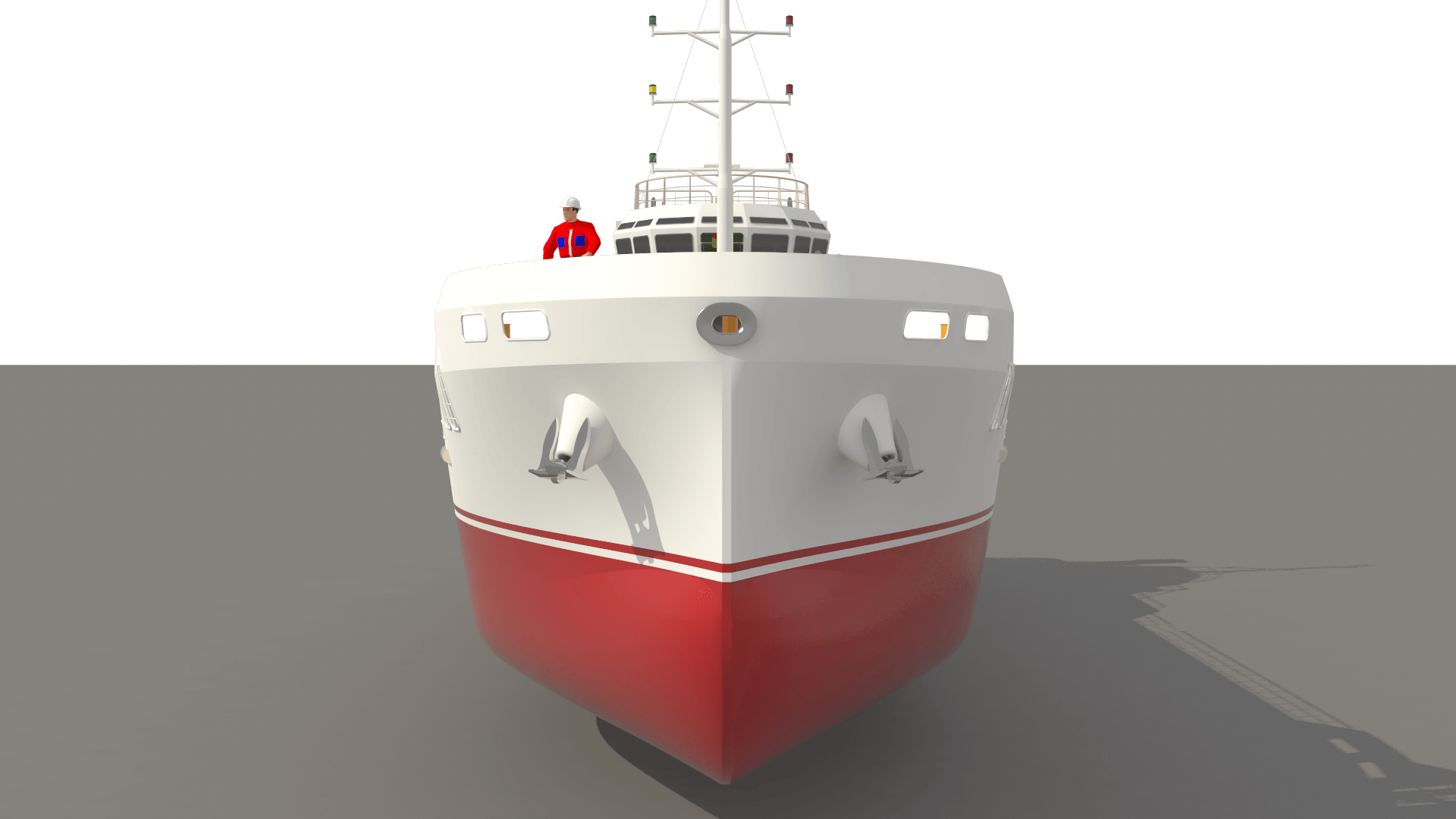

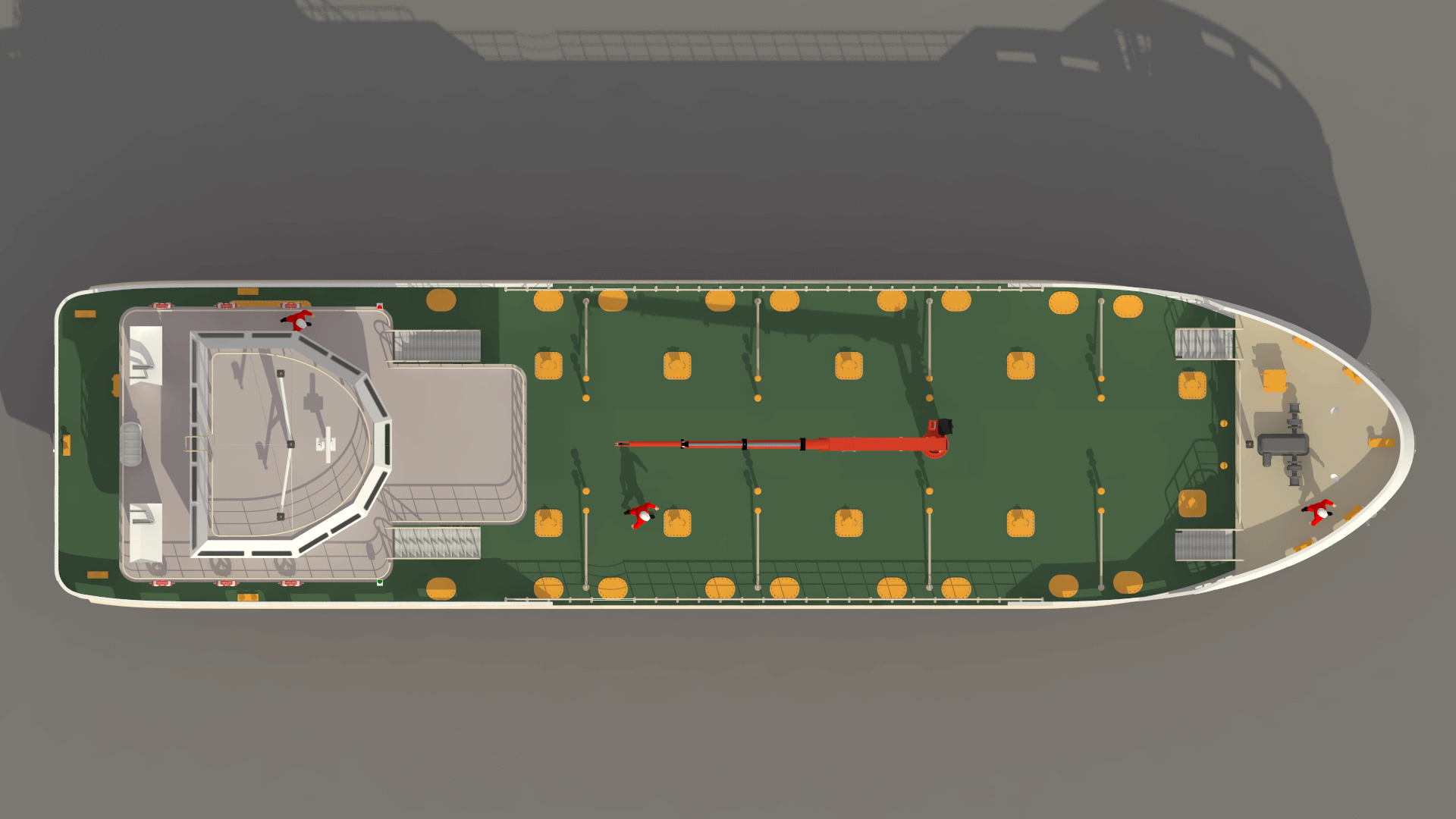

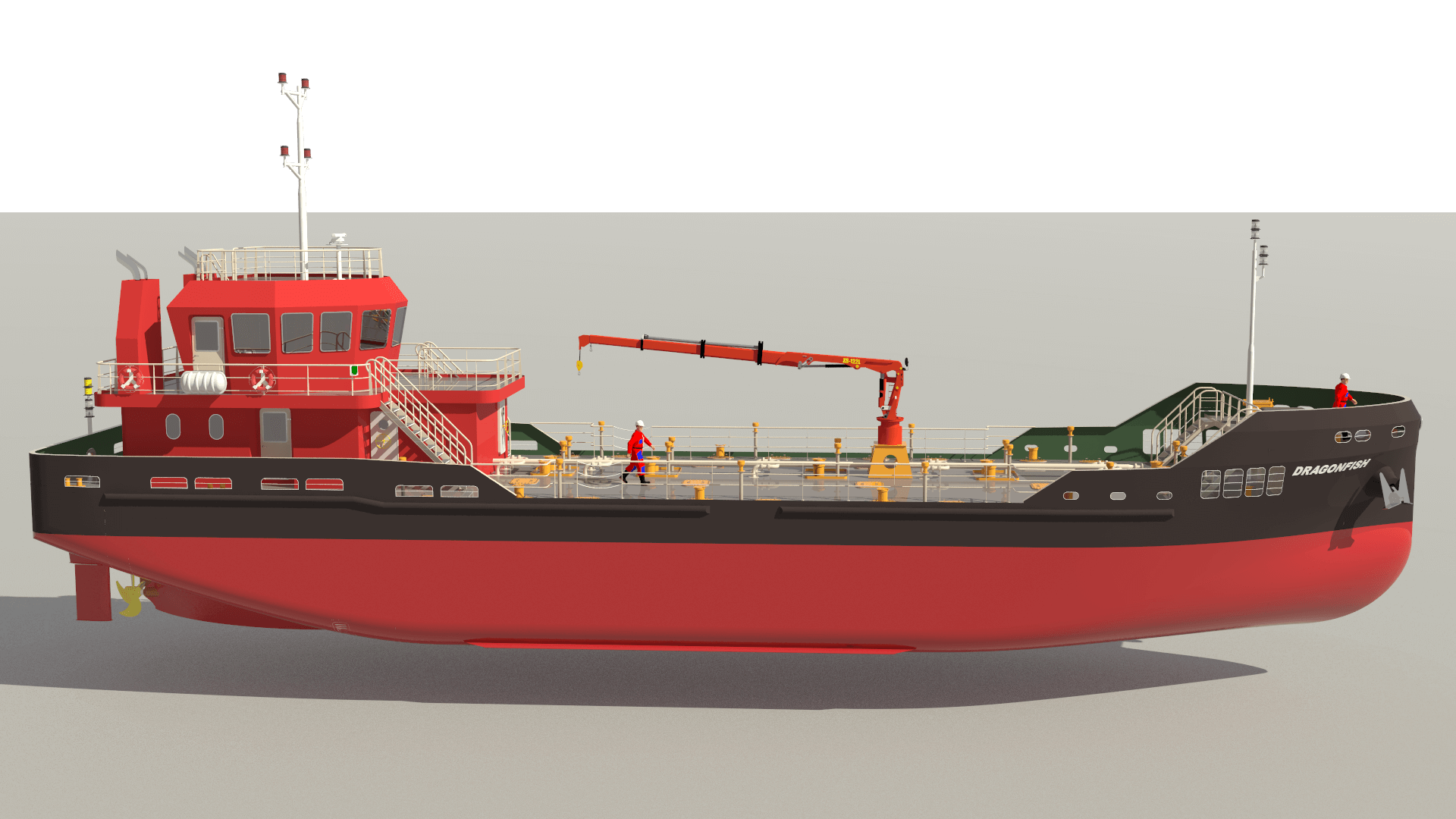

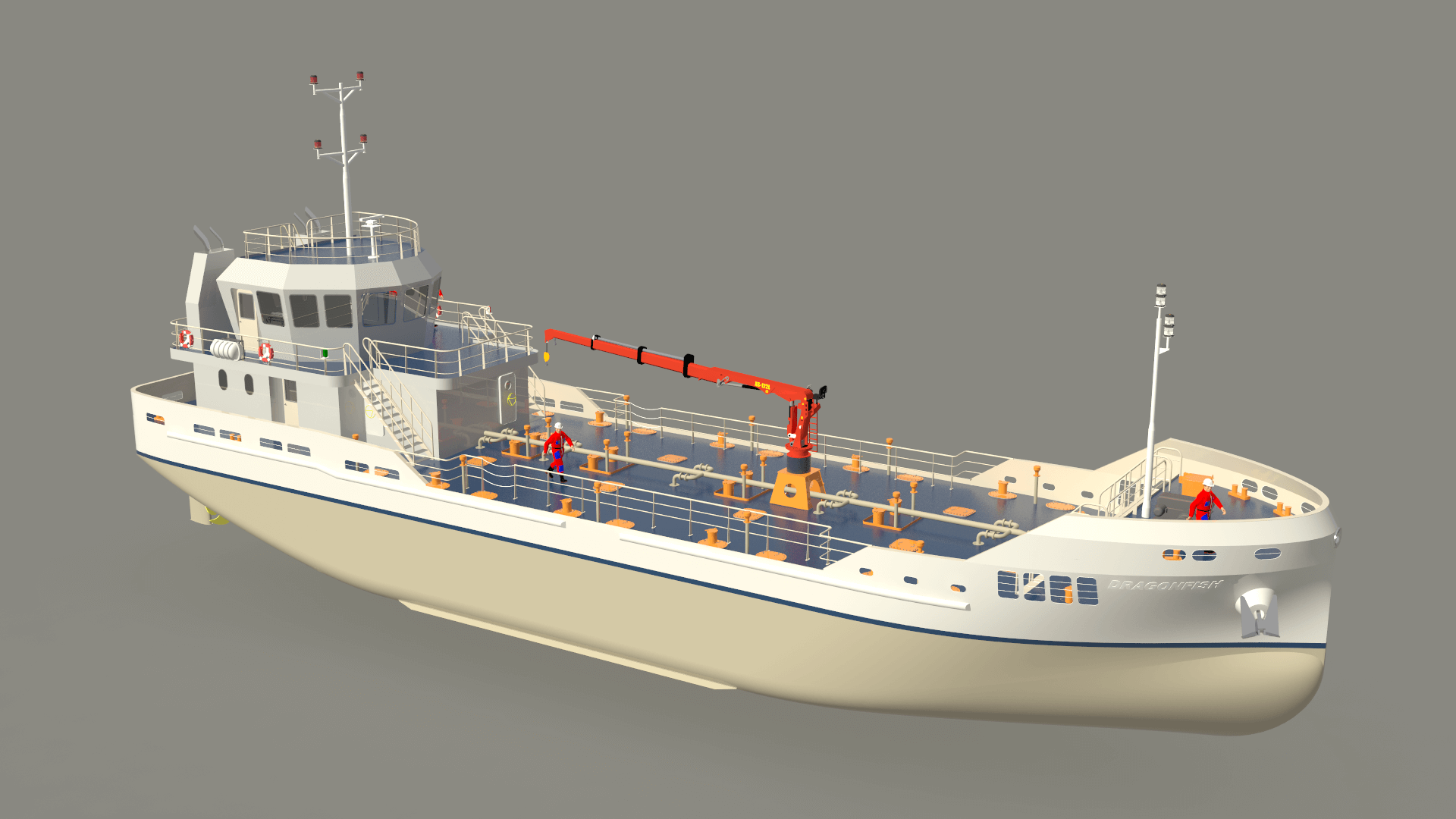

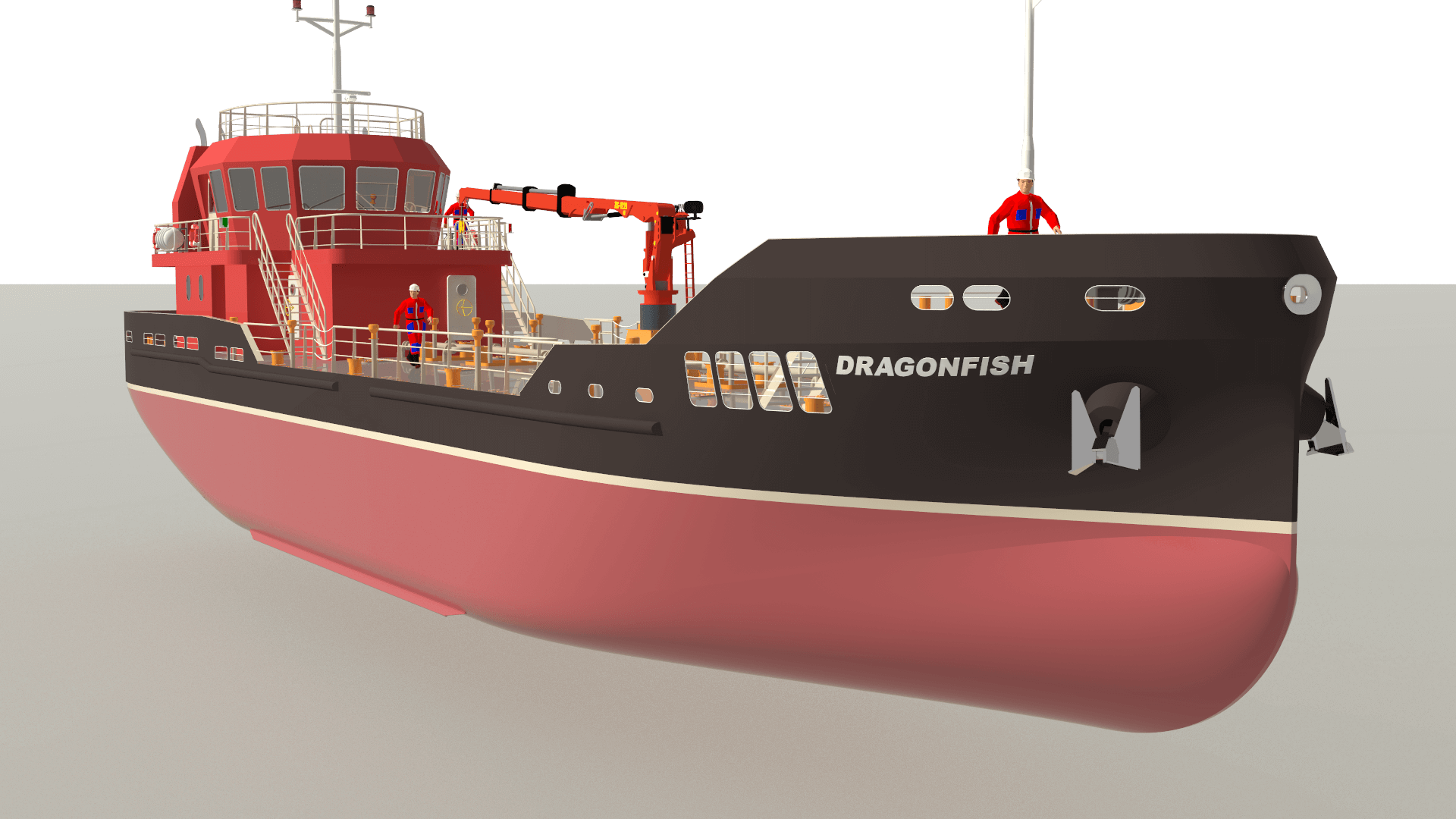

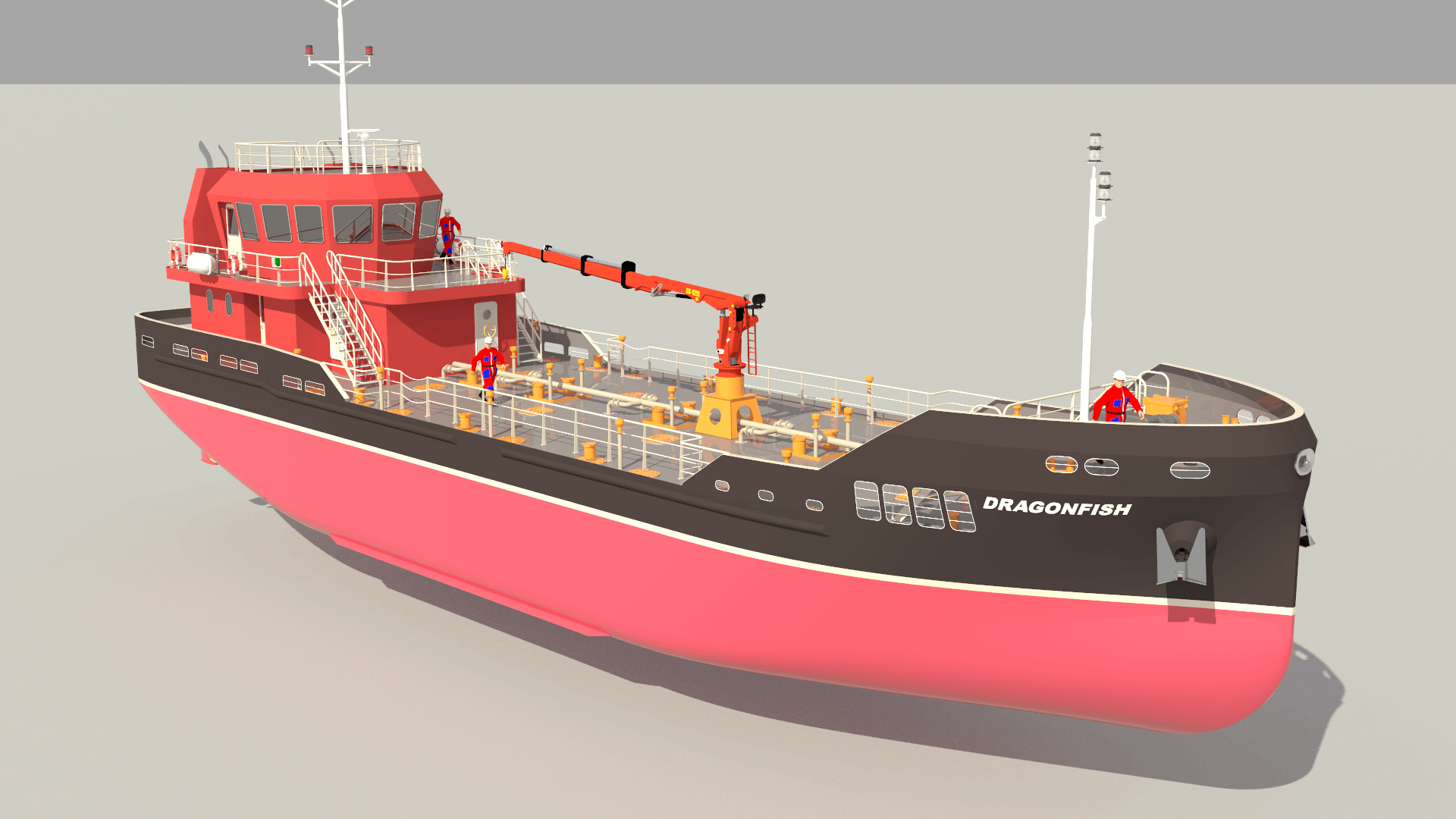

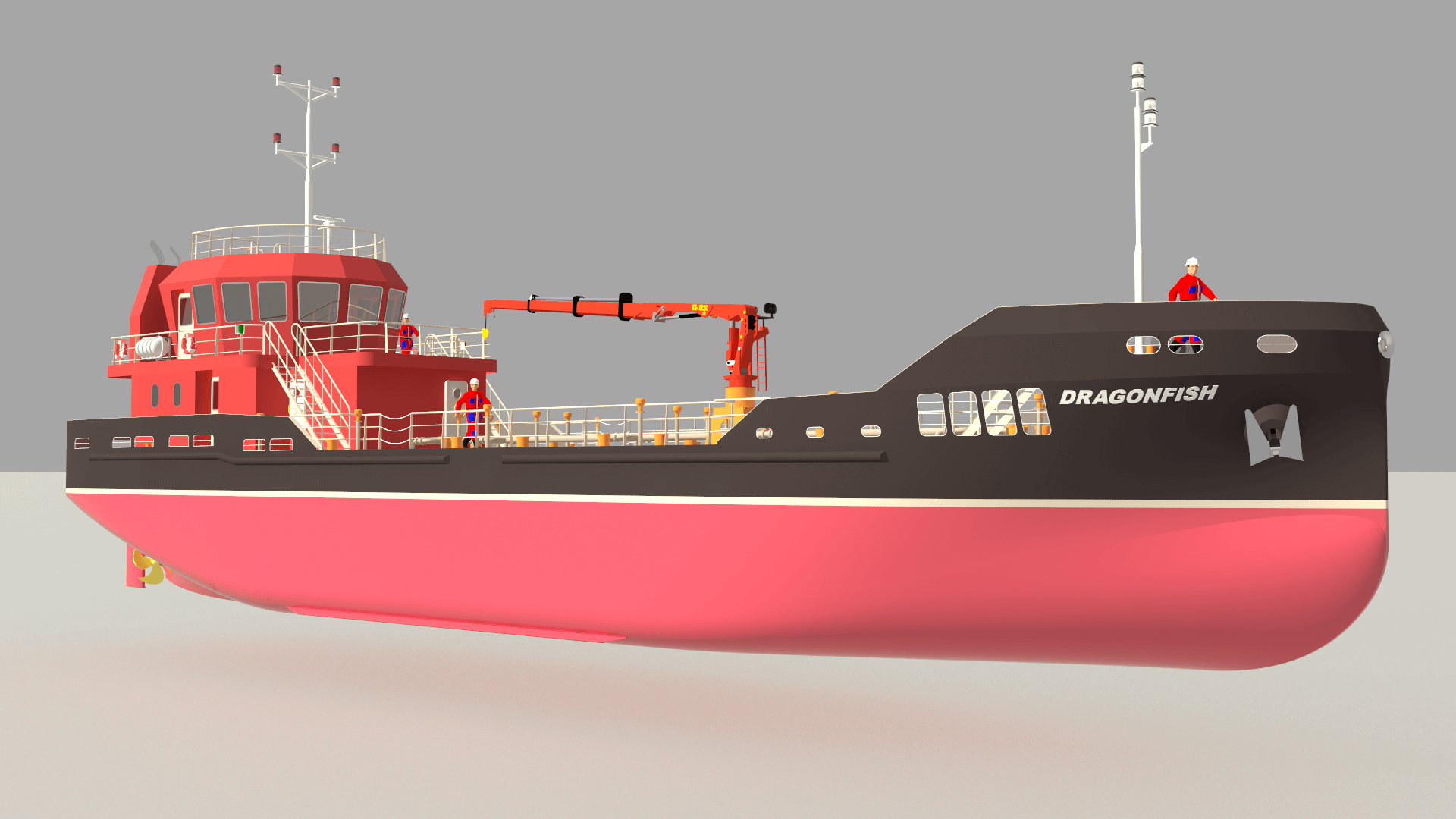

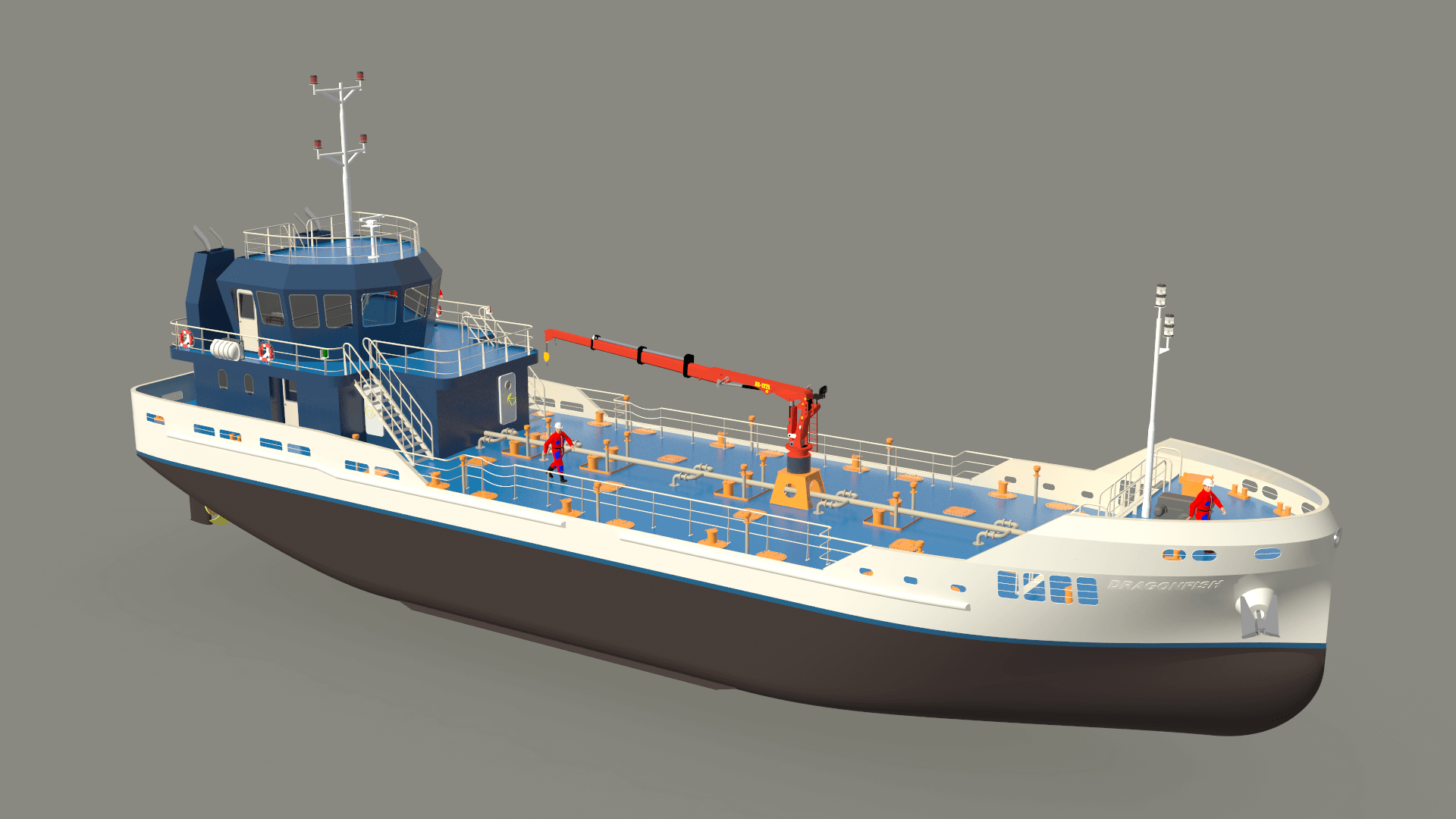

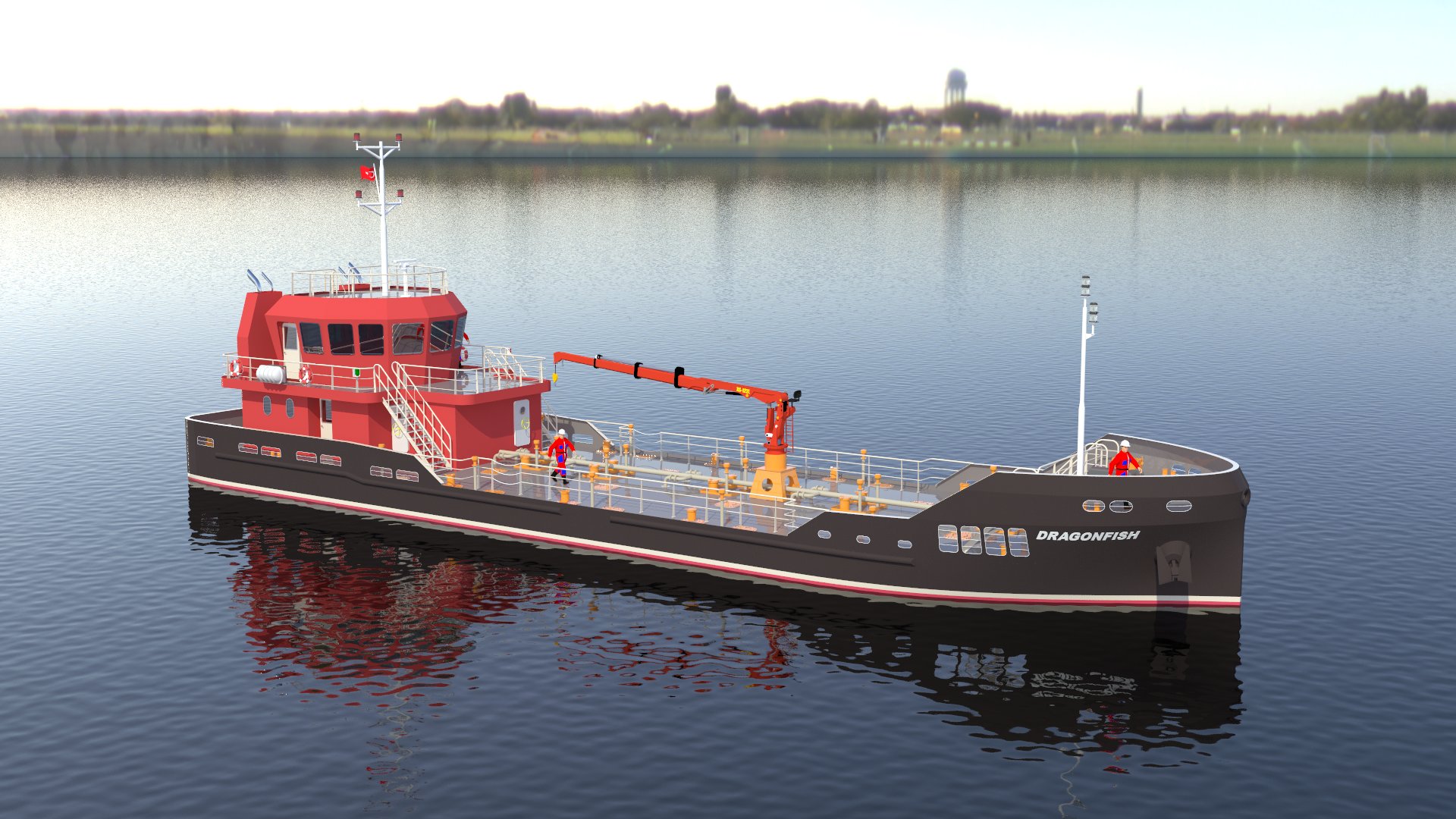

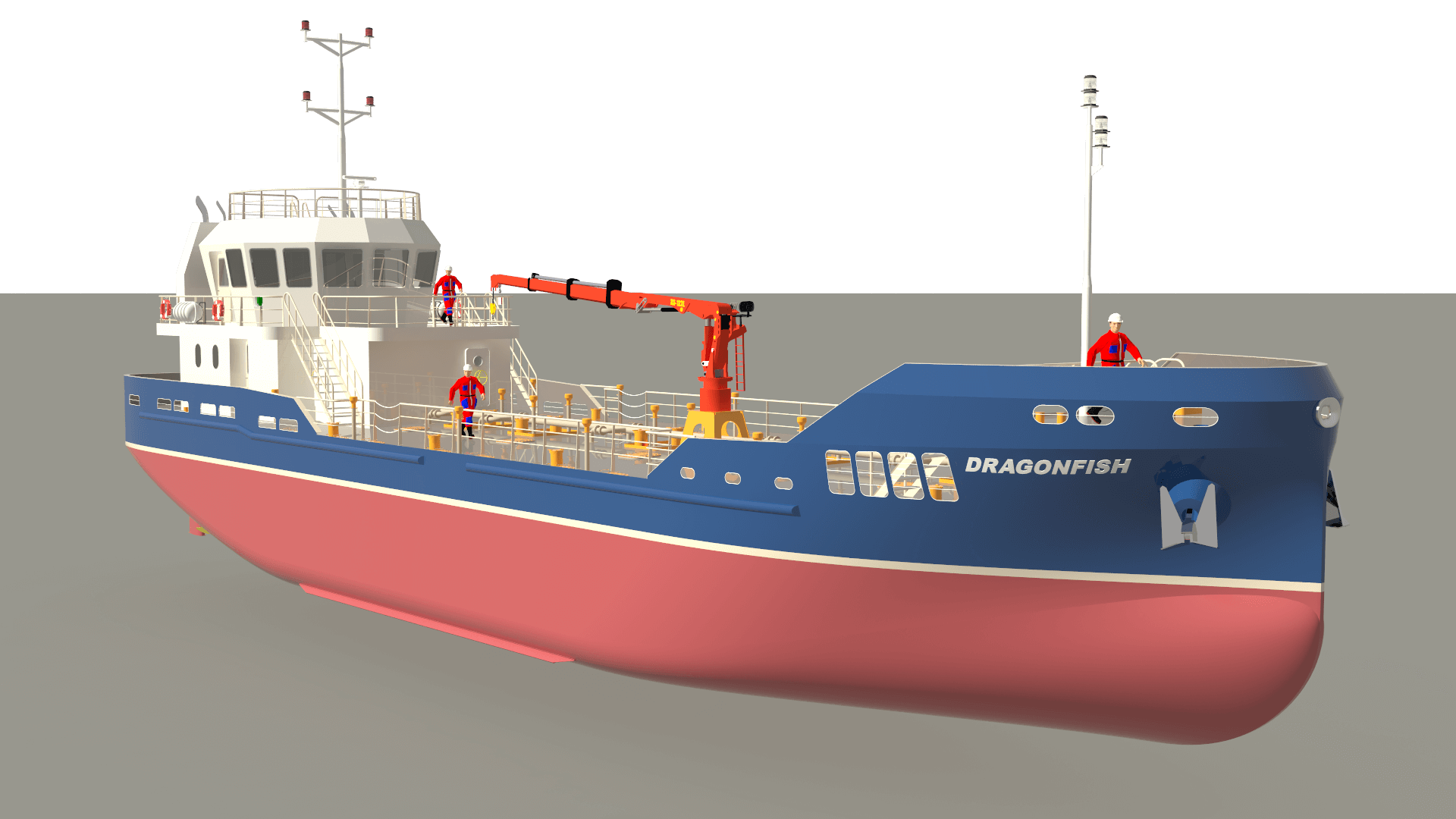

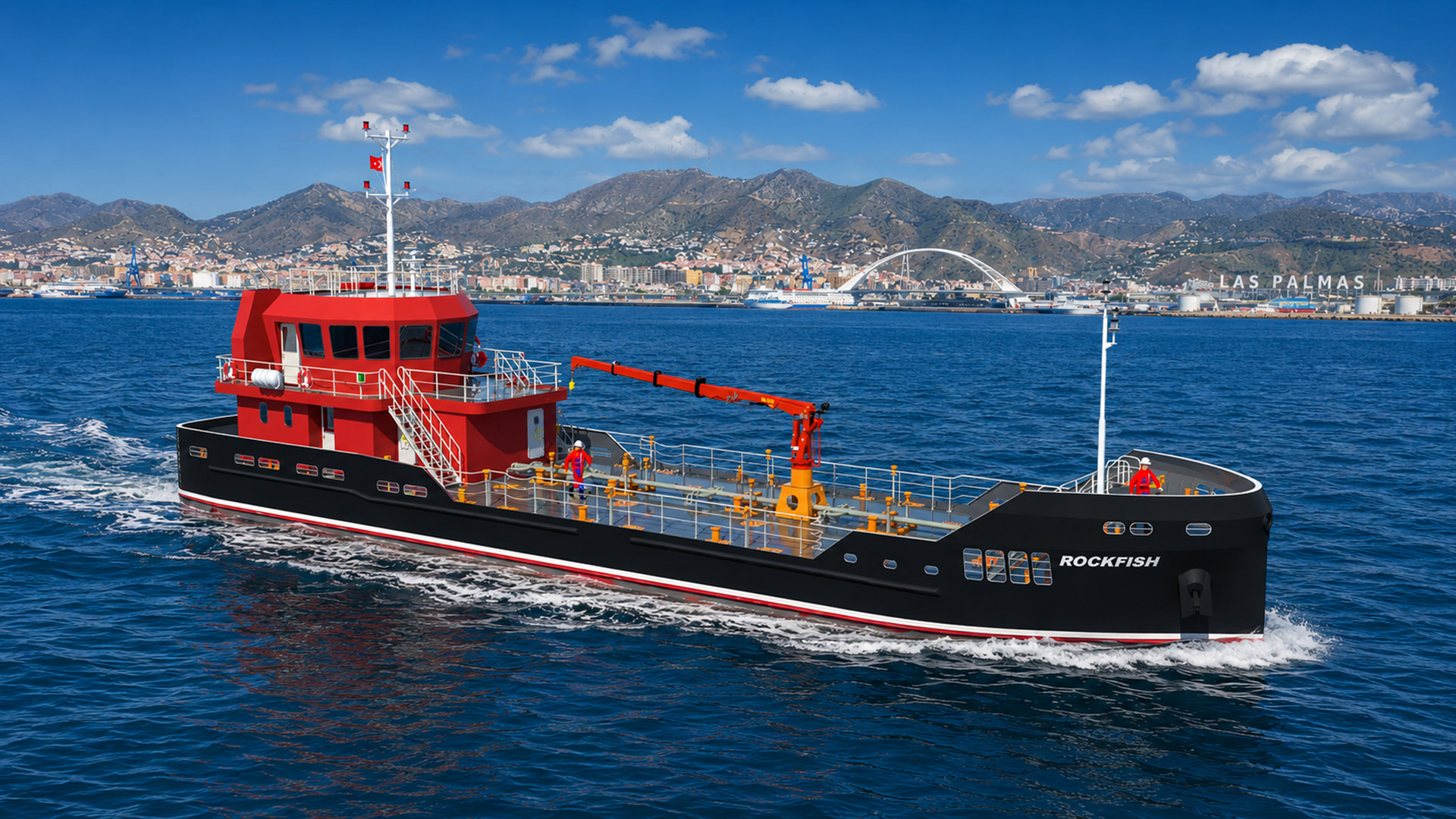

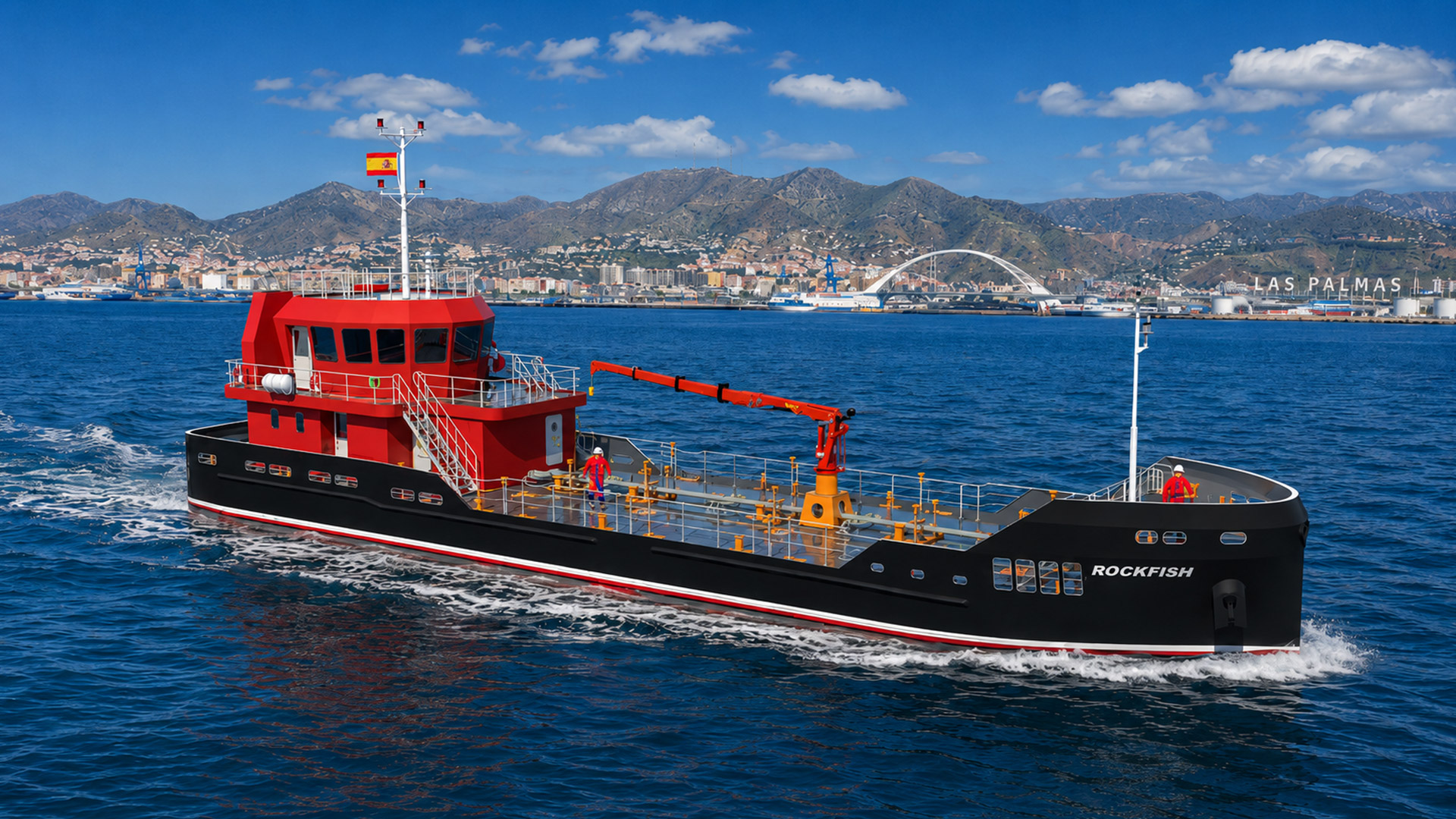

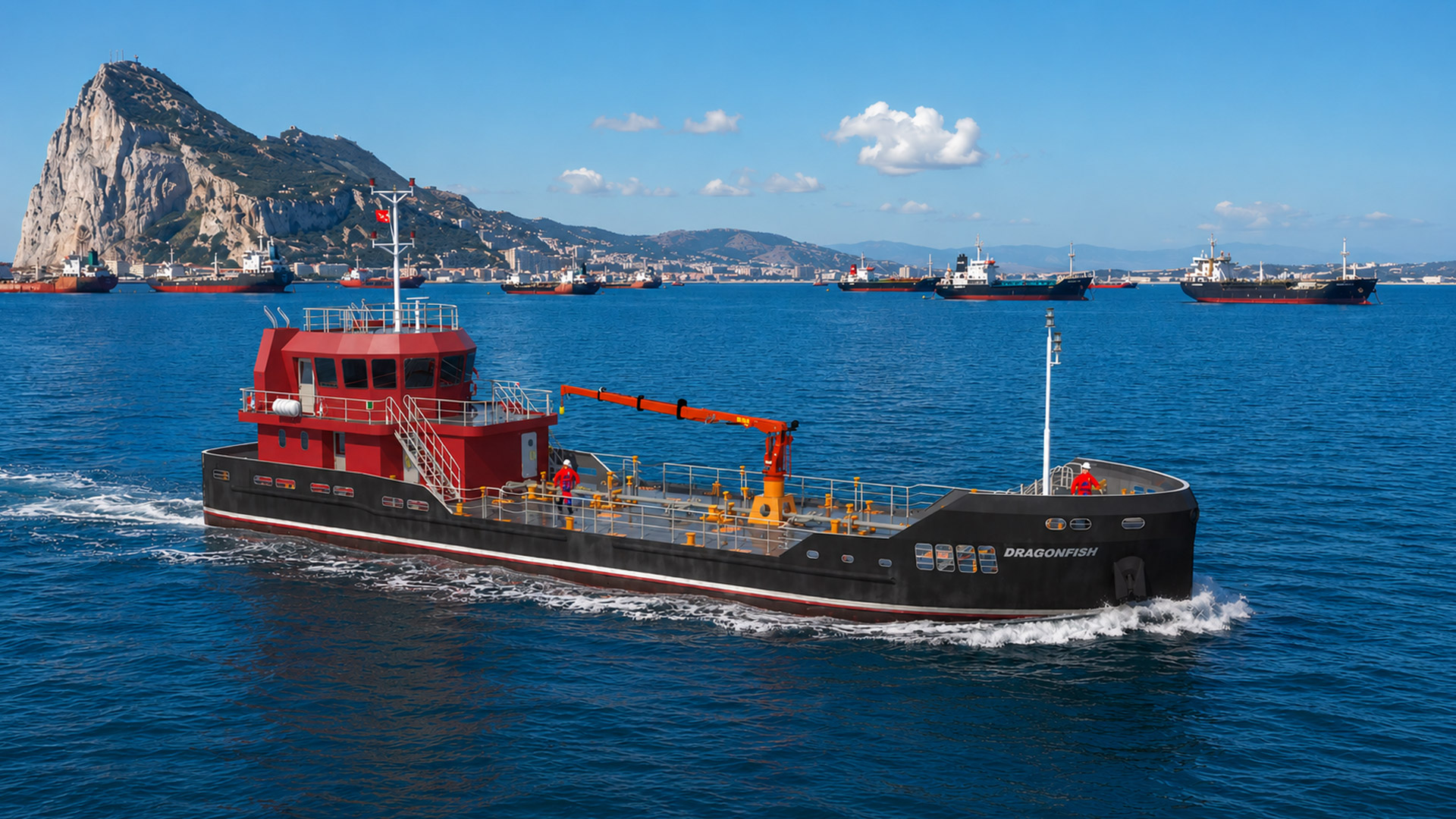

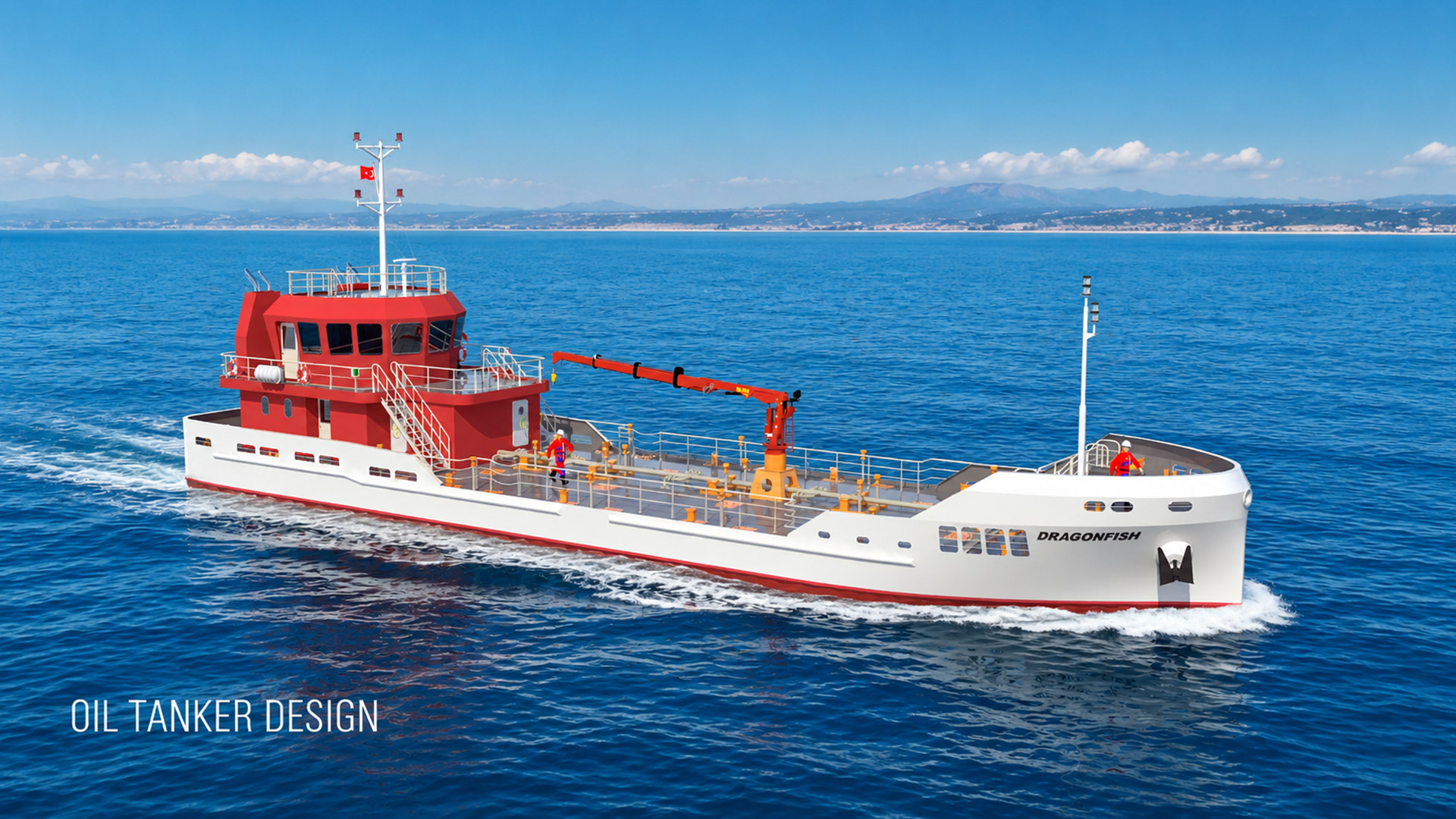

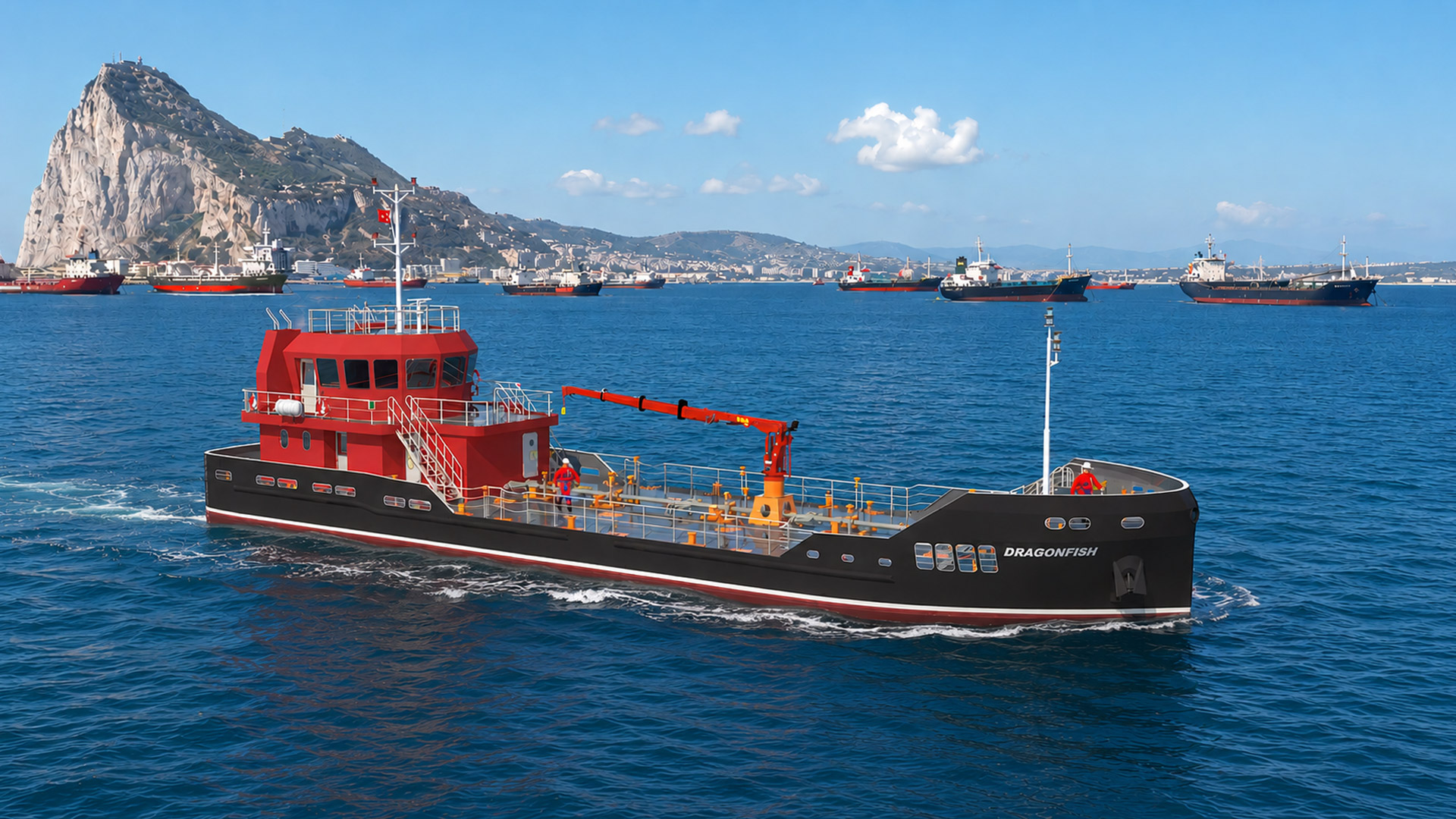

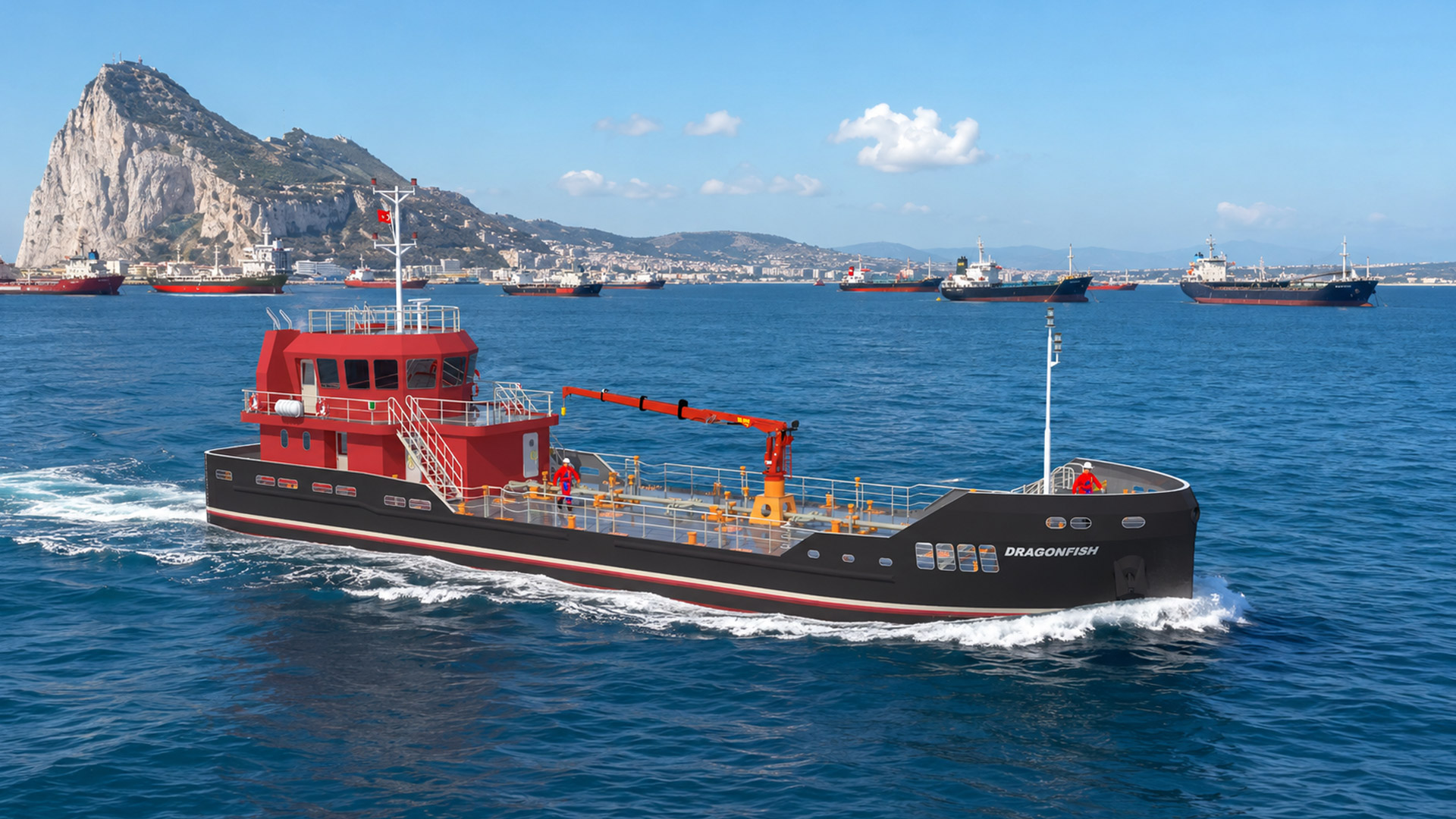

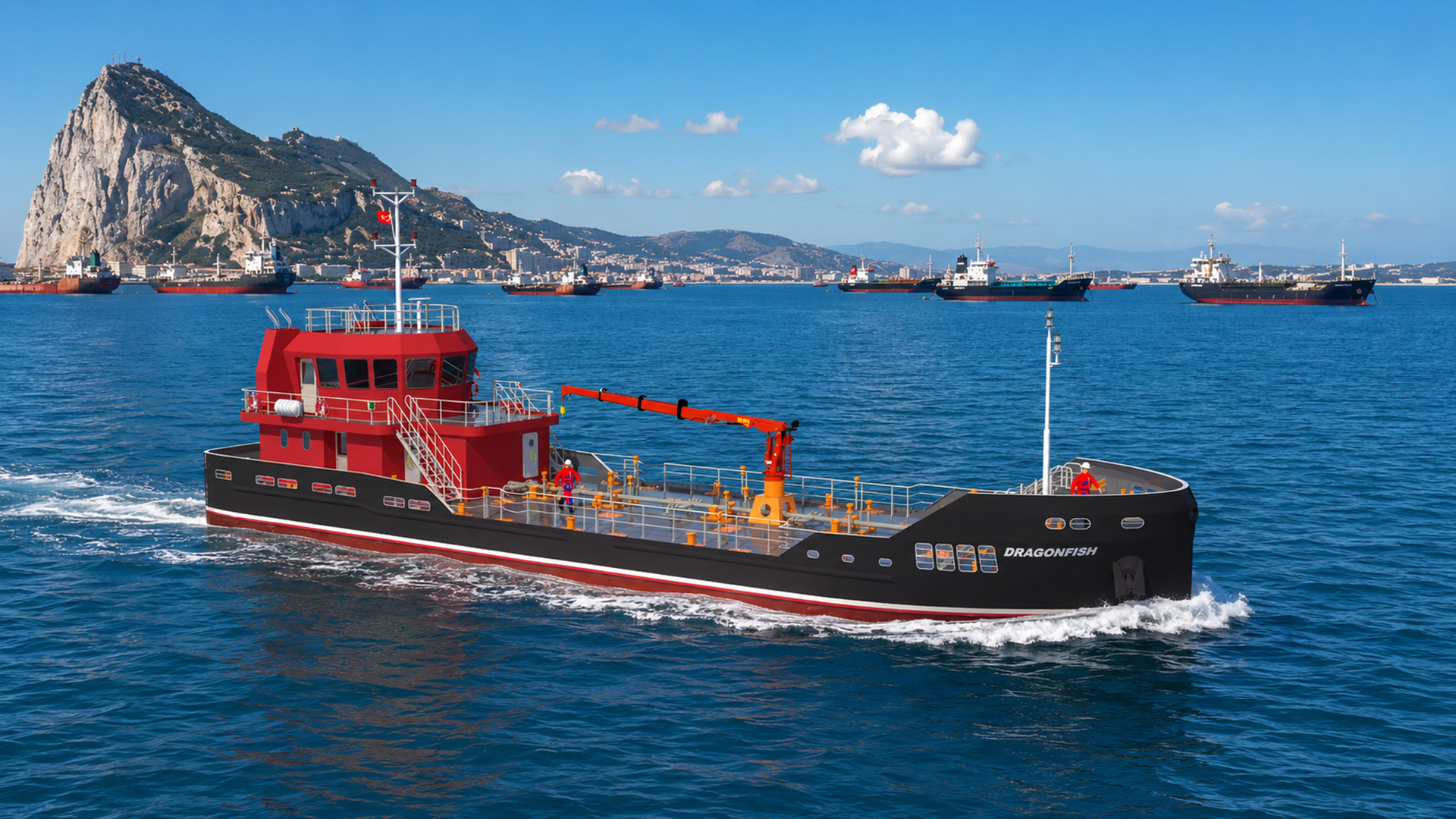

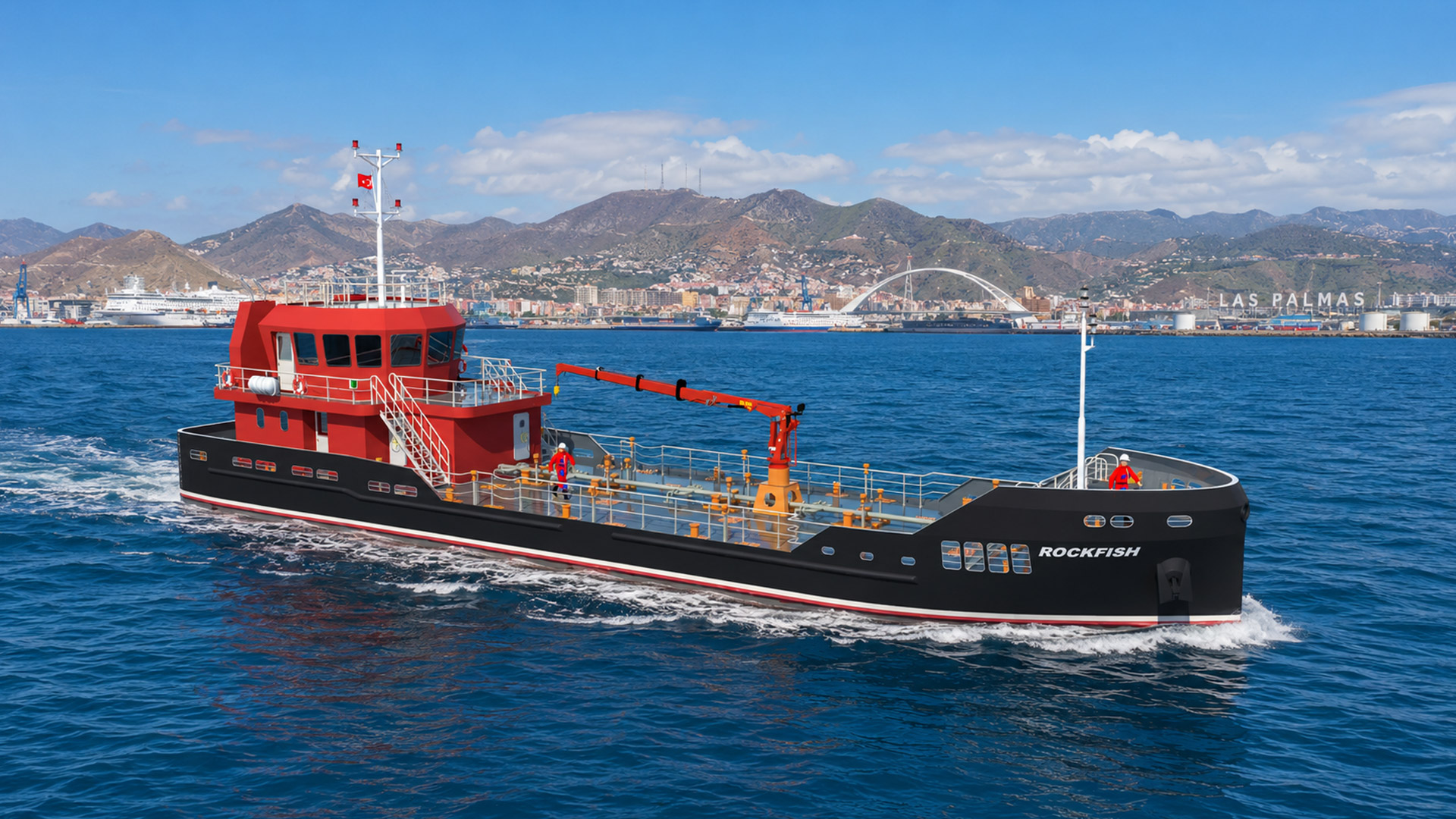

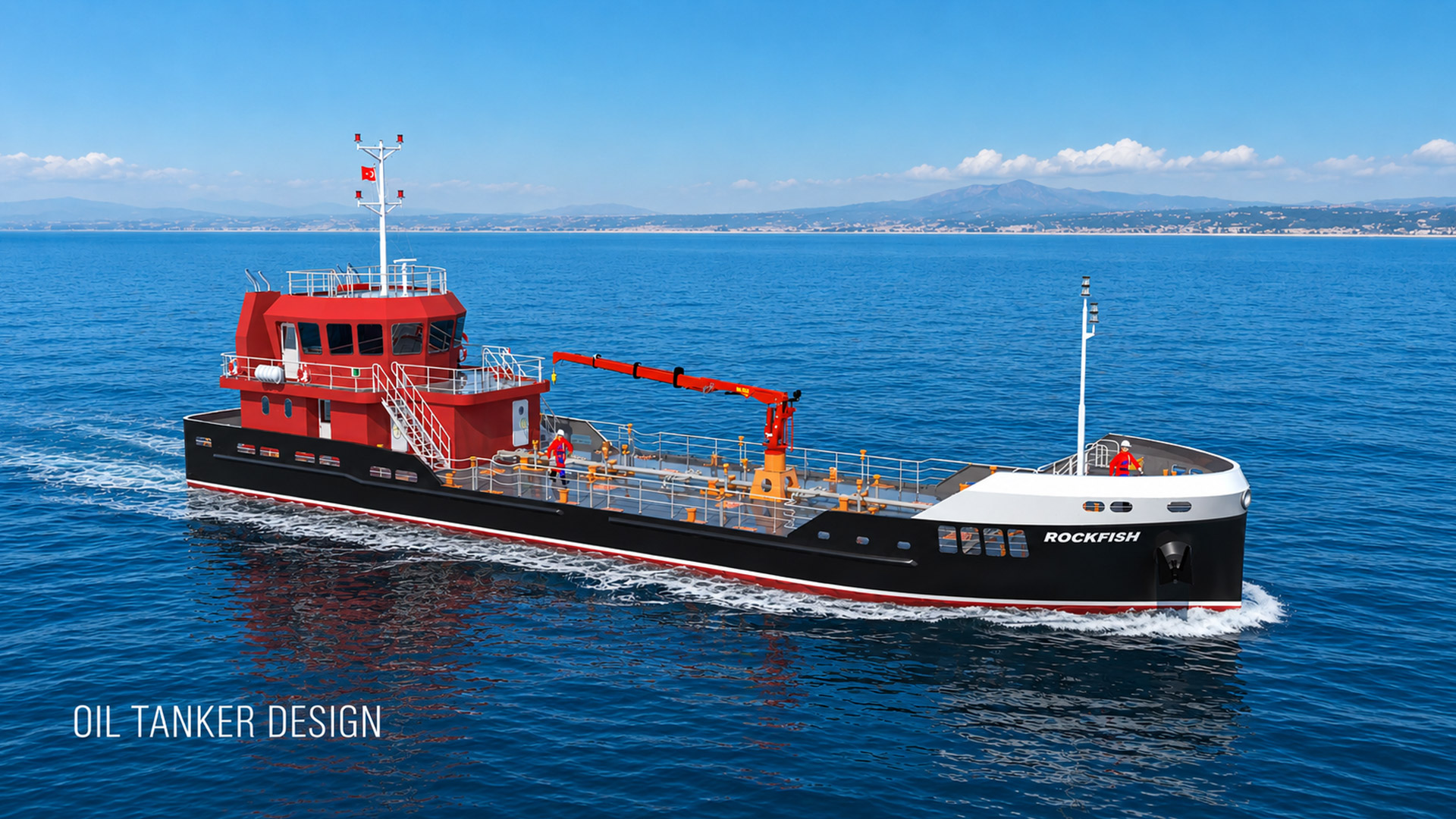

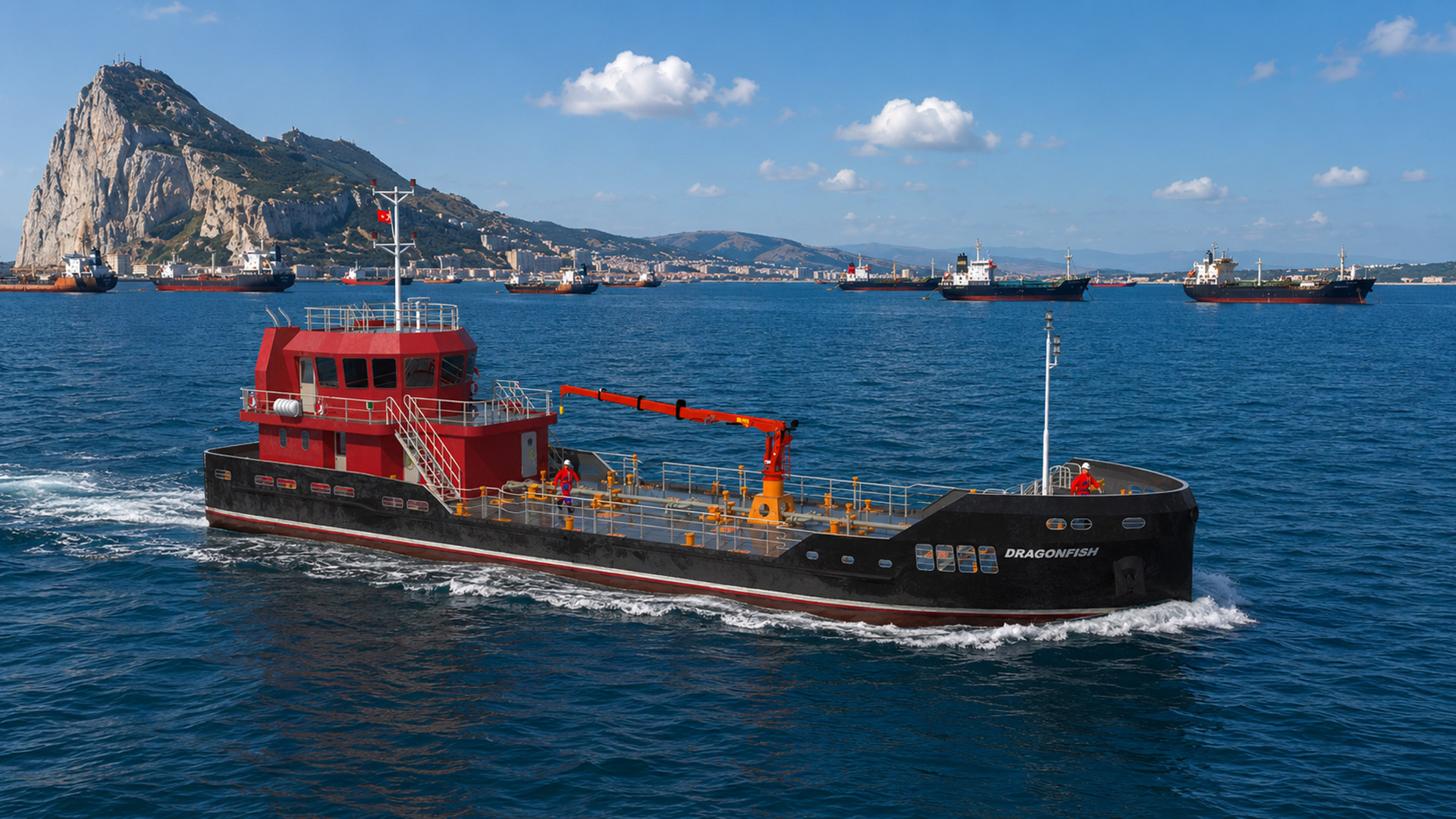

500 DWT TANKER
The ship is designed for carrying petrol products & specially designed for carrying lubricating oils. Design scope includes concept design, contract design, class approval documents and production engineering for all hull, stability, machinery and piping issues. The vessel is designed for Akdeniz Shipyard.
CLASS INFORMATION
BUREAU VERITAS
I +HULL .MACHINERY
OIL TANKER / FLASH POINT ABOVE 60 DEGREE - IWS
UNRESTRICTED NAVIGATION
MAIN DIMENSIONS
| LOA (Length Over All) m | : | 38.00 |
| LWL (Length Water Line) m | : | 38.00 |
| LBP (Length Between Perpendiculars) m | : | 36.80 |
| B (Breadth Moulded) m | : | 9.00 |
| D (Depth Moulded) m | : | 4.00 |
| T (Max Draught) m | : | 2.90 |
| T (Scantling Draught) m | : | 3.50 |
| CB (Block Coefficient) | : | 0.77 |
| Crew Information | : | 3 Crew |
| Building Material | : | A Grade Marine Steel |
TANK CAPACITIES
| Cargo Tanks (m3) | : | 527.50 |
| Ballast Tanks (m3) | : | 300.40 |
| Diesel Oil Tanks (m3) | : | 32.33 |
| Fresh Water Tanks (m3) | : | 13.01 |
| Sewage Tank (m3) | : | 2.64 |
| Bilge Tank (m3) | : | 1.80 |
SPEED / POWER / PROPULSION / AUXILIARY MACHINERY
| V Service Speed (knots) | : | 8.8 knots at full load |
| Main Engine Power (kW) | : | 2 x 265 kW @ 2000 rpm (Total 530 kW) |
| Main Engine Power (HP) | : | 2 x 355 HP @ 2000 rpm (Total 710 HP) |
| Reduction Gear Ratio | : | 5.15 / 1 |
| Propeller Information | : | 2 x 4 Blade / Diameter: 140 cm / Pitch: 111 cm |
| Electric Generator Power | : | 2 x 77kW @ 1500 rpm / 50Hz |
TONNAGE INFORMATION
| Gross Tonnage | : | 363 GRT |
| Net Tonnage | : | 125 NRT |
| Lightship Weight | : | 253.840 ton |
| Displacement @ T max | : | 782.063 ton |
| DWT @ T max | : | 528.223 ton |
