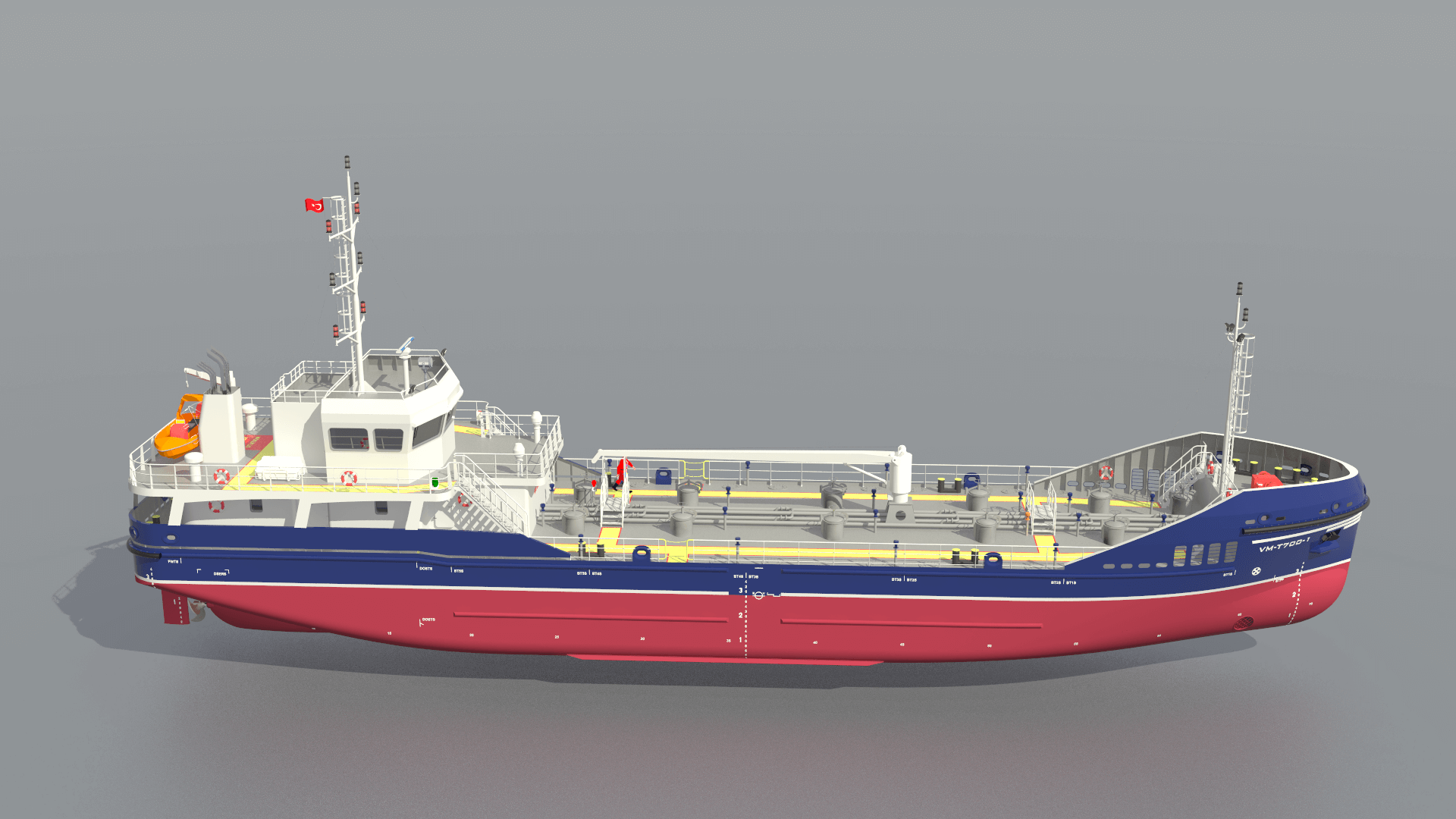

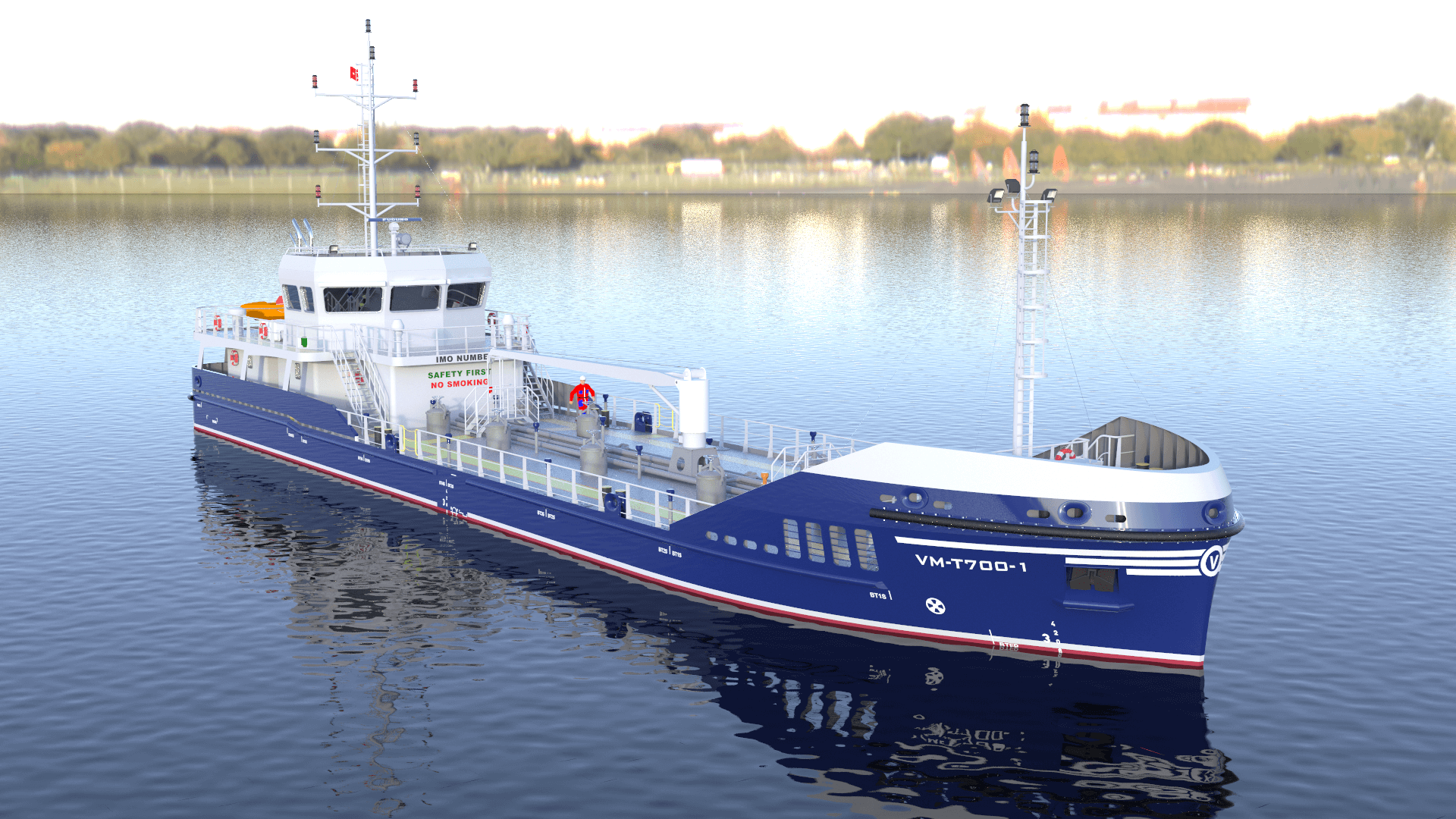

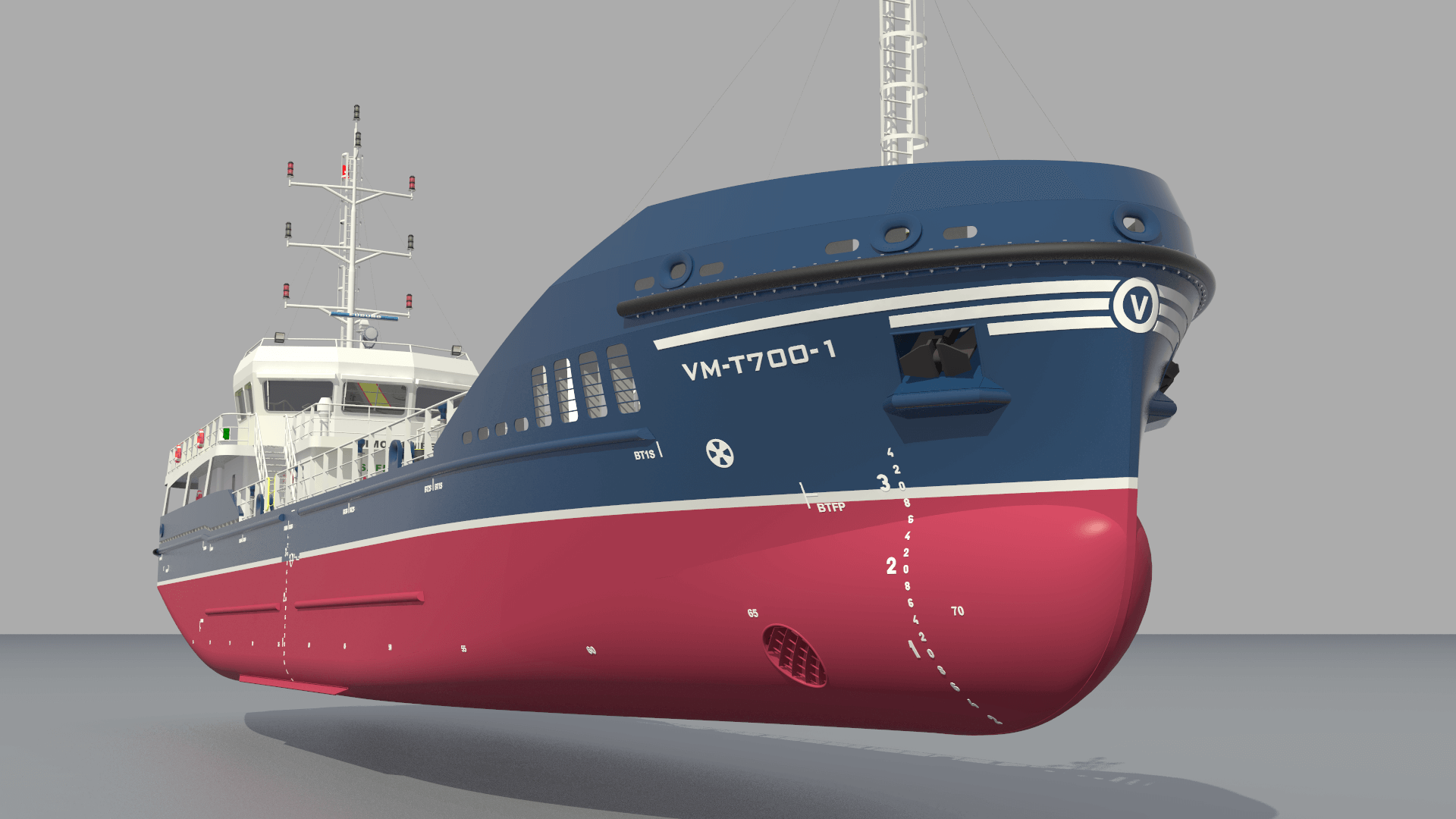

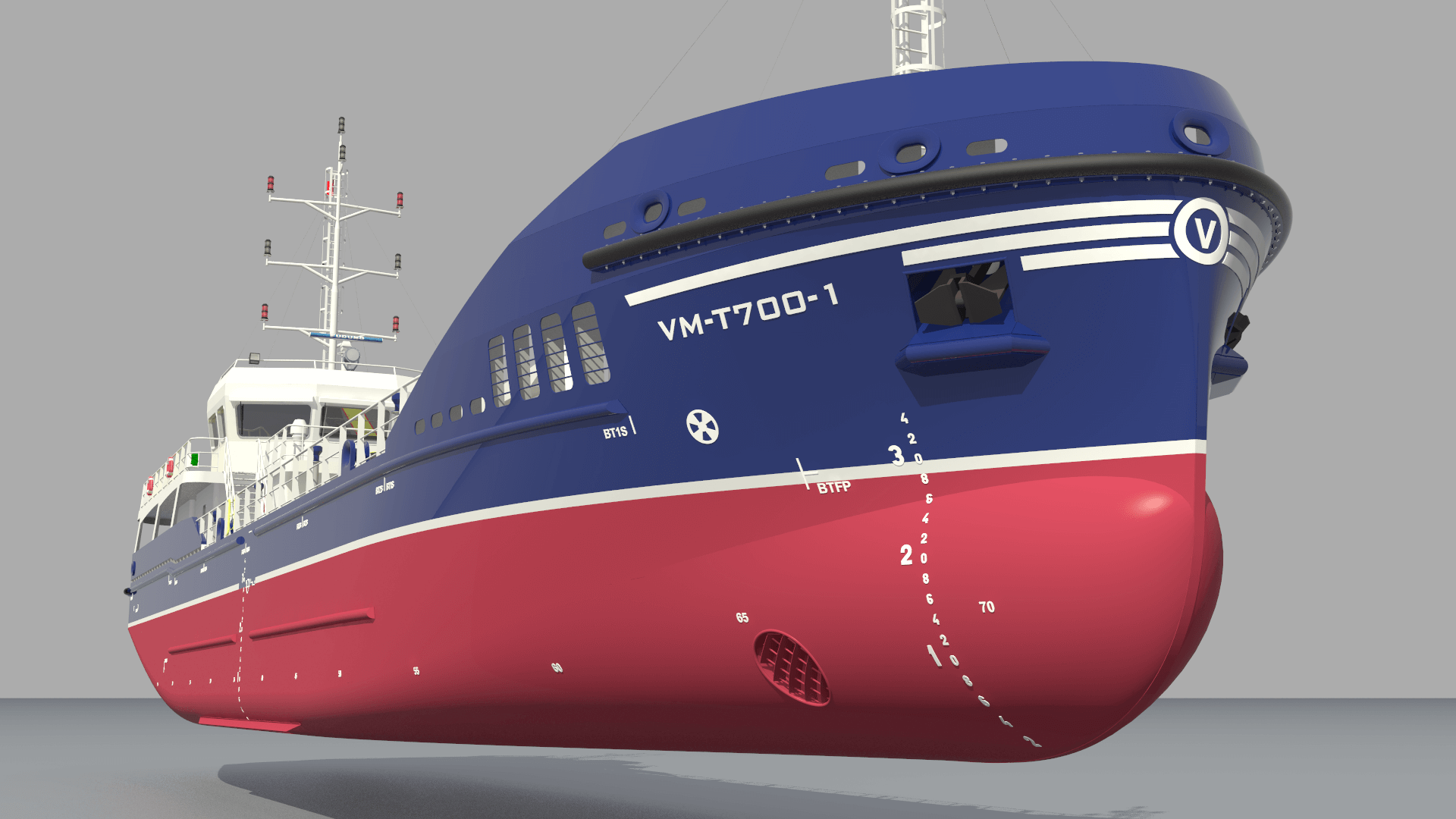

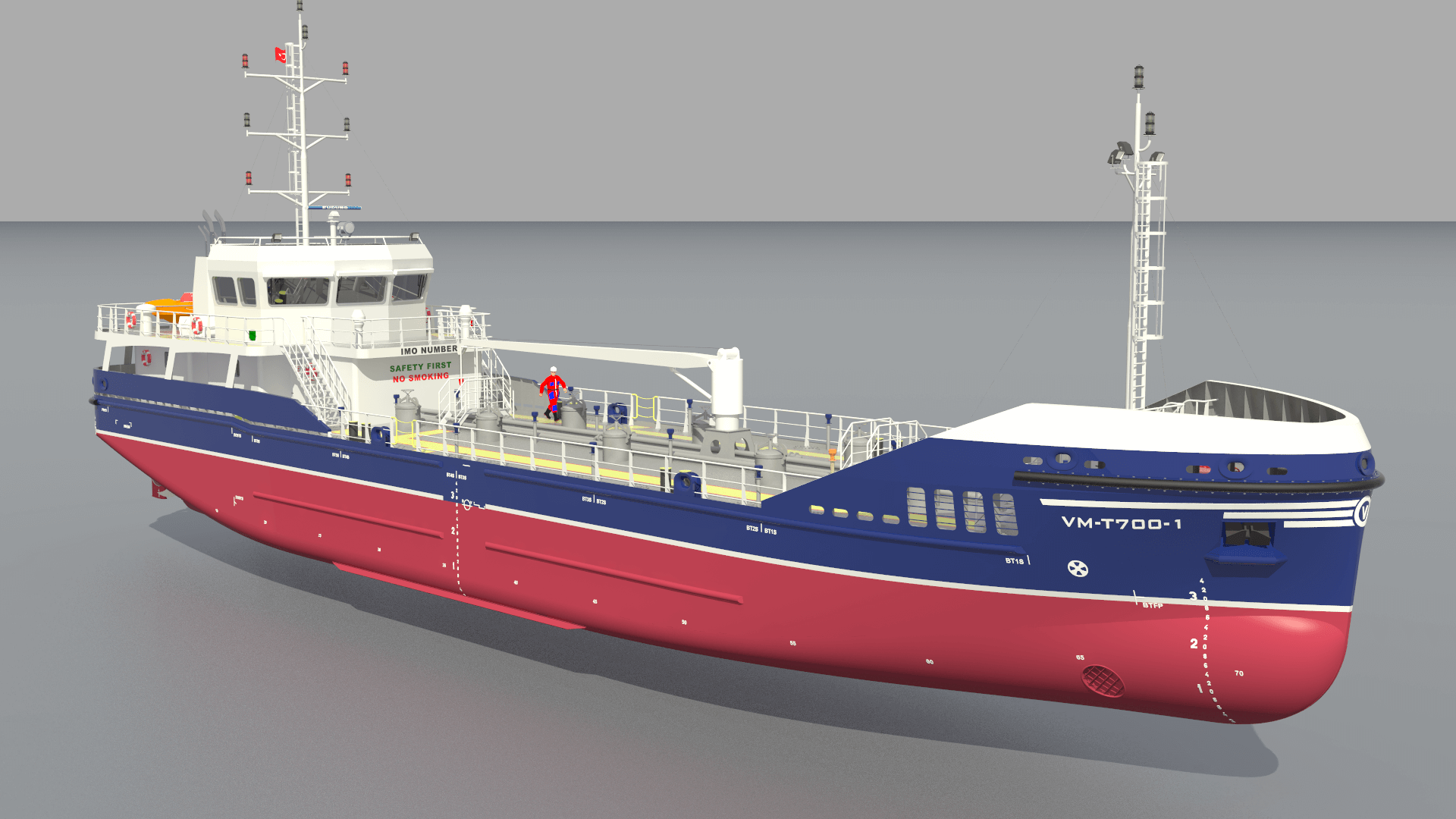

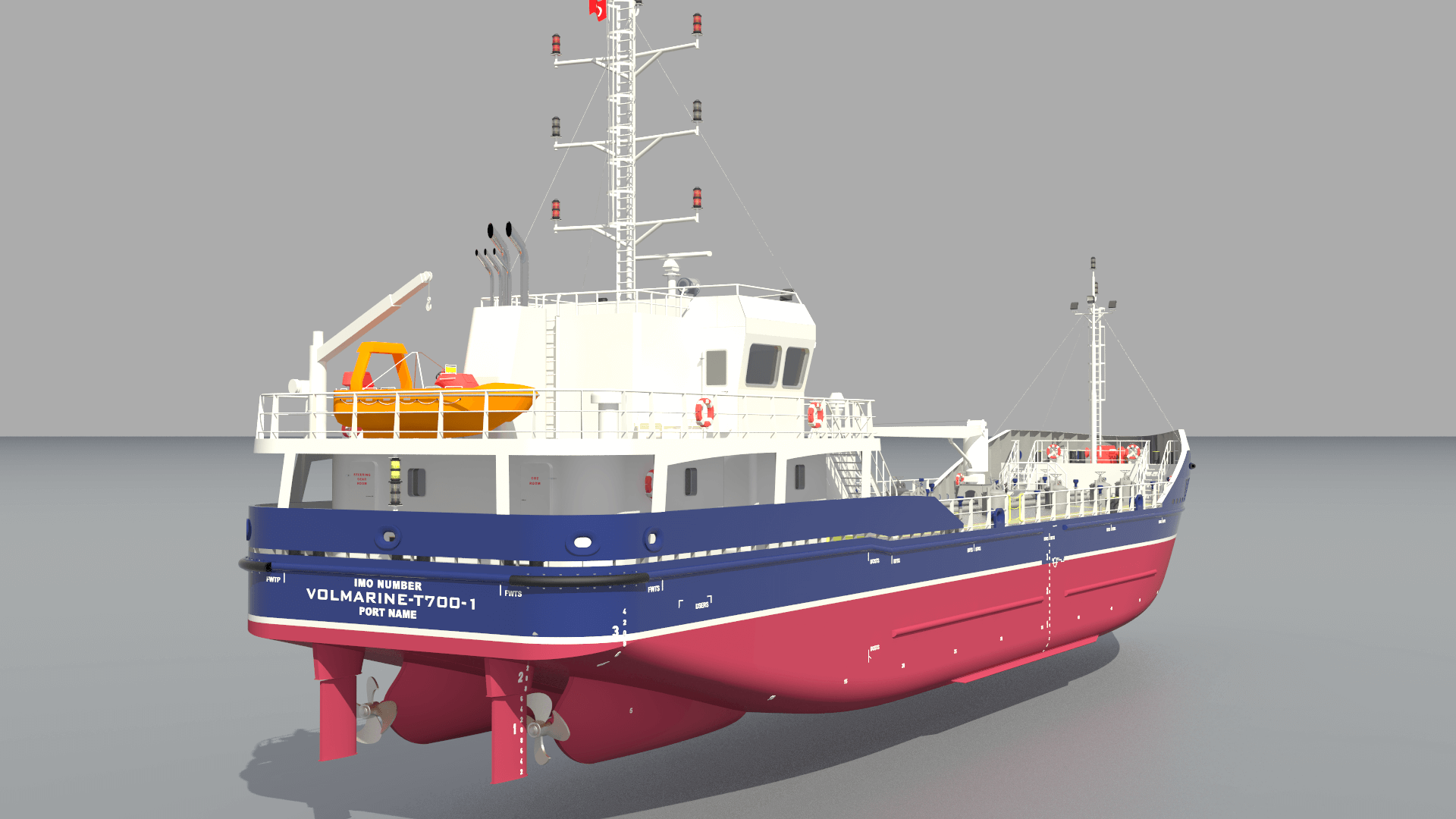

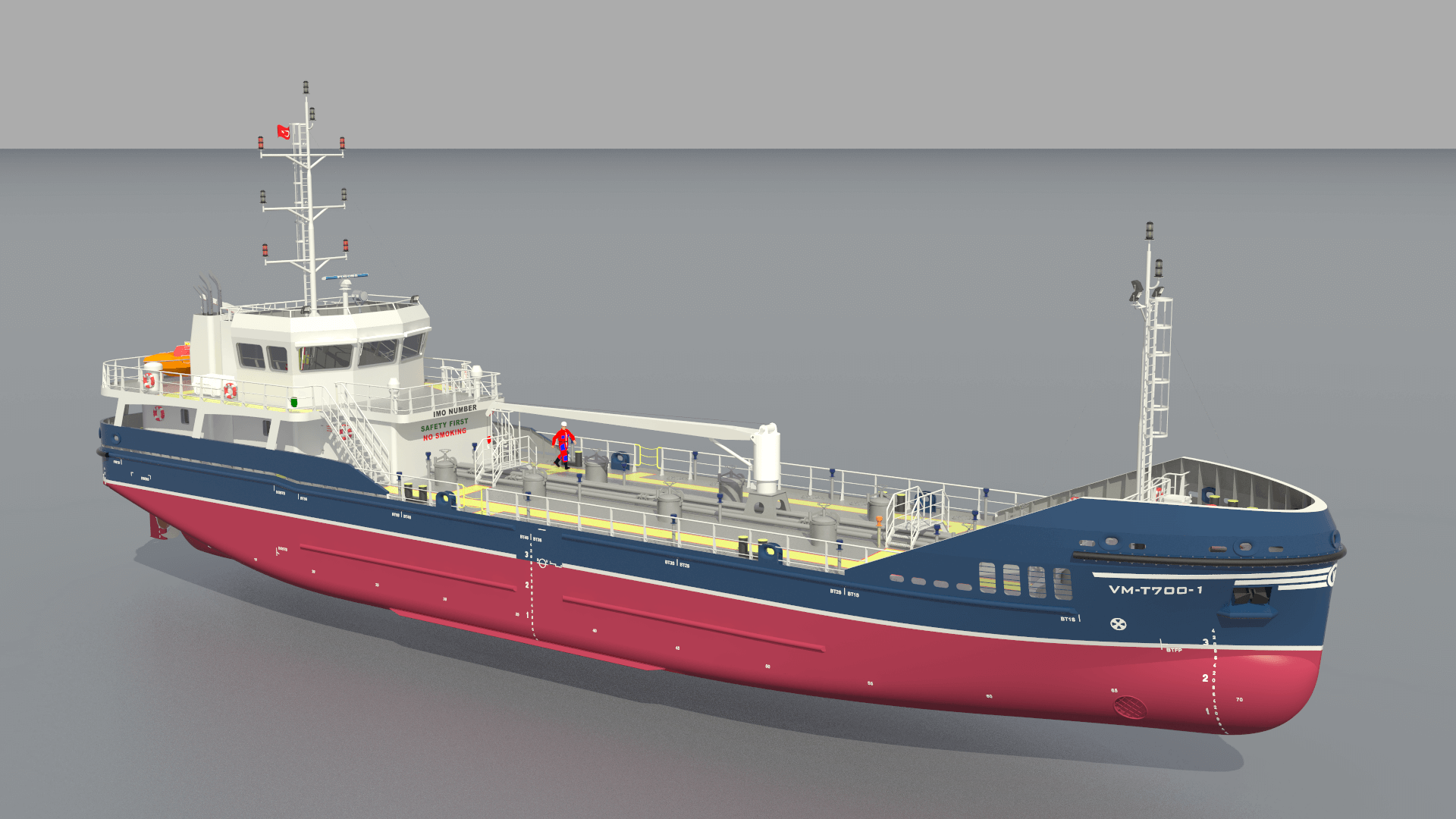

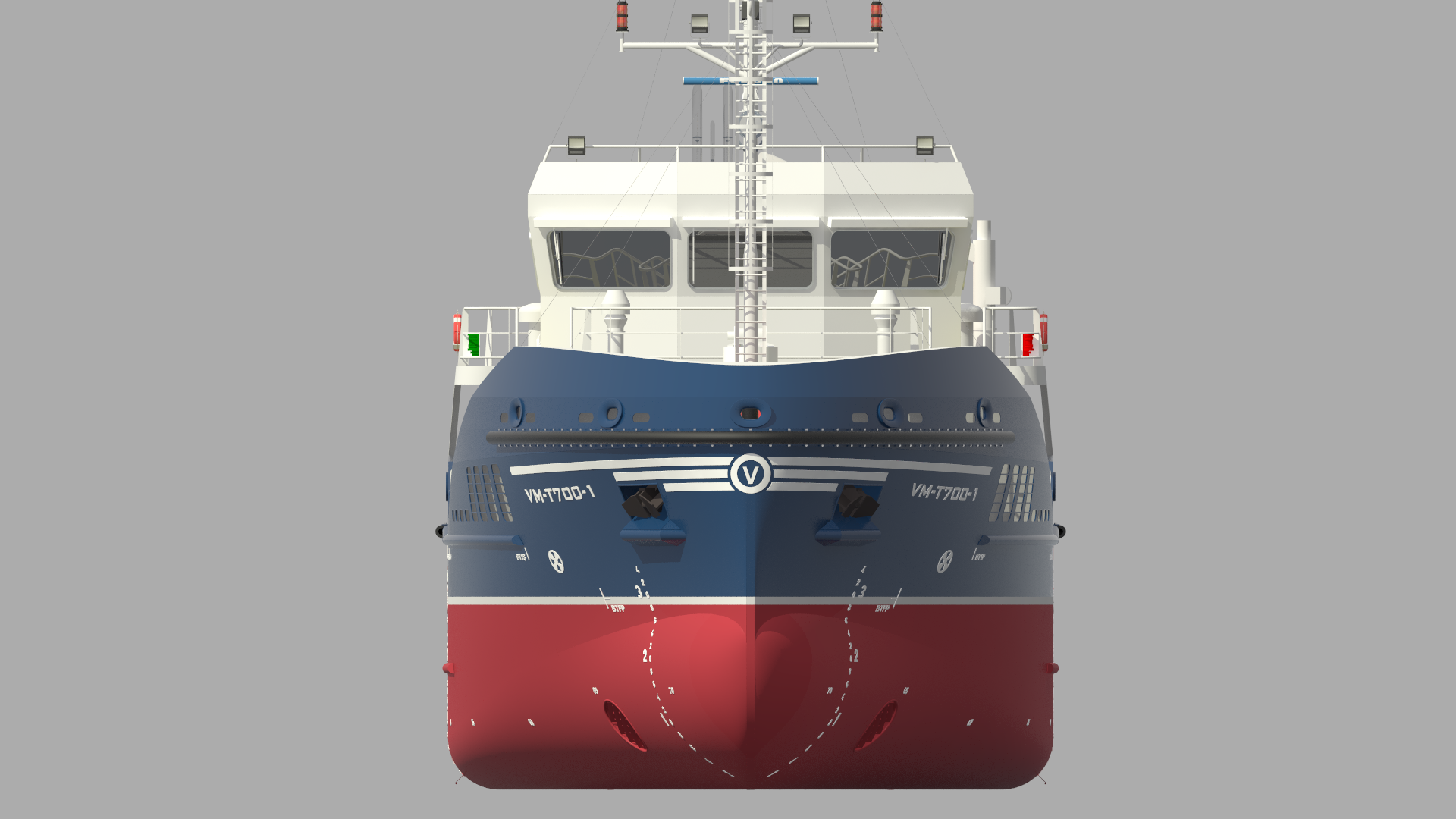

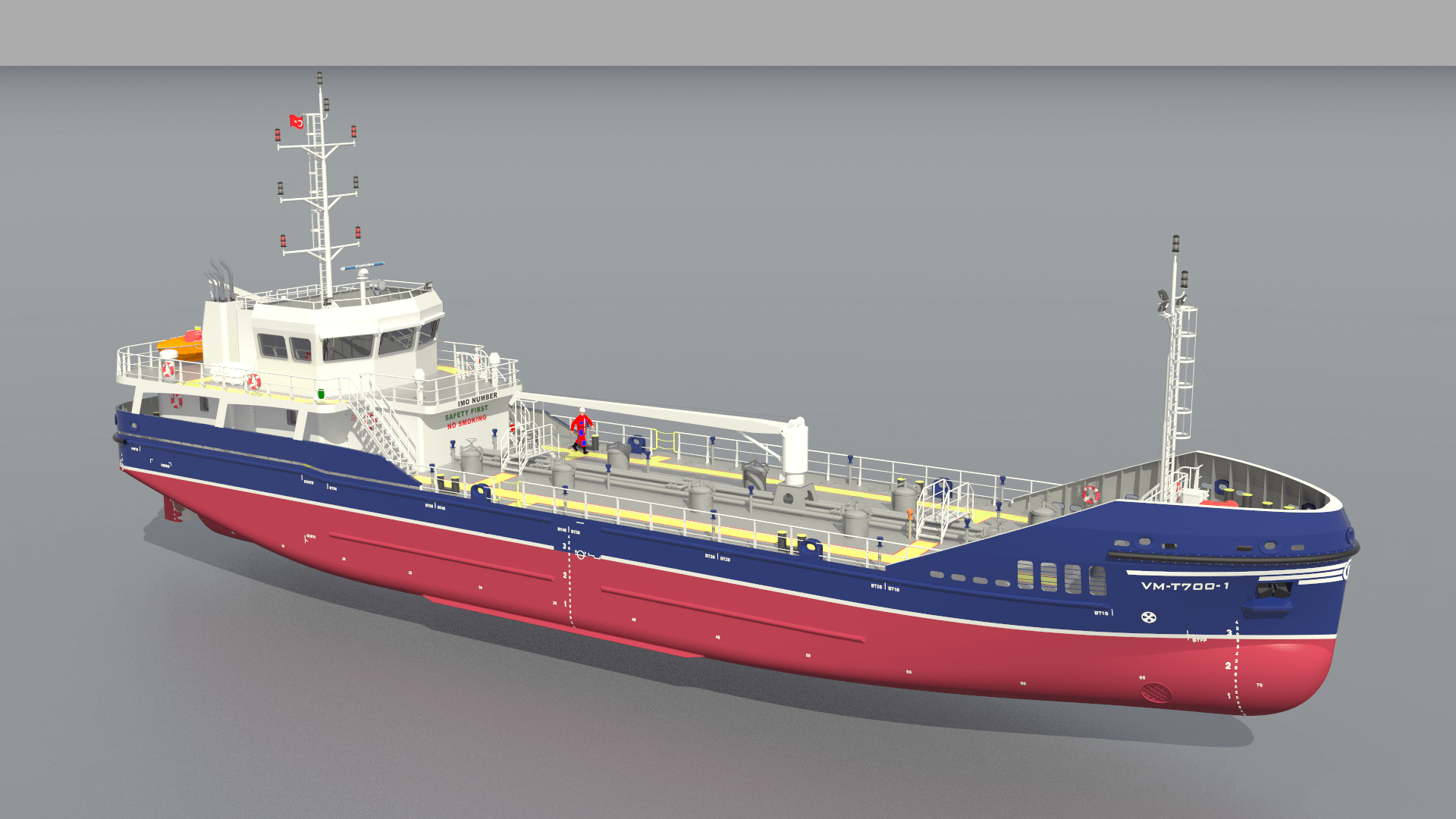

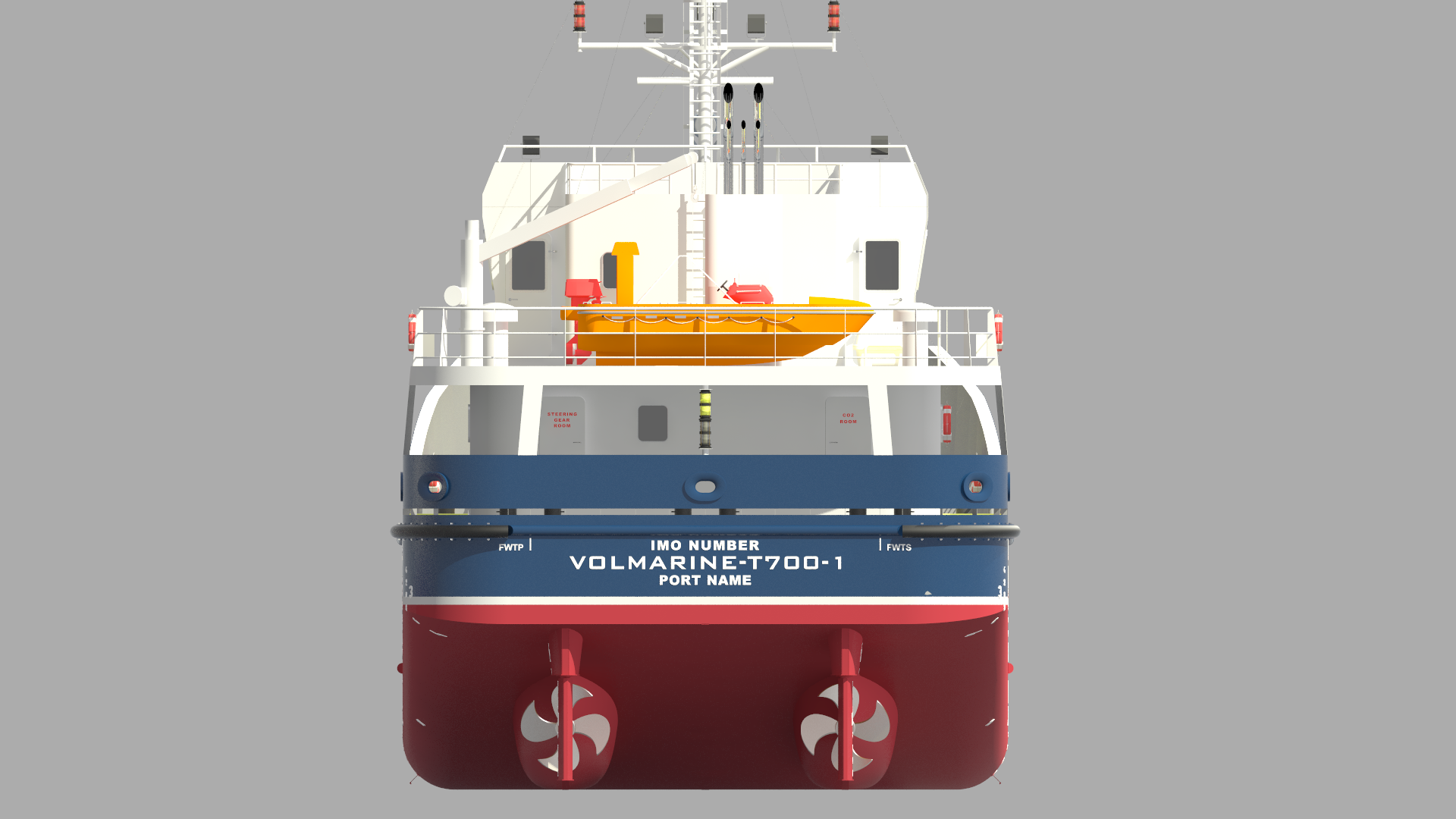

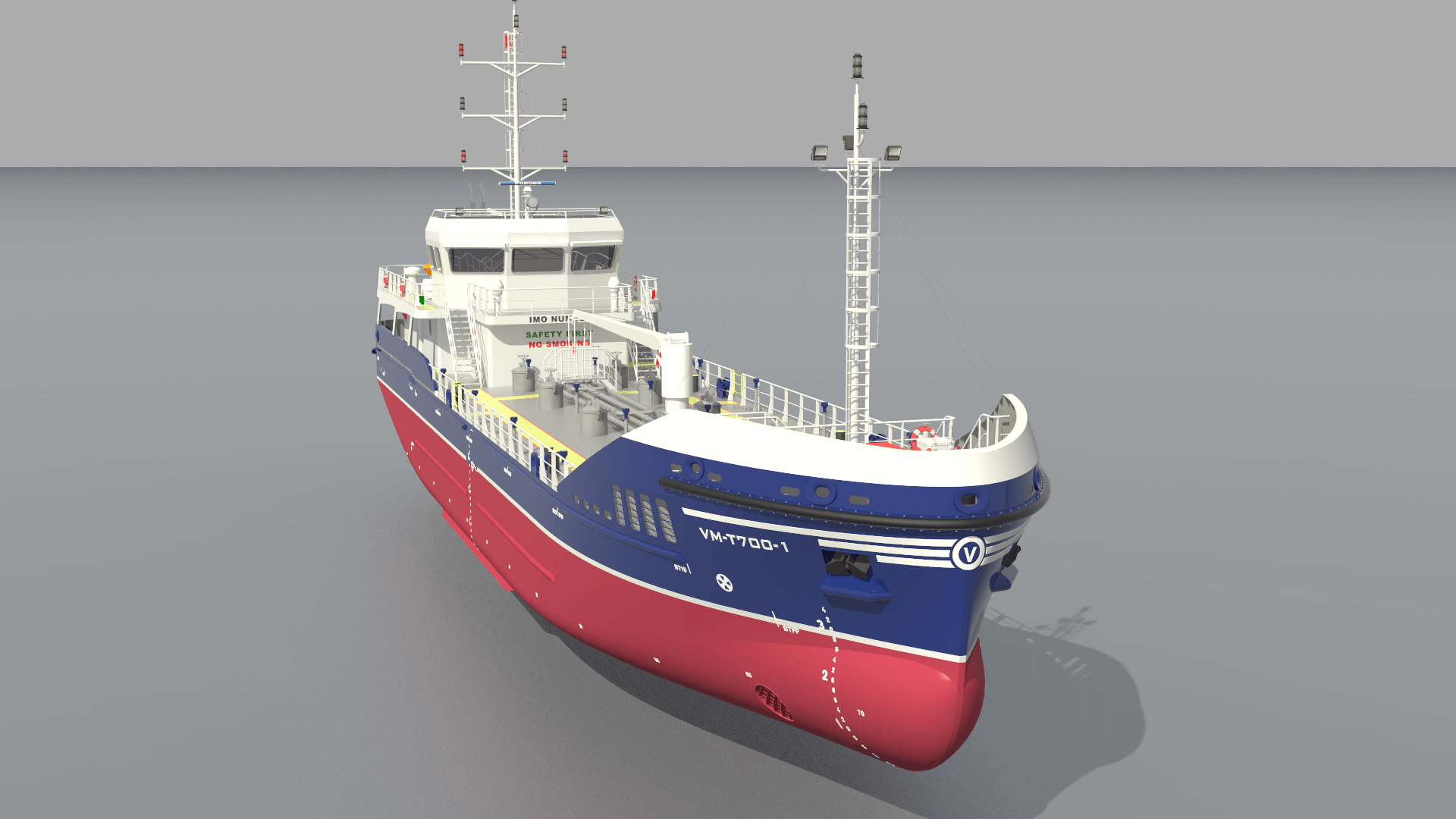

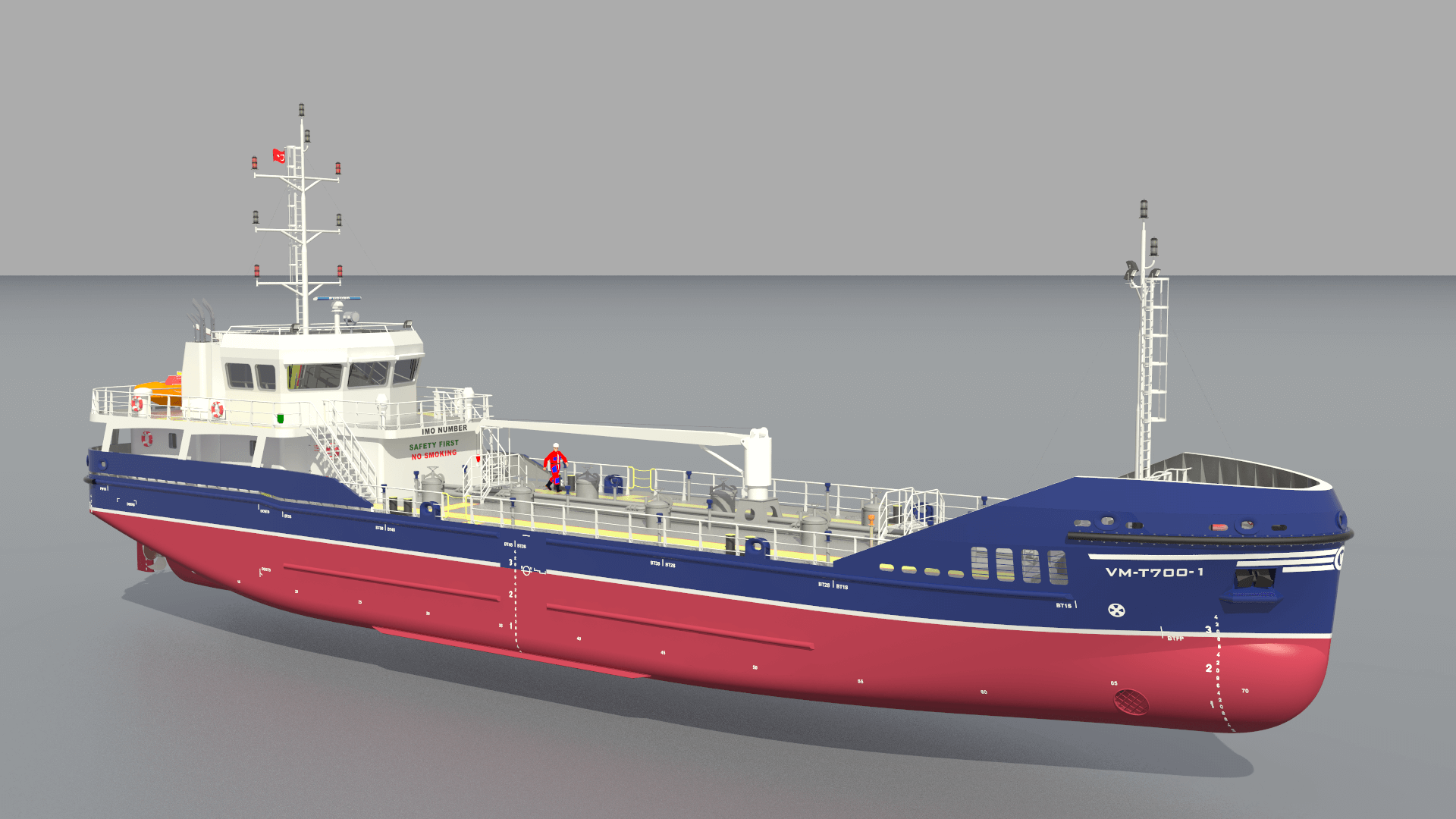

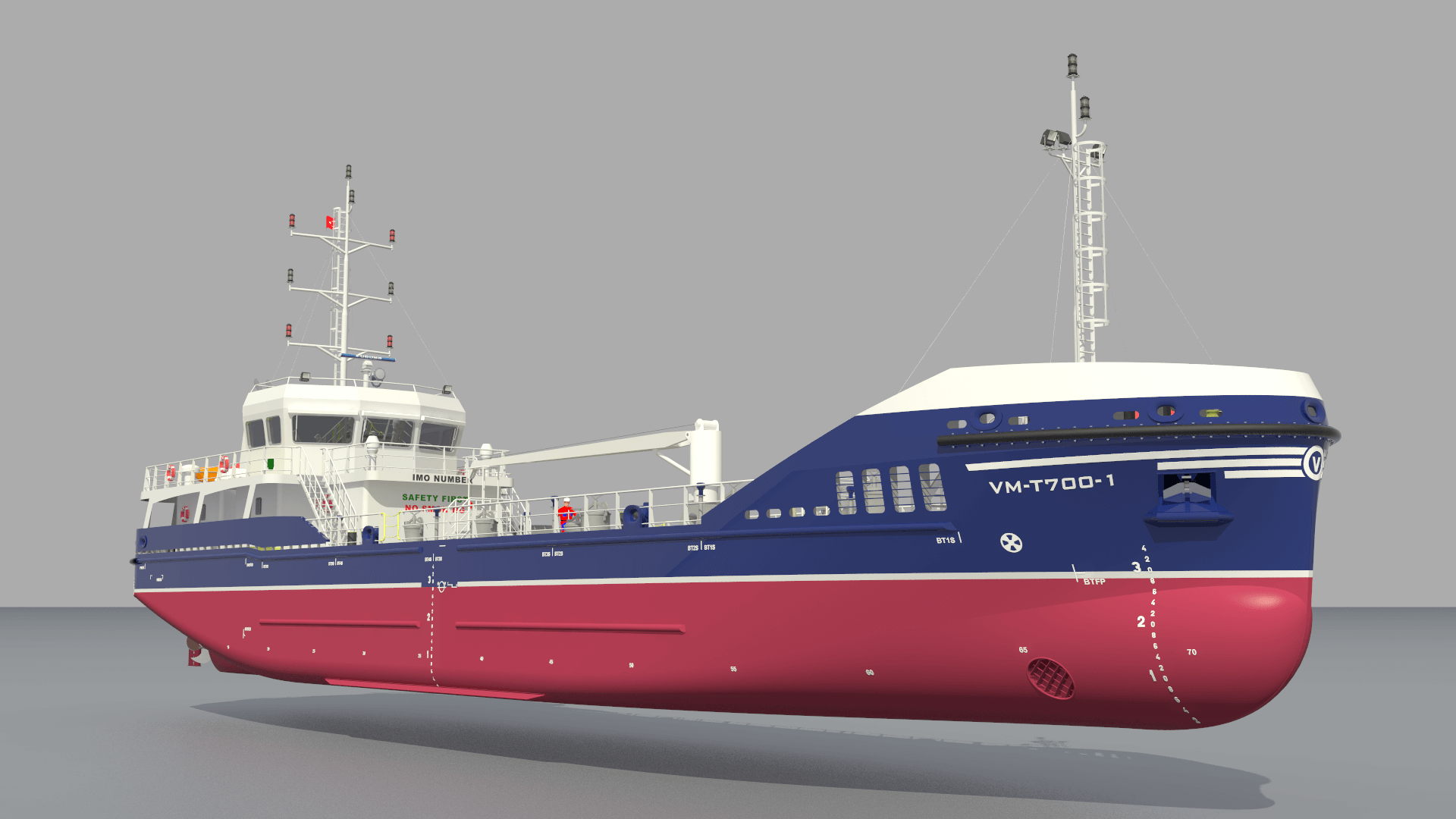

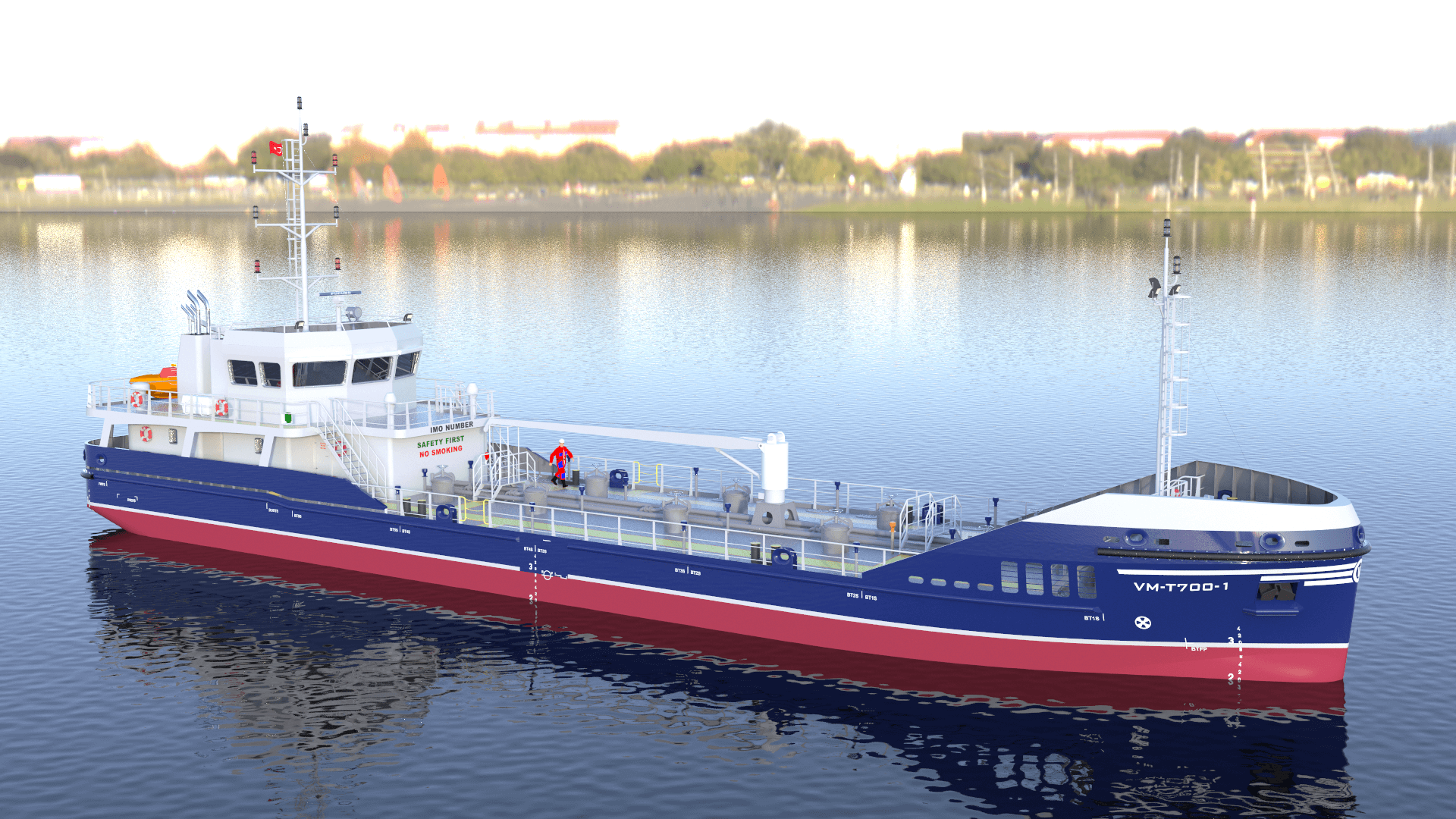

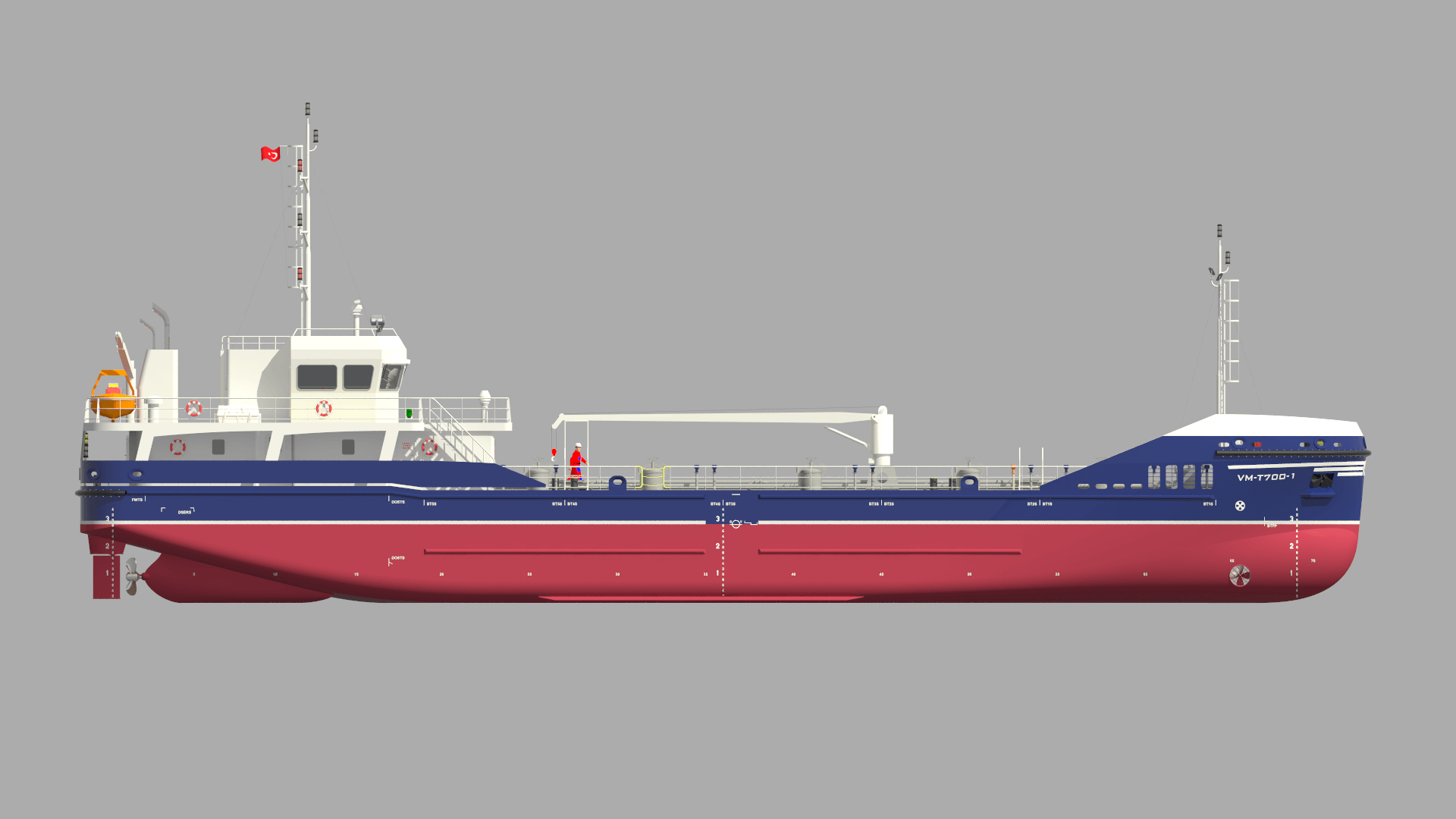

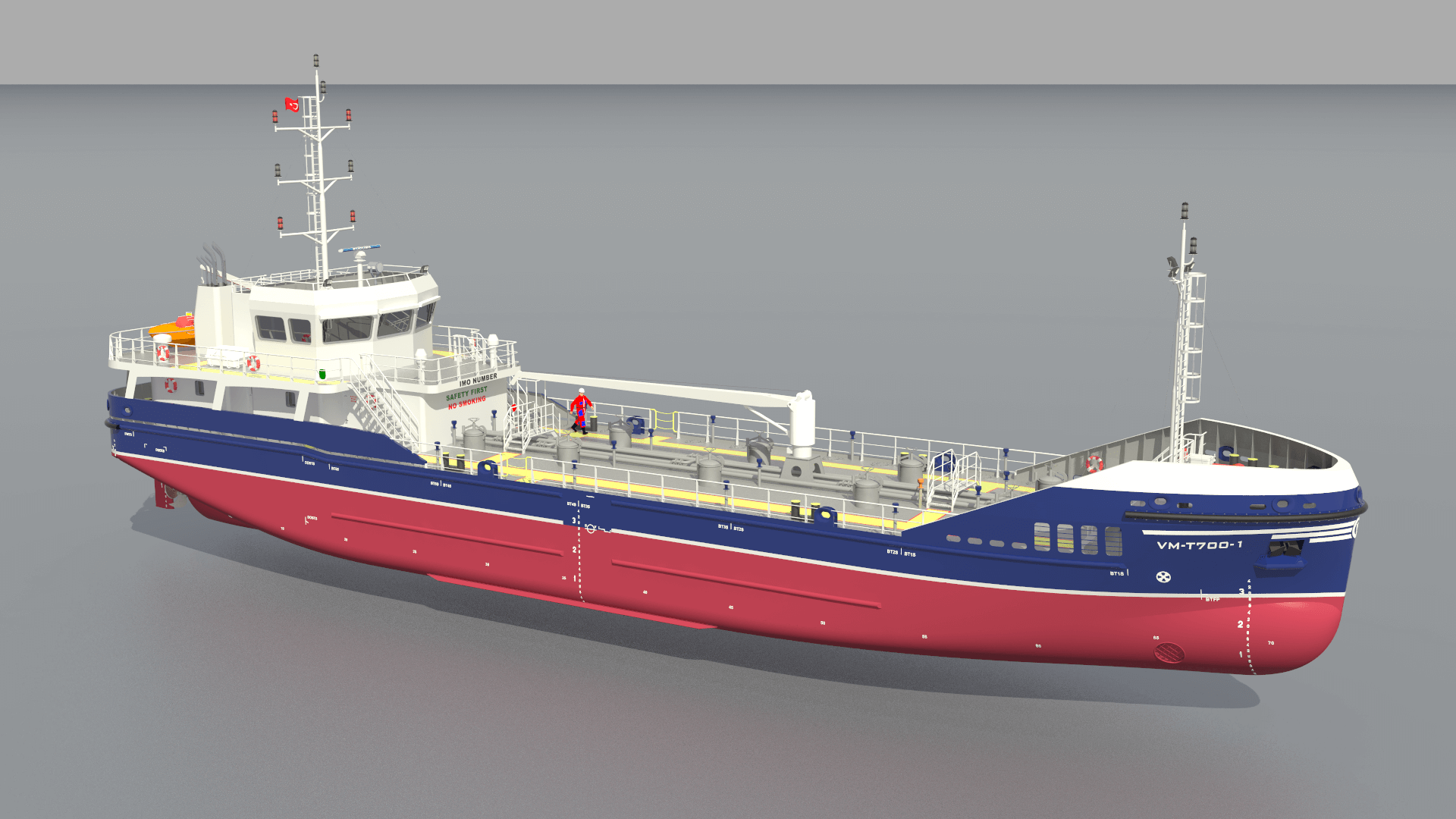

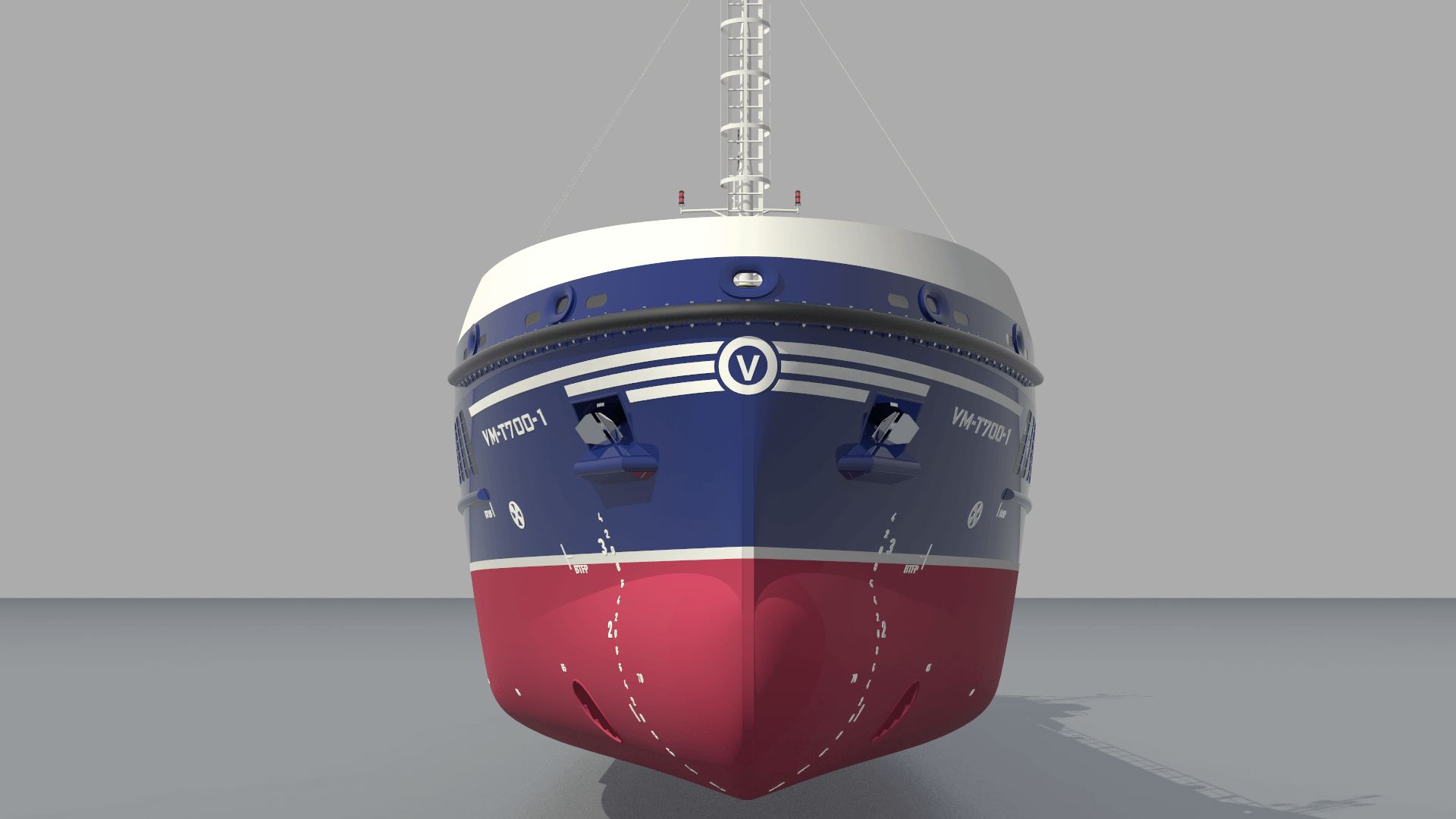

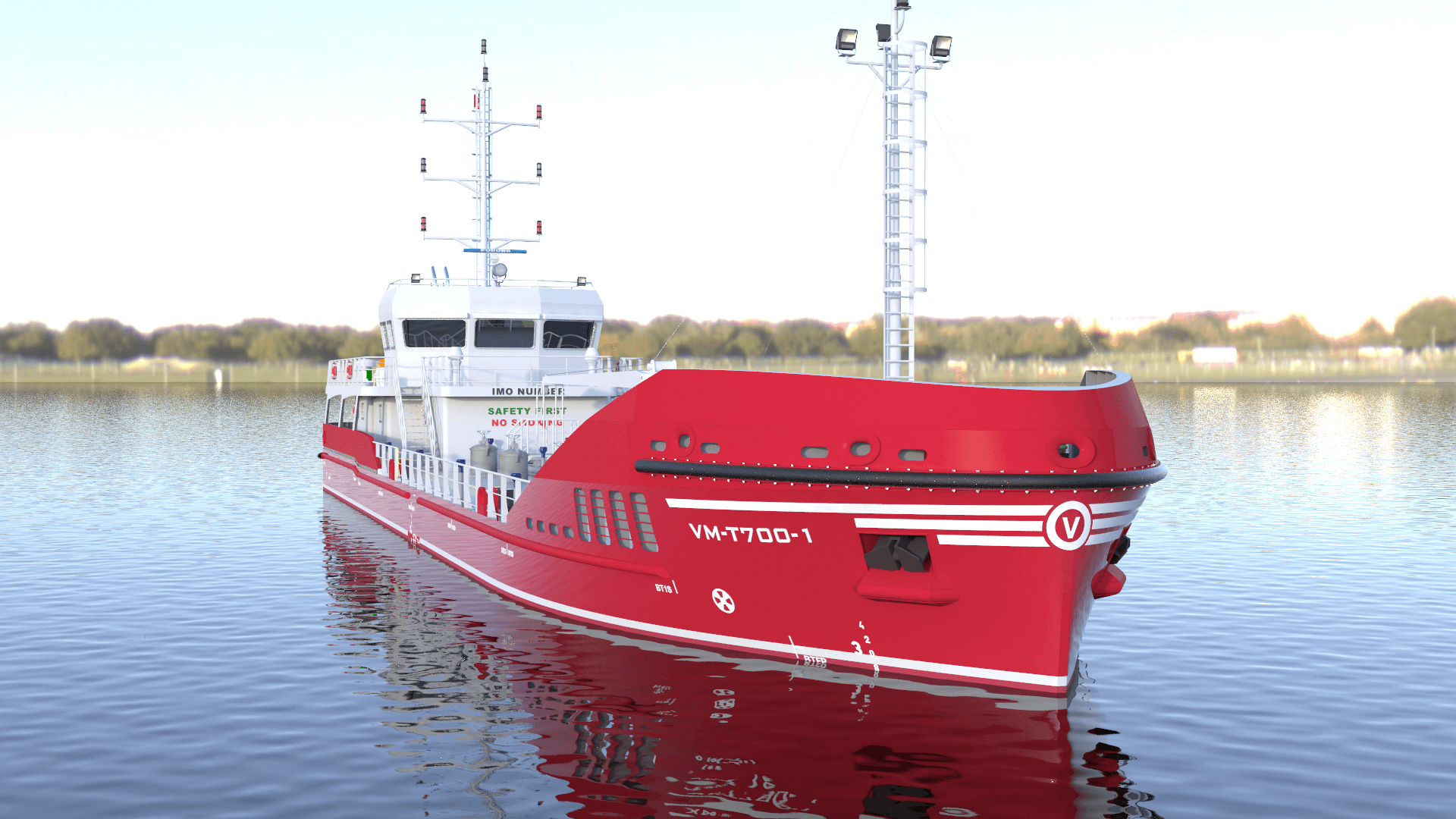

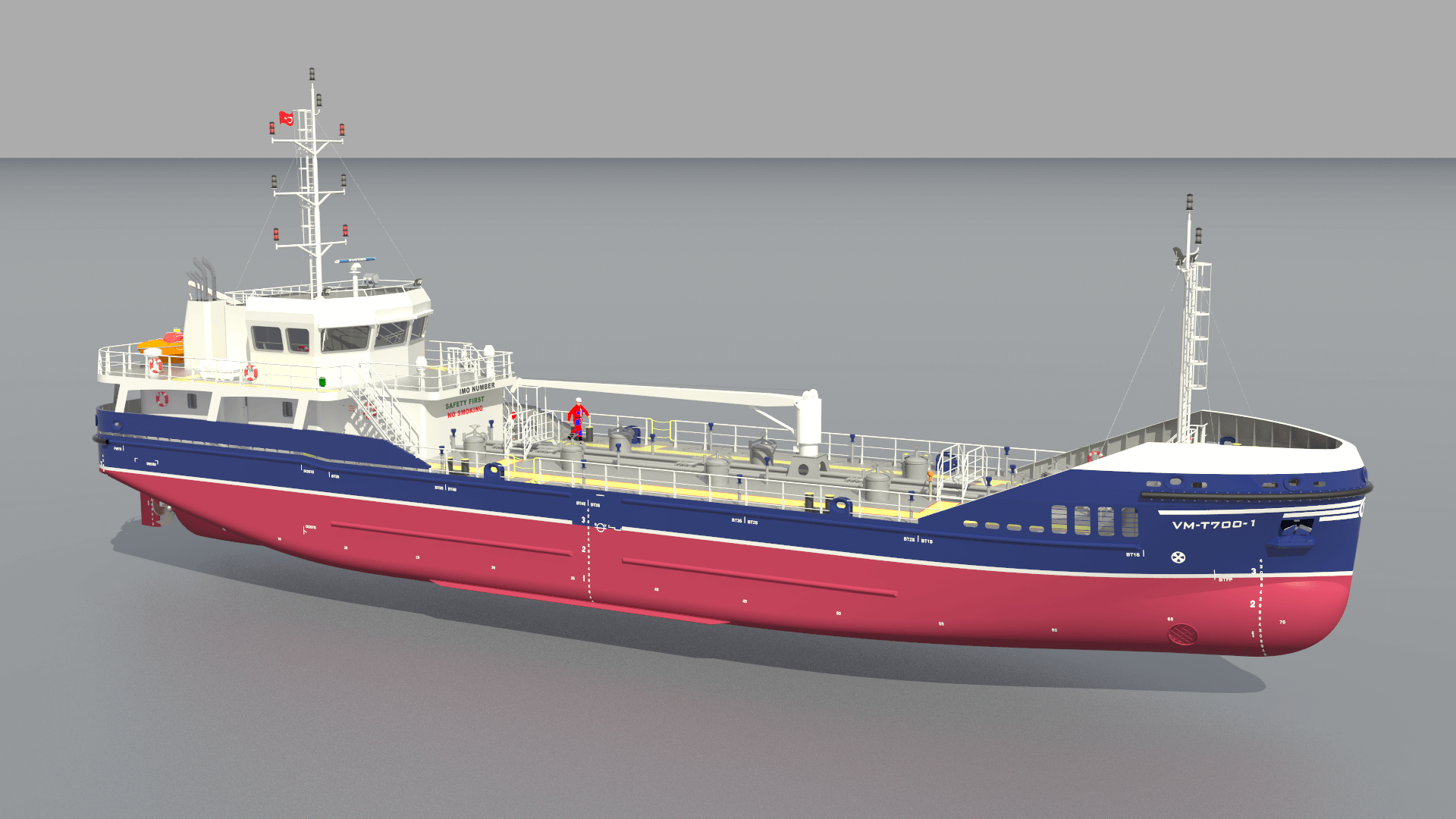

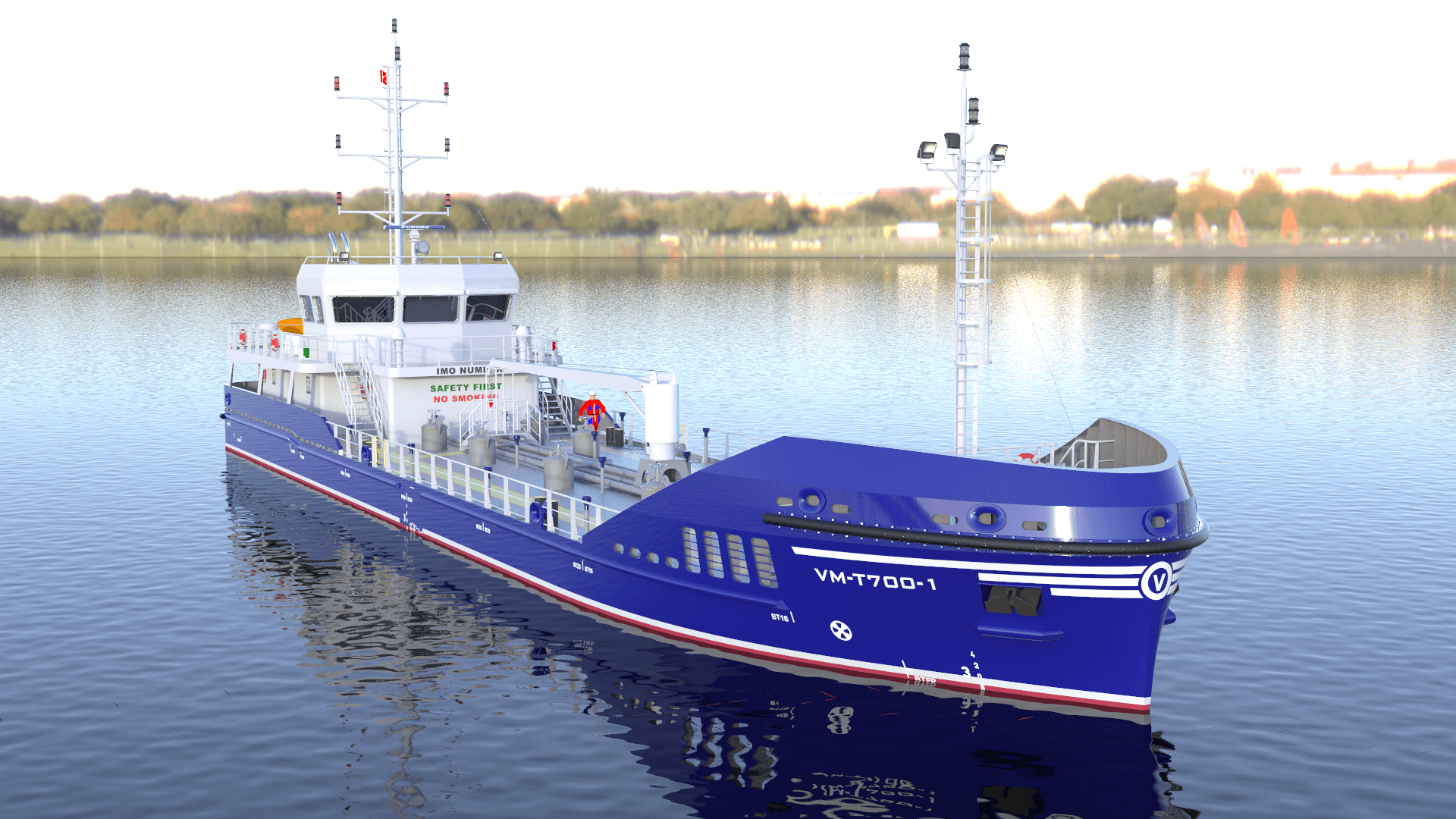

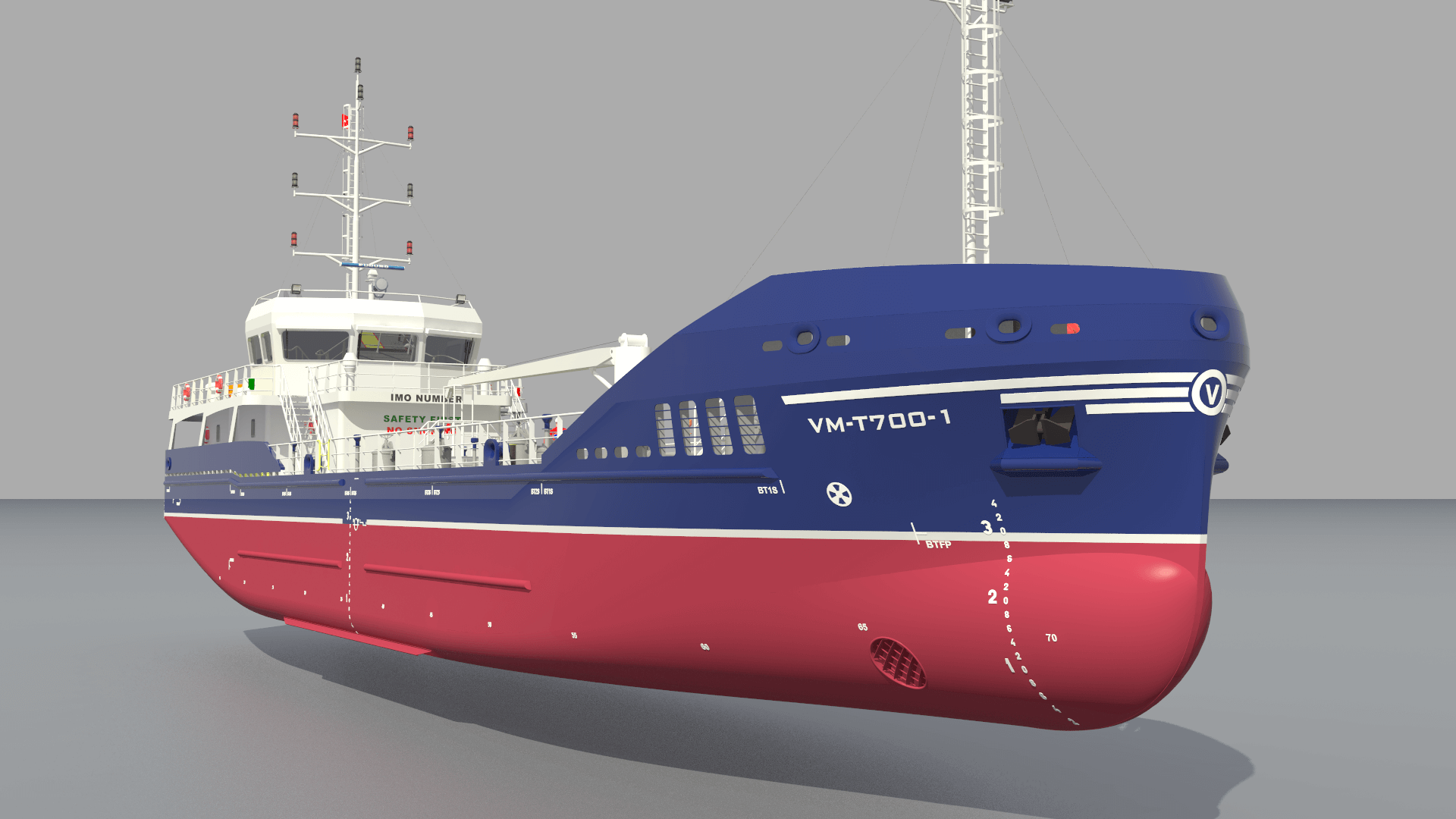

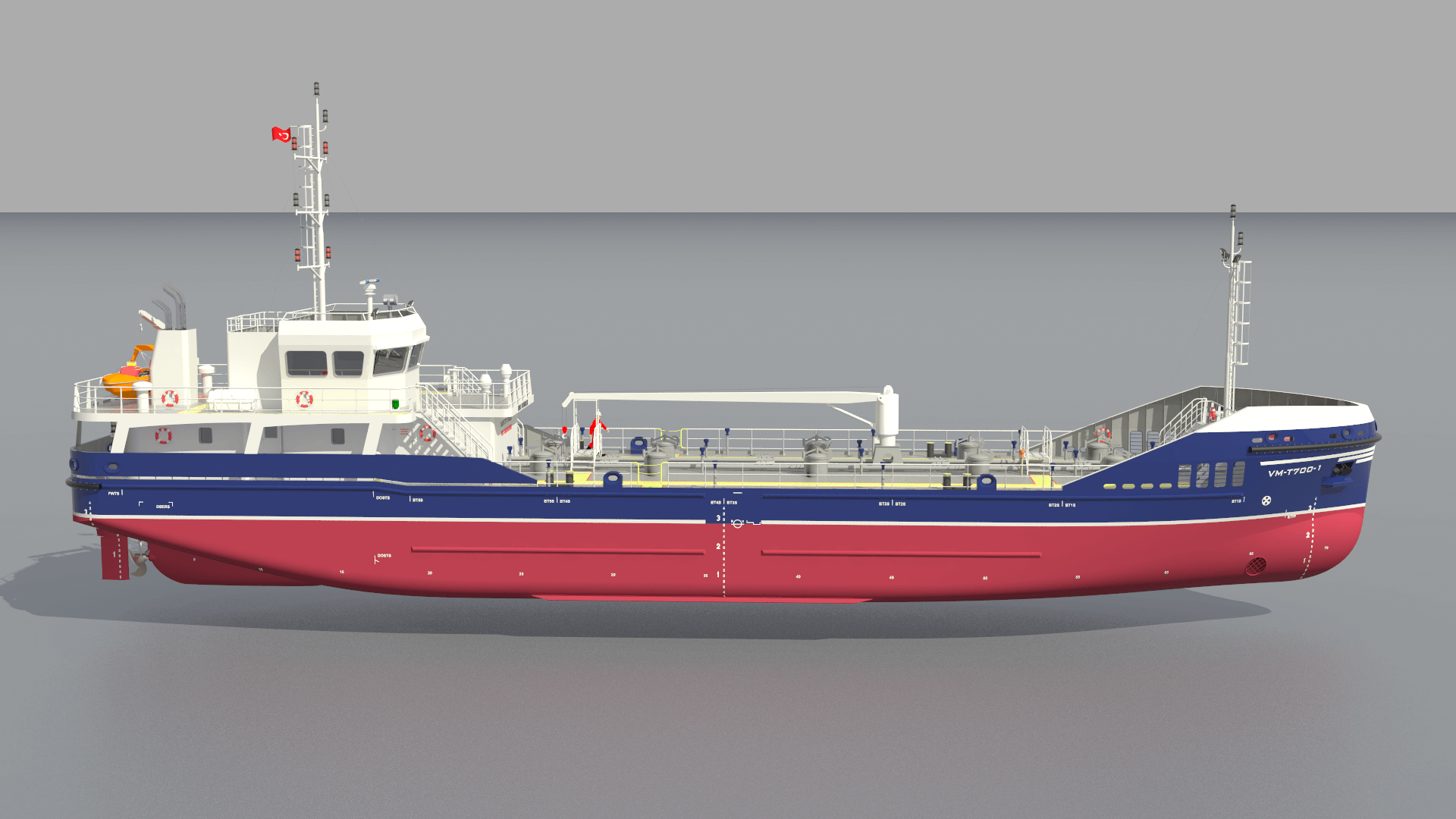

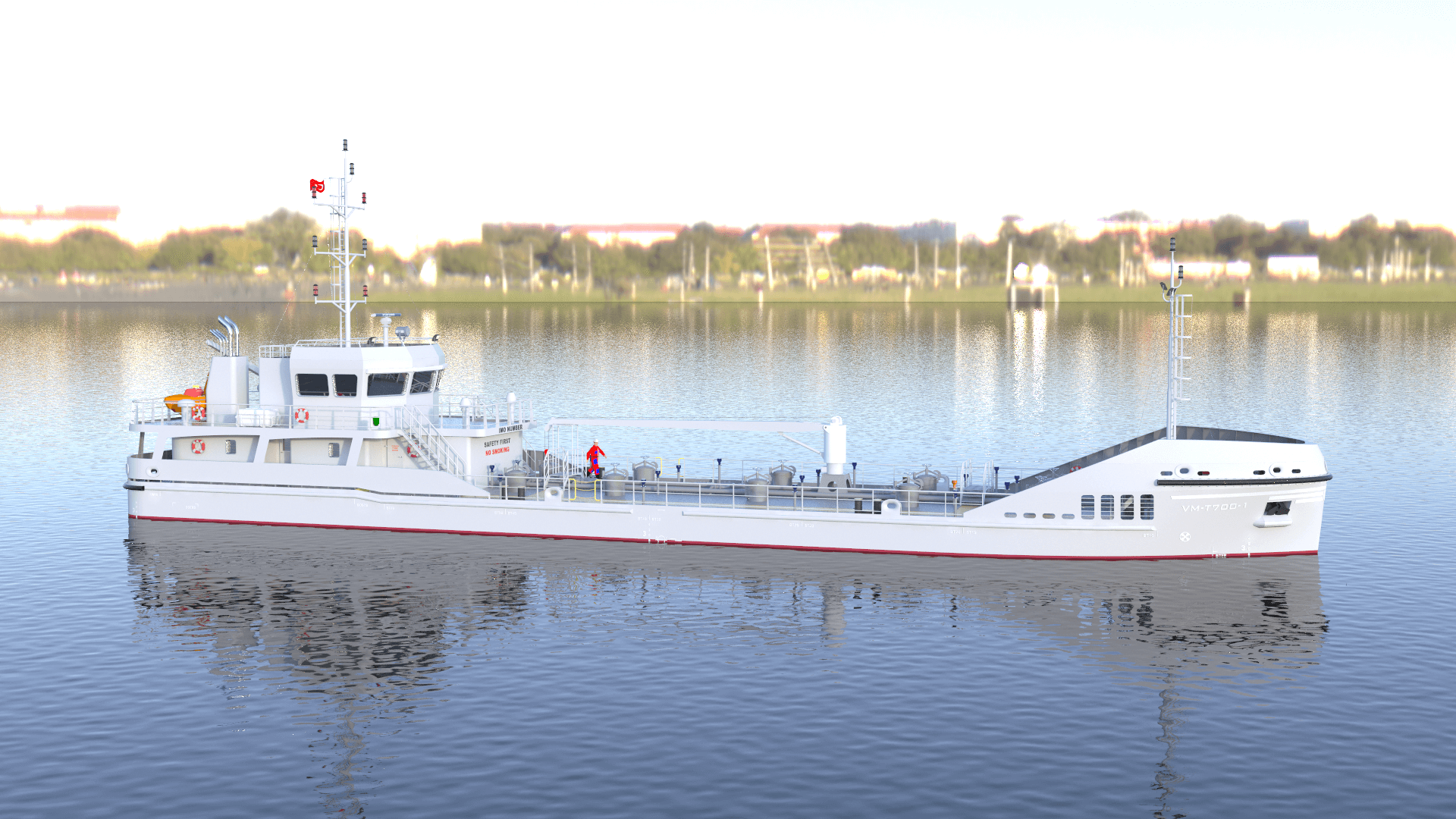

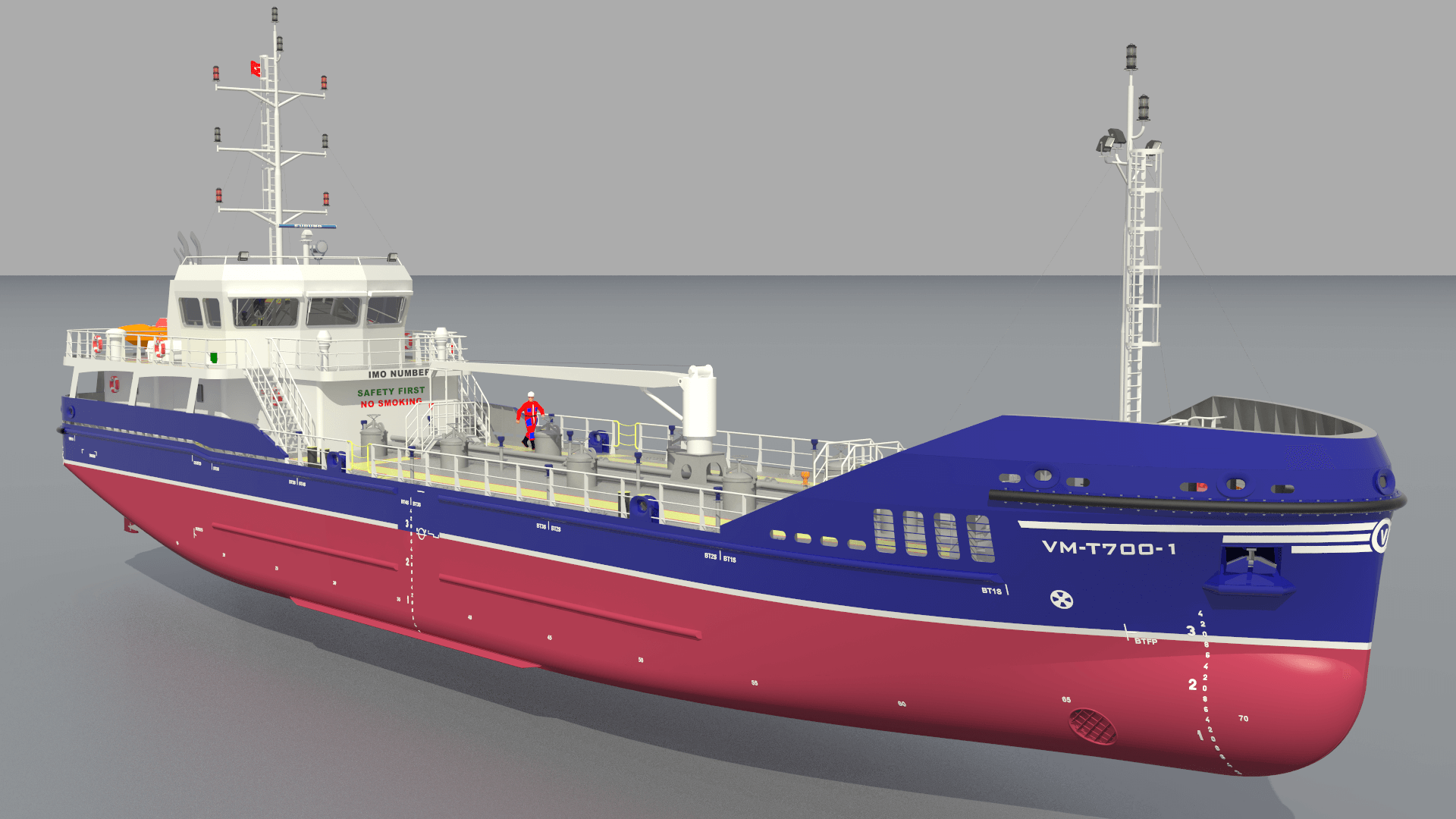

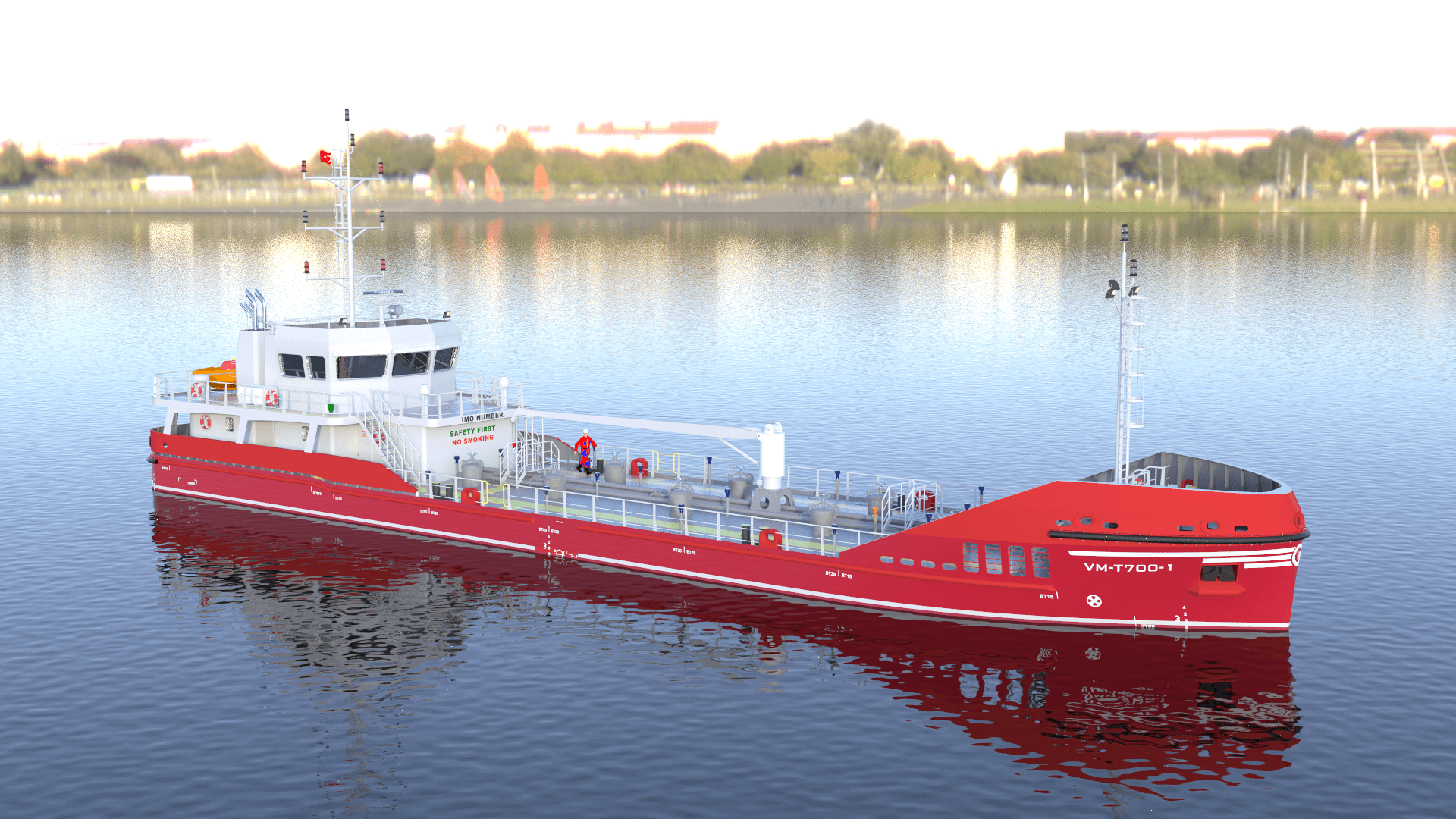

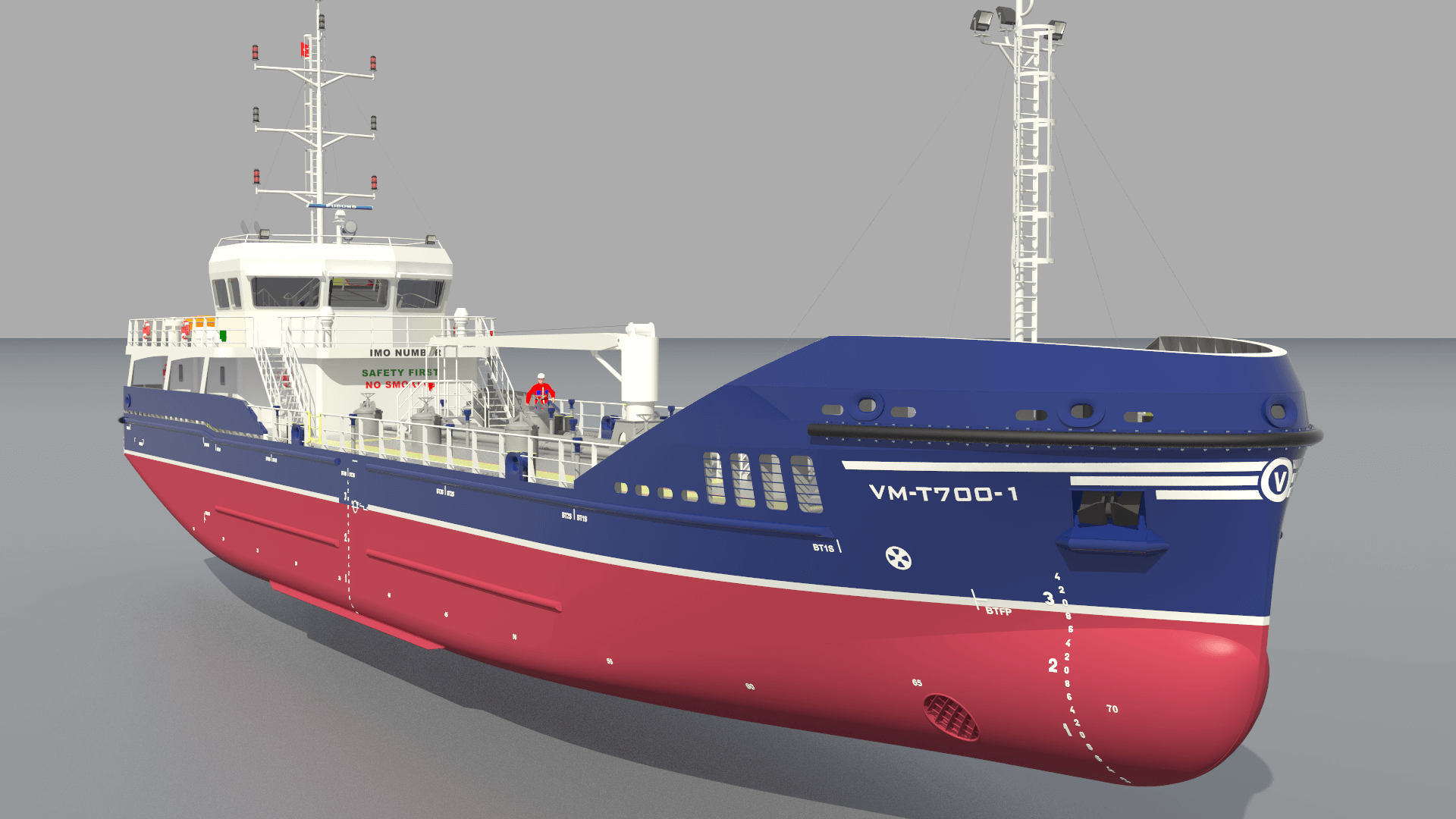

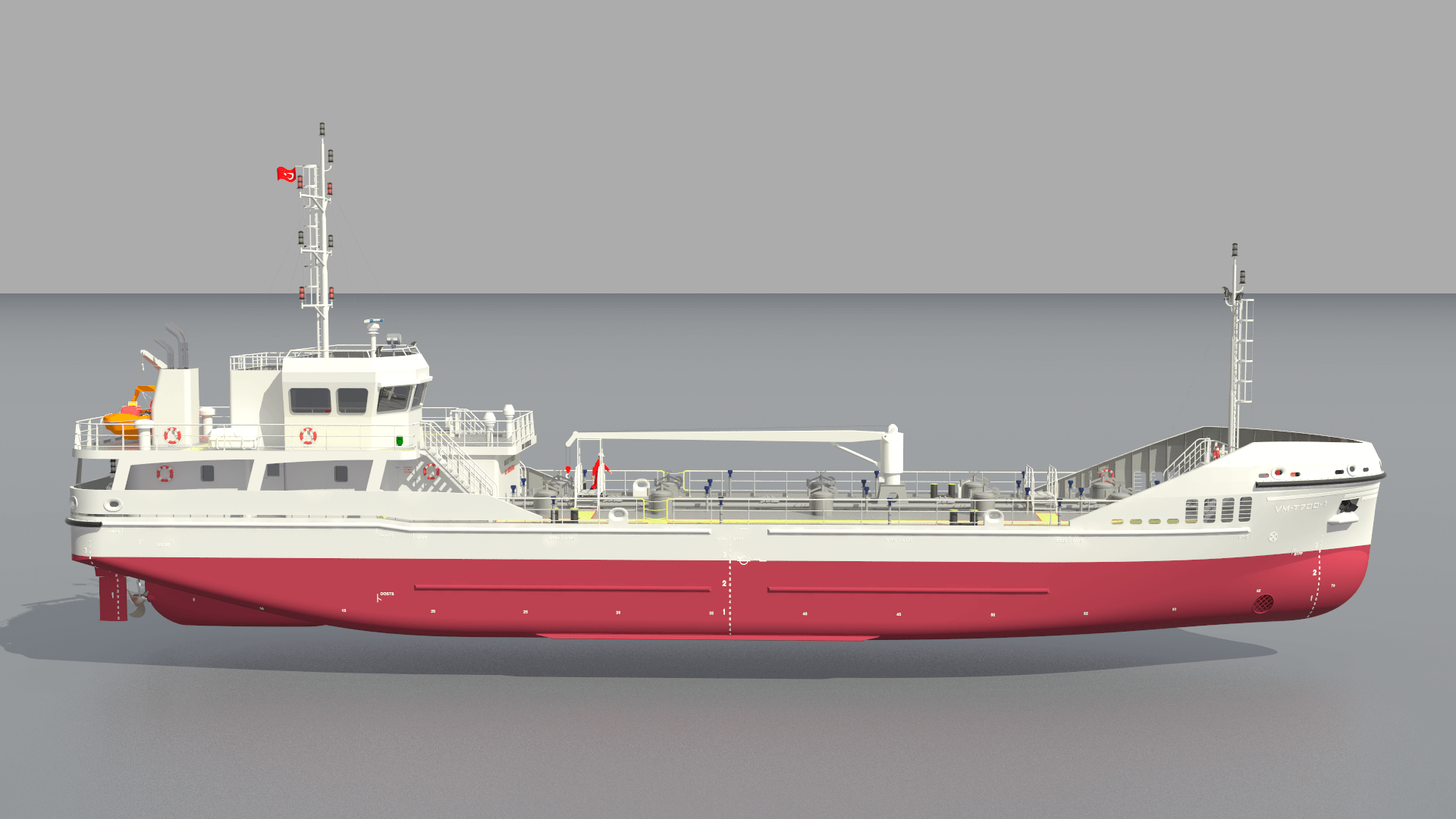

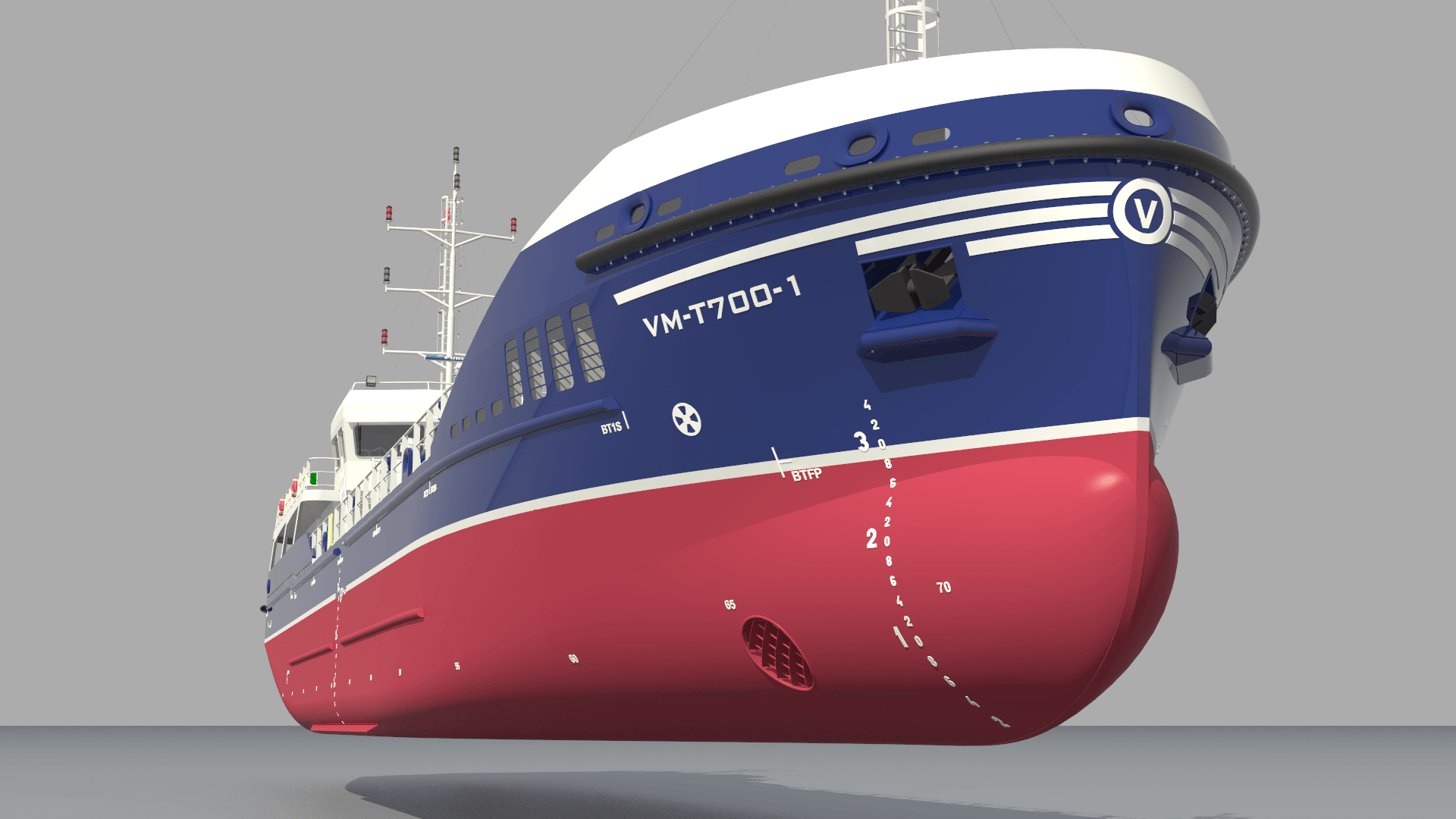

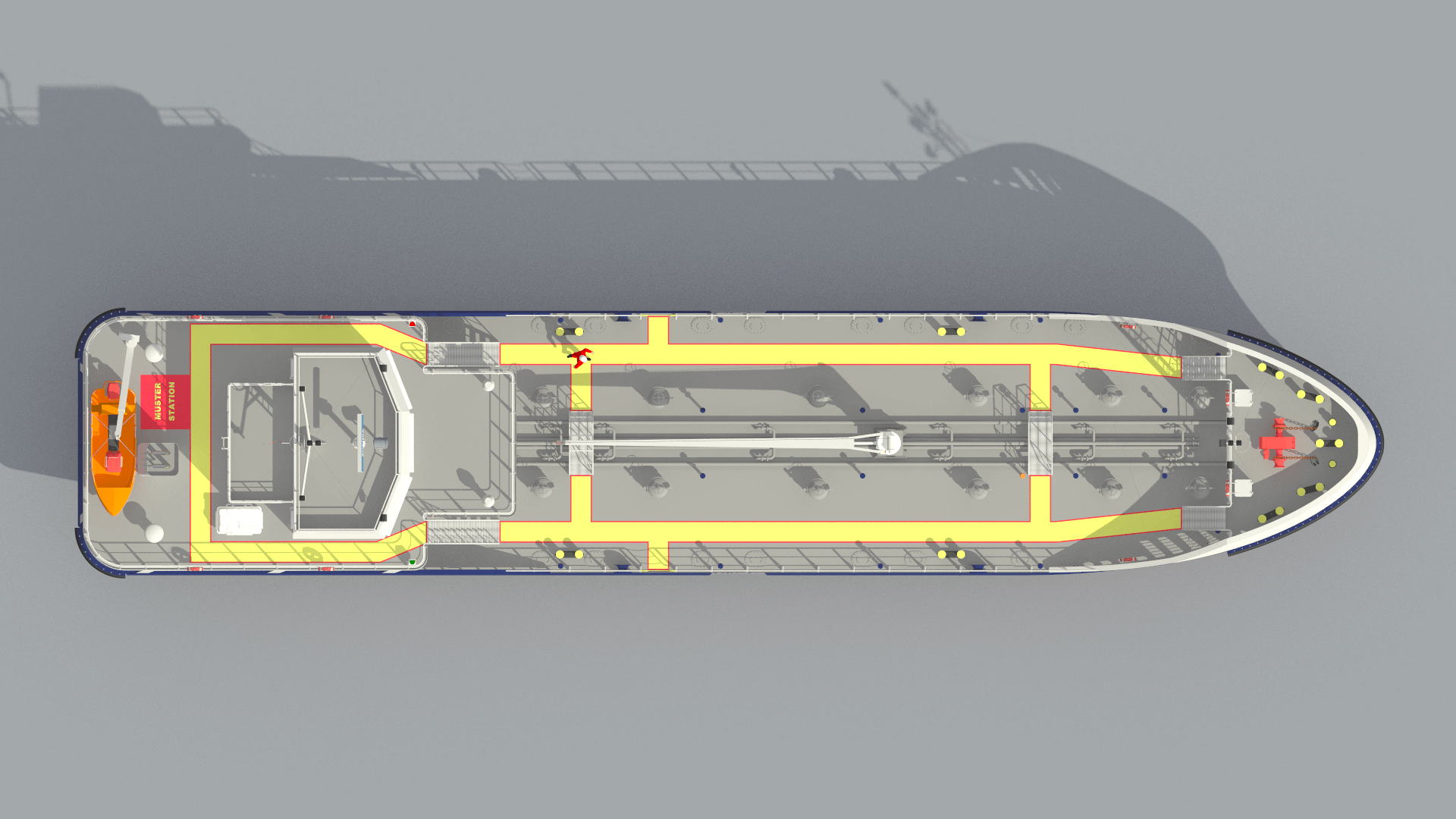

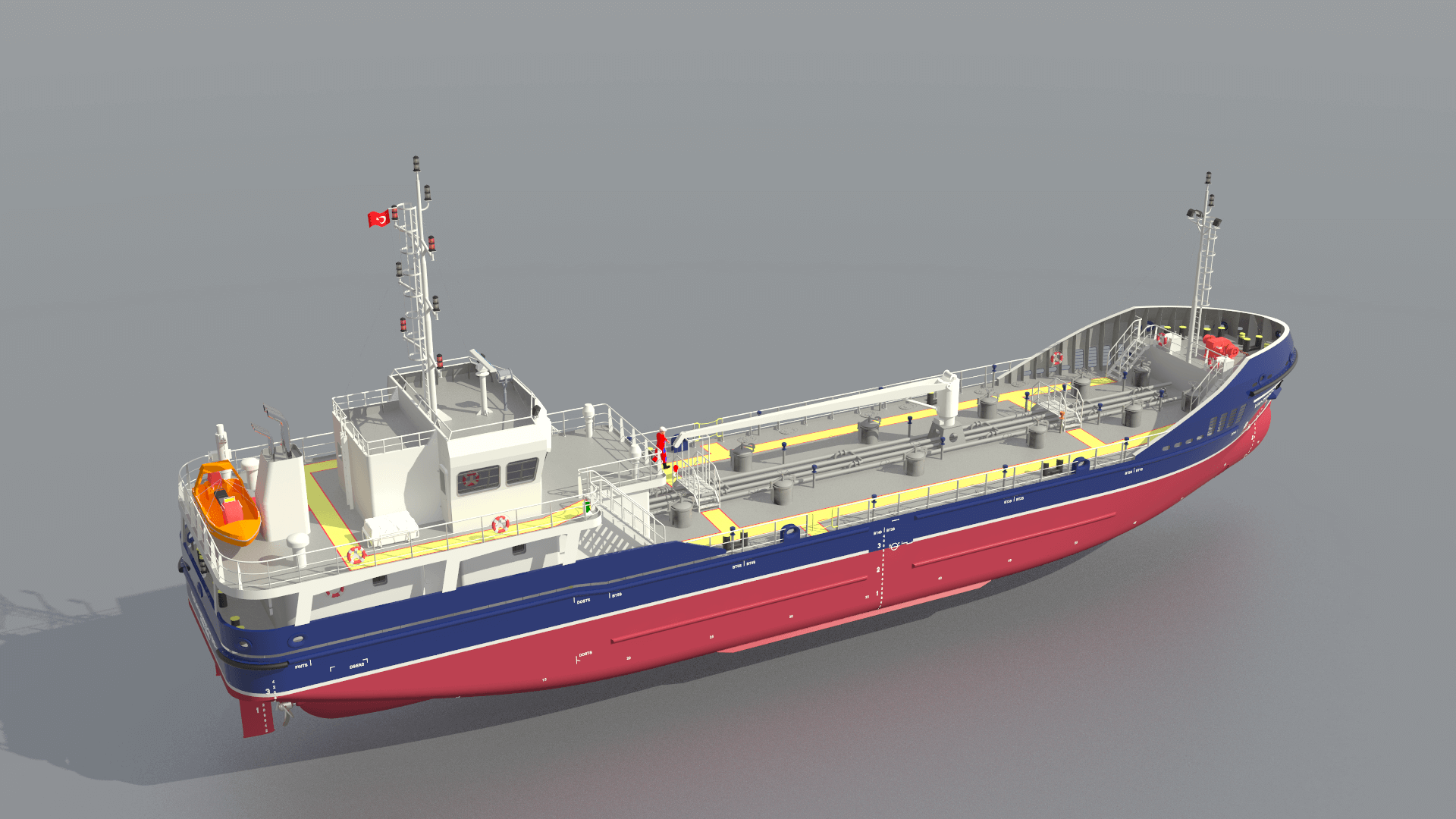

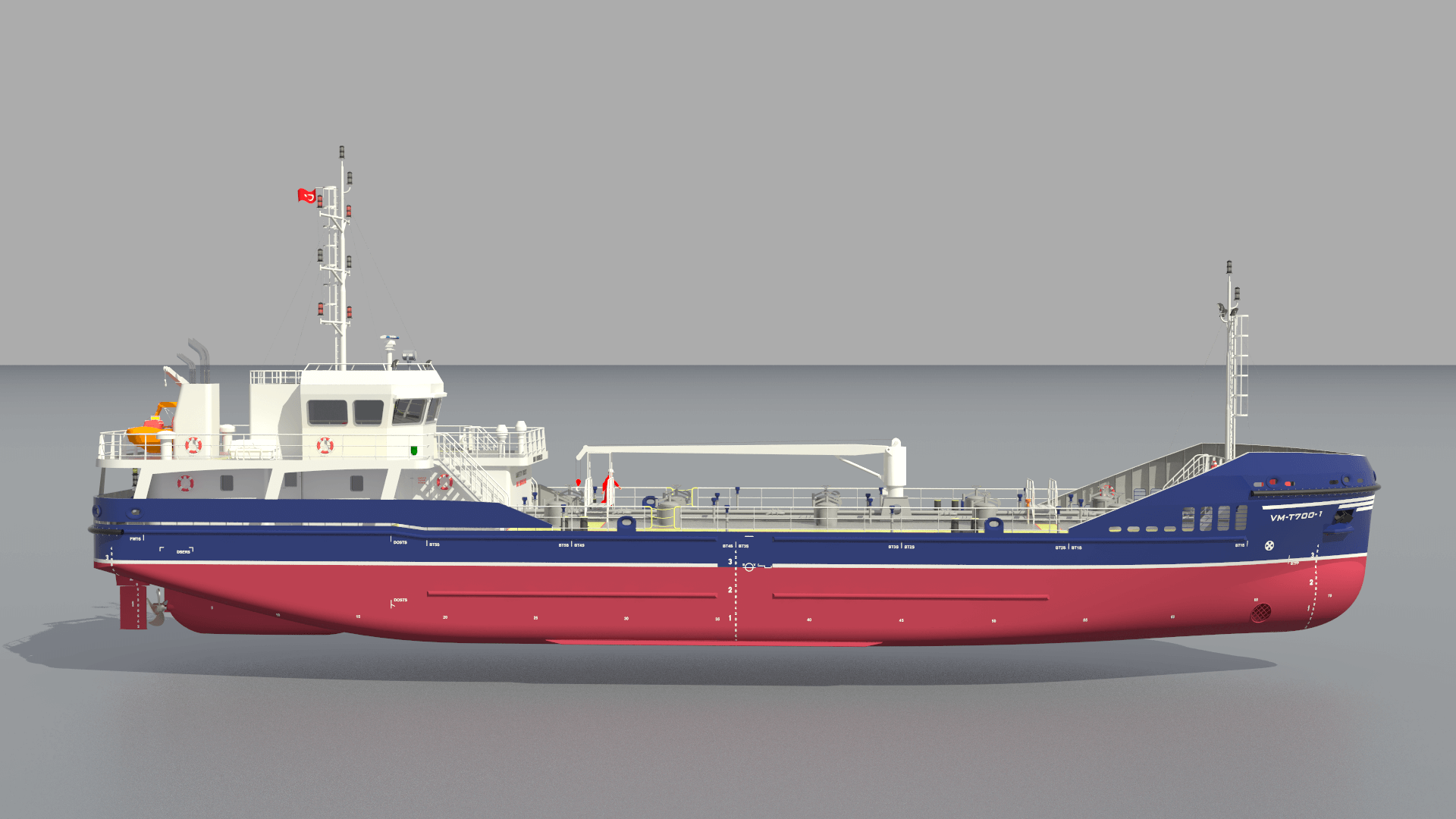

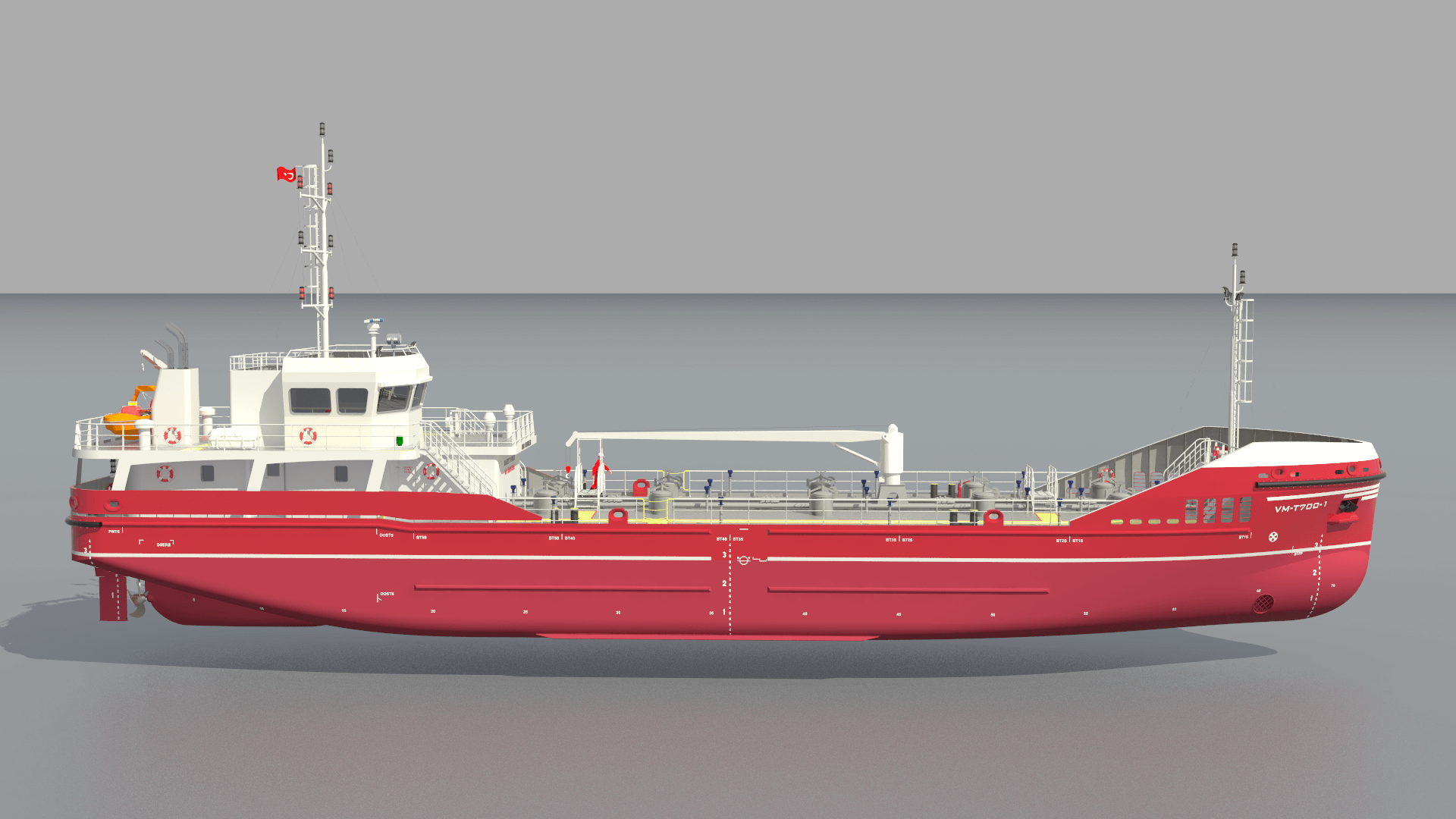

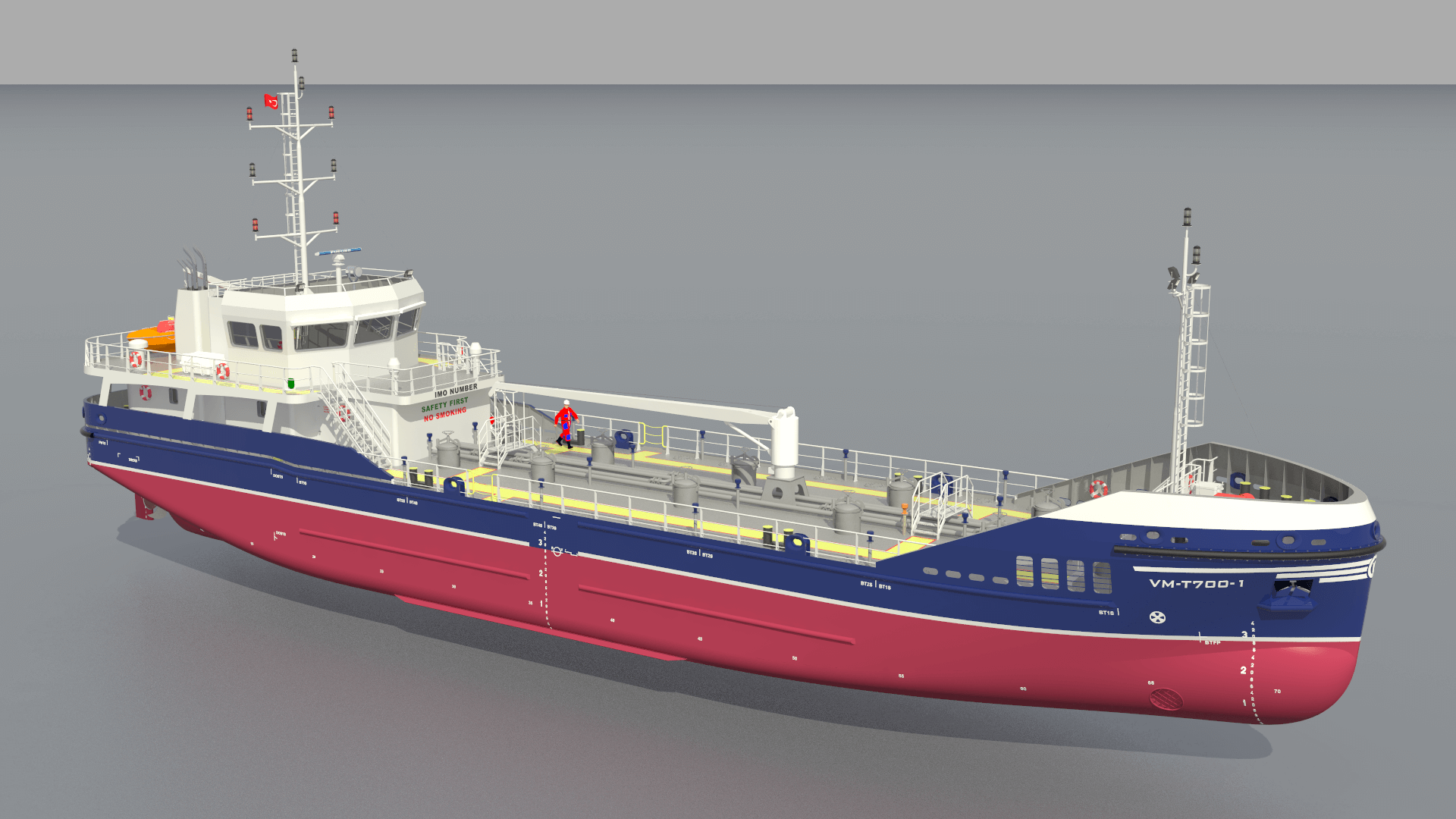

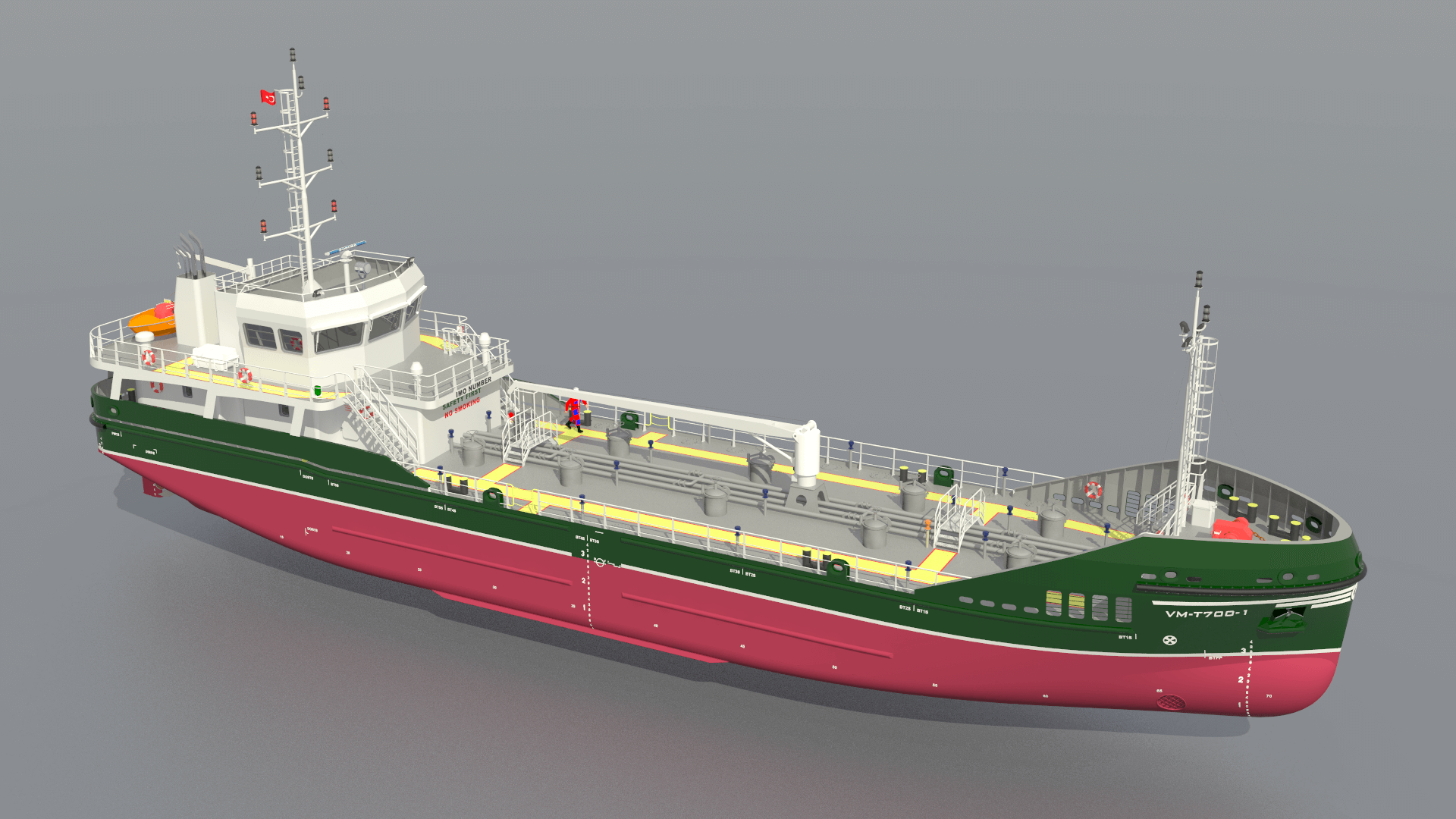

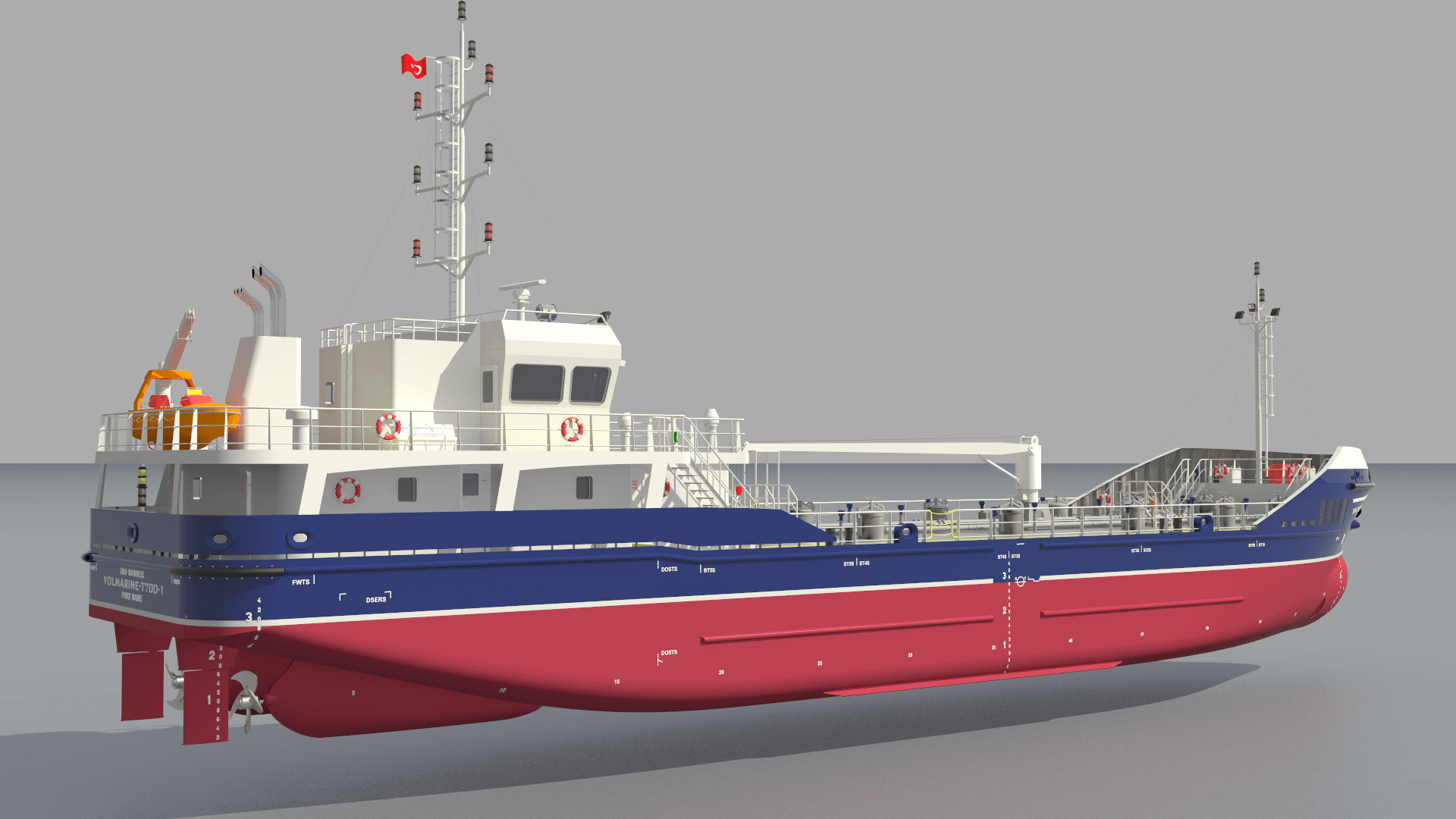

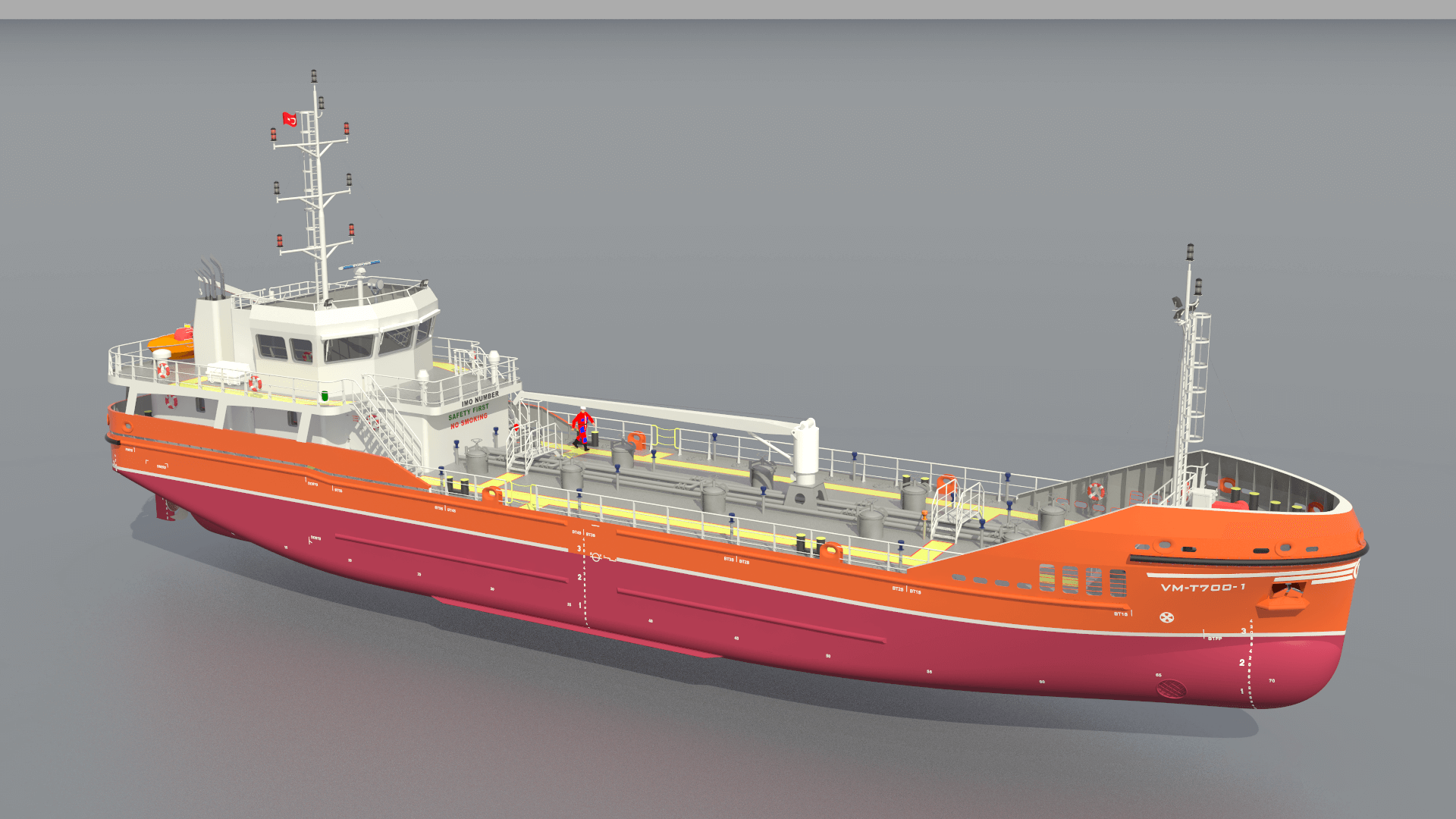

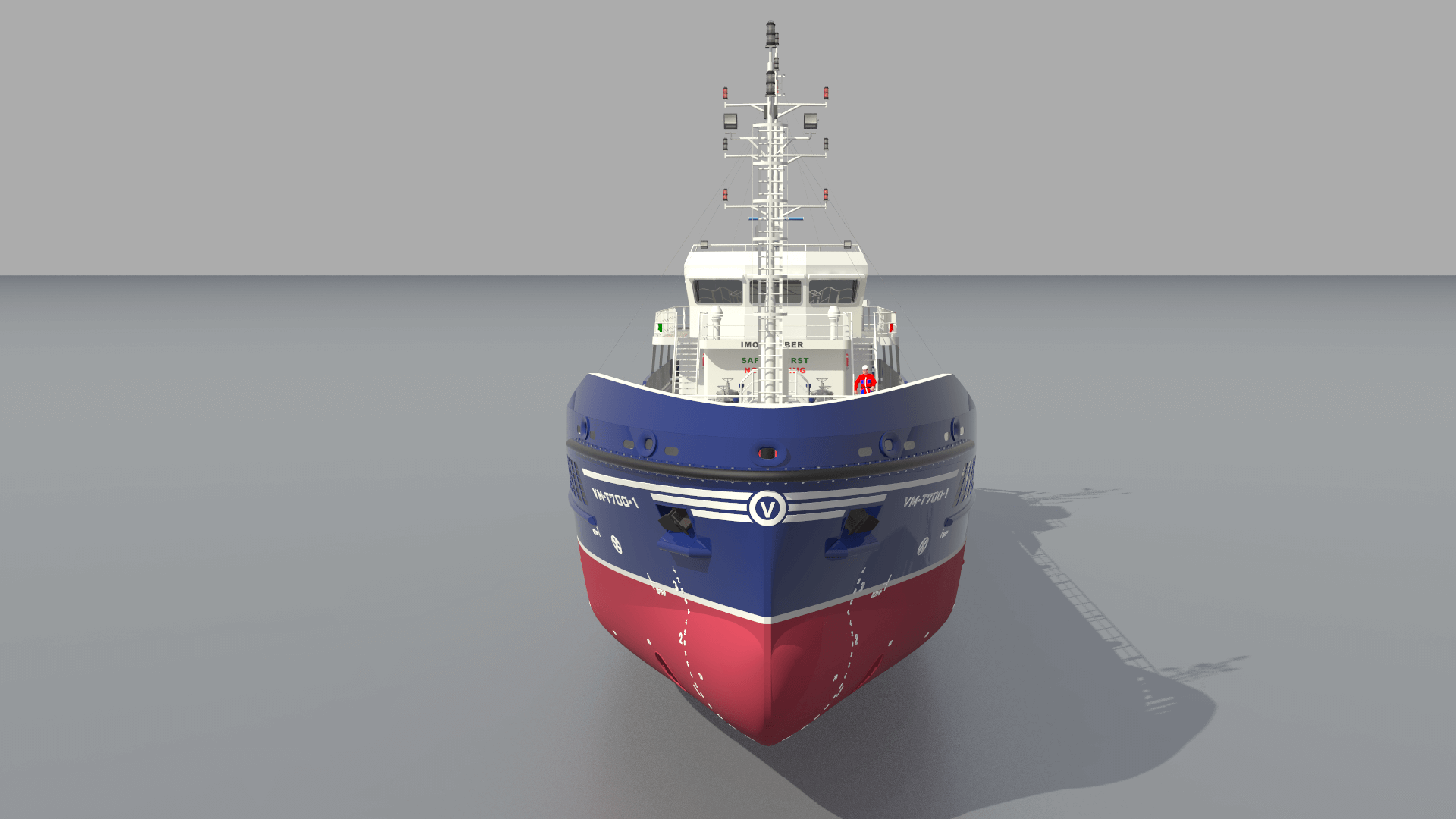

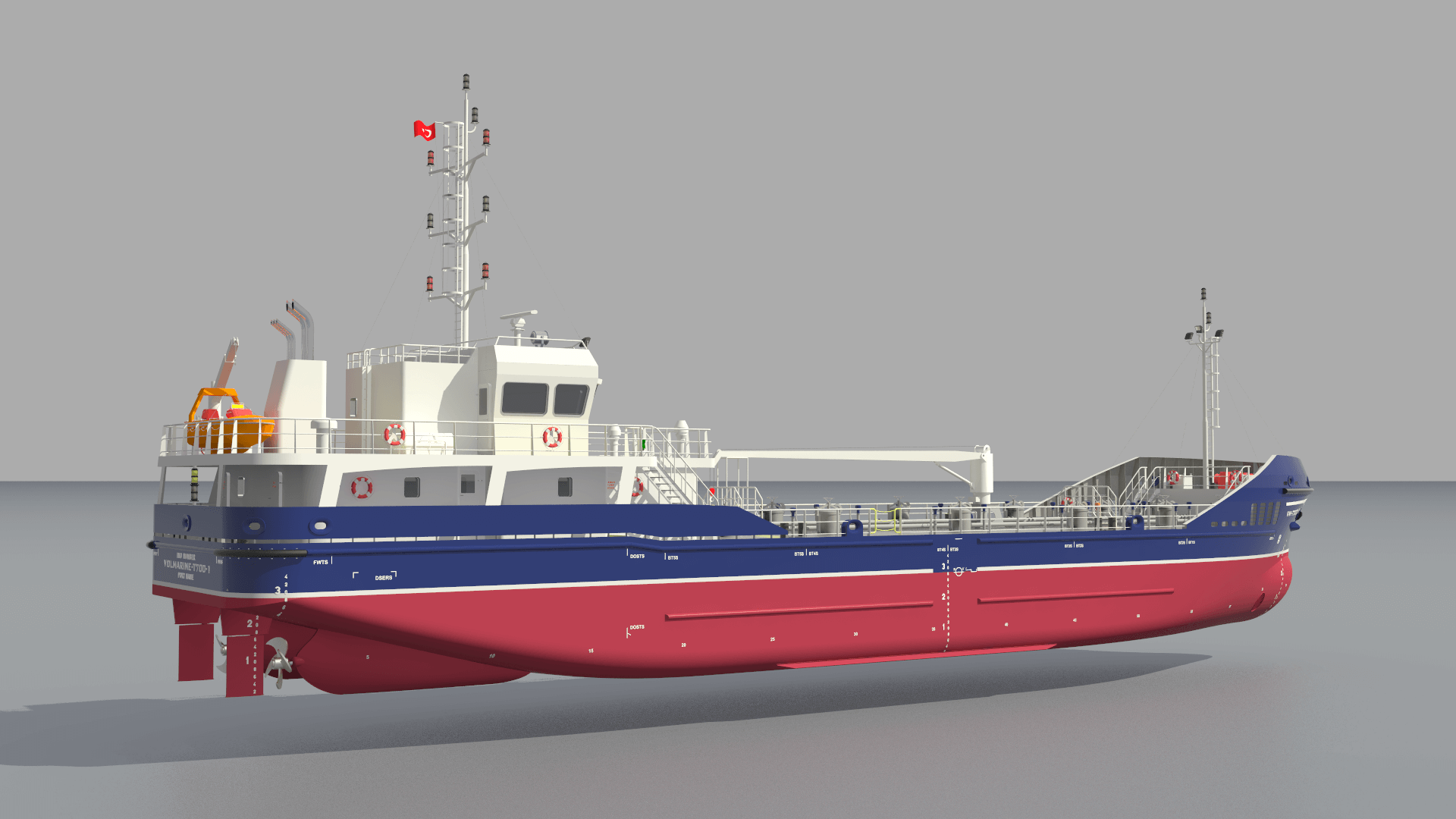

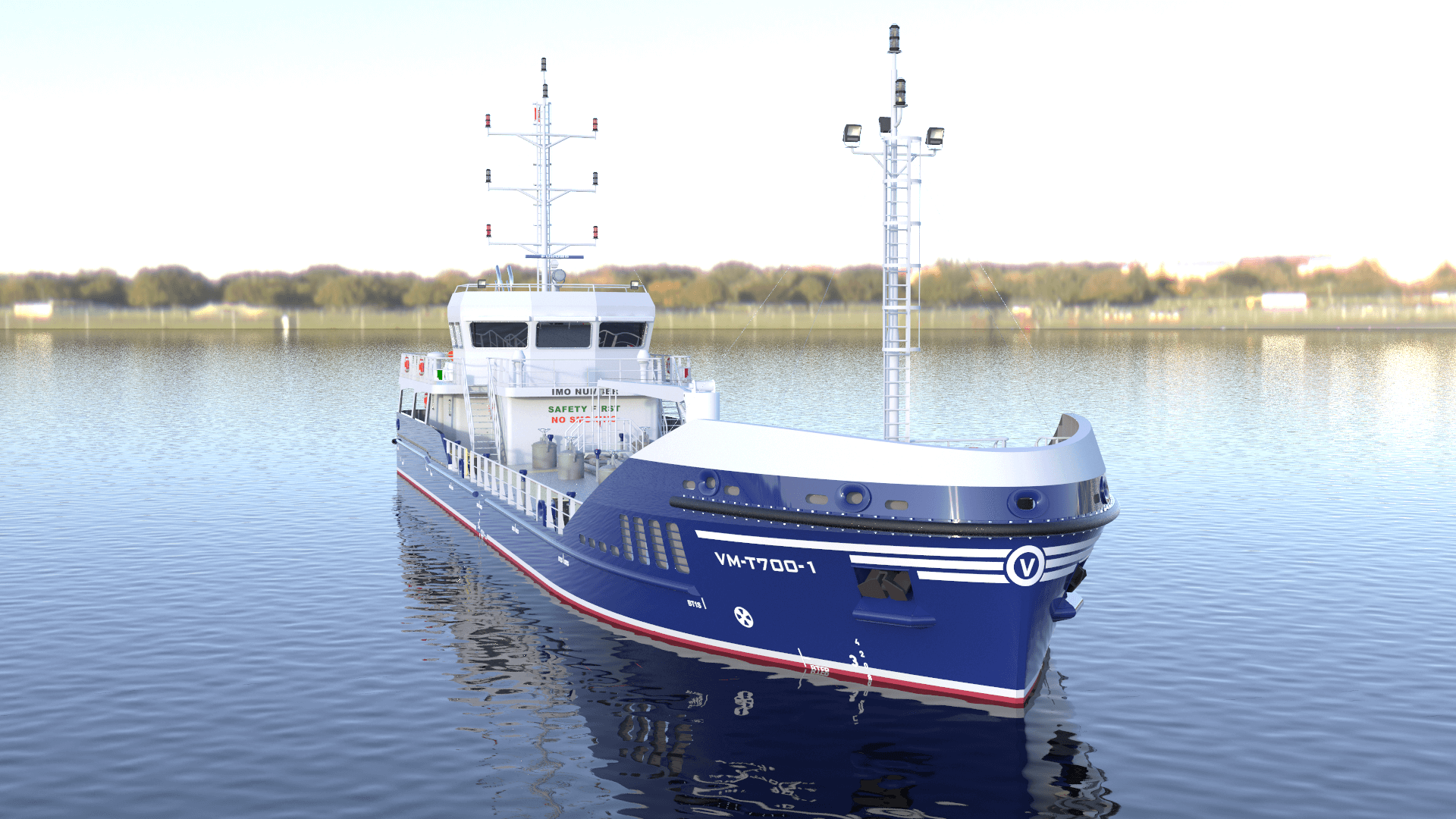

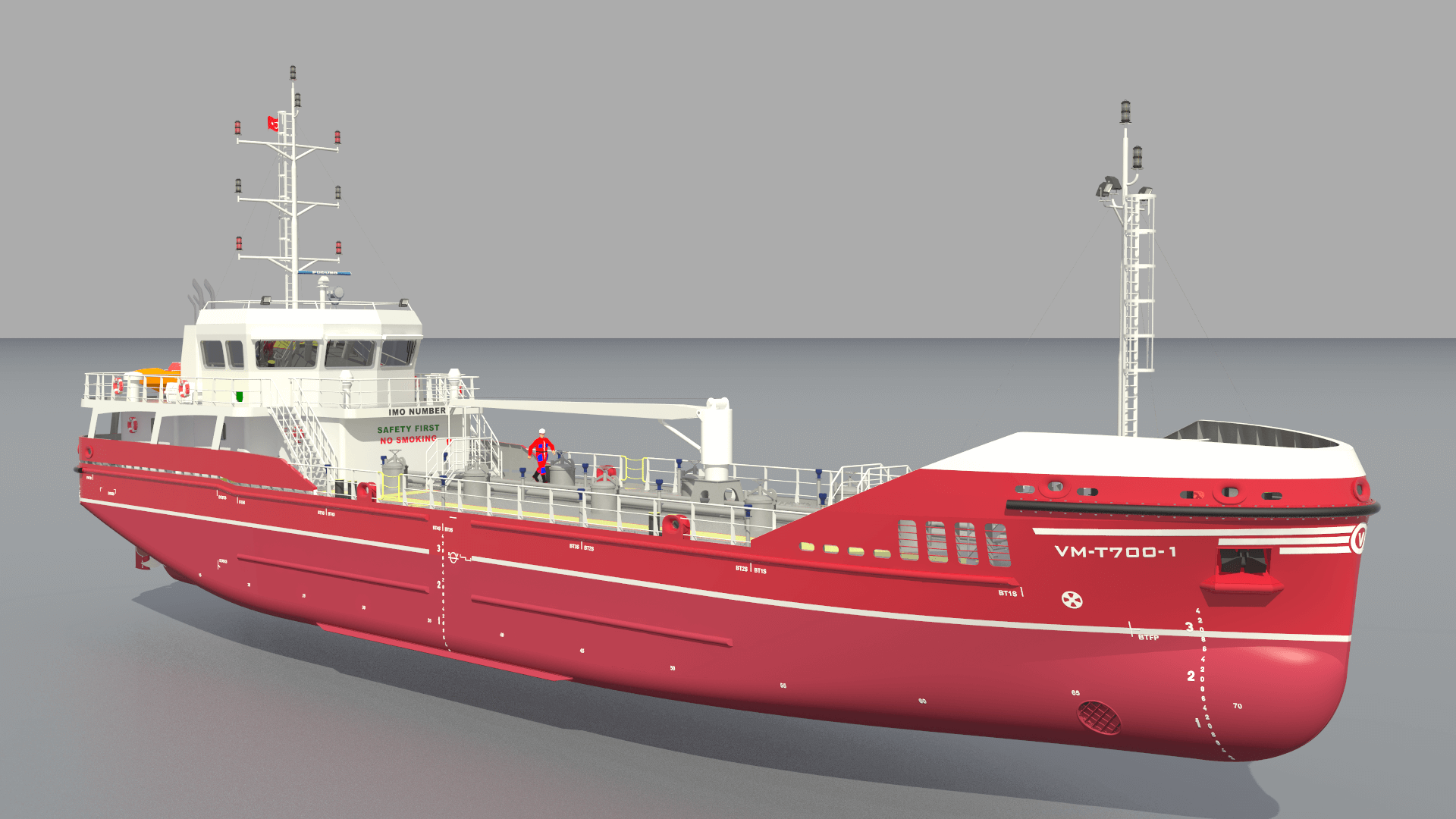

720M3 499GRT OIL TANKER-V1

The ship is designed for carrying petroleum products, mostly for diesel fuel bunkering market. Super structure is designed for 8 crew with a comfortable interior arrangement. Design scope includes concept design, contract design, class approval documents and production engineering for all hull, stability, machinery and piping issues.

CLASS INFORMATION

BUREAU VERITAS

I +HULL .MACHINERY

OIL TANKER / FLASH POINT ABOVE 60 DEGREE - IWS

UNRESTRICTED NAVIGATION

MAIN PARTICULARS

LOA (Length Over All) m : 47,50
LWL (Length Water Line) m : 47,25
LBP (Length Between Perpendiculars) m : 46,05
B (Breadth Moulded) m : 9,50
D (Depth Moulded) m : 4,00
T (Max Draught) m : 2,90
T (Scantling Draught) m : 3,50
CB (Block Coefficient) : 0,77
Crew Information : 8 Crew
Building Material : A Grade Marine Steel
V Service Speed (knots) : 10 knots at full load
Main Engine Power (kW) : 2 x 375 kW (Total 750 kW)
Main Engine Power (HP) : 2 x 500 HP (Total 1000 HP)
Cargo Tanks @ %100 Load (m3) : 720
Gross Tonnage : 498 GRT
